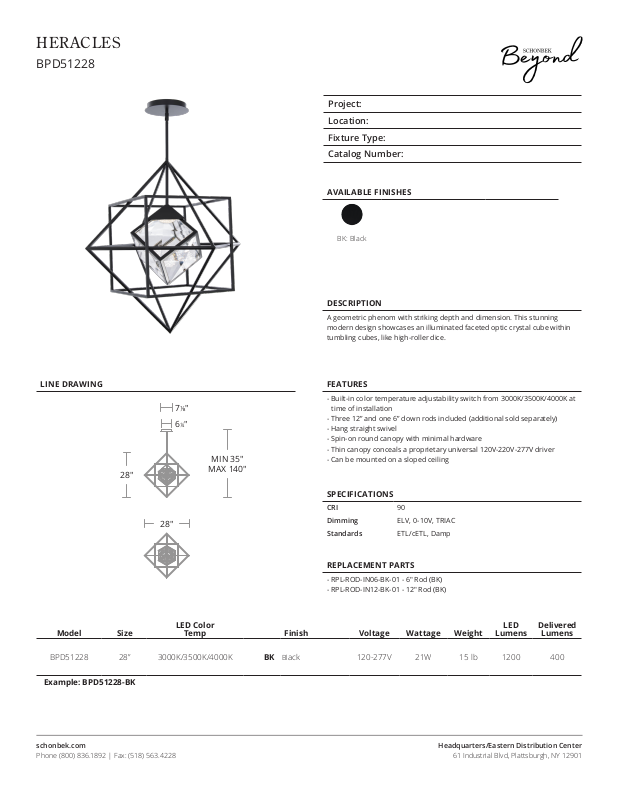

Page 1
HERACLES
BPD51228
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
BK: Black
DESCRIPTION
A geometric phenom with striking depth and dimension. This stunning
modern design showcases an illuminated faceted optic crystal cube within
tumbling cubes, like high-roller dice.
LINE DRAWING
28"
78"
64"
MIN 35"
MAX 140"
FEATURES
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Three 12” and one 6” down rods included (additional sold separately)
- Hang straight swivel
- Spin-on round canopy with minimal hardware
- Thin canopy conceals a proprietary universal 120V-220V-277V driver
- Can be mounted on a sloped ceiling
SPECIFICATIONS
CRI 90
28"
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp
REPLACEMENT PARTS
- RPL-ROD-IN06-BK-01 - 6" Rod (BK)
- RPL-ROD-IN12-BK-01 - 12" Rod (BK)
Model Size
LED Color
Temp Finish Voltage Wattage Weight
LED
Lumens
BPD51228 28” 3000K/3500K/4000K BK Black 120-277V 21W 15 lb 1200 400
Delivered
Lumens
Example: BPD51228-BK
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
