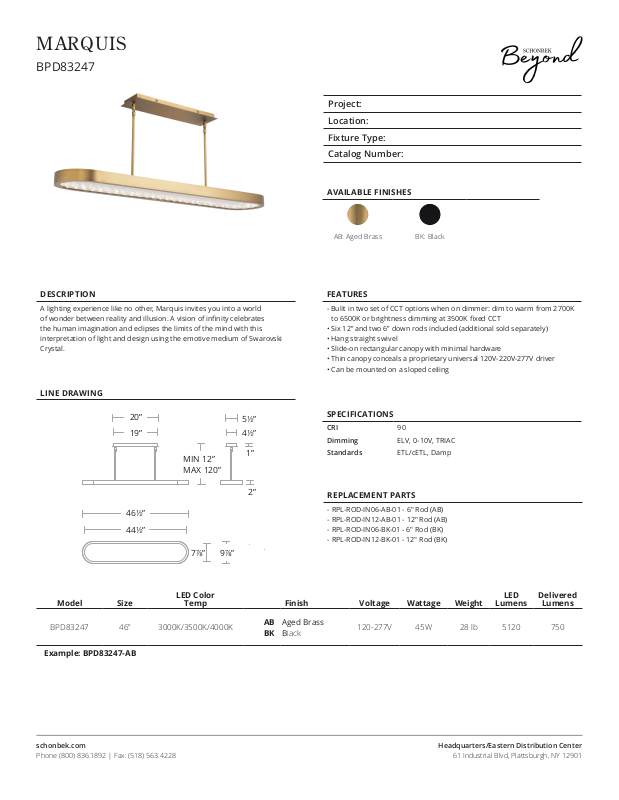

MARQUIS
BPD83247
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
AB: Aged Brass BK: Black
DESCRIPTION
A lighting experience like no other, Marquis invites you into a world
of wonder between reality and illusion. A vision of innity celebrates
the human imagination and eclipses the limits of the mind with this
interpretation of light and design using the emotive medium of Swarovski
Crystal.
LINE DRAWING
20”
19”
MIN 12”
52”
42”
1”
MAX 120”
2”
462”
442”
9d”
7d”
FEATURES
- Bulit in two set of CCT options when on dimmer: dim to warm from 2700K
to 6500K or brightness dimming at 3500K xed CCT
• Six 12” and two 6” down rods included (additional sold separately)
• Hang straight swivel
• Slide-on rectangular canopy with minimal hardware
• Thin canopy conceals a proprietary universal 120V-220V-277V driver
• Can be mounted on a sloped ceiling
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp
REPLACEMENT PARTS
- RPL-ROD-IN06-AB-01 - 6" Rod (AB)
- RPL-ROD-IN12-AB-01 - 12" Rod (AB)
- RPL-ROD-IN06-BK-01 - 6" Rod (BK)
- RPL-ROD-IN12-BK-01 - 12" Rod (BK)
Model Size
Temp Finish Voltage Wattage Weight
BPD83247 46” 3000K/3500K/4000K
Example: BPD83247-AB
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
LED Color
ABBKAged Brass
Black
LED
Lumens
Delivered
Lumens
120-277V 45W 28 lb 5120 750
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
