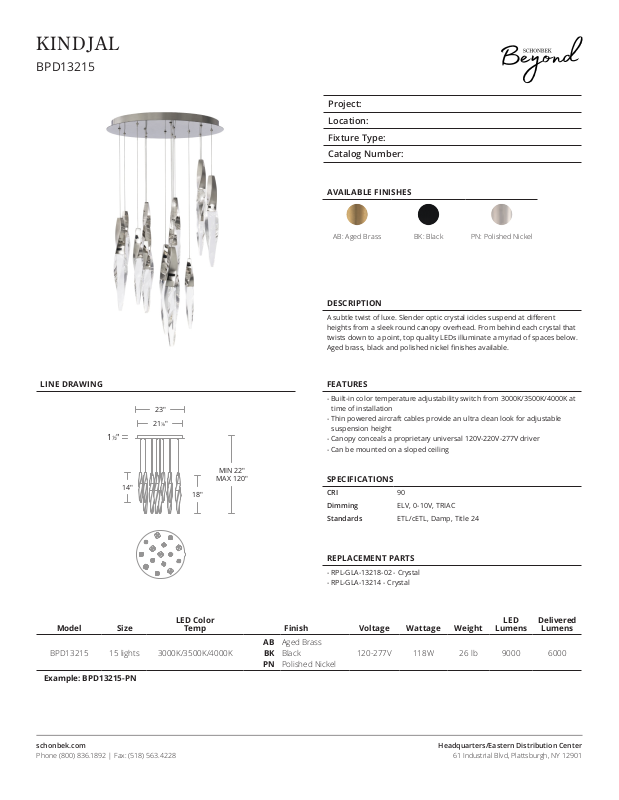

KINDJAL
BPD13215
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
AB: Aged Brass BK: Black PN: Polished Nickel
DESCRIPTION
A subtle twist of luxe. Slender optic crystal icicles suspend at dierent
heights from a sleek round canopy overhead. From behind each crystal that
twists down to a point, top quality LEDs illuminate a myriad of spaces below.
Aged brass, black and polished nickel nishes available.
LINE DRAWING
23"
218"
12"
14"
18"
LED Color
Model Size
Temp Finish Voltage Wattage Weight
BPD13215 15 lights 3000K/3500K/4000K
Example: BPD13215-PN
MIN 22"
MAX 120"
AB
Aged Brass
BK
Black
PN
Polished Nickel
FEATURES
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Thin powered aircraft cables provide an ultra clean look for adjustable
suspension height
- Canopy conceals a proprietary universal 120V-220V-277V driver
- Can be mounted on a sloped ceiling
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24
REPLACEMENT PARTS
- RPL-GLA-13218-02 - Crystal
- RPL-GLA-13214 - Crystal
LED
Lumens
Delivered
Lumens
120-277V 118W 26 lb 9000 6000
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
