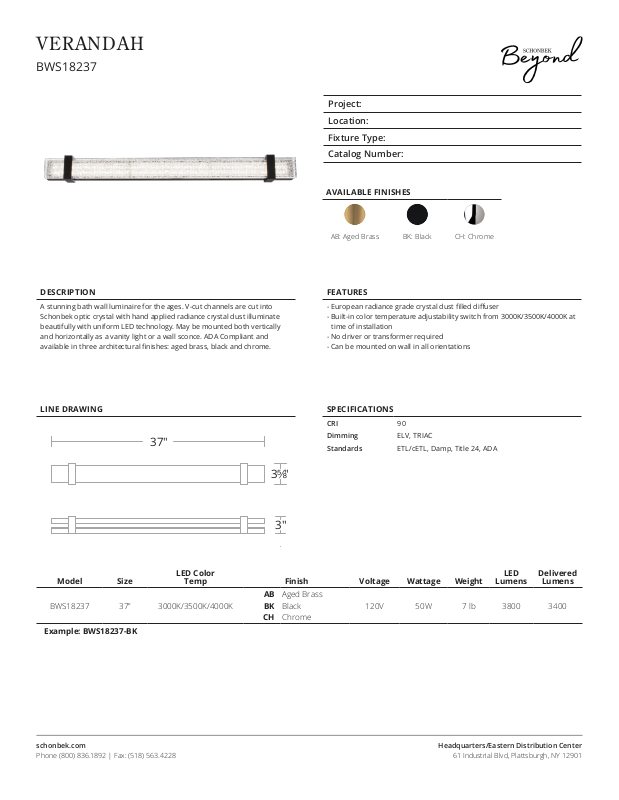

VERANDAH
37"
BWS18237
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
AB: Aged Brass BK: Black CH: Chrome
DESCRIPTION
A stunning bath wall luminaire for the ages. V-cut channels are cut into
Schonbek optic crystal with hand applied radiance crystal dust illuminate
beautifully with uniform LED technology. May be mounted both vertically
and horizontally as a vanity light or a wall sconce. ADA Compliant and
available in three architectural nishes: aged brass, black and chrome.
LINE DRAWING
3
Model Size
BWS18237 37” 3000K/3500K/4000K
Example: BWS18237-BK
LED Color
Temp Finish Voltage Wattage Weight
AB
BK
CH
s
"
3"
Aged Brass
Black
Chrome
FEATURES
- European radiance grade crystal dust lled diuser
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- No driver or transformer required
- Can be mounted on wall in all orientations
SPECIFICATIONS
CRI 90
Dimming ELV, TRIAC
Standards ETL/cETL, Damp, Title 24, ADA
LED
Lumens
120V 50W 7 lb 3800 3400
Delivered
Lumens
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
