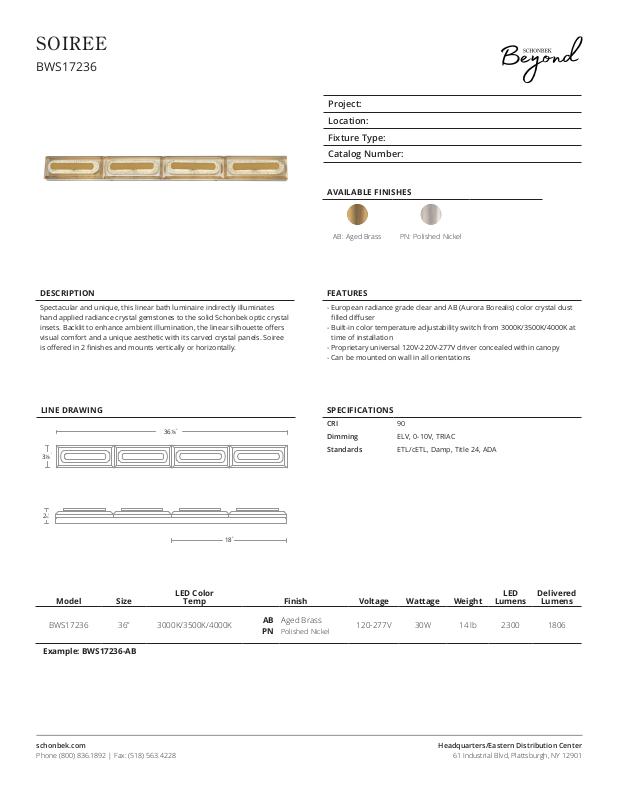

SOIREE
368
"
38
"
BWS17236
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
AB: Aged Brass PN: Polished Nickel
DESCRIPTION
Spectacular and unique, this linear bath luminaire indirectly illuminates
hand applied radiance crystal gemstones to the solid Schonbek optic crystal
insets. Backlit to enhance ambient illumination, the linear silhouette oers
visual comfort and a unique aesthetic with its carved crystal panels. Soiree
is oered in 2 nishes and mounts vertically or horizontally.
LINE DRAWING
"
368
"
38
"
2
a
"
18
FEATURES
- European radiance grade clear and AB (Aurora Borealis) color crystal dust
lled diuser
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Proprietary universal 120V-220V-277V driver concealed within canopy
- Can be mounted on wall in all orientations
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24, ADA
Model Size
BWS17236 36” 3000K/3500K/4000K
Example: BWS17236-AB
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
LED Color
Temp Finish Voltage Wattage Weight
ABPNAged Brass
Polished Nickel
120-277V 30W 14 lb 2300 1806
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
LED
Lumens
Delivered
Lumens
