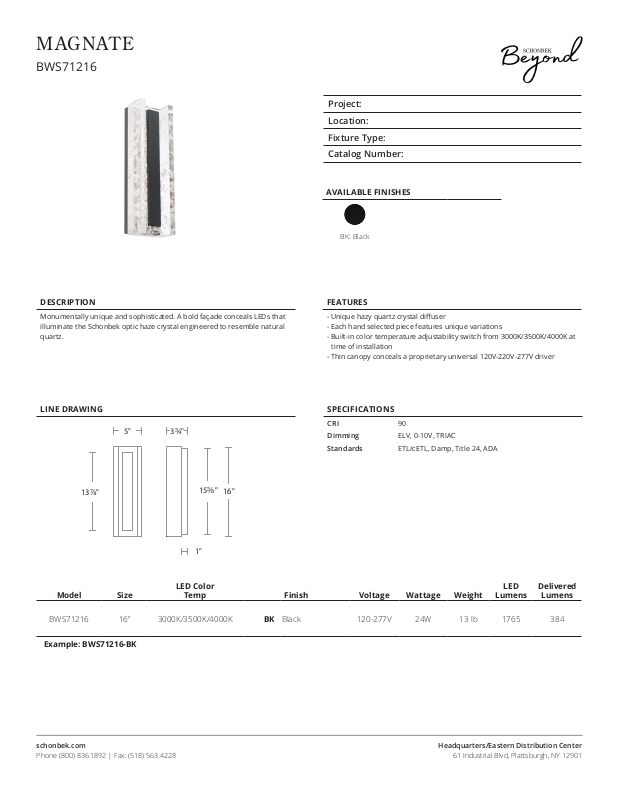

Page 1
MAGNATE
BWS71216
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
BK: Black
DESCRIPTION
Monumentally unique and sophisticated. A bold façade conceals LEDs that
illuminate the Schonbek optic haze crystal engineered to resemble natural
quartz.
LINE DRAWING
5"
13d"
3w"
15a"
16"
1"
Model Size
LED Color
Temp Finish Voltage Wattage Weight
FEATURES
- Unique hazy quartz crystal diuser
- Each hand selected piece features unique variations
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Thin canopy conceals a proprietary universal 120V-220V-277V driver
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24, ADA
LED
Lumens
Delivered
Lumens
BWS71216 16” 3000K/3500K/4000K BK Black 120-277V 24W 13 lb 1765 384
Example: BWS71216-BK
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
