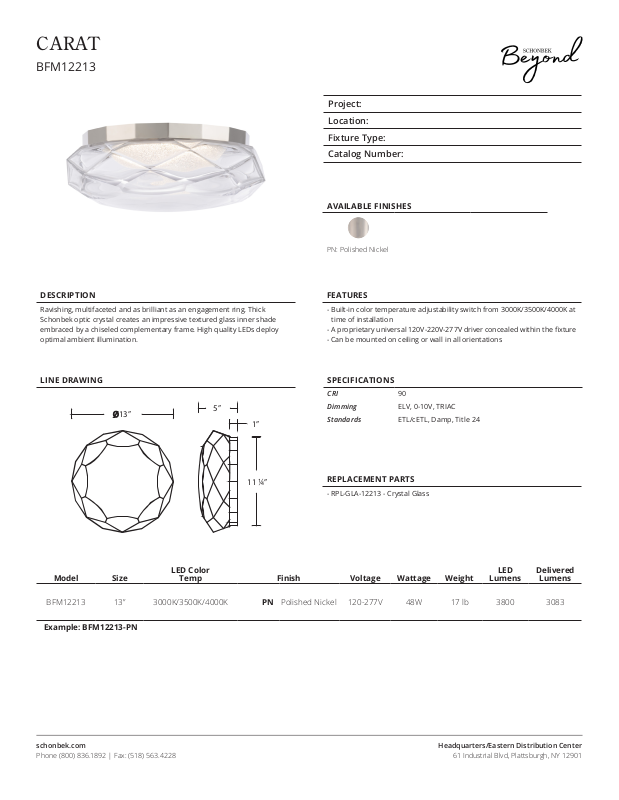

Page 1
CARAT
BFM12213
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
PN: Polished Nickel
DESCRIPTION
Ravishing, multifaceted and as brilliant as an engagement ring. Thick
Schonbek optic crystal creates an impressive textured glass inner shade
embraced by a chiseled complementary frame. High quality LEDs deploy
optimal ambient illumination.
LINE DRAWING SPECIFICATIONS
13”
5”
1”
11 4”
Model Size
LED Color
Temp Finish Voltage Wattage Weight
FEATURES
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- A proprietary universal 120V-220V-277V driver concealed within the xture
- Can be mounted on ceiling or wall in all orientations
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24
REPLACEMENT PARTS
- RPL-GLA-12213 - Crystal Glass
LED
Lumens
Delivered
Lumens
BFM12213 13” 3000K/3500K/4000K PN Polished Nickel 120-277V 48W 17 lb 3800 3083
Example: BFM12213-PN
