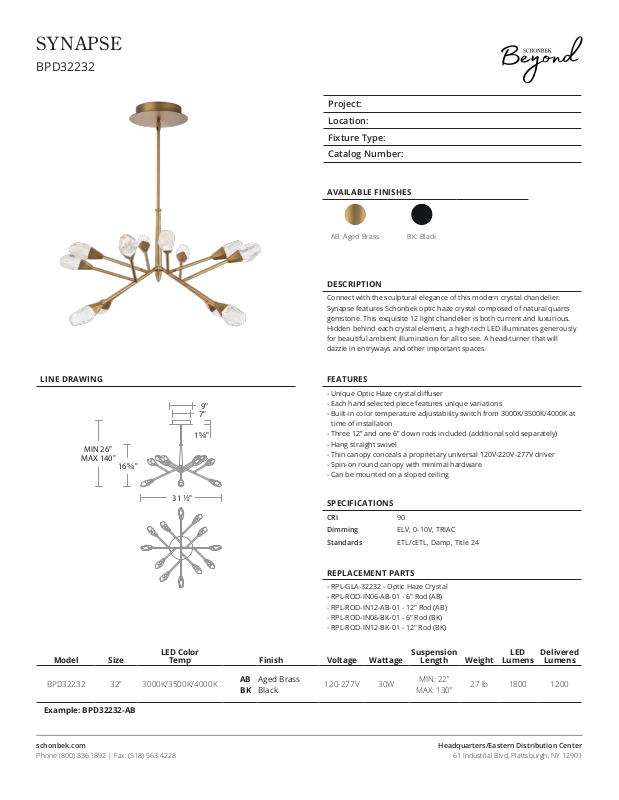

Page 1
SYNAPSE
BPD32232
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE FINISHES
AB: Aged Brass BK: Black
DESCRIPTION
Connect with the sculptural elegance of this modern crystal chandelier.
Synapse features Schonbek optic haze crystal composed of natural quarts
gemstone. This exquisite 12 light chandelier is both current and luxurious.
Hidden behind each crystal element, a high-tech LED illuminates generously
for beautiful ambient illumination for all to see. A head-turner that will
dazzle in entryways and other important spaces.
LINE DRAWING
MIN 26"
MAX 140"
Model Size
16 s"
FEATURES
- Unique Optic Haze crystal diuser
- Each hand selected piece features unique variations
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Three 12” and one 6” down rods included (additional sold separately)
- Hang straight swivel
- Thin canopy conceals a proprietary universal 120V-220V-277V driver
- Spin-on round canopy with minimal hardware
- Can be mounted on a sloped ceiling
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24
31 2"
7"
1 s"
9"
REPLACEMENT PARTS
- RPL-GLA-32232 - Optic Haze Crystal
- RPL-ROD-IN06-AB-01 - 6" Rod (AB)
- RPL-ROD-IN12-AB-01 - 12" Rod (AB)
- RPL-ROD-IN06-BK-01 - 6" Rod (BK)
- RPL-ROD-IN12-BK-01 - 12" Rod (BK)
LED Color
Temp Finish Voltage Wattage
Suspension
Length Weight
LED
Lumens
Delivered
Lumens
BPD32232 32” 3000K/3500K/4000K
Example: BPD32232-AB
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
ABBKAged Brass
Black
120-277V 30W
MIN: 22”
MAX: 130”
Headquarters/Eastern Distribution Center
27 lb 1800 1200
61 Industrial Blvd, Plattsburgh, NY 12901
