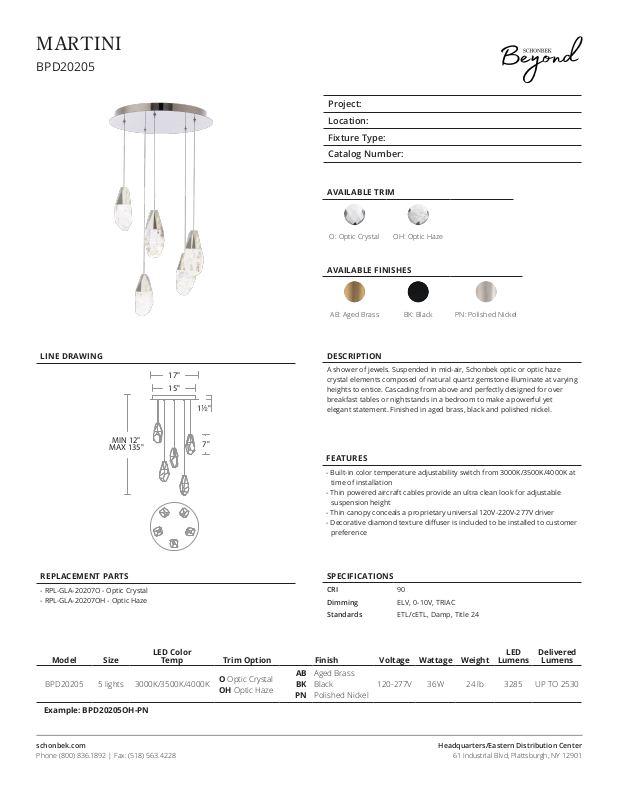

Page 1
MARTINI
BPD20205
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLE TRIM
O: Optic Crystal OH: Optic Haze
AVAILABLE FINISHES
AB: Aged Brass BK: Black PN: Polished Nickel
LINE DRAWING
MIN 12"
MAX 135"
REPLACEMENT PARTS
- RPL-GLA-20207O - Optic Crystal
- RPL-GLA-20207OH - Optic Haze
17"
15"
12"
7"
DESCRIPTION
A shower of jewels. Suspended in mid-air, Schonbek optic or optic haze
crystal elements composed of natural quartz gemstone illuminate at varying
heights to entice. Cascading from above and perfectly designed for over
breakfast tables or nightstands in a bedroom to make a powerful yet
elegant statement. Finished in aged brass, black and polished nickel.
FEATURES
- Built-in color temperature adjustability switch from 3000K/3500K/4000K at
time of installation
- Thin powered aircraft cables provide an ultra clean look for adjustable
suspension height
- Thin canopy conceals a proprietary universal 120V-220V-277V driver
- Decorative diamond texture diuser is included to be installed to customer
preference
SPECIFICATIONS
CRI 90
Dimming ELV, 0-10V, TRIAC
Standards ETL/cETL, Damp, Title 24
Model Size
Temp Trim Option Finish Voltage Wattage Weight
BPD20205 5 lights 3000K/3500K/4000K
Example: BPD20205OH-PN
schonbek.com
Phone (800) 836.1892 | Fax: (518) 563.4228
LED Color
O Optic Crystal
OH Optic Haze
AB
Aged Brass
BK
Black
PN
Polished Nickel
LED
Lumens
Delivered
Lumens
120-277V 36W 24 lb 3285 UP TO 2530
Headquarters/Eastern Distribution Center
61 Industrial Blvd, Plattsburgh, NY 12901
