Schneider Electric SSLM1D23BD Data Sheet

Product data sheet

Characteristics

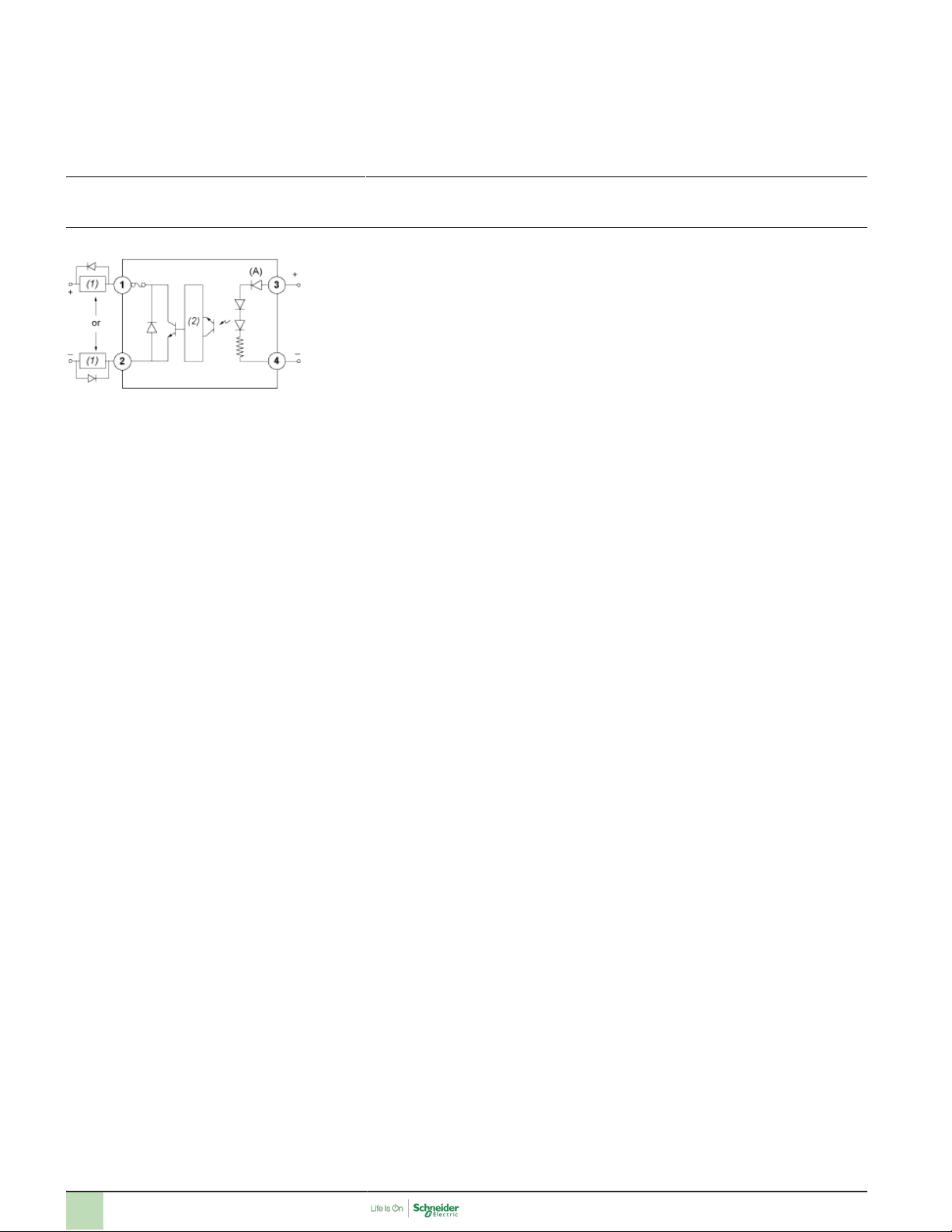

SSLM1D23BD

solid state relay - DIN rail mount - input 4-28 V
DC, output 5-60 V DC, 3A

Main

Range of product Zelio Relay

Product or component type Solid state relay

Device short name SSLM

Phase 1 phase

Complementary

Mounting support Symmetrical DIN rail

Line Rated Current 3 A

Output voltage 5...60 V DC

[Uc] control circuit voltage 4...28 V DC

Contacts type and configuration 1 NO

Tightening torque 0.6...0.8 N.m

Connections - terminals Screw terminals : 1 x 0.2...1 x 5.26 mm² (AWG 24...AWG 10)

Switching voltage 4 V DC turn-on

Load current 0...3 A

Voltage drop <= 1 V on-state

Leakage current <= 1 mA off-state

Response time 40 µs turn-on

Overvoltage category III

Width 0.3 in (7.5 mm)

Height 3.15 in (80 mm)

Depth 2.48 in (63 mm)

Product weight 0.07 lb(US) (0.03 kg)

40 µs turn-off

Aug 23, 2019

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Environment

Dielectric strength 4000 V for input/output

Pollution degree 2

Product certifications EAC

Marking CSA

Ambient air temperature for operation 32...158 °F (0...70 °C)

UL
CSA

UL
EAC
CE

Ordering and shipping details

Category 21127 - ZELIO ICE CUBE RELAYS

Discount Schedule CP2

GTIN 00785901833864

Nbr. of units in pkg. 12

Package weight(Lbs) 0.96999999999999997

Returnability Y

Country of origin MX

Offer Sustainability

Sustainable offer status Green Premium product

RoHS (date code: YYWW) Compliant - since 1522 - Schneider Electric declaration of conformity

REACh Reference not containing SVHC above the threshold

Product environmental profile Available

Product end of life instructions Available

California proposition 65 WARNING: This product can expose you to chemicals including:

- - - - - - - Substance 1 Nickel compounds, which is known to the State of California to cause cancer, and

- - - - - - - Substance 2 Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other

- - - - - - - More information For more information go to www.p65warnings.ca.gov

reproductive harm.
