FRESH AIR ENCLOSURE COOLING Accessories
APPLICATION
Spec-00309
I
763.422.2211
763.576.3200
COOLING
Fresh Air enclosure cooling
Accessories

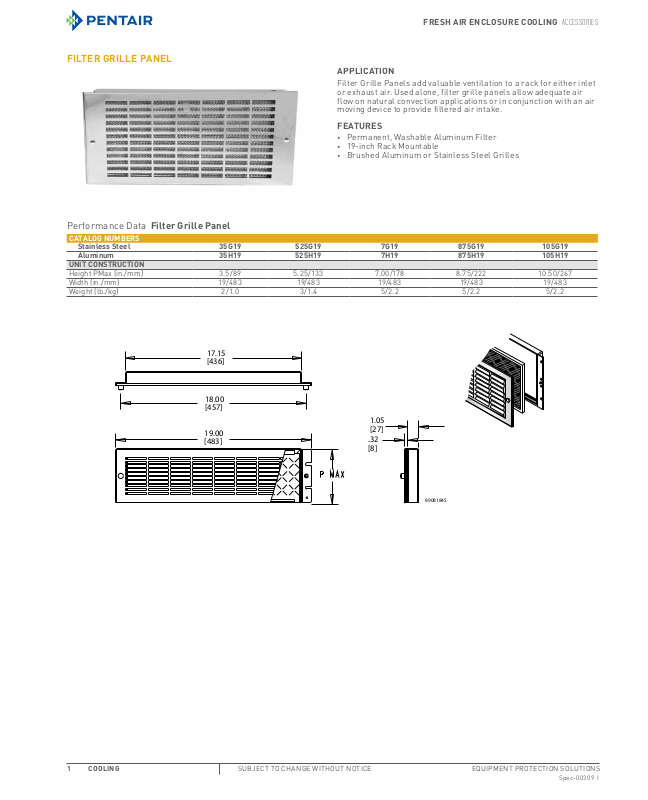

FILTER GRILLE PANEL
Filter Grille Panels add valuable ventilation to a rack for either inlet
or exhaust air. Used alone, filter grille panels allow adequate air
flow on natural convection applications or in conjunction with an air
moving device to provide filtered air intake.
FEATURES
• Permanent, Washable Aluminum Filter
• 19-inch Rack Mountable
• Brushed Aluminum or Stainless Steel Grilles
Performance Data Filter Grille Panel
CATALOG NUMBERS
Stainless Steel 35
Aluminum 35H19 525H19 7H19 8 75H19 105H19
UNIT
CONSTRUCTION
Height PMax (in./mm) 3.5/89 5.25/133 7.0 0/178 8.75/222 10.50/267
Width (in./mm) 19/483 19/483 19/483 19/4 83 19/483
Weight (lb./kg) 2/1.0 3/1.4 5/2.2 5/2.2 5/2.2
G19 525G1
9 7
G19 875G19 1
05G19
17.15
[436]
18.00
[457]
19.00
[483]
1.05
[27]
.32
[8]
89081845
EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CH ANGE WIT HOUT NOTICECOOLING1
Spec-00309 I
FRESH AIR ENCLOSURE COOLING Accessories
LOUVER PLATE KITS
Designed to provide ventilation in enclosures where excessive
internal heat or excessive moisture is a problem. Although louvers
cannot keep all moisture out of an enclosure, gasketing or sealing
the perimeter of the louver plate reduces problems associated with
moisture intrusion. These kits may be easily installed in the field
by making a cutout of the proper size and attaching the louver plate
in place. Louver plates are made from 14 gauge steel with an ANSI
61 gray polyester powder finish over pretreated surfaces or 316
stainless steel. Hardware is furnished for mounting. Custom sizes,
materials, finishes, etc., can be provided on special order.
Design Data Louver Plate Kits
Dimensions
CATALOG NUMBERS
AVK23 3.25 x 3.25/83 x 8 3 3 0.19/ 5 2.00/51 .86/5.54 2.00/51 1.75/44
AVK23SS6 3.25 x 3.25/83 x 8 3 3 0.19/ 5 2.00/51 .86/5.54 2.00/51 1.75/44
AVK33 3.88 x 4.50/98 x 114 3 0.25/6 3.00/76 1.32/8.52 2.62/67 3.00/76
AVK33SS6 3.88 x 4.50/98 x 114 3 0.25/6 3.00/76 1.32/8.52 2.62/67 3.00/76
AVK34 4.75 x 4.50/121 x 114 4 0.25/6 3.00/76 1.76/11.35 3.50/89 3.00/ 76
AVK34SS6 4.75 x 4.50/121 x 114 4 0.25/6 3.00/76 1.76/11.35 3.50/89 3.00/ 76
AVK43 4.50 x 5.50/114 x 140 3 0.25/6 4.00/102 1.8 8 /12.10 3.25/83 4.00/102
AVK43SS6 4.50 x 5.50/114 x 140 3 0.25/6 4.00/102 1.8 8 /12.10 3.25/83 4.00/102
AVK44 5.62 x 5.50/143 x 140 4 0.25/6 4.00/102 2.5 0/16.13 4.38/ 111 4.00/102
AVK44SS6 5.62 x 5.50/143 x 140 4 0.25/6 4.00/102 2.5 0/16.13 4.38/ 111 4.00/102
AVK64 5.62 x 7.50/143 x 191 4 0.31/8 6.00/152 5. 21/33. 61 4. 38/111 6.00/152
AVK64SS6 5.62 x 7.50/143 x 191 4 0.31/8 6.00/152 5. 21/33. 61 4. 38/111 6.00/152
AVK66 7.88 x 7.50/200 x 191 6 0.31/8 6.00/152 7.82/50. 4 5 6.62/168 6.00/152
AVK66SS6 7.88 x 7.50/200 x 191 6 0.31/8 6.00/152 7.82/50. 4 5 6.62/168 6.00/152
AVK84 5.81 x 9.50/148 x 241 4 0.31/8 8.00/203 8.08/52.12 4.56/116 8.00/203
AVK84SS6 5.81 x 9.50/148 x 241 4 0.31/8 8.00/203 8.08/52.12 4.56/116 8.00/203
AVK86 8.19 x 9.50/208 x 241 6 0.31/8 8.00/203 12.11/ 7 8.13 6.94 /176 8.00/203
AVK86SS6 8.19 x 9.50/208 x 241 6 0.31/8 8.00/203 12.11/ 7 8.13 6.94 /176 8.00/203
AVK88 10.56 x 9.50/268 x 241 8 0.31/8 8.00/203 16 .15 /104.19 9.31/23 6 8.00/203
AVK88SS6 10.56 x 9.50/268 x 241 8 0.31/8 8.00/203 16 .15 /104.19 9.31/23 6 8.00/203
AVK812 15.31 x 9.50/389 x 241 12 0.31/8 8.00/203 24.22/156.26 14.06/357 8.00/203
AVK812SS6 15.31 x 9.50/389 x 241 12 0.31/8 8.00/203 24.22/156.26 14.06/357 8.00/203
Catalog numbers ending in SS6 indicates 316L stainless steel
A x B
in./mm
Number
of Louvers
Thickness
in./mm
Length L
in./mm
Opening Area
in.2/cm
2
Cutout
Size, F
in./mm
Cutout
Size, G
in./mm
EQUIPMENT PROTECTION SOLUTIONS COOLING 2
Spec-00309 I
LOUVER PLATE KIT FILTERS
Design
Filter Media
Designed for use with Louver Plate Kit. Mounting holes on filter
bracket align with louver mounting holes. Hardware supplied with
louvers also secures filter brackets in place. Aluminum air filters
provide good arrestment of airborne dust and dirt.
FRESH AIR ENCLOSURE COOLING Accessories
Filter media is composed of layers of slit and expanded aluminum
providing hundreds of adhesive coated baffle surfaces for trapping
impurities. Impurities are held throughout the depth of the filter.
Washing with warm water will keep the filter clean. To achieve best
results, Filter Adhesive is recommended.
CATALOG NUMBERS
AFLT33 3.22x 3.25/82 x 83 AVK33 AVK33SS6
AFLT34 4.09 x 3.25/104 x 83 AVK34 AVK34SS6
AFLT43 3.84 x 4.25/98 x 108 AVK 43 AVK43SS6
AFLT44 4.97 x 4.25/126 x 108 AVK44 AVK44S S6
AFLT64 4.45 x 6.25/113 x 159 AVK6 4 AVK64SS6
AFLT66 6.72 x 6.25/171 x 159 AVK66 AV K66SS6
AFLT84 4.64 x 8.25/118 x 210 AVK8 4 AVK84SS6
AFLT86 7.02 x 8.25/178 x 210 AVK86 AV K86SS6
AFLT88 9.39 x 8.25/239 x 210 AVK88 AVK88SS6
AFLT812 14.14 x 8.25/359 x 210 AVK 812 AVK 812 SS6
Dimensions H x W
(in./mm)
Use with
Steel
Louver
Use with
Stainless
Steel
Louver
EQUIPMENT PROTECTION SOLUTIONSSUBJECT TO CH ANGE WIT HOUT NOTICECOOLING3
Spec-00309 I
FRESH AIR ENCLOSURE COOLING Accessories
VENT KIT
VENTILATOR
FILTER ADHESIVE
Designed to maximize the efficiency of all expanded aluminum air
Includes a stylized louvered cover and filter package. Use as an air
inlet when a cooling fan is mounted in an enclosure or use two vent
kits to allow passive airflow. Mounting hardware included. Vent Kit
requires cutout shown in diagram. Available in gray (RAL 7042) or
black.
CATALOG NUMBERS
UNIT
CONSTRUCTON
Dimension H x W x D (in./mm) 1
Color Gray Black
CATALOG NUMBERS
DESIGN DATA
Description Large nonmetallic vent Small nonmetallic vent
NMV6 ANMV3
A
PV32 PPV32B
X
1.81 x 7.88 x 1.03
300 x 200 x 26
11.81 x 7.88 x 1.03
300 x 200 x 26
Designed to fit most metallic and non-metallic enclosures. Proper
installation will provide rainproof ventilation but will not meet
Type 4 or 12 requirements. Kit includes mounting hardware, and
instructions.
Supplied screws are 13-mm (.515-inch) long. Some applications may
require longer screws.
filters. Use of Filter Adhesive doubles the dust-retention capacity of
the filter. Adhesive contains a low-viscosity water-soluble oil which
absorbs dirt particles trapped on the surface of the filter. Through
the circulation of the oil, a renewed impurity-absorbing surface is
constantly established. Washing with water will remove dust, dirt
and other impurities. Once the filter is dry, re-coat with adhesive.
CATALOG NUMBERS
DESIGN DATA
Description Spray Adhesive
AF
LTAD
EQUIPMENT PROTECTION SOLUTIONS COOLING 4
Spec-00309 I
