Schneider Drayton Wiser installation Guide

In

troduction

Save this guide for future reference.

If you are replacing an existing controller/
programmer and don’t need to make any wiring
changes that’s great news. All you need to do is
remove the old product and fit your new Wiser Heat
Hub

R

to the existing wallplate.

If you are fitting a new system or require re-wiring
please contact an installer.

Welcome!

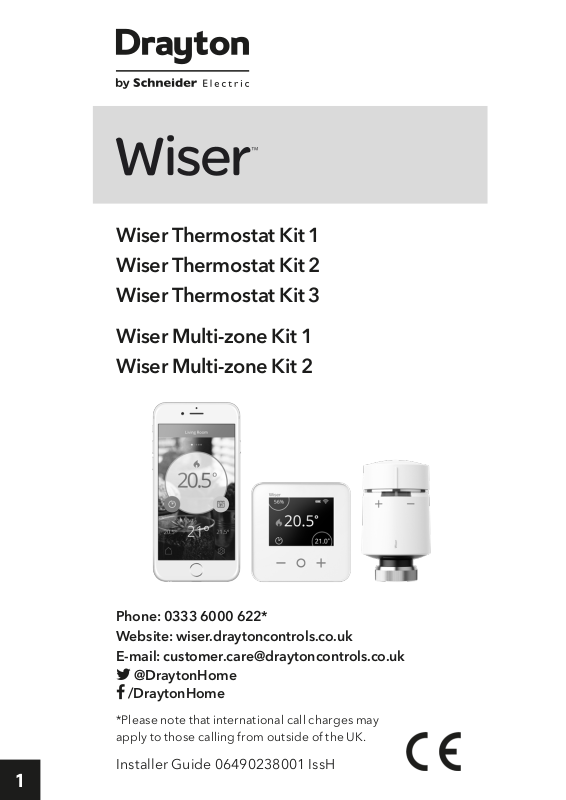

Installer Guide 06490238001 IssH

Wiser Thermostat Kit 1

! IMPORTANT:

Do not attempt to install this product if you are
not familiar with how to install mains-powered
electrical appliances.

Always switch off the mains before removing
a controller and never fit it to a live wallplate.

S

tep 1:

Mounting the wallplate

Wiser Thermostat Kit 2
Wiser Thermostat Kit 3

Wiser Multi-zone Kit 1
Wiser Multi-zone Kit 2

1

Phone: [phone]*
Website: wiser.draytoncontrols.co.uk
E-mail: [e-mail]

 @DraytonHome
 /DraytonHome

*Please note that international call charges may
apply to those calling from outside of the UK.

Introduction

! DO NOT use a surface mounting box as the
wallplate is not designed for this purpose.

Step 1 Continued...

Option 1: Fitting a new wallplate

The ideal location should have reasonable
lighting, good access, no condensation, no
extremes of temperature and a supporting surface
that fully covers the back of the unit. Position with
70mm clearance to the right, 25mm above and
sufficient room to access the securing screws
underneath. Fix, with terminals at the top, either
direct to a flat wall using wall plugs and No. 6 x
1” (25mm) woodscrews, or on a flush mounting
single conduit box type UA1 (BS4662) using M3.5
x 14 bolts. Now fit the Wiser Heat Hub
w

allplate and tighten the securing screws. Check

the 3A fuse, and switch on the mains.

Option 2: Using an existing industry standard
wallplate

Loosen the securing screws on the old controller/
programmer and unplug it. Check that there is
70mm clearance to the right of the wallplate and
25mm above it. Check the wiring diagram for
your product model to compare terminals and,
if necessary, change the wiring of the wallplate
to suit. Now fit the Wiser Heat Hub
w

allplate and tighten the securing screws.

Check the 3A fuse, and switch on the mains.

Note: Ensure the Heat Hub
position with WiFi coverage.

Welcome!

Save this guide for future reference.

If you are replacing an existing controller/
programmer and don’t need to make any wiring
changes that’s great news. All you need to do is
remove the old product and fit your new Wiser Heat

R

to the existing wallplate.

Hub

If you are fitting a new system or require re-wiring
please contact an installer.

! IMPORTANT:

Do not attempt to install this product if you are
not familiar with how to install mains-powered
electrical appliances.

Always switch off the mains before removing
a controller and never fit it to a live wallplate.

Step 1:

Mounting the wallplate

2

Step 2a:

Step 1 Continued...

One Channel:
WT714R and WV714R

Mains

fused 3A

Link for

230V output

COM

One channel only:

are voltage-free*, so power needs to be put on to
Terminal 1 either by linking from Terminal L or from
a separate supply with a 3A fuse.

* Not SELV - Fixed wiring only, to comply with
current IET regulations.

Note: If there is an existing wired thermostat
connected via the wallplate, this must be
disconnected, i.e. remove the thermostat wires
from the wallplate.

Make sure mains input has a 3 amp fuse.

CAUTION! Before installation, make sure the mains supply is switched off!

!

Option 1: Fitting a new wallplate

The ideal location should have reasonable
lighting, good access, no condensation, no
extremes of temperature and a supporting surface
that fully covers the back of the unit. Position with
70mm clearance to the right, 25mm above and
sufficient room to access the securing screws
underneath. Fix, with terminals at the top, either
direct to a flat wall using wall plugs and No. 6 x
1” (25mm) woodscrews, or on a flush mounting
single conduit box type UA1 (BS4662) using M3.5
x 14 bolts. Now fit the Wiser Heat Hub
wallplate and tighten the securing screws. Check
the 3A fuse, and switch on the mains.

Option 2: Using an existing industry standard
wallplate

R

onto the

Loosen the securing screws on the old controller/
programmer and unplug it. Check that there is
70mm clearance to the right of the wallplate and
25mm above it. Check the wiring diagram for
your product model to compare terminals and,
if necessary, change the wiring of the wallplate

R

to suit. Now fit the Wiser Heat Hub
wallplate and tighten the securing screws.

Check the 3A fuse, and switch on the mains.

! DO NOT use a surface mounting box as the
wallplate is not designed for this purpose.

Note: Ensure the Heat HubR is installed in a

position with WiFi coverage.

onto the

3

Step 2a: Wiring - wallplate

fused 3A

230V output

Make sure mains input has a 3 amp fuse.

!

CAUTION! Before installation, make sure the mains supply is switched off!

Mains

COM

Link for

One Channel:
WT714R and WV714R

One channel only: Note that the output contacts

are voltage-free*, so power needs to be put on to
Terminal 1 either by linking from Terminal L or from
a separate supply with a 3A fuse.

* Not SELV - Fixed wiring only, to comply with
current IET regulations.

Note: If there is an existing wired thermostat
connected via the wallplate, this must be
disconnected, i.e. remove the thermostat wires
from the wallplate.

Mains

fused 3A

Two Channel:
WT724R and WV724R

Mains

fused 3A

Three Channel:

Three channel only: Make a note of which circuit

is connected to CH1 and CH3 respectively as this
information is needed later, during commissioning,
when room thermostats are added to the system.

Note: After wiring, fit the Wiser Heat HubR onto
the wallplate and tighten the securing screws.
Check the 3A fuse and switch on the mains.

WT734R

4

Note: The heating and hot water button override
states are not shown in the app. These act as a
fall back state in the event that other controls are
unavailable.

Step 3: Testing the system

Heating and Hot Water buttons

Hot Water override button
(

WV724R , WT724R & WT734R only)

Pressing & holding the Hot Water button for >3s will
turn on the Hot Water for 1 hour. In this state the hot
water will be regulated by a cylinder thermostat or
the boiler. When the Hot Water override is active, the
Hot Water LED will flash green. To turn off the override
press the Hot Water button again. This will put the hot
water back under system control. Depending on the
system settings the hot water may stay on which will
be indicated by a solid green LED.

Tip: This feature can be used to ‘test’ an installation
prior to adding any devices.

Step 2b:
Wiring – boiler with
OpenTherm interface

If your boiler supports
OpenTherm, please follow the
instructions under this step.

Existing OpenTherm installation

1. Remove the OpenTherm cables from the existing
controller or thermostat.

2. Remove the OpenTherm module from the rear of

R

the Wiser Heat Hub

3. Wire in the OpenTherm cables into the OpenTherm
module. It does not matter which way the cables
are wired.

4. Replace the OpenTherm module into the Heat Hub

.

R

.

5. Wire L & N on the wallplate from a separate supply
with a 3A fuse.

R

6. Mount the Hub

The Wiser Heat HubR is an OpenTherm certified
product and will therefore operate with OpenTherm
certified boilers. Currently The Heat Hub
compatible with boilers that require a temperature
for domestic hot water to be provided by the external
heating controls. For more information about wiring
options please consult the digital user guide found on

wiser.draytoncontrols.co.uk/support

on the wallplate.

R

is not

5

Step 3: Testing the system

the boiler will self-regulate its temperature. When

Heating and Hot Water buttons

(

WV724R , WT724R & WT734R only)

Pressing & holding the Hot Water button for >3s will

urn on the Hot Water for 1 hour. In this state the hot

t
water will be regulated by a cylinder thermostat or
the boiler. When the Hot Water override is active, the
Hot Water LED will flash green. To turn off the override
press the Hot Water button again. This will put the hot
water back under system control. Depending on the
system settings the hot water may stay on which will
be indicated by a solid green LED.

Tip: This feature can be used to ‘test’ an installation
prior to adding any devices.

Note: The heating and hot water button override
states are not shown in the app. These act as a
fall back state in the event that other controls are
unavailable.

Heating override buttonHot Water override button

Pressing & holding the Heating button for >3s
will turn on the heating for 2 hours. In this state

the Heating override is active, the Heating LED
will flash green. To turn off the override press the
Heating button again. This will put the heating
back under system control. Depending on the
system settings the heating may stay on which
will be indicated by a solid green LED.

6

INSTALLATION Guide

Wiser Heat Hub

Single Zone CombiBoiler: Model WT714R, WV714R

Wiser Heat Hub

Biflo system: Model WT724R, WV724R

Connection Charts

Always switch off the mains before
removing the Wiser Heat Hub

!

Make the wiring connections, as shown in the
connection charts, for the appropriate system. For
surface wiring, snap out the cable entry strip on the
bottom edge of the wallplate. The Wiser Heat Hub
double-insulated and needs no earth connection, but
an earthing continuity (loop) terminal is provided for
convenience.

never fit it to a live wallplate!

R

– and

R

is

Note: If there is an existing wired thermostat, it
must be completely disconnected, i.e. remove the
thermostat wires from the wiring centre - a link
must be inserted between the terminals where
the thermostat common and call for heat wires are
located in the wiring centre.

Arrowed numbers relate to the junction box.

* Consult boiler handbook for details of pump
overrun wiring.

After wiring, clip on the unit and tighten the securing
screws. Check the mains input has a 3A fuse, and
switch on the mains.

LS = Live Supply
LR = Live Return

7
