Product data sheet

Characteristics

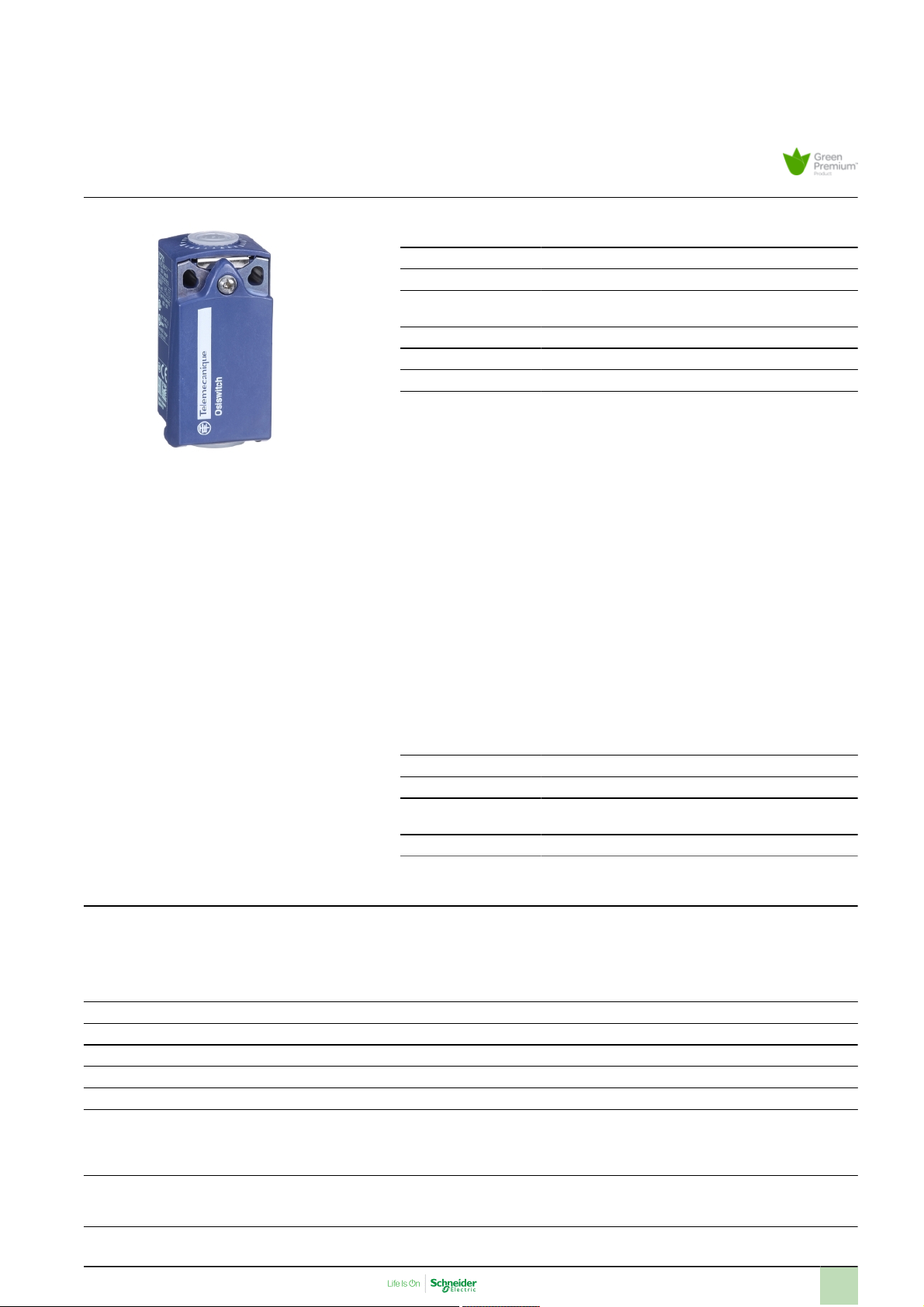

ZCP21

Limit switch body, Limit switches XC Standard,
ZCP, compact, 1NC+1 NO, snap action

Main

Range of product Telemecanique Limit switches XC Standard

Series name Standard compact

Product or component
type

Device short name ZCP

Design Compact

Body type Fixed

Associated head ZCE06

Body material Plastic

Number of poles 2

Contacts type and
composition

Contact operation Snap action

Limit switch body

ZCE28
ZCE63
ZCE01
ZCE02
ZCE66
ZCE14
ZCE11
ZCE27
ZCEH2
ZCE09
ZCE67
ZCE08
ZCE07
ZCE24
ZCEH0
ZCE21
ZCE64
ZCE29
ZCE62
ZCE65
ZCE13
ZCE10
ZCE05

1 NC + 1 NO

Complementary

Associated connection component ZCPEP20

Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contacts insulation form Zb

Contacts material Silver plated contacts

Positive opening With

Minimum actuation speed 0.01m/s

Contact code designation B300, AC-15 (Ue = 240 V), Ie = 1.5A conforming to EN/IEC 60947-5-1 appendix

[Ui] rated insulation voltage 300V conforming to UL 508

Oct 4, 2022

ZCPEN12
ZCPEF12
ZCPEG11
ZCPEP16
ZCPEG13

A
R300, DC-13 (Ue = 250 V), Ie = 0.1A conforming to EN/IEC 60947-5-1 appendix
A

500V (pollution degree 3) conforming to IEC 60947-1
300V conforming to CSA C22.2 No 14

1

[Uimp] rated impulse withstand voltage 6KV conforming to IEC 60664

Short-circuit protection 10A cartridge fuse, type gG

Electrical durability 5000000Cycles, DC-13 120 V, 4 W, operating rate <60cyc/mn, load factor: 0.5

Width 31mm

Height 65mm

Depth 30mm

Net weight 0.07kg

6kV conforming to IEC 60947-1

conforming to IEC 60947-5-1 appendix C
5000000Cycles, DC-13 24 V, 10 W, operating rate <60cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000cycles, DC-13 48 V, 7 W, operating rate <60cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C

Environment

Product compatibility XCKP

Ambient air temperature for operation -25…70°C

Ambient air temperature for storage -40…70°C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 60.0g

Package 1 Height 4.0cm

Package 1 width 4.0cm

Package 1 Length 7.6cm

Unit Type of Package 2 P06

Number of Units in Package 2 1296

Package 2 Weight 96.132kg

Package 2 Height 77.0cm

Package 2 width 60.0cm

Package 2 Length 80.0cm

Unit Type of Package 3 S02

Number of Units in Package 3 81

Package 3 Weight 5.42kg

Package 3 Height 15.0cm

Package 3 width 30.0cm

Package 3 Length 40.0cm

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

EU RoHS Directive

Mercury free Yes

RoHS exemption information

Environmental Disclosure

Circularity Profile

California proposition 65 WARNING: This product can expose you to chemicals including: Diisononyl

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

Product Environmental Profile

End Of Life Information

phthalate (DINP), which is known to the State of California to cause cancer,
and Di-isodecyl phthalate (DIDP), which is known to the State of California
to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov

Contractual warranty

Warranty 18 months
