Product data sheet
Characteristics
ZCE21
Limit switch head, Limit switches XC Standard,

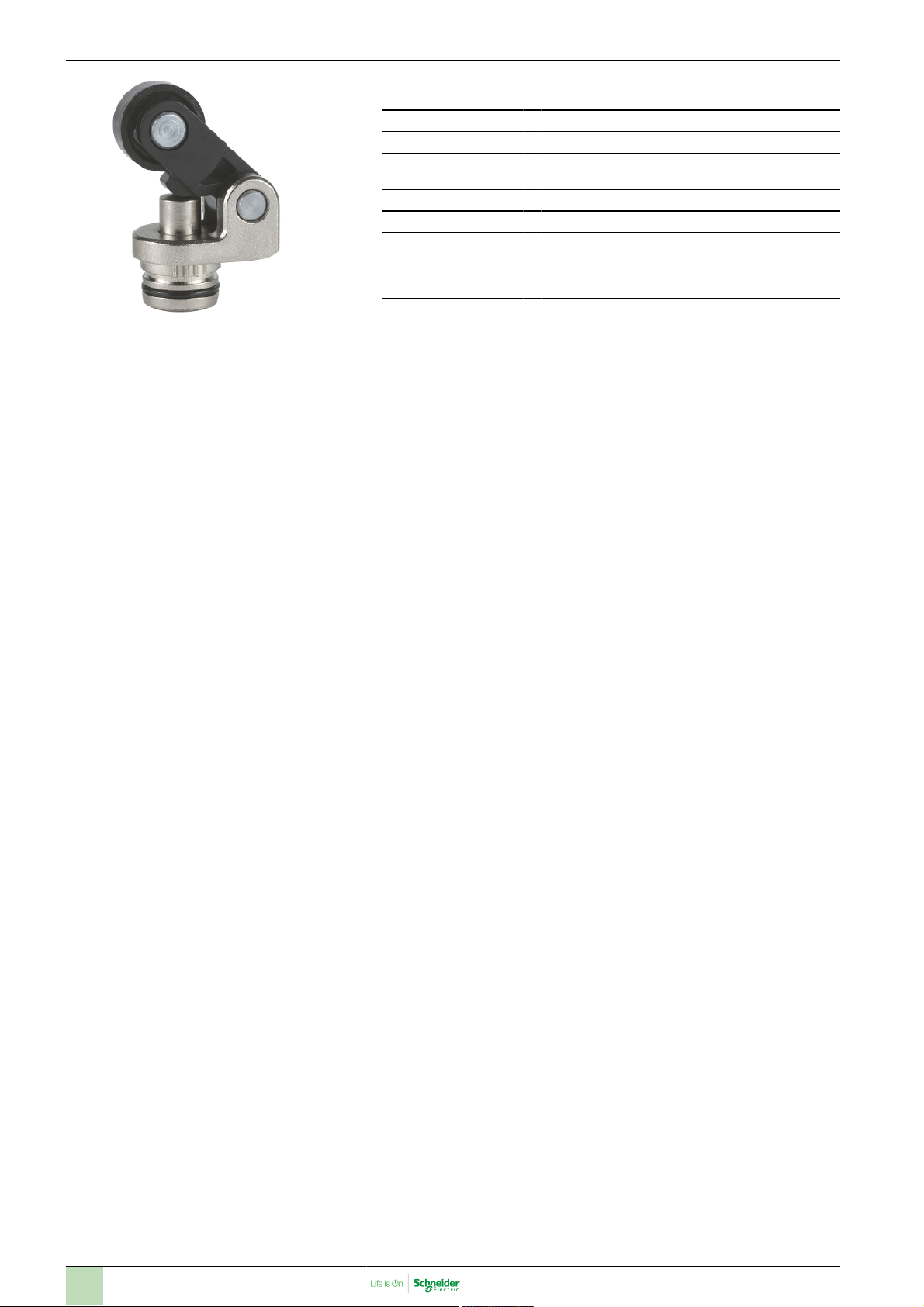

ZCE, roller lever plunger horizontal direction
Oct 4, 2022
1
Page 2
Main
Range of product Telemecanique Limit switches XC Standard
Series name Standard format
Product or component
type
Device short name ZCE
Head type Plunger head
Product compatibility XCKD
Limit switch head
XCKP
XCMD
XCKT
2
Page 3
Associated body ZCMD39L1
Movement of operating
head
Type of operator Roller lever plunger spring return thermoplastic
Type of approach Lateral approach, 1 direction
ZCT21N12
ZCD27
ZCMD21L5
ZCD35
ZCMD21C12
ZCD31
ZCT21G11
ZCMD25L5
ZCMD41L2
ZCP27
ZCMD29L1
ZCD26
ZCMD21L08U78
ZCP35
ZCT27P16
ZCMD29L5
ZCP28
ZCD25
ZCD21
ZCP37
ZCMD21L08R12
ZCMD81L1
ZCMD25L1
ZCT25G11
ZCT28G11
ZCMD29C12
ZCT26N12
ZCT27G11
ZCMD41L5
ZCMD21M12
ZCD37
ZCP29M12
ZCMD21L2
ZCT21P16
ZCD29M12
ZCMD37L2
ZCT26G11
ZCP29
ZCT28N12
ZCD28
ZCMD29L2
ZCMD21L1
ZCMD25L2
ZCMD81L2
ZCT25N12
ZCP21M12
ZCP21
ZCMD39L2
ZCMD61M12
ZCMD61C12
ZCMD81L5
ZCD39
ZCT28P16
ZCD29
ZCP39
ZCP25
ZCD21M12
ZCT27N12
ZCMD37L5
ZCT25P16
ZCP31
ZCMD37L1
ZCP26
ZCT26P16
ZCMD39L5
ZCMD41L1
ZCMD69C12
Linear
Complementary
Switch actuation By 30° cam
Positive opening With
3
Page 4
Environment
Ambient air temperature for operation -25…70°C
Ambient air temperature for storage -40…70°C
Environmental characteristic Standard environment
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 20g
Package 1 Height 1.61cm
Package 1 width 2.266cm
Package 1 Length 3.723cm
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Weight 231g
Package 2 Height 2.802cm
Package 2 width 9.586cm
Package 2 Length 15.61cm
Unit Type of Package 3 S01
Number of Units in Package 3 80
Package 3 Weight 2.211kg
Package 3 Height 15cm
Package 3 width 15cm
Package 3 Length 40cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free Yes
RoHS exemption information
Environmental Disclosure
California proposition 65 WARNING: This product can expose you to chemicals including: Diisononyl
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
Product Environmental Profile
phthalate (DINP), which is known to the State of California to cause cancer,
and Di-isodecyl phthalate (DIDP), which is known to the State of California
to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Contractual warranty
Warranty 18 months
