Product data sheet
Characteristics

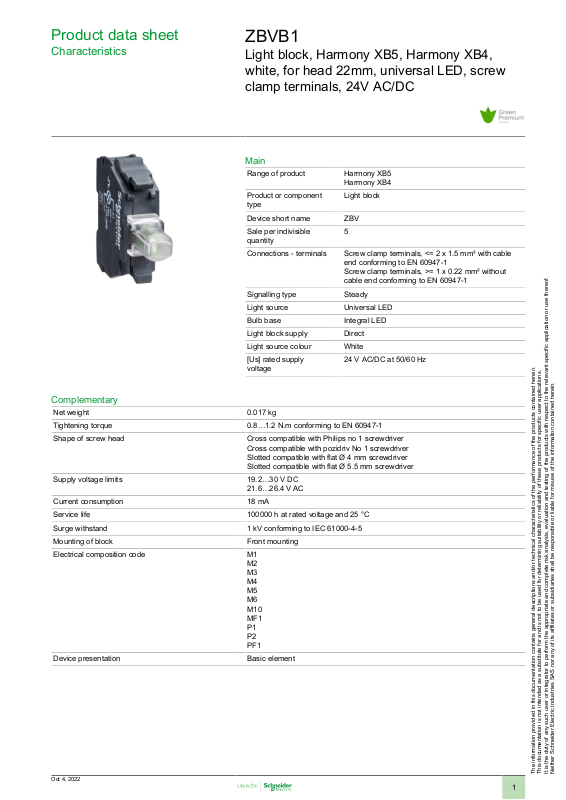

ZBVB1
Light block, Harmony XB5, Harmony XB4,
white, for head 22mm, universal LED, screw
clamp terminals, 24V AC/DC
Main
Range of product Harmony XB5
Product or component
type
Device short name ZBV
Sale per indivisible
quantity
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable
Signalling type Steady
Light source Universal LED
Bulb base Integral LED
Light block supply Direct
Light source colour White
[Us] rated supply
voltage
Harmony XB4
Light block
5
end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without
cable end conforming to EN 60947-1
24 V AC/DC at 50/60 Hz
Complementary
Net weight 0.017kg
Tightening torque 0.8…1.2N.m conforming to EN 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver
Supply voltage limits 19.2…30V DC
Current consumption 18 mA
Service life 100000h at rated voltage and 25 °C
Surge withstand 1kV conforming to IEC 61000-4-5
Mounting of block Front mounting
Electrical composition code M1
Device presentation Basic element
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
21.6…26.4V AC
M2
M3
M4
M5
M6
M10
MF1
P1
P2
PF1
Oct 4, 2022
1
Page 2
Environment
Protective treatment TH
Ambient air temperature for storage -40…70°C
Ambient air temperature for operation -40…70°C
IP degree of protection IP20 conforming to IEC 60529
Standards JIS C8201-5-1
Product certifications UL listed
Resistance to fast transients 2kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields 10V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge 6KV on contact (on metal parts) conforming to IEC 61000-4-2
Electromagnetic emission Class B conforming to IEC 55011
[Us] rated supply voltage 24 V
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
EN/IEC 60947-5-4
UL 508
JIS C8201-1
CSA
8kV in free air (in insulating parts) conforming to IEC 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 8.8g
Package 1 Height 1.0cm
Package 1 width 3.3cm
Package 1 Length 4.0cm
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Weight 50.0g
Package 2 Height 4.0cm
Package 2 width 5.5cm
Package 2 Length 5.5cm
Unit Type of Package 3 S03
Number of Units in Package 3 800
Package 3 Weight 8.51kg
Package 3 Height 30.0cm
Package 3 width 30.0cm
Package 3 Length 40.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
REACh free of SVHC Yes
EU RoHS Directive
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
2
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
End Of Life Information
Page 3
WEEE The product must be disposed on European Union markets following specific
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and
waste collection and never end up in rubbish bins
lead compounds, which is known to the State of California to cause cancer
and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Contractual warranty
Warranty 18 months
