Product data sheet
Characteristics

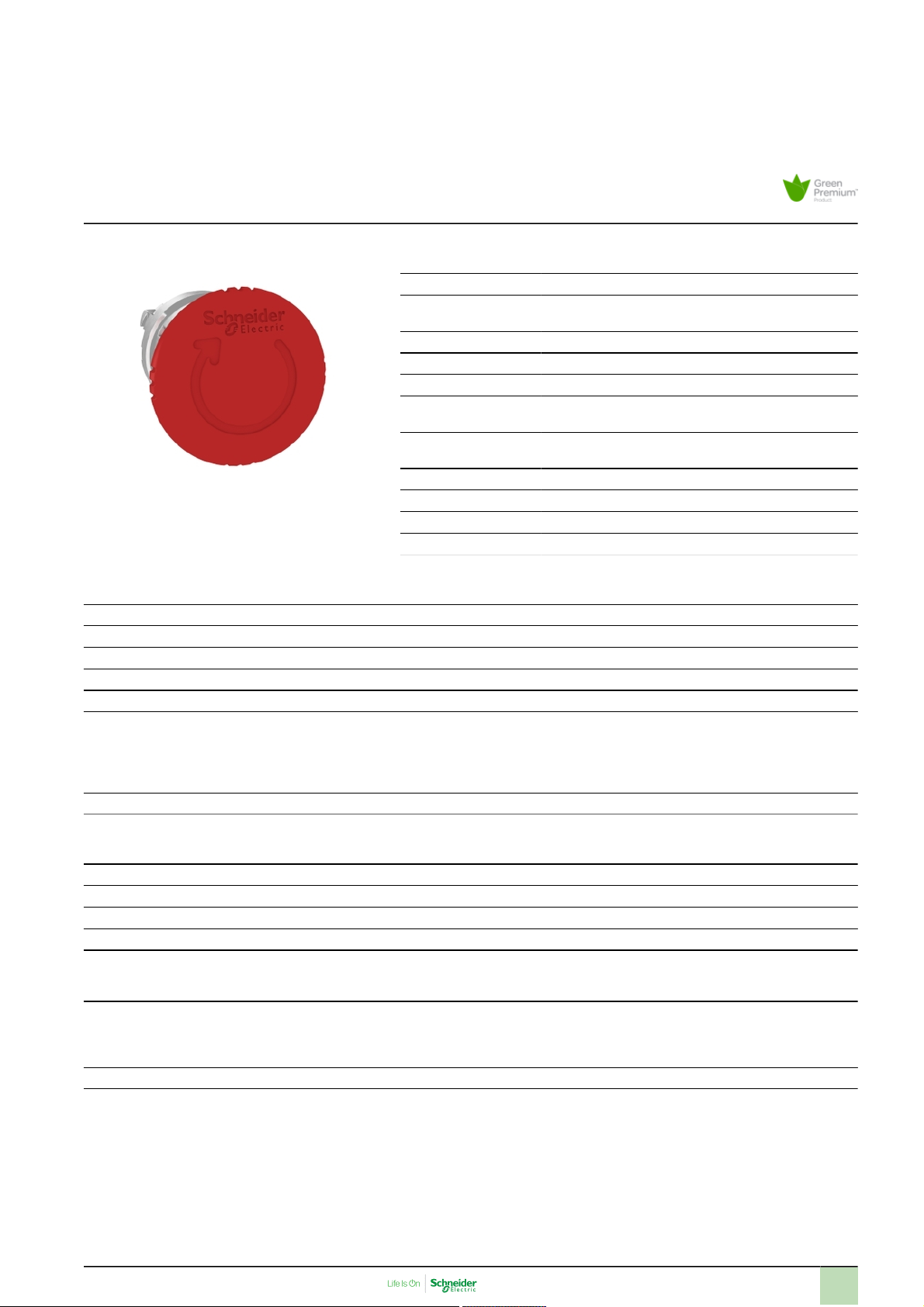

ZB4BS844
Harmony XB4, Emergency stop head,
switching off, metal, red mushroom Ø40, Ø22,
trigger latching turn to release
Main
Range of product Harmony XB4
Product or component
type
Device short name ZB4
Bezel material Chromium plated metal
Mounting diameter 22mm
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator Trigger action and mechanical latching
Reset Turn to release
Operator profile Red mushroom Ø 40 mm, unmarked
Head type Standard
Head for emergency switching off push-button
1
Round
Complementary
CAD overall width 40mm
CAD overall height 40mm
CAD overall depth 57mm
Net weight 0.073kg
Mechanical durability 300000cycles
Electrical composition code C7 for <4 contacts using single blocks in front mounting
Device presentation Basic element
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
C10 for <4 contacts using single and double blocks in front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40…70°C
Ambient air temperature for operation -40…70°C
Electrical shock protection class Class I conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 13
IK degree of protection IK06 conforming to IEC 50102
IP69
IP69K
NEMA 4X
NEMA 4
NEMA 12
Oct 4, 2022
1
Page 2
Standards UL 508
Product certifications DNV
Vibration resistance 5 gn (f= 2…500Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18ms) for half sine wave acceleration conforming to IEC
EN/IEC 60947-5-5
CSA C22.2 No 14
EN/IEC 60947-5-4
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60204-1
IEC 60364-5-53
GB 14048.5
EN/ISO 13850
JIS C8201-1
BV
CSA
LROS (Lloyds register of shipping)
UL listed
GL
60068-2-27
50 gn (duration = 11ms) for half sine wave acceleration conforming to IEC
60068-2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 76.0g
Package 1 Height 4.4cm
Package 1 width 5.4cm
Package 1 Length 9.2cm
Unit Type of Package 2 S03
Number of Units in Package 2 100
Package 2 Weight 8.097kg
Package 2 Height 30.0cm
Package 2 width 30.0cm
Package 2 Length 40.0cm
Unit Type of Package 3 P06
Number of Units in Package 3 800
Package 3 Weight 75.004kg
Package 3 Height 77.0cm
Package 3 width 60.0cm
Package 3 Length 80.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
REACh free of SVHC Yes
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl
2
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
End Of Life Information
phthalate (DIDP), which is known to the State of California to cause birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Page 3
Contractual warranty
Warranty 18 months
3
Page 4
Product data sheet

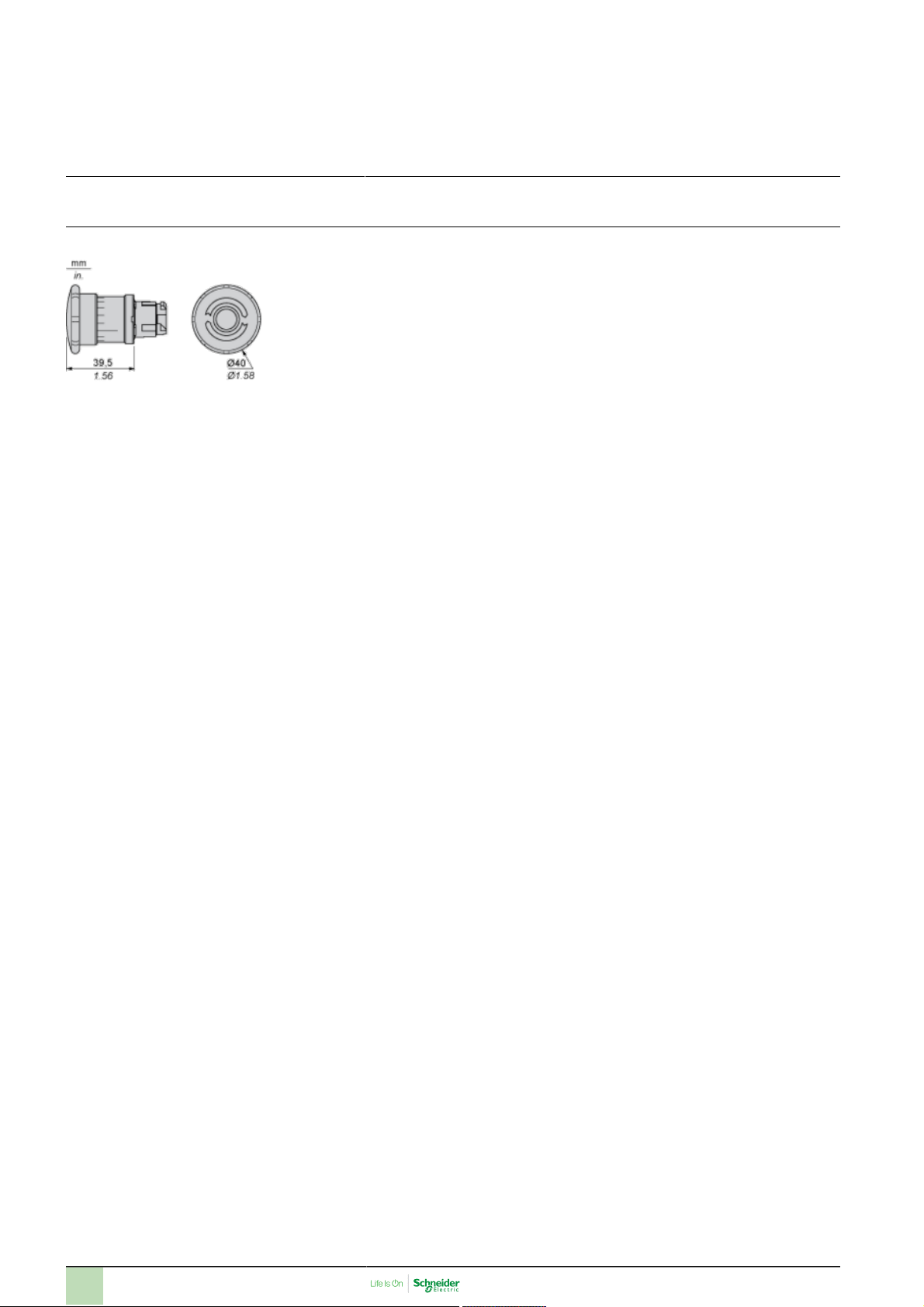

Dimensions Drawings
Dimensions
ZB4BS844
4
Page 5
Product data sheet
ZB4BS844
Mounting and Clearance

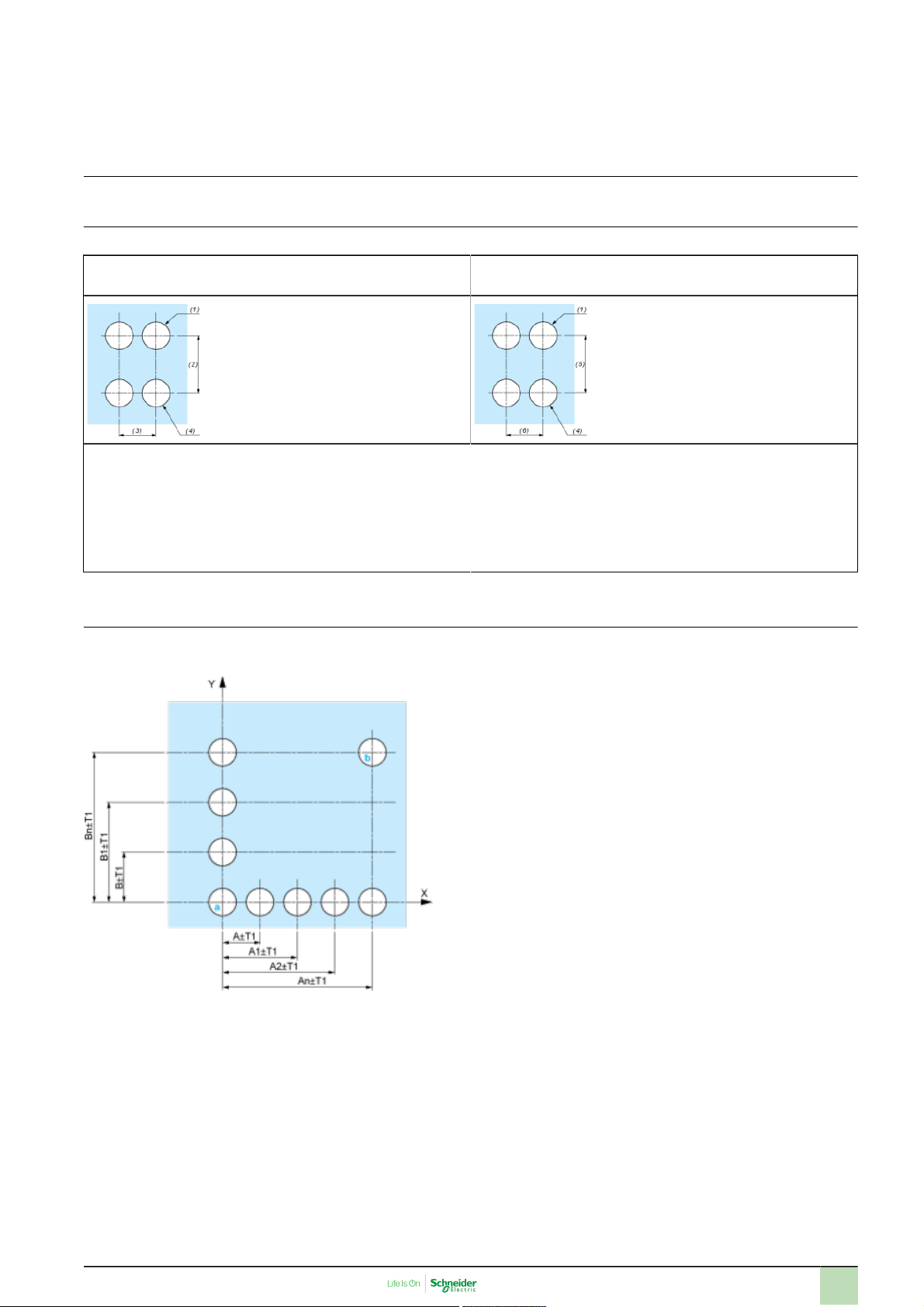

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on
Printed Circuit Board
(1) Diameter on finished panel or support
(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
(4) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
+0.4
/ 0.88 in. 0
Connection by Faston Connectors
+0.016
)
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
Panel Cut-outs (Viewed from Installer’s Side)
A: 30 mm min. / 1.18 in. min.
B: 40 mm min. / 1.57 in. min.
Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
5
Page 6
A: 30 mm min.
B: 40 mm min.
Dimensions in in.
A: 1.18 in. min.
B: 1.57 in. min.
General Tolerances of the Panel and Printed Circuit Board
The cumulative tolerance must not exceed 0.3 mm / 0.012 in: T1 + T2 = 0.3 mm max.
Installation Precautions
● Minimum thickness of circuit board: 1.6 mm / 0.06 in.
● Cut-out diameter: 22.4 mm ± 0.1 / 0.88 in. ± 0.004
●
Orientation of body/fixing collar ZB4 BZ009: ± 2°30’ (excluding cut-outs marked a and b).
● Tightening torque of screws ZBZ 006: 0.6 N.m (5.3 lbf.in) max.
● Allow for one ZB4 BZ079 fixing collar/pillar and its fixing screws:
○ every 90 mm / 3.54 in. horizontally (X), and 120 mm / 4.72 in. vertically (Y).
○ with each selector switch head (ZB4 BD•, ZB4 BJ•, ZB4 BG•).
The fixing centers marked a and b are diagonally opposed and must align with those marked 4 and 5.
6
Page 7

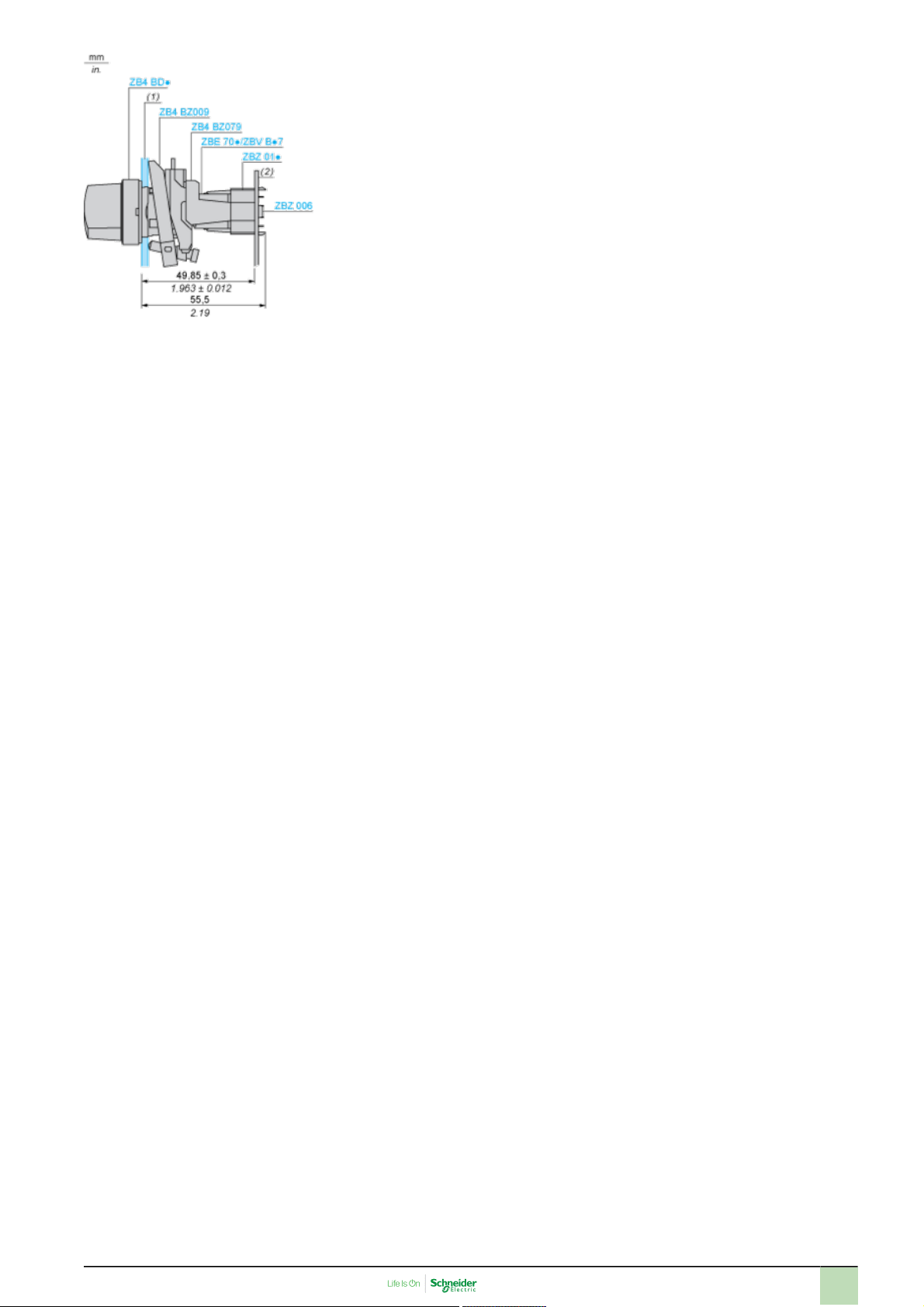

(1) Panel
(2) Printed circuit board

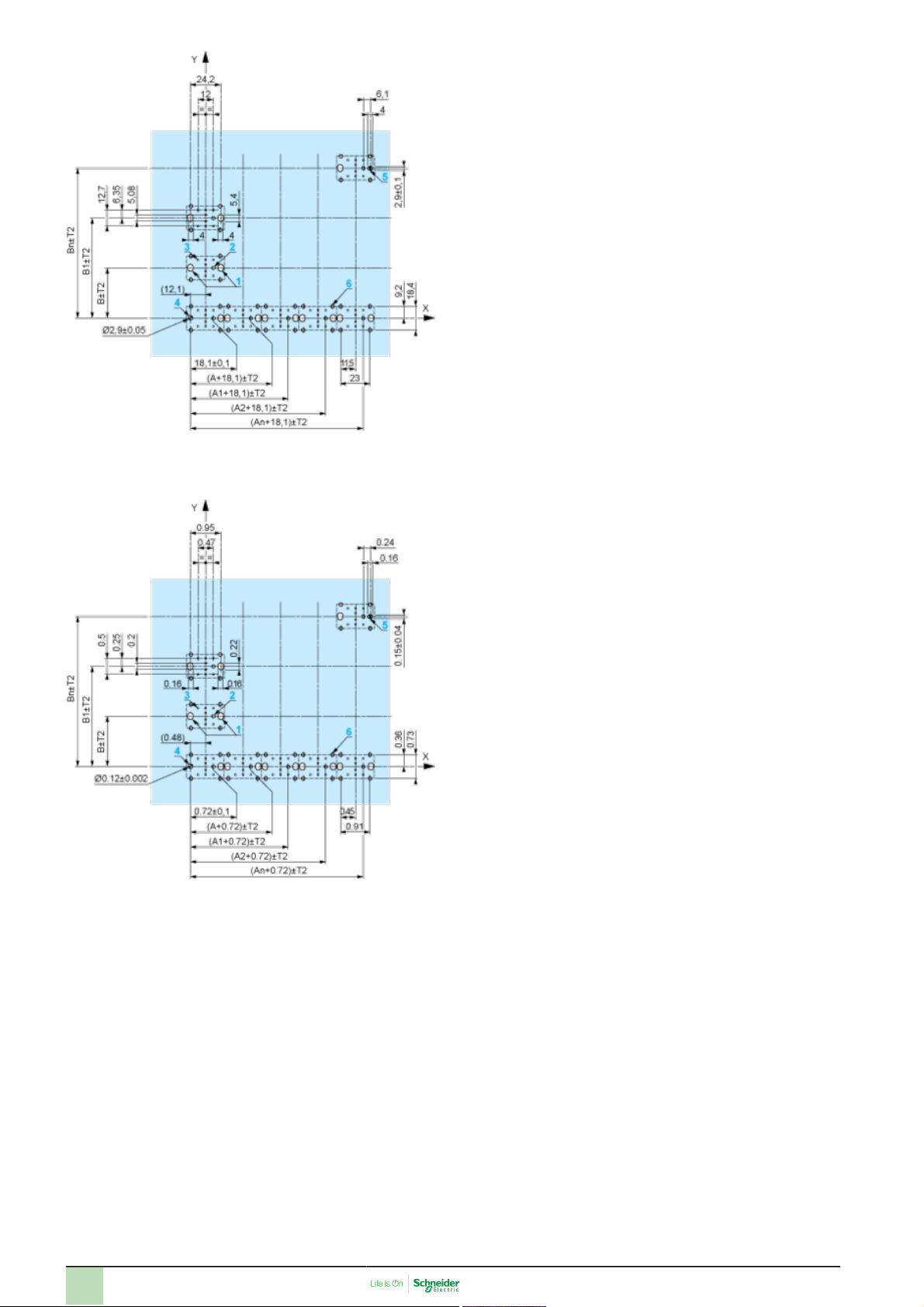

Mounting of Adapter (Socket) ZBZ 01•
● 1 2 elongated holes for ZBZ 006 screw access
● 2 1 hole Ø 2.4 mm ± 0.05 / 0.09 in. ± 0.002 for centring adapter ZBZ 01•
● 3 8 × Ø 1.2 mm / 0.05 in. holes
● 4 1 hole Ø 2.9 mm ± 0.05 / 0.11 in. ± 0.002, for aligning the printed circuit board (with cut-out marked a)
● 5 1 elongated hole for aligning the printed circuit board (with cut-out marked b)
● 6 4 holes Ø 2.4 mm / 0.09 in. for clipping in adapter ZBZ 01•
Dimensions An + 18.1 relate to the Ø 2.4 mm ± 0.05 / 0.09 in. ± 0.002 holes for centring adapter ZBZ 01•.
7
Page 8
Product data sheet
ZB4BS844
Technical Description

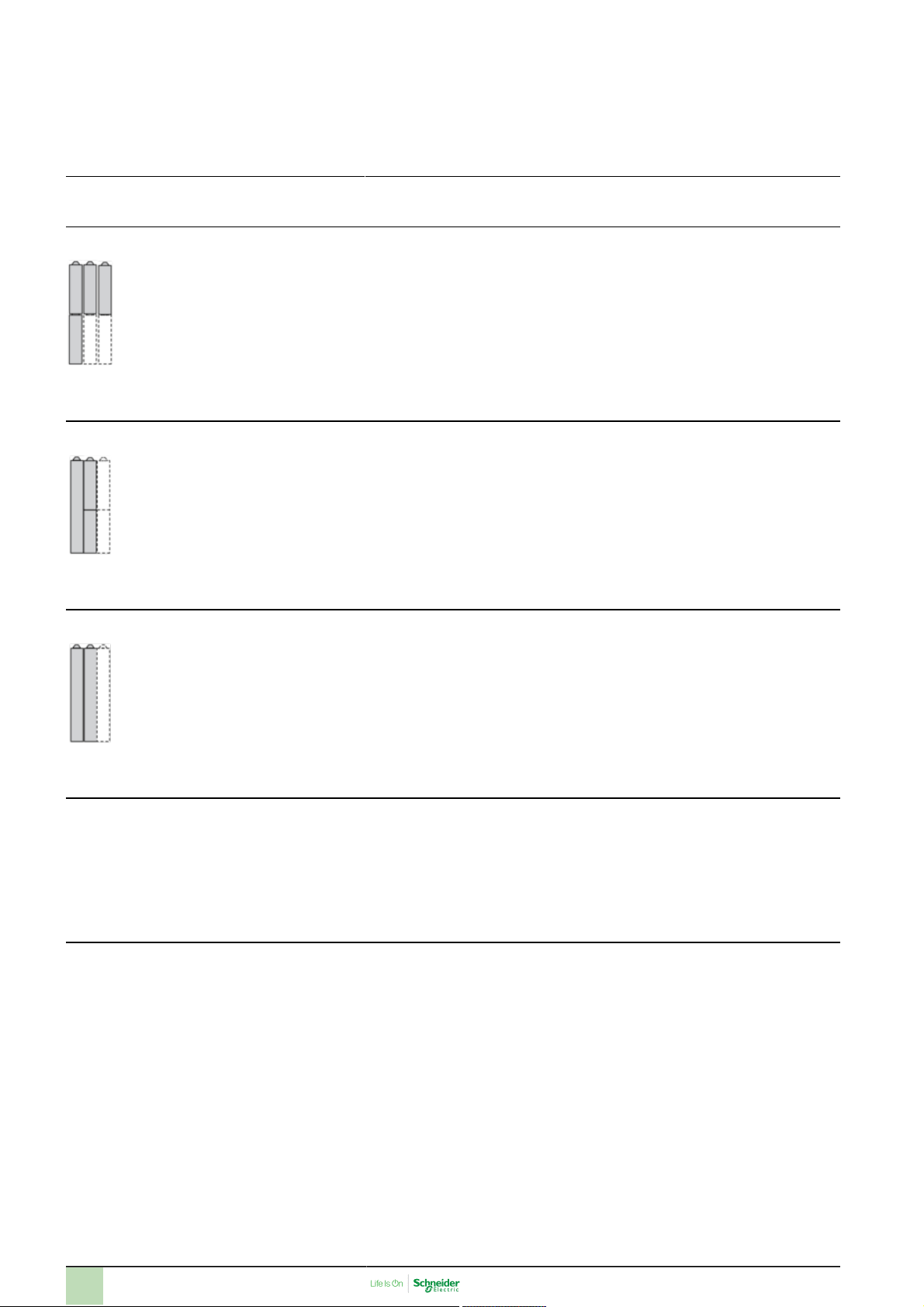

Electrical Composition Corresponding to Code C7
Electrical Compositions Corresponding to Code C8
Electrical Compositions Corresponding to Code C10
Electrical Composition Corresponding to Codes C9, C11, SF1 and SR1
Electrical Composition Corresponding to Code C15
1 N/O
1 N/C
1 N/O + N/C or 1 N/O + N/O or 1 N/C + N/C
8
Page 9
Legend
Single contact
Double contact
Light block
Possible location
9
