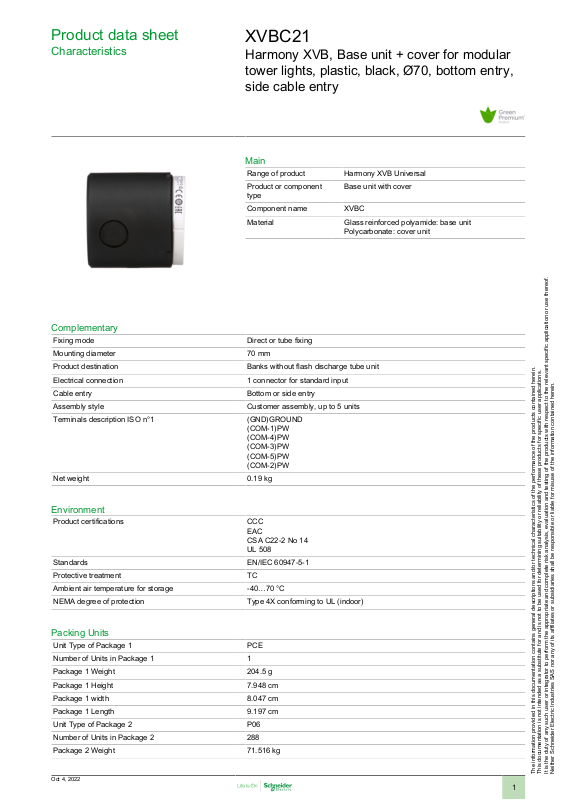

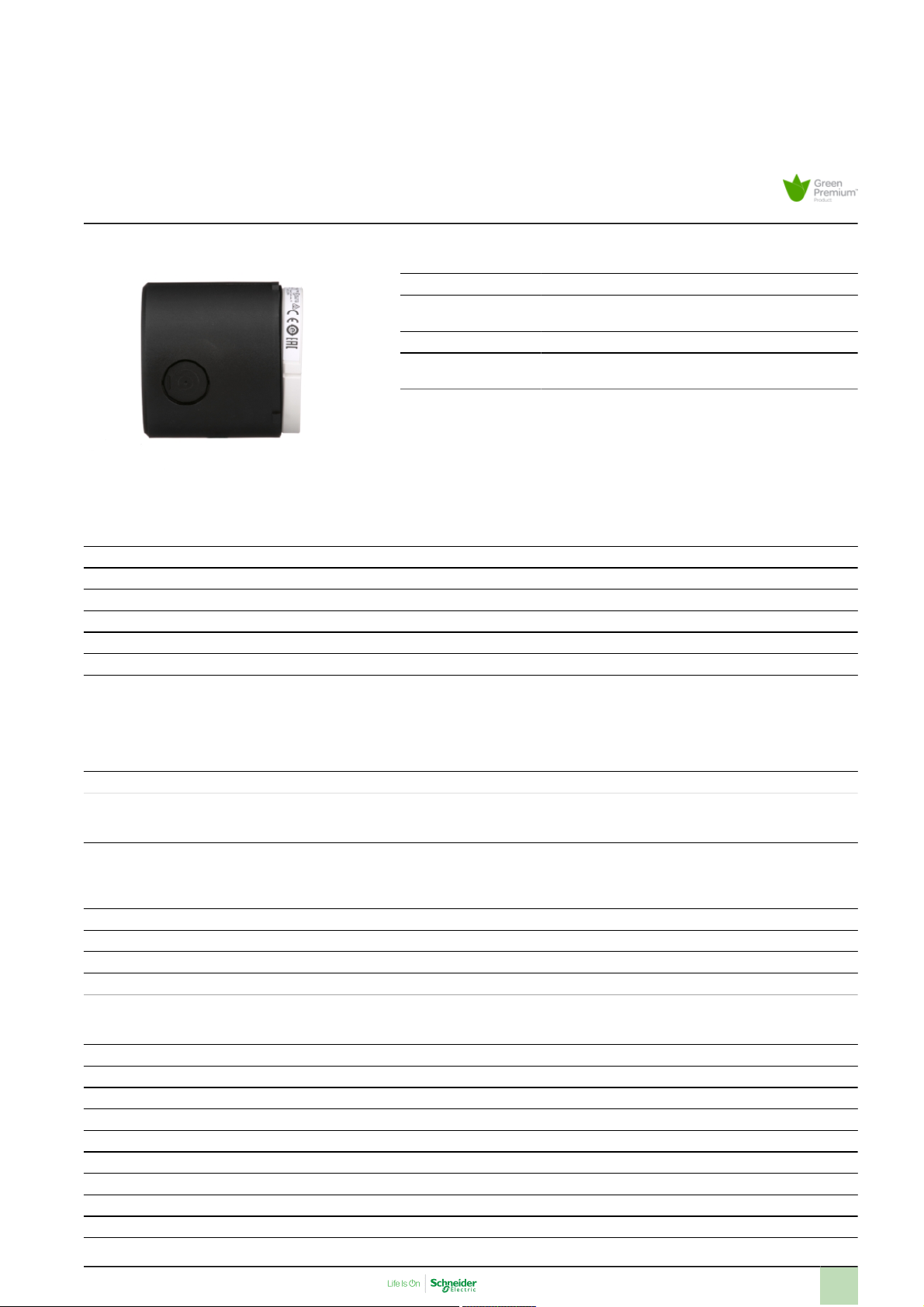

Product data sheet
Characteristics
XVBC21
Harmony XVB, Base unit + cover for modular
tower lights, plastic, black, Ø70, bottom entry,
side cable entry
Main
Range of product Harmony XVB Universal
Product or component
type
Component name XVBC
Material Glass reinforced polyamide: base unit
Base unit with cover
Polycarbonate: cover unit
Complementary
Fixing mode Direct or tube fixing
Mounting diameter 70mm
Product destination Banks without flash discharge tube unit
Electrical connection 1 connector for standard input
Cable entry Bottom or side entry
Assembly style Customer assembly, up to 5 units
Terminals description ISO n°1 (GND)GROUND
Net weight 0.19kg
(COM-1)PW
(COM-4)PW
(COM-3)PW
(COM-5)PW
(COM-2)PW
Environment
Product certifications CCC
Standards EN/IEC 60947-5-1
Protective treatment TC
Ambient air temperature for storage -40…70°C
NEMA degree of protection Type 4X conforming to UL (indoor)
EAC
CSA C22-2 No 14
UL 508
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 204.5g
Package 1 Height 7.948cm
Package 1 width 8.047cm
Package 1 Length 9.197cm
Unit Type of Package 2 P06
Number of Units in Package 2 288
Package 2 Weight 71.516kg
Oct 4, 2022
1
Page 2
Package 2 Height 77.0cm
Package 2 width 80.0cm
Package 2 Length 60.0cm
Unit Type of Package 3 S03
Number of Units in Package 3 36
Package 3 Weight 8.173kg
Package 3 Height 30.0cm
Package 3 width 30.0cm
Package 3 Length 40.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE The product must be disposed on European Union markets following specific
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
waste collection and never end up in rubbish bins
lead compounds, which is known to the State of California to cause cancer
and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Contractual warranty
Warranty 18 months
2
Page 3
Product data sheet
XVBC21

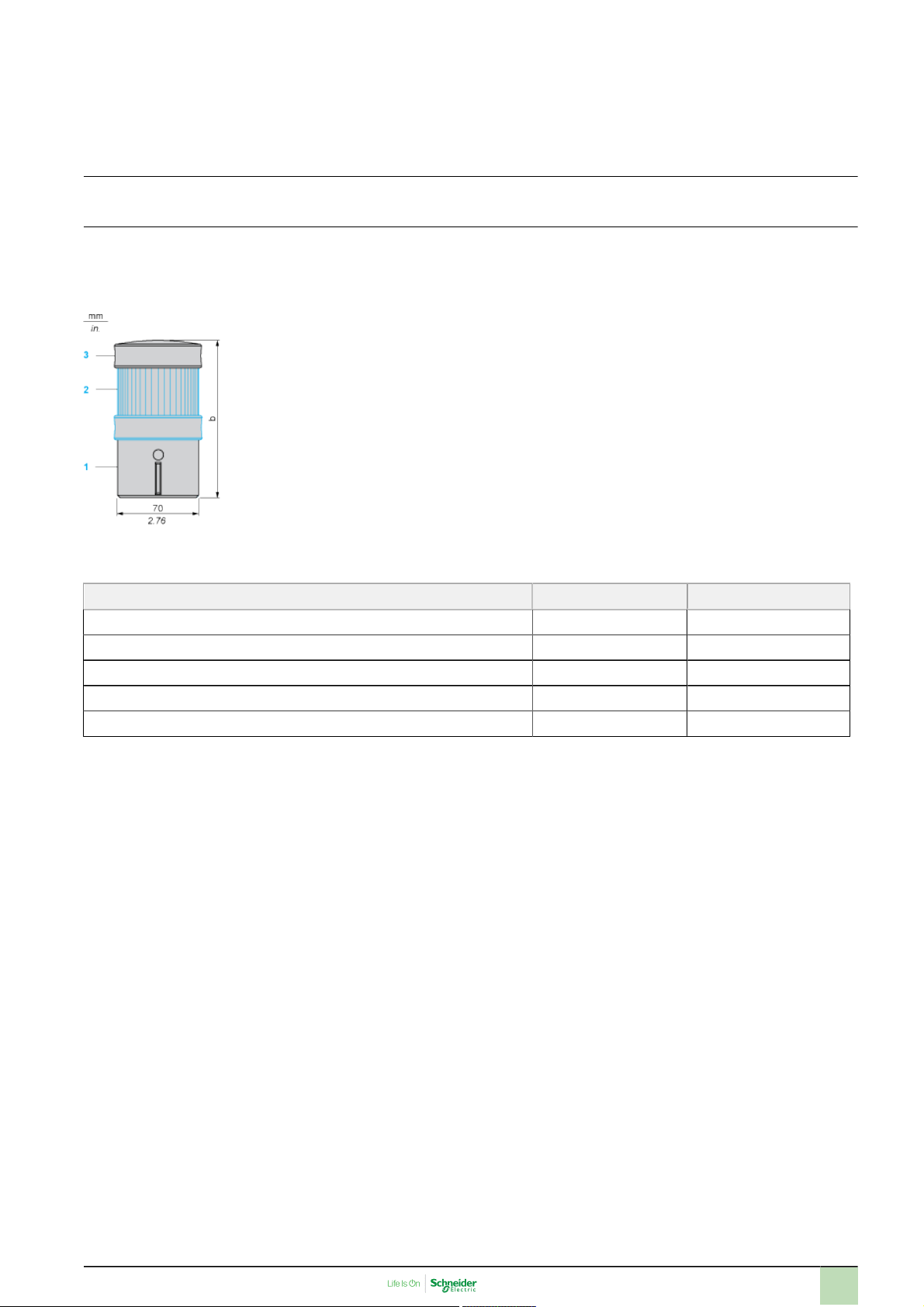

Dimensions Drawings
Indicator Bank without “Flash” Discharge Tube Unit
Dimensions
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order
to get b dimension.
(1) Base unit
(2) Illuminated or audible signalling unit XVBC•••, to be ordered separately
(3) Cover (supplied with base unit)
Number of illuminated or audible signalling units (no “flash”) b in mm b in in.
1 138 5.43
2 201 7.91
3 264 10.39
4 327 12.87
5 390 15.35
3
Page 4
Product data sheet
Mounting and Clearance
Base Unit for Indicator Banks

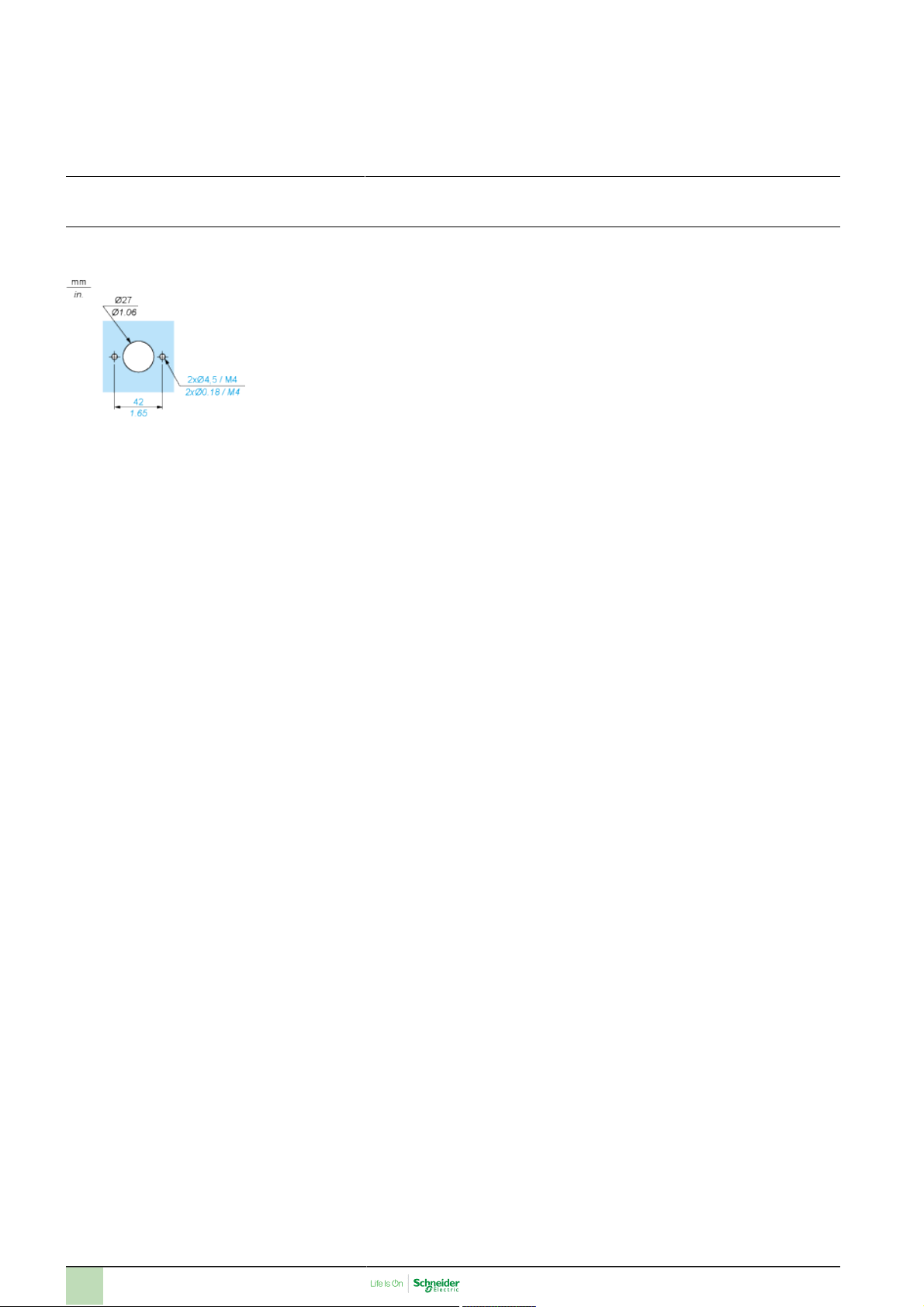

Panel Cut-out for Direct Fixing
XVBC21
4
Page 5
Product data sheet
Connections and Schema
Illuminated Beacon

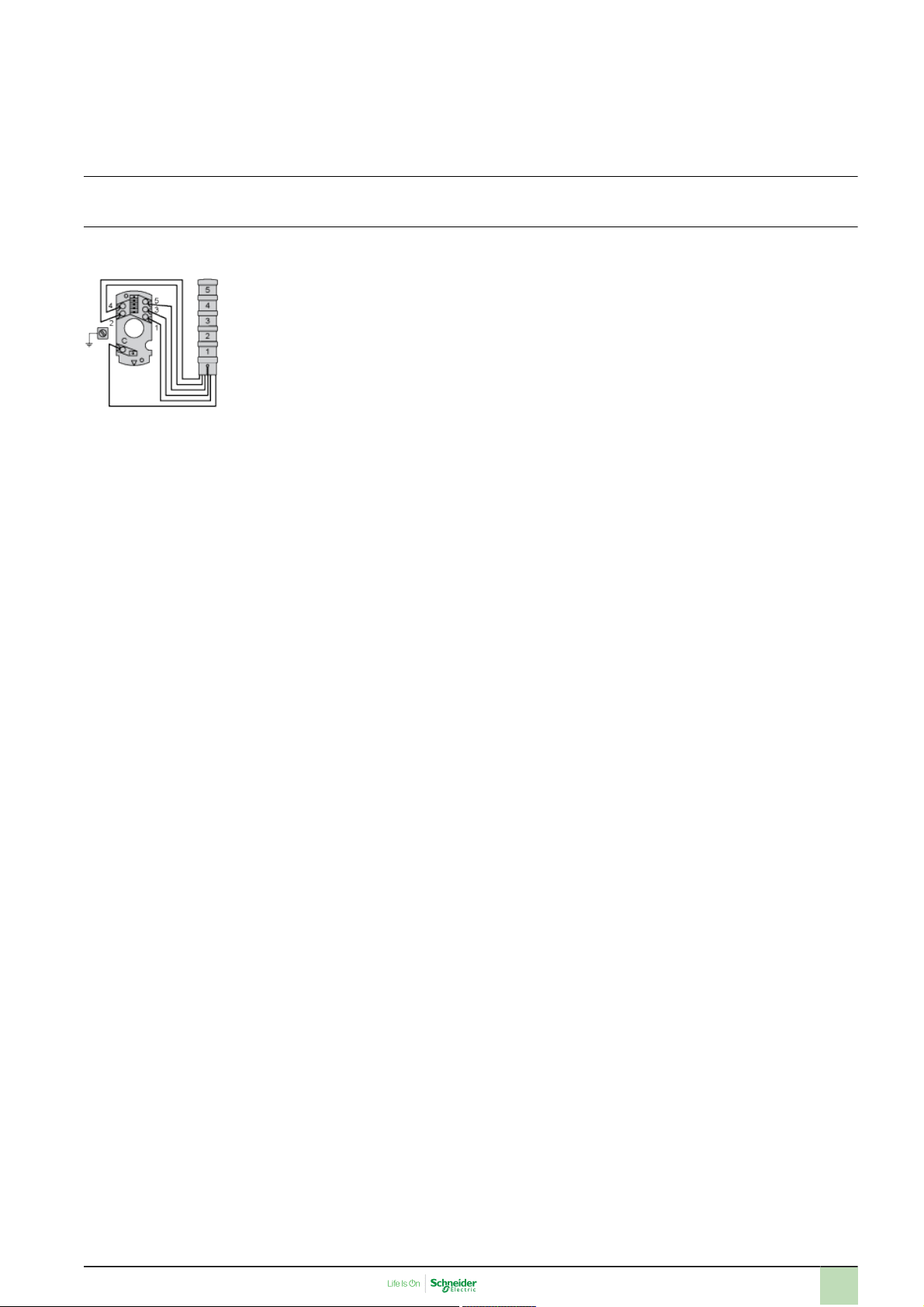

Wiring Diagram
XVBC21
