SCHNEIDER ELECTRIC XB5FA21 Datasheet

Page 1

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Product data sheet

Characteristics

XB5FA21

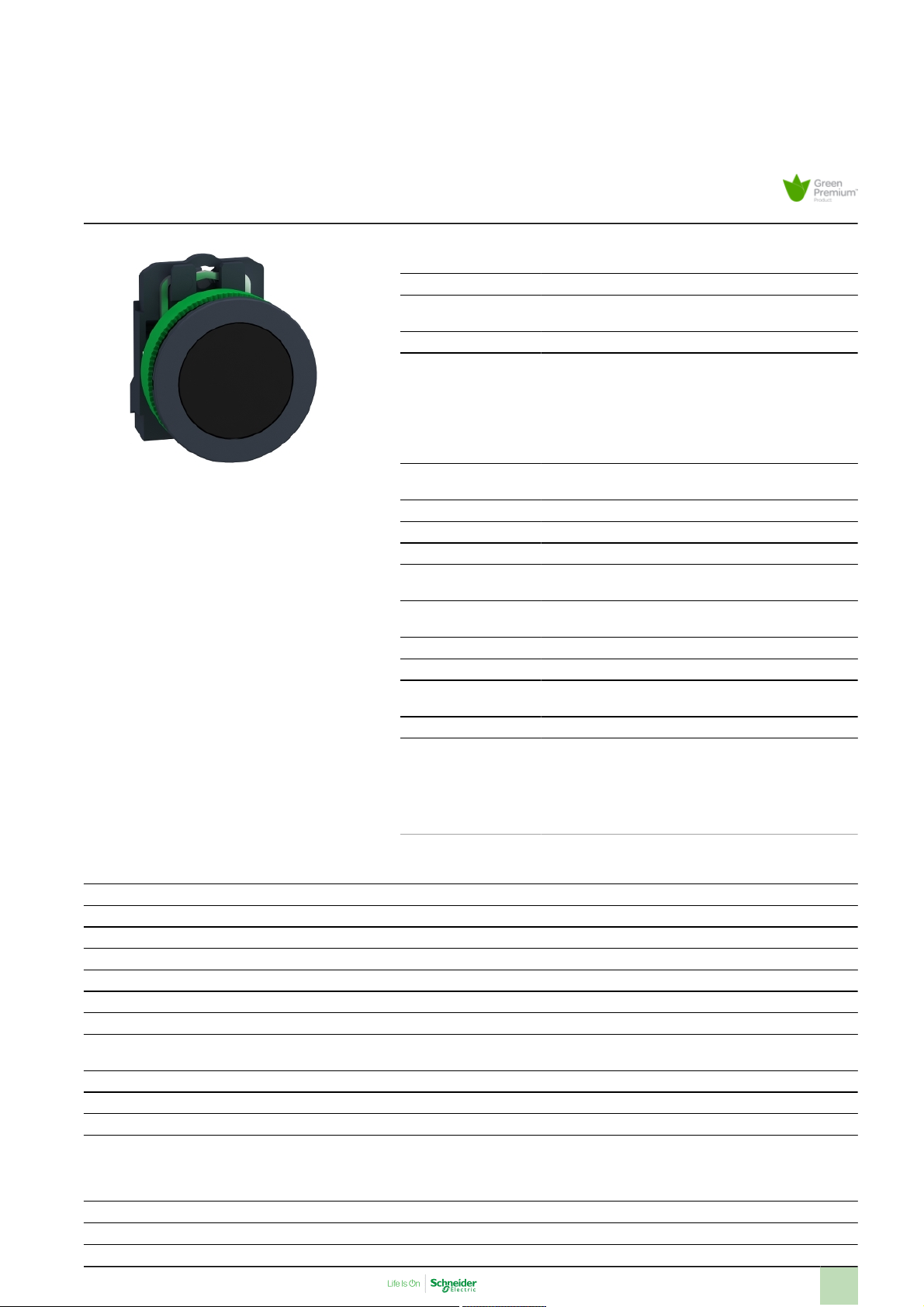

Harmony XB5, Antimicrobial Push button flush mounted, plastic, black, Ø30, spring return, unmarked, 1 NO

Main

Range of product Harmony XB5

Product or component type

Device short name XB5F

Product compatibility ZBYF2101

Bezel material Plastic

Head type Built-in-flush

Fixing collar material Plastic

Mounting diameter 30.5mm

Sale per indivisible quantity

Shape of signaling unit head

Type of operator Spring return

Operator profile Black flush, unmarked

Contacts type and composition

Contact operation Slow-break

Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable

Push-button

ZBYF4101 ZBYF6101 ZBYF6102 ZBZF32 ZBZF33 ZB4FBZ007

Dark grey plastic

Round

1 NO

end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

Complementary

Height 42mm

Width 36.6mm

Depth 55mm

Terminals description ISO n°1 (13-14)NO

Resistance to high pressure washer 7000000Pa at 55°C, distance : 0.1 m

Contacts usage Standard contacts

Positive opening Without

Operating travel 2.6Mm (NO changing electrical state)

Operating force 3.8N NO changing electrical state

Mechanical durability 10000000cycles

Tightening torque 0.8…1.2N.m conforming to EN 60947-1

Shape of screw head Cross compatible with Philips no 1 screwdriver

Contacts material Silver alloy (Ag/Ni)

Short-circuit protection 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Oct 4, 2022

4.3mm (total travel)

Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver

Page 2

[Ith] conventional free air thermal current 10A conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage 600V (pollution degree 3) conforming to EN 60947-1

[Uimp] rated impulse withstand voltage 6KV conforming to EN 60947-1

[Ie] rated operational current 3A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical durability 1000000Cycles AC-15, 2A at 230 V, operating rate <3600cyc/h, load factor: 0.5

Electrical reliability Λ < 10exp(-6) at 5 V and 1mA in clean environment conforming to EN/IEC

Device presentation Complete product

Customizable No

Customizable 1

GCR BRIDGE XB5FACUST01

Compatibility code XB5

600V (pollution degree 3) conforming to EN/IEC 60947-1

6kV conforming to EN/IEC 60947-1

6A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1

0.1A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.27A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.55A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

1.2A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles AC-15, 3A at 120 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles AC-15, 4A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles DC-13, 0.2A at 110 V, operating rate <3600cyc/h, load factor:

0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000cycles DC-13, 0.5A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C

60947-5-4 Λ < 10exp(-8) at 17 V and 5mA in clean environment conforming to EN/IEC 60947-5-4

Environment

Protective treatment TH

Ambient air temperature for storage -40…70°C

Ambient air temperature for operation -40…70°C

Overvoltage category Class II conforming to IEC 60536

IP degree of protection IP66 conforming to IEC 60529

NEMA degree of protection NEMA 13

IK degree of protection IK03 conforming to IEC 50102

Standards EN/IEC 60947-1

Product certifications UL listed

Vibration resistance 5 gn (f= 2…500Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18ms) for half sine wave acceleration conforming to IEC

IP67 IP69 IP69K Type 13 conforming to UL 50 E Type 12 conforming to UL 50 E Type 4 conforming to UL 50 E Type 4X conforming to UL 50 E

NEMA 4X

UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 ISO 22196:2011 ISO 21702

CSA

2 mm peak to peak (f= 2…10Hz) conforming to IEC 60068-2-6

60068-2-27 50 gn (duration = 11ms) for half sine wave acceleration conforming to IEC 60068-2-27 25 gn (duration = 6ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Page 3

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 43.0g

Package 1 Height 4.3cm

Package 1 width 5.3cm

Package 1 Length 8.8cm

Unit Type of Package 2 S02

Number of Units in Package 2 40

Package 2 Weight 2.005kg

Package 2 Height 15.0cm

Package 2 width 30.0cm

Package 2 Length 40.0cm

Package 3 Height 4.3cm

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

Circularity Profile

WEEE The product must be disposed on European Union markets following specific

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

China RoHS Declaration

Product Environmental Profile

End Of Life Information

waste collection and never end up in rubbish bins

Page 4

Product data sheet

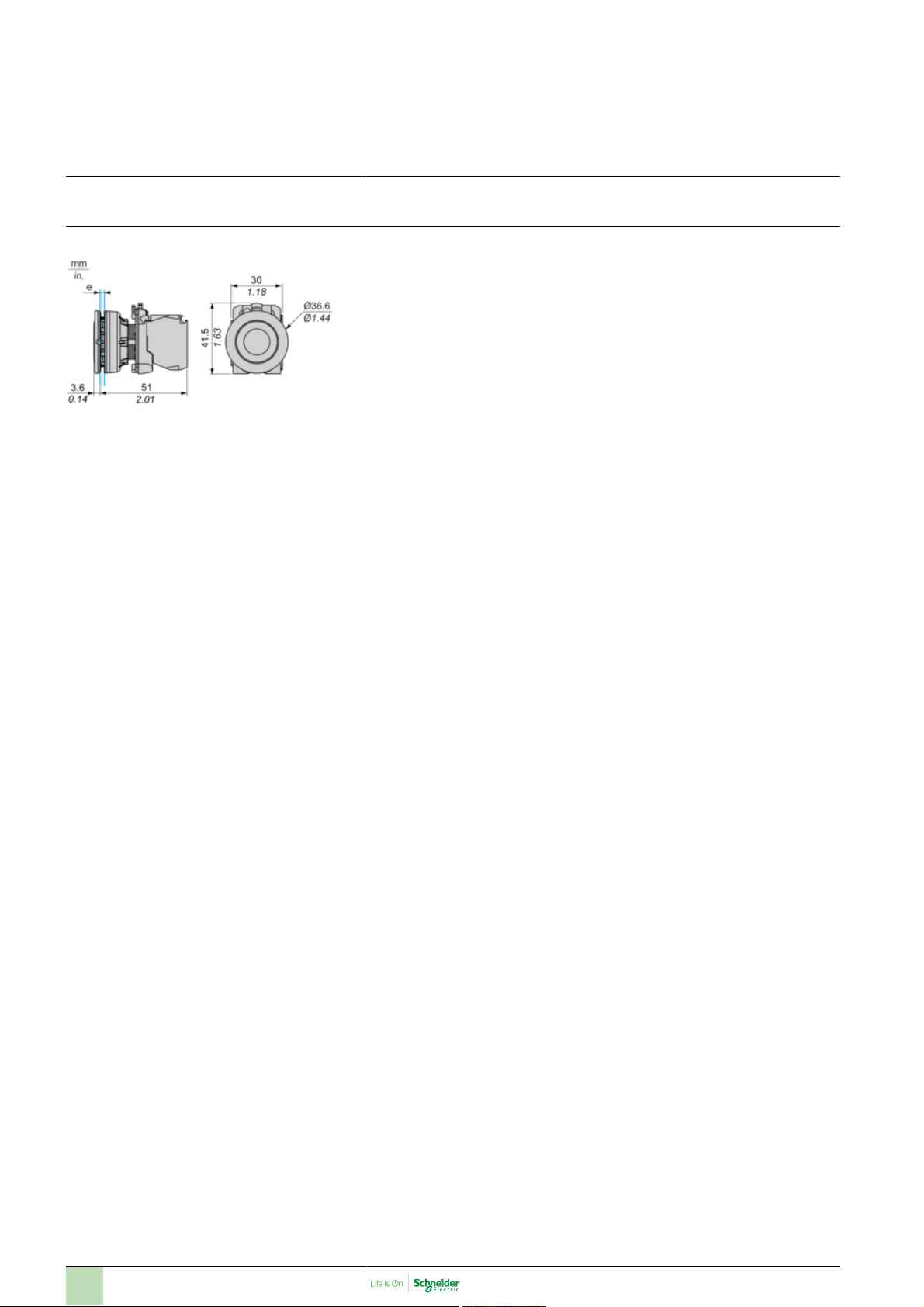

Dimensions Drawings

Dimensions

e: Clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.

XB5FA21

Page 5

Product data sheet

XB5FA21

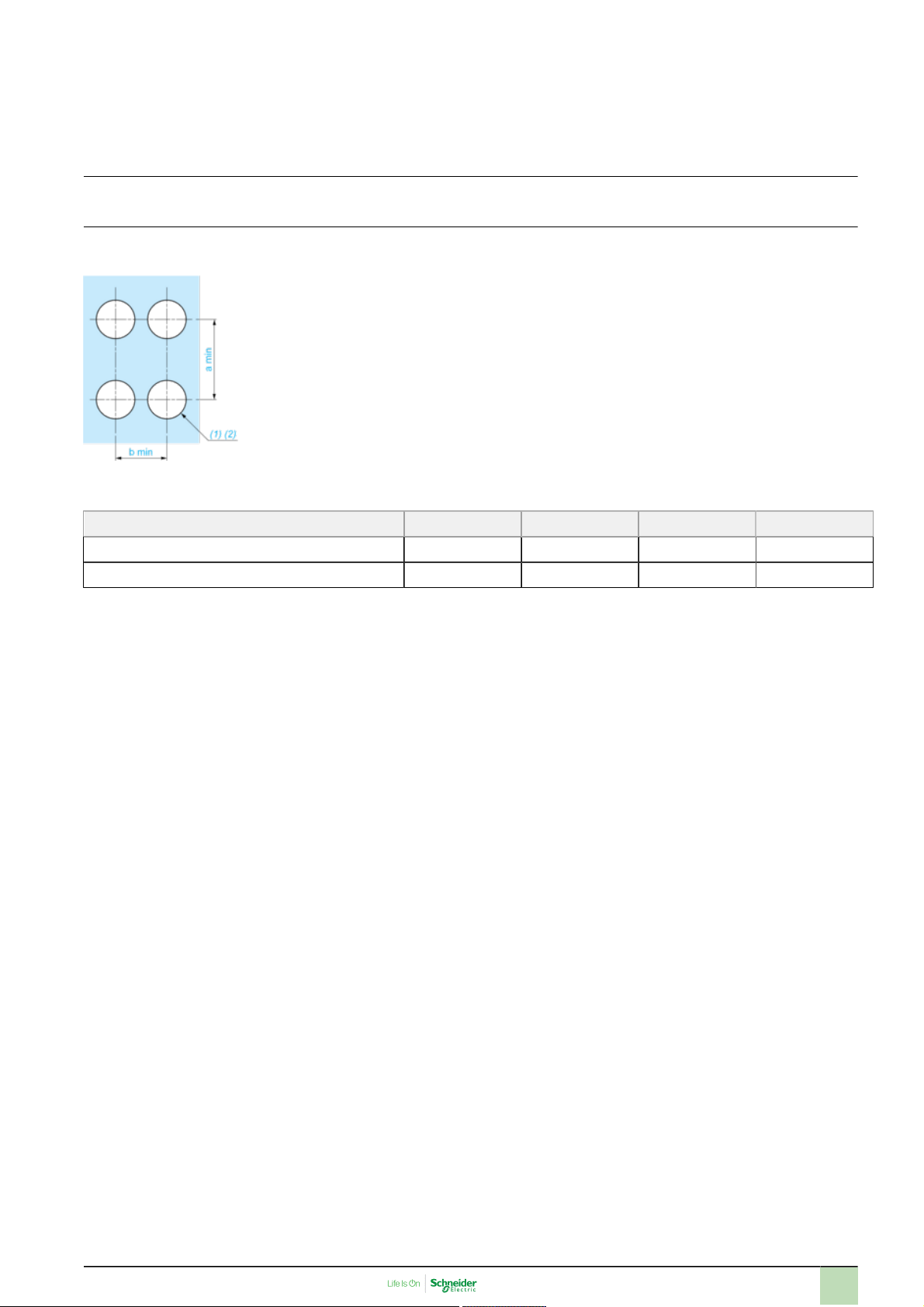

Mounting and Clearance

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors

(1) Diameter on finished panel or support

(2) Ø30.75 mm recommended (Ø30.5 0

+0.5

) / Ø1.21 in. recommended (Ø1.20 in. 0

+0.0196

)

Connections a in mm a in in. b in mm b in in.

By screw clamp terminals or plug-in connector 40 1.57 40 1.57

By Faston connectors 45 1.77 40 1.57

Page 6

Product data sheet

XB5FA21

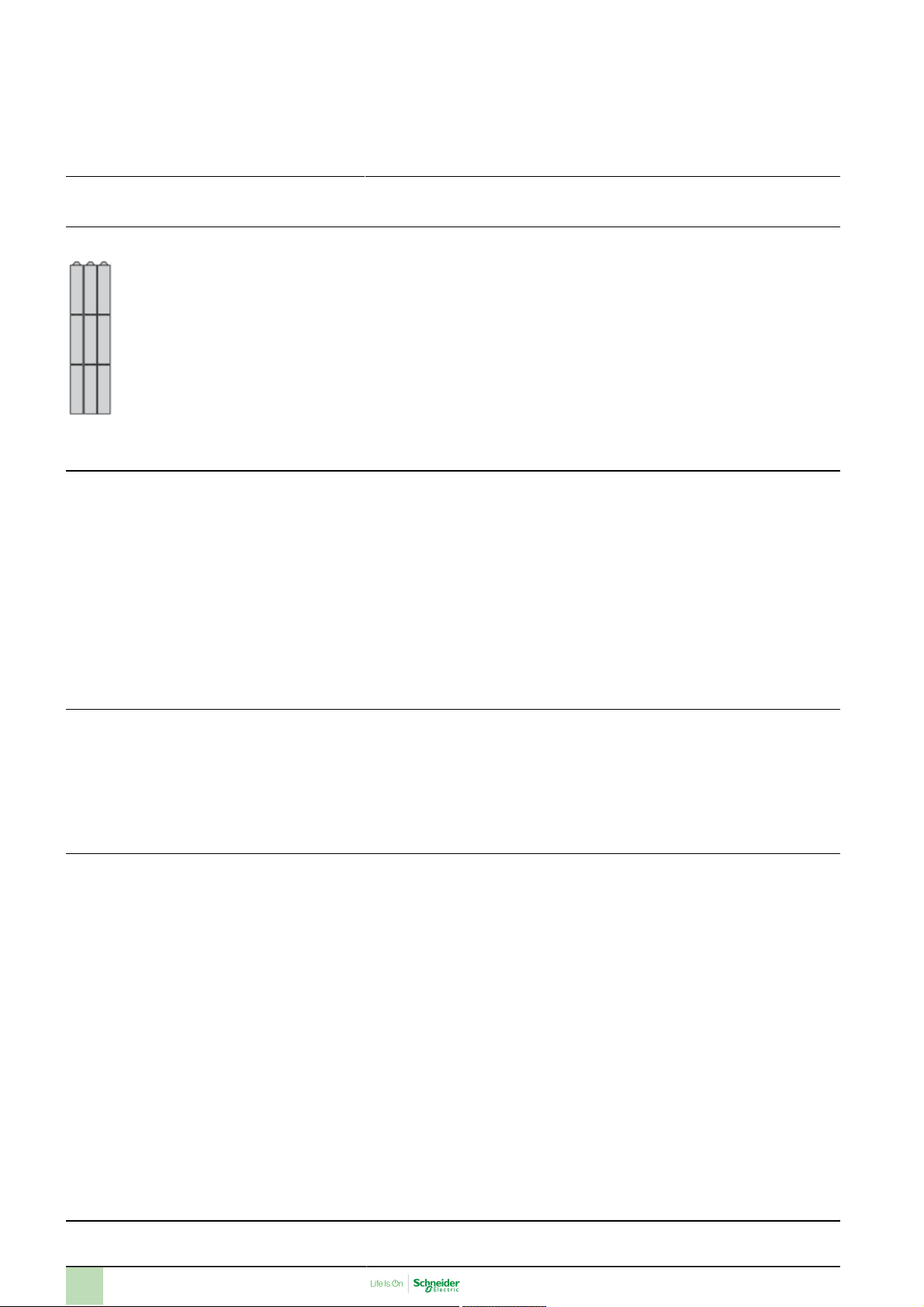

Technical Description

Electrical Composition Corresponding to Code C1

Electrical Composition Corresponding to Code C2

Electrical Composition Corresponding to Codes C9, C11, SF1 and SR1

Electrical Composition Corresponding to Code C15

1 N/O

1 N/C

1 N/O + N/C or 1 N/O + N/O or 1 N/C + N/C

Legend

Page 7

Single contact

Double contact

Light block

Possible location
