Product data sheet

Characteristics

XB5AA21

Harmony XB5, Push button, plastic, flush, black, Ø22, spring return, unmarked, 1 NO

Main

Range of product Harmony XB5

Product or component type

Device short name XB5

Bezel material Plastic

Head type Standard

Fixing collar material Plastic

Mounting diameter 22mm

Sale per indivisible quantity

Shape of signaling unit head

Type of operator Spring return

Operator profile Black flush, unmarked

Contacts type and composition

Contact operation Slow-break

Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable

Push-button

Dark grey plastic

Round

1 NO

end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Complementary

Height 42mm

Width 30mm

Depth 52mm

Terminals description ISO n°1 (13-14)NO

Net weight 0.037kg

Resistance to high pressure washer 7000000Pa at 55°C, distance : 0.1 m

Contacts usage Standard contacts

Positive opening Without

Operating travel 2.6Mm (NO changing electrical state)

Operating force 3.8N NO changing electrical state

Mechanical durability 10000000cycles

Tightening torque 0.8…1.2N.m conforming to EN 60947-1

Shape of screw head Cross compatible with Philips no 1 screwdriver

Contacts material Silver alloy (Ag/Ni)

Short-circuit protection 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ith] conventional free air thermal current 10A conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage 600V (pollution degree 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 6kV conforming to EN/IEC 60947-1

4.3mm (total travel)

Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver

Oct 4, 2022

Page 2

[Ie] rated operational current 3A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical durability 1000000Cycles AC-15, 2A at 230 V, operating rate <3600cyc/h, load factor: 0.5

Electrical reliability Λ < 10exp(-6) at 5 V and 1mA in clean environment conforming to EN/IEC

Device presentation Complete product

Customizable No

Customizable 1

GCR BRIDGE XB5AACUST01

Compatibility code XB5

6A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1

0.1A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.27A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.55A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

1.2A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles AC-15, 3A at 120 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles AC-15, 4A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000Cycles DC-13, 0.2A at 110 V, operating rate <3600cyc/h, load factor:

0.5 conforming to EN/IEC 60947-5-1: appendix C 1000000cycles DC-13, 0.5A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C

60947-5-4 Λ < 10exp(-8) at 17 V and 5mA in clean environment conforming to EN/IEC 60947-5-4

Environment

Protective treatment TH

Ambient air temperature for storage -40…70°C

Ambient air temperature for operation -40…70°C

Overvoltage category Class II conforming to IEC 60536

IP degree of protection IP66 conforming to IEC 60529

NEMA degree of protection NEMA 13

IK degree of protection IK03 conforming to IEC 50102

Standards EN/IEC 60947-1

Product certifications UL listed

Vibration resistance 5 gn (f= 2…500Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18ms) for half sine wave acceleration conforming to IEC

IP67 IP69 IP69K

NEMA 4X

UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1

CSA RINA BV DNV LROS (Lloyds register of shipping) GL

60068-2-27 50 gn (duration = 11ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 35.84g

Package 1 Height 3.5cm

Package 1 width 5.5cm

Package 1 Length 8.5cm

Unit Type of Package 2 P06

Page 3

Number of Units in Package 2 1200

Package 2 Weight 55.52kg

Package 2 Height 75.0cm

Package 2 width 80.0cm

Package 2 Length 60.0cm

Unit Type of Package 3 S03

Number of Units in Package 3 150

Package 3 Weight 5.94kg

Package 3 Height 30.0cm

Package 3 width 30.0cm

Package 3 Length 40.0cm

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

Circularity Profile

WEEE The product must be disposed on European Union markets following specific

California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

China RoHS Declaration

Product Environmental Profile

End Of Life Information

waste collection and never end up in rubbish bins

phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contractual warranty

Warranty 18 months

Page 4

Product data sheet

Dimensions Drawings

Dimensions

e: clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.

(1) Additional row of contacts or double contact

XB5AA21

Page 5

Product data sheet

XB5AA21

Mounting and Clearance

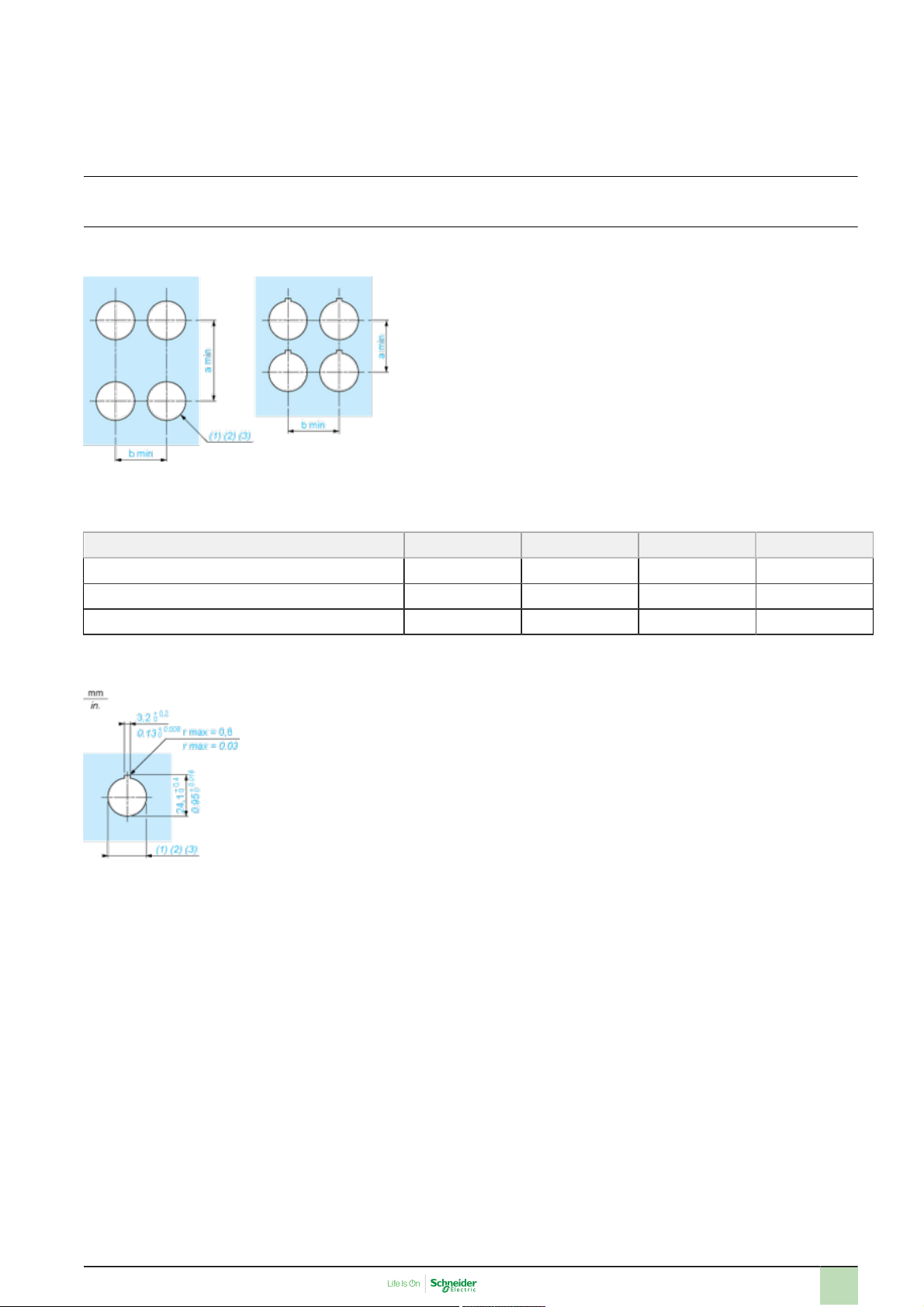

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board

(1) Diameter on finished panel or support

(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.

(3) Ø22.5 mm recommended (Ø22.3 0

+0.4

) / Ø0.89 in. recommended (Ø0.88 in. 0

+0.016

)

Connections a in mm a in in. b in mm b in in.

By screw clamp terminals or plug-in connector 40 1.57 30 1.18

By Faston connectors 45 1.77 32 1.26

On printed circuit board 30 1.18 30 1.18

Detail of Lug Recess

(1) Diameter on finished panel or support

(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.

(3) Ø22.5 mm recommended (Ø22.3 0

+0.4

) / Ø0.89 in. recommended (Ø0.88 in. 0

+0.016

)
