SCHNEIDER ELECTRIC XB4BD21 Datasheet

Page 1

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

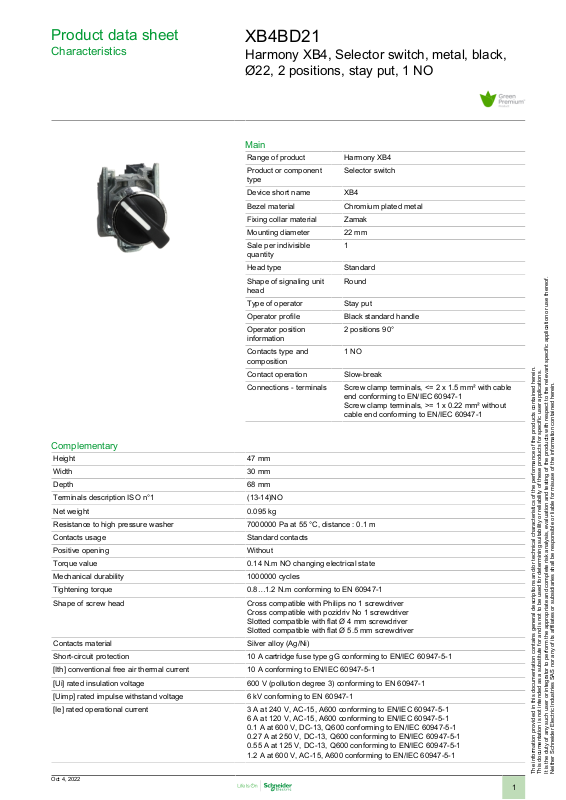

Product data sheet

Characteristics

XB4BD21

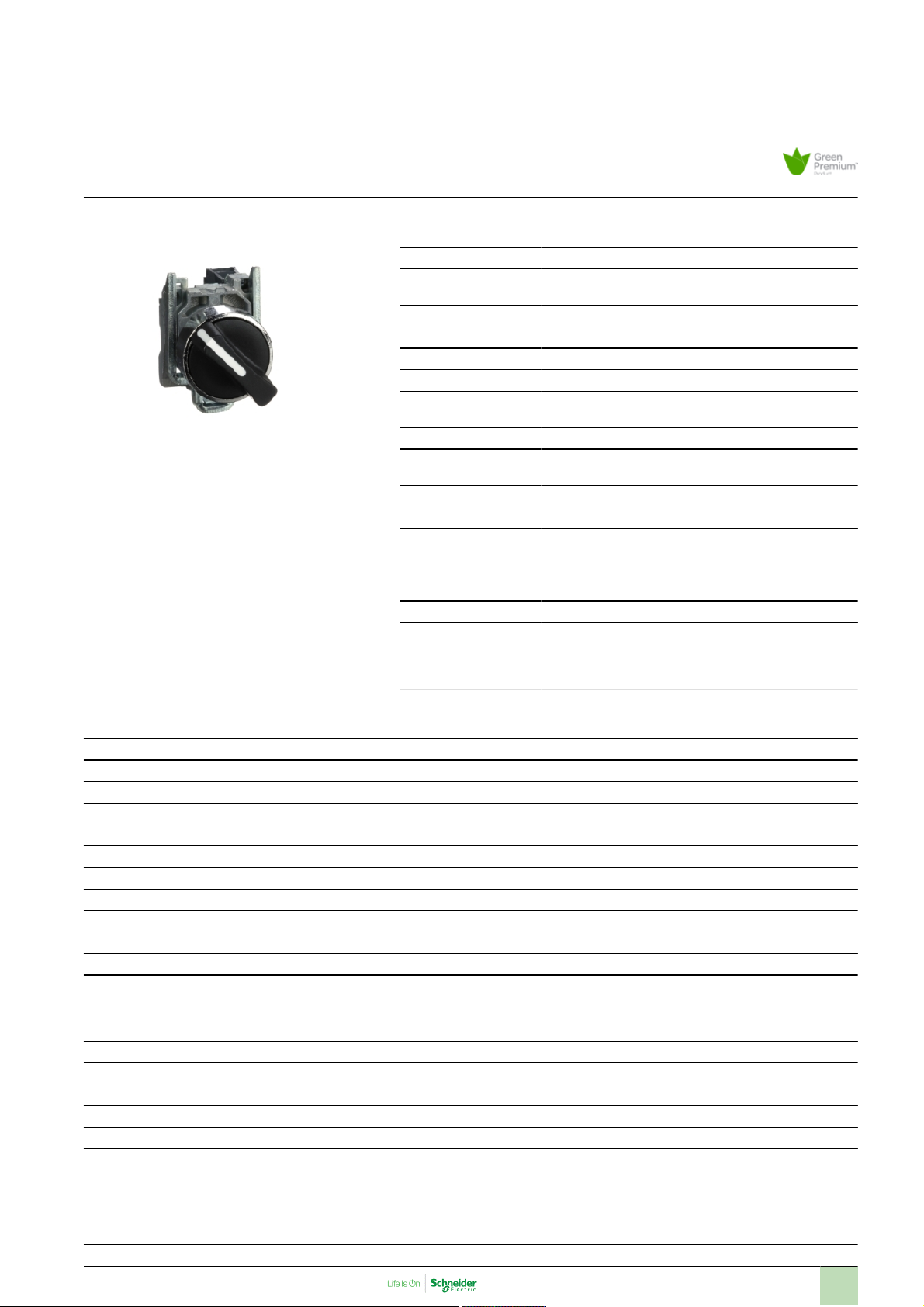

Harmony XB4, Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO

Main

Range of product Harmony XB4

Product or component type

Device short name XB4

Bezel material Chromium plated metal

Fixing collar material Zamak

Mounting diameter 22mm

Sale per indivisible quantity

Head type Standard

Shape of signaling unit head

Type of operator Stay put

Operator profile Black standard handle

Operator position information

Contacts type and composition

Contact operation Slow-break

Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable

Selector switch

Round

2 positions 90°

1 NO

end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

Complementary

Height 47mm

Width 30mm

Depth 68mm

Terminals description ISO n°1 (13-14)NO

Net weight 0.095kg

Resistance to high pressure washer 7000000Pa at 55°C, distance : 0.1 m

Contacts usage Standard contacts

Positive opening Without

Torque value 0.14N.m NO changing electrical state

Mechanical durability 1000000cycles

Tightening torque 0.8…1.2N.m conforming to EN 60947-1

Shape of screw head Cross compatible with Philips no 1 screwdriver

Contacts material Silver alloy (Ag/Ni)

Short-circuit protection 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ith] conventional free air thermal current 10A conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage 600V (pollution degree 3) conforming to EN 60947-1

[Uimp] rated impulse withstand voltage 6kV conforming to EN 60947-1

[Ie] rated operational current 3A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver

6A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1

0.1A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.27A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.55A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

1.2A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Oct 4, 2022

Page 2

Electrical durability 1000000Cycles, AC-15, 2A at 230 V, operating rate <3600cyc/h, load factor:

Electrical reliability Λ < 10exp(-6) at 5 V and 1mA in clean environment conforming to EN/IEC

Device presentation Complete product

0.5 conforming to EN 60947-5-1 appendix C 1000000Cycles, AC-15, 3A at 120 V, operating rate <3600cyc/h, load factor:

0.5 conforming to EN 60947-5-1 appendix C 1000000Cycles, AC-15, 4A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C 1000000Cycles, DC-13, 0.2A at 110 V, operating rate <3600cyc/h, load factor:

0.5 conforming to EN 60947-5-1 appendix C 1000000cycles, DC-13, 0.5A at 24 V, operating rate <3600cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C

60947-5-4 Λ < 10exp(-8) at 17 V and 5mA in clean environment conforming to EN/IEC 60947-5-4

Environment

Protective treatment TH

Ambient air temperature for storage -40…70°C

Ambient air temperature for operation -40…70°C

Overvoltage category Class I conforming to IEC 60536

IP degree of protection IP69

NEMA degree of protection NEMA 13

Standards CSA C22.2 No 14

Product certifications LROS (Lloyds register of shipping)

Vibration resistance 5 gn (f= 2…500Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18ms) for half sine wave acceleration conforming to IEC

IP69K IP67 conforming to IEC 60529

NEMA 4X

EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 UL 508 JIS C8201-1

BV UL GL CSA DNV

60068-2-27 50 gn (duration = 11ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 95.0g

Package 1 Height 3.7cm

Package 1 width 5.5cm

Package 1 Length 9.1cm

Unit Type of Package 2 S03

Number of Units in Package 2 100

Package 2 Weight 10.055kg

Package 2 Height 30.0cm

Package 2 width 30.0cm

Package 2 Length 40.0cm

Unit Type of Package 3 BB1

Number of Units in Package 3 5

Package 3 Weight 476.0g

Package 3 Height 9.0cm

Package 3 width 3.4cm

Package 3 Length 26.5cm

Page 3

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

Circularity Profile

WEEE The product must be disposed on European Union markets following specific

California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

China RoHS Declaration

Product Environmental Profile

End Of Life Information

waste collection and never end up in rubbish bins

phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contractual warranty

Warranty 18 months

Page 4

Product data sheet

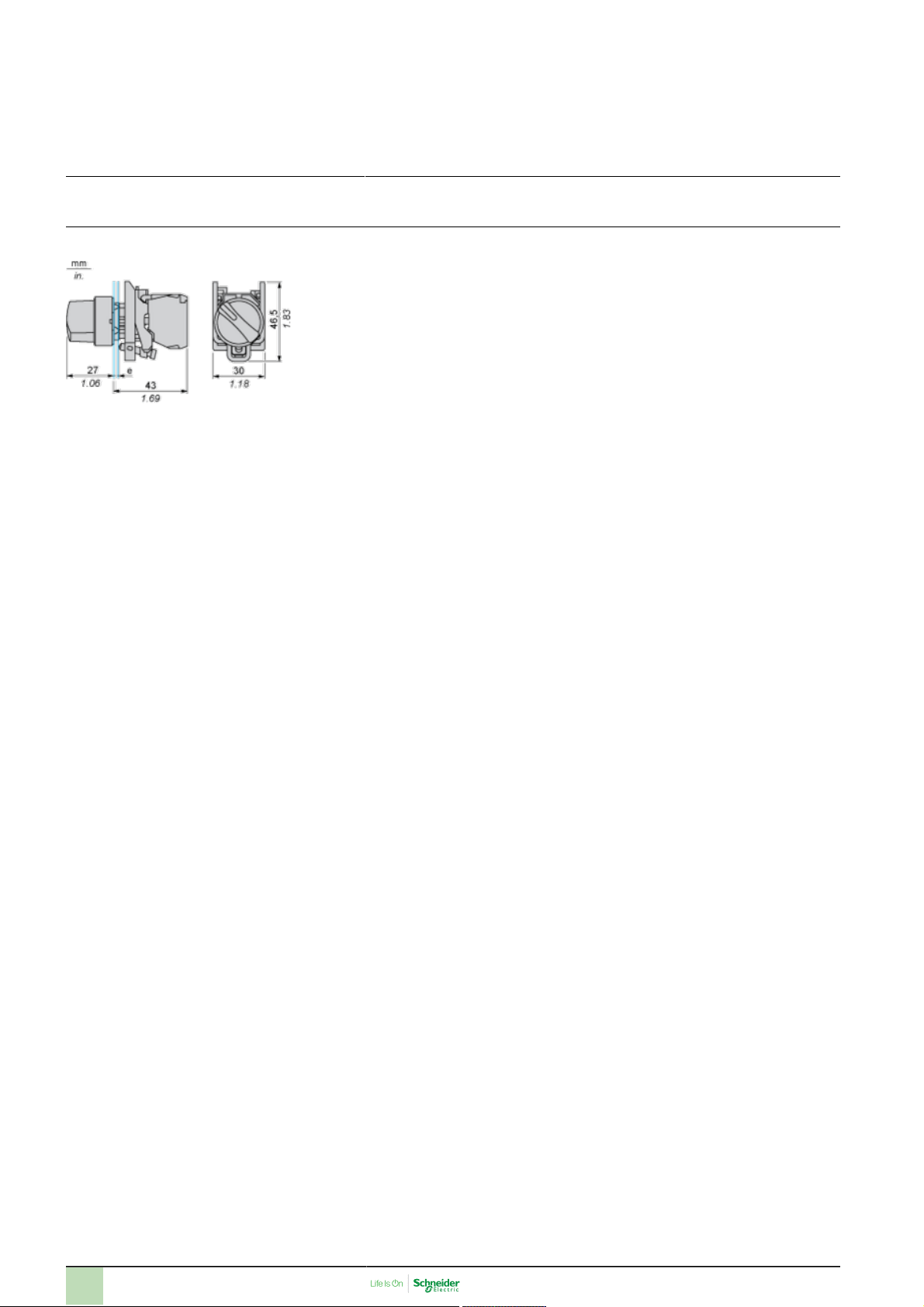

Dimensions Drawings

Dimensions

e : clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.

XB4BD21

Page 5

Product data sheet

XB4BD21

Mounting and Clearance

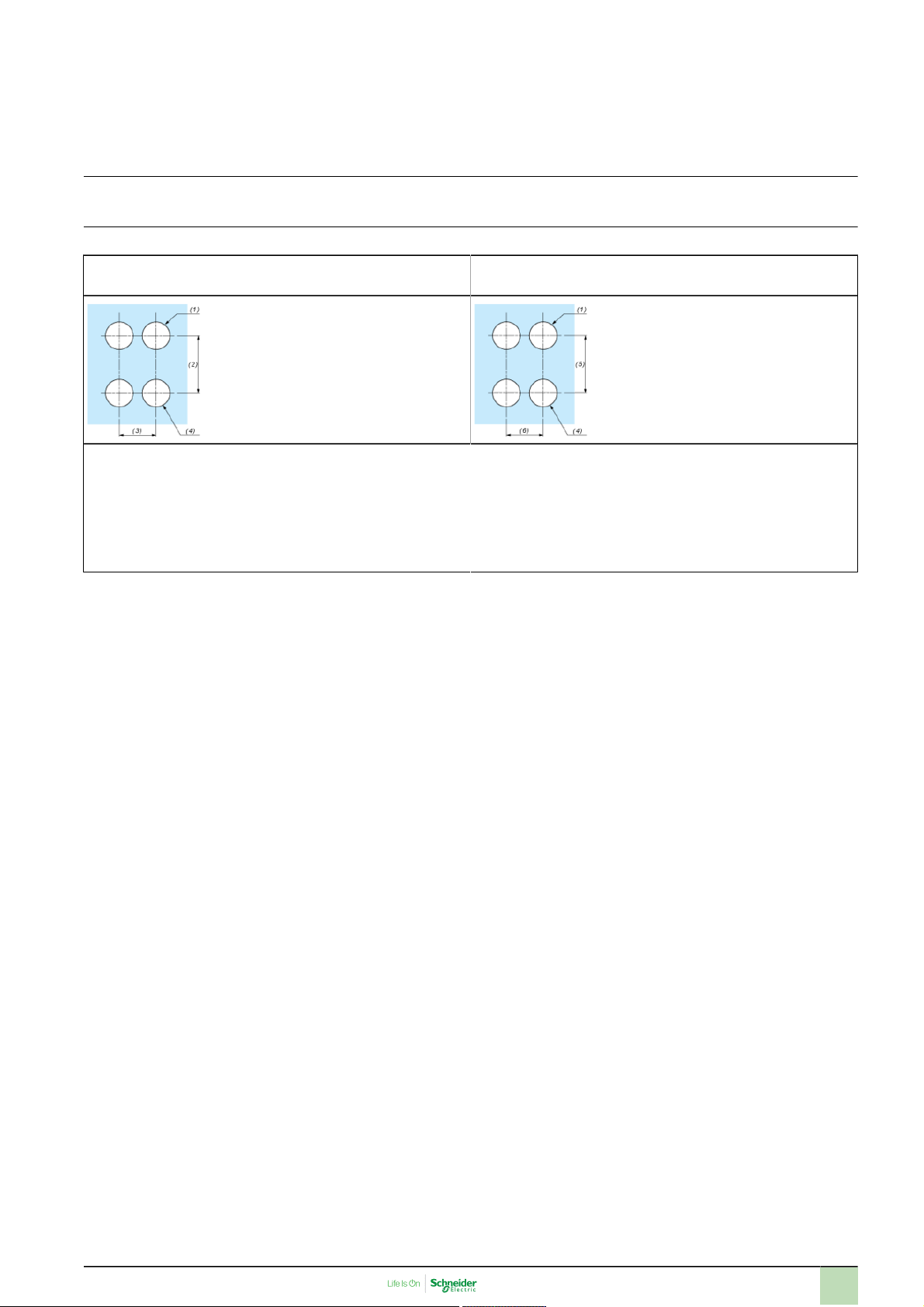

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board

(1) Diameter on finished panel or support

(2) 40 mm min. / 1.57 in. min.

(3) 30 mm min. / 1.18 in. min.

(4) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0

(5) 45 mm min. / 1.78 in. min.

(6) 32 mm min. / 1.26 in. min.

+0.4

/ 0.88 in. 0

Connection by Faston Connectors

+0.016

)
