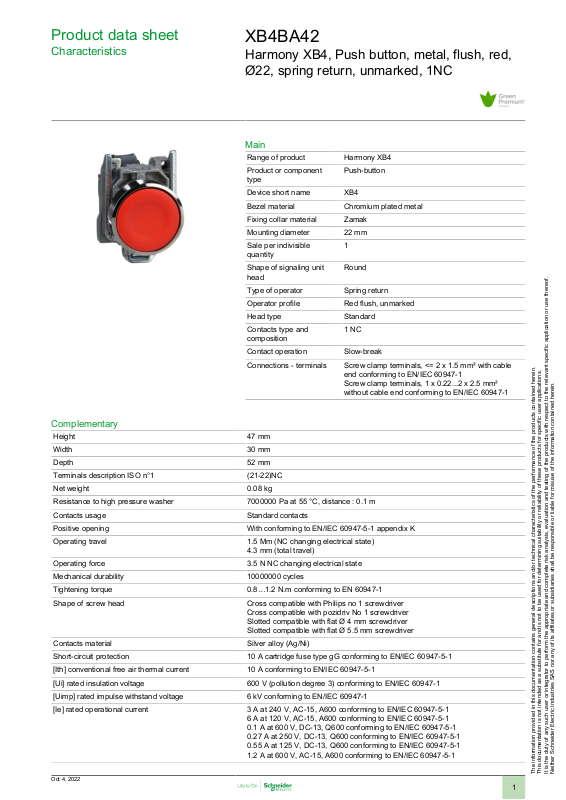

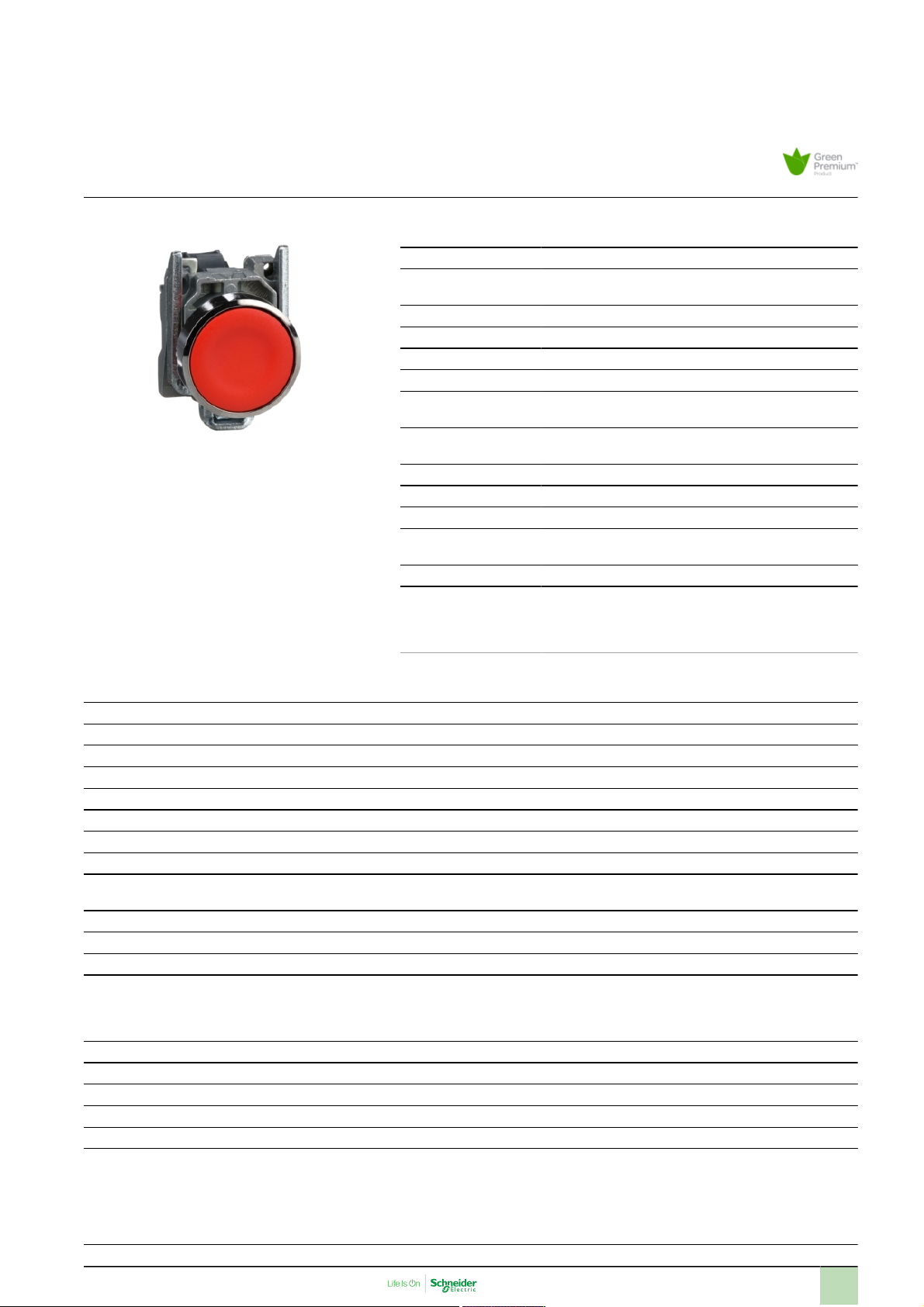

Product data sheet
Characteristics
XB4BA42
Harmony XB4, Push button, metal, flush, red,
Ø22, spring return, unmarked, 1NC
Main
Range of product Harmony XB4
Product or component
type
Device short name XB4
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 22mm
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator Spring return
Operator profile Red flush, unmarked
Head type Standard
Contacts type and
composition
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable
Push-button
1
Round
1 NC
end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm²
without cable end conforming to EN/IEC 60947-1
Complementary
Height 47mm
Width 30mm
Depth 52mm
Terminals description ISO n°1 (21-22)NC
Net weight 0.08kg
Resistance to high pressure washer 7000000Pa at 55°C, distance : 0.1 m
Contacts usage Standard contacts
Positive opening With conforming to EN/IEC 60947-5-1 appendix K
Operating travel 1.5Mm (NC changing electrical state)
Operating force 3.5N NC changing electrical state
Mechanical durability 10000000cycles
Tightening torque 0.8…1.2N.m conforming to EN 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage 600V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 6kV conforming to EN/IEC 60947-1
[Ie] rated operational current 3A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
4.3mm (total travel)
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
6A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Oct 4, 2022
1

Electrical durability 1000000Cycles, AC-15, 2A at 230 V, operating rate <3600cyc/h, load factor:
Electrical reliability Λ < 10exp(-6) at 5 V and 1mA in clean environment conforming to EN/IEC
Device presentation Complete product
0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000Cycles, AC-15, 3A at 120 V, operating rate <3600cyc/h, load factor:
0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000Cycles, AC-15, 4A at 24 V, operating rate <3600cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000Cycles, DC-13, 0.2A at 110 V, operating rate <3600cyc/h, load factor:
0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000cycles, DC-13, 0.5A at 24 V, operating rate <3600cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
60947-5-4
Λ < 10exp(-8) at 17 V and 5mA in clean environment conforming to EN/IEC
60947-5-4
Environment
Protective treatment TH
Ambient air temperature for storage -40…70°C
Ambient air temperature for operation -40…70°C
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 13
IK degree of protection IK06 conforming to IEC 50102
Standards EN/IEC 60947-5-5
Product certifications LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f= 2…500Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18ms) for half sine wave acceleration conforming to IEC
IP67
IP69
IP69K
NEMA 4X
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1
GL
BV
CSA
DNV
UL listed
60068-2-27
50 gn (duration = 11ms) for half sine wave acceleration conforming to IEC
60068-2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 78.9g
Package 1 Height 3.5cm
Package 1 width 5.5cm
Package 1 Length 8.5cm
Unit Type of Package 2 P06
Number of Units in Package 2 1200
Package 2 Weight 106.144kg
Package 2 Height 75.0cm
Package 2 width 80.0cm
Package 2 Length 60.0cm
Unit Type of Package 3 S03
Number of Units in Package 3 150
Package 3 Weight 12.268kg
Package 3 Height 30.0cm
2

Package 3 width 30.0cm
Package 3 Length 40.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
REACh free of SVHC Yes
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE The product must be disposed on European Union markets following specific
California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
End Of Life Information
waste collection and never end up in rubbish bins
phthalate (DIDP), which is known to the State of California to cause birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty
Warranty 18 months
3

Product data sheet

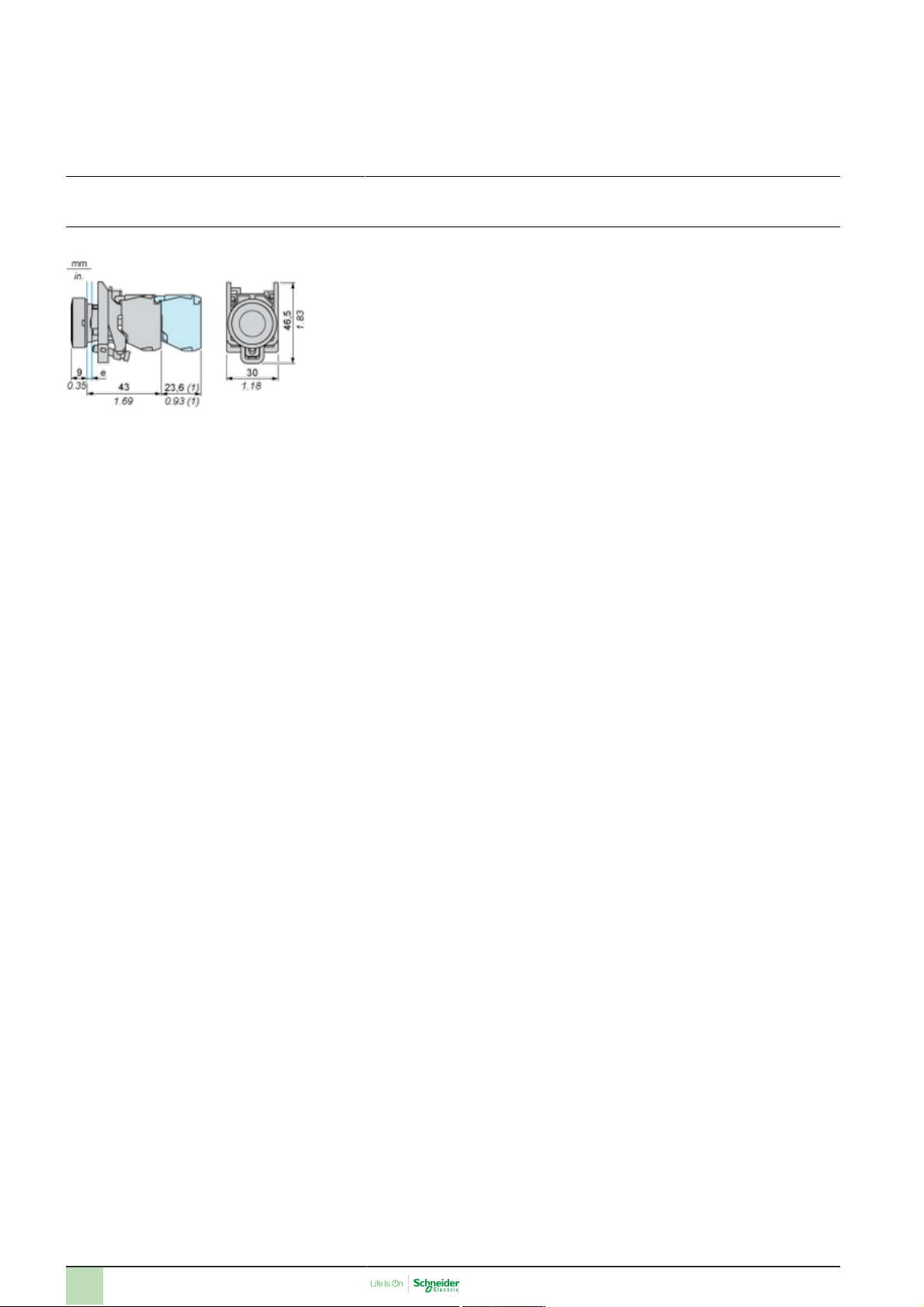

Dimensions Drawings
Dimensions
e : clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.
(1) Additional row of contacts or double contact.
XB4BA42
4

Product data sheet
XB4BA42

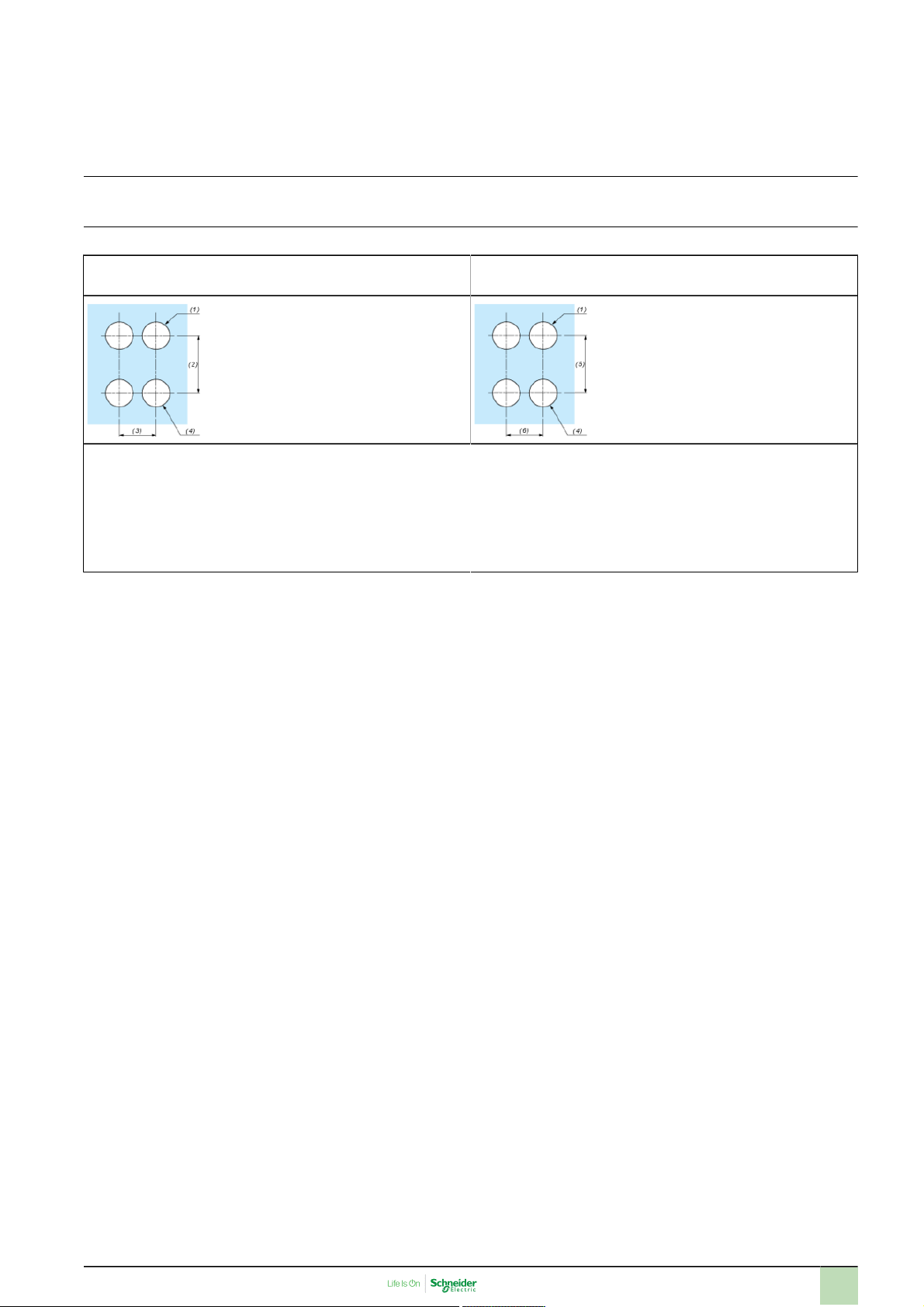

Mounting and Clearance
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on
Printed Circuit Board
(1) Diameter on finished panel or support
(2) 40 mm min. / 1.57 in. min.
(3) 30 mm min. / 1.18 in. min.
(4) Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0
(5) 45 mm min. / 1.78 in. min.
(6) 32 mm min. / 1.26 in. min.
+0.4
/ 0.88 in. 0
Connection by Faston Connectors
+0.016
)
