Schneider Electric Standard Panels Specifications

Page 1

Specication Sheet

Standard Panels

BMS Solution

Product Description

Standard Panels allow customers to create a unique panel design by combining various panel categories and options. The panel categories and bills of material are listed in the bullets below. Note that each category includes installation labor for that category. A standard panel is made up of one item from each of the following categories:

• BOX (BOX) – Determines the panel’s enclosure size, design I/O capacity and wire duct (required)

• POWER (PWR) – Denes whether the power is internal or external, as well as the AC and DC requirements (required)

• EQUIPMENT (EQP) – Species I/O conguration, communication requirements and the number of safety relays (required)

• CONTROLLER (CTL) – Denes which controller is used, along with labeled wiring (optional)

The combination of these panel categories results in over 300,000 unique panel designs which can include variables such as:

• Internal and external power

• AC power 50 to 300VA

• DC power 7.5 kW, 15 kW, or 30kW

• 1 to 6 safety relays

• CAT5 and RS-485 communication connections

Refer to the specications and information in this specication sheet to determine details and category interaction.

Specications

Panel Dimensions

PNL1

PNL2

PNL3

PNL4

BPL1

BPL2

BPL3

BPL4

Power Options

Main power location

Disconnect options: Circuit breakers (Square D)

Disconnect options: Fused switches (Kele)

Main power 120 VAC @ 60 Hz

Supplemental power

600 x 600 x 200 mm

(23.622 x 23.622 x 7.87402 in.) 1000 x 600 x 250 mm

(39.3701 x 23.622 x 9.84252 in.) 1000 x 600 x 250 mm

(39.3701 x 23.622 x 9.84252 in.) 1000 x 800 x 250 mm

(39.3701 x 31.4961 x 9.84252 in.) 565 x 550 x 2.5 mm

(22.2241 x 21.6535 x 0.098425 in.) 965 x 550 x 2.5 mm

(37.9921 x 21.6535 x 0.098425 in.) 965 x 550 x 2.5 mm

(37.9921 x 21.6535 x 0.098425 in.) 965 x 750 x 2.5 mm

(37.9921 x 29.5276 x 0.098425 in.)

Internal (main panel) External (external power panel)

SQD-60100, MIN CIR BREAK 120V 0.5A SQD-60101, MIN CIR BREAK 120V 1A SQD-60103, MIN CIR BREAK 120V 2A SQD-60104, MIN CIR BREAK 120V 3A1 SQD-60105, MIN CIR BREAK 120V 4A SQD-60106, MIN CIR BREAK 120V 5A SQD-60107, MIN CIR BREAK 120V 6A SQD-60108, MIN CIR BREAK 120V 7A SQD-60109, MIN CIR BREAK 120V 8A

KEL-GF-0.5, Fast Acting Fuse 0.5A, 250V KEL-GF-1, Fast Acting Fuse 1A, 250V KEL-GF-2, Fast Acting Fuse 2A, 250V KEL-GF-3, Fast Acting Fuse 3A, 250V KEL-GF-4, Fast Acting Fuse 4A, 250V KEL-GF-5, Fast Acting Fuse 5A, 250V

50/100/200/300 VA @ 24 VAC

7.5/15/30 W @ 24 VDC

Page 2

Specication Sheet

Specications (cont.)

Terminal Assembly UIO Count

PNL1 8 UIO, 8 BO

PNL2 12 UIO, 8 BO

PNL3 20 UIO, 4 BO

PNL4 28 UIO, 8 BO

Network Terminals

No network terminals PNL1, PNL2, PNL3, PNL4

2 CAT5 terminals PNL3, PNL4

3 CAT5 terminals PNL1, PNL2, PNL3, PNL4

RS-485 terminals PNL1, PNL2, PNL3, PNL4

Safety Relays

1 to 3 relays (FKIT-VMD2B-F24A)

1 to 5 relays (FKIT-VMD2B-F24A)

1 to 6 relays (FKIT-VMD2B-F24A)

Regulatory Information

Agency approvals UL, NEMA 4, Arc Flash

PNL1

PNL2, PNL3

PNL4

Replacement Part Numbers

Part Number Description Vendor

Panel

SQD-NSYCRN66200 ENC, 24X24X8, N4, HC Square D

SQD-NSYMF66 BACK PANEL, 22x23 Square D

SQD-EXP0060991 ENC, 39X24X10, N4X, HC Square D

SQD-NSYMF106 BACK PANEL, 22x38 Square D

SQD-NSYCRN108250 ENC, 40X32X10, N4, HC Square D

SQD-NSYMF108 BACK PANEL, 30x38 Square D

KEL-T1-1030G 1”X3”X6.5’ GRAY DUCT W/CVR Kele

KEL-T1-1530G 1.5”X3”X6.5’ GRAY DUCT W/CVR Kele

KEL-DIN-3F DIN RAIL, 1 METER LENGTH Kele

KEL-PRK PANEL RECEPTACLE ASSEMBLY Kele

Power

SQD-NSYCRN44200P ENC, 16 X 16 X 8 Square D

KEL-T1-1030G 1”X3”X6.5’ GRAY DUCT W/CVR Kele

X050CAB XFR 120V/24V 50 VA 2HB+FT Veris Industries

X100CAB XFR 120V/24V 99 VA 2HB+FT Veris Industries

PS24-7.5W UNIVERSAL PWR SUP, 24VDC, 7.5W Veris Industries

PS24-15W UNIVERSAL PWR SUP, 24VDC, 15W Veris Industries

PS24-30W UNIVERSAL PWR SUP, 24VDC, 30W Veris Industries

3045130 Single Terminal Block White Phoenix Contact

Page 3

Specication Sheet

Replacement Part Numbers (cont.)

Part Number Description Vendor

3044128 Single Grounding Terminal Phoenix Contact

3044115 Single Terminal Block Blue Phoenix Contact

3044607 Single Terminal Block Purple Phoenix Contact

3045127 Single Terminal Block Red Phoenix Contact

3045114 Single Terminal Block Yellow Phoenix Contact

3047028 End Cover Single Terminal Block Phoenix Contact

80086 End Clamp Phoenix Contact

3046401 Fused switch Phoenix Contact

KEL-GF-0.5 KEL-GF-0.5-Fast Acting Fuse 0.5A, 250V Kele

KEL-GF-1 KEL-GF-1-Fast Acting Fuse 1A, 250V Kele

KEL-GF-2 KEL-GF-2-Fast Acting Fuse 2A, 250V Kele

KEL-GF-3 KEL-GF-3-Fast Acting Fuse 3A, 250V Kele

KEL-GF-4 KEL-GF-4-Fast Acting Fuse 4A, 250V Kele

KEL-GF-5 KEL-GF-5-Fast Acting Fuse 5A, 250V Kele

SQD-60100 SQD-60100-MIN CIR BREAK 120V 0.5A Square D

SQD-60101 SQD-60101-MIN CIR BREAK 120V 1A Square D

SQD-60103 SQD-60103-MIN CIR BREAK 120V 2A Square D

SQD-60104 SQD-60104-MIN CIR BREAK 120V 3A1 Square D

SQD-60105 SQD-60105-MIN CIR BREAK 120V 4A Square D

SQD-60106 SQD-60106-MIN CIR BREAK 120V 5A Square D

SQD-60107 SQD-60107-MIN CIR BREAK 120V 6A Square D

SQD-60108 SQD-60108-MIN CIR BREAK 120V 7A Square D

SQD-60109 SQD-60109-MIN CIR BREAK 120V 8A Square D

Panel Equipment

PHX-1070875 28-UIO 8-BO Phoenix Contact

PHX-1070852 28-UIO 8-BO 2CAT5 Phoenix Contact

PHX-1070853 28-UIO 8-BO 3CAT5 Phoenix Contact

PHX-1070854 28-UIO 8-BO RS485 Phoenix Contact

PHX-1069341 20-UIO 4-BO Phoenix Contact

PHX-1070863 20-UIO 4-BO 2CAT5 Phoenix Contact

PHX-1070864 20-UIO 4-BO 3CAT5 Phoenix Contact

PHX-1070865 20-UIO 4-BO RS485 Phoenix Contact

PHX-1070855 12-UIO 8-BO Phoenix Contact

PHX-1070856 12-UIO 8-BO 2CAT5 Phoenix Contact

PHX-1070857 12-UIO 8-BO 3CAT5 Phoenix Contact

PHX-1070858 12-UIO 8-BO RS485 Phoenix Contact

PHX-1069340 8-UIO 8-BO Phoenix Contact

PHX-1070860 8-UIO 8-BO 2CAT5 Phoenix Contact

PHX-1070861 8-UIO 8-BO 3CAT5 Phoenix Contact

PHX-1070862 8-UIO 8-BO RS485 Phoenix Contact

FKIT-VMD2B-F24A RELAY KIT DPDT 15A 24VAC LED Veris Industries

Page 4

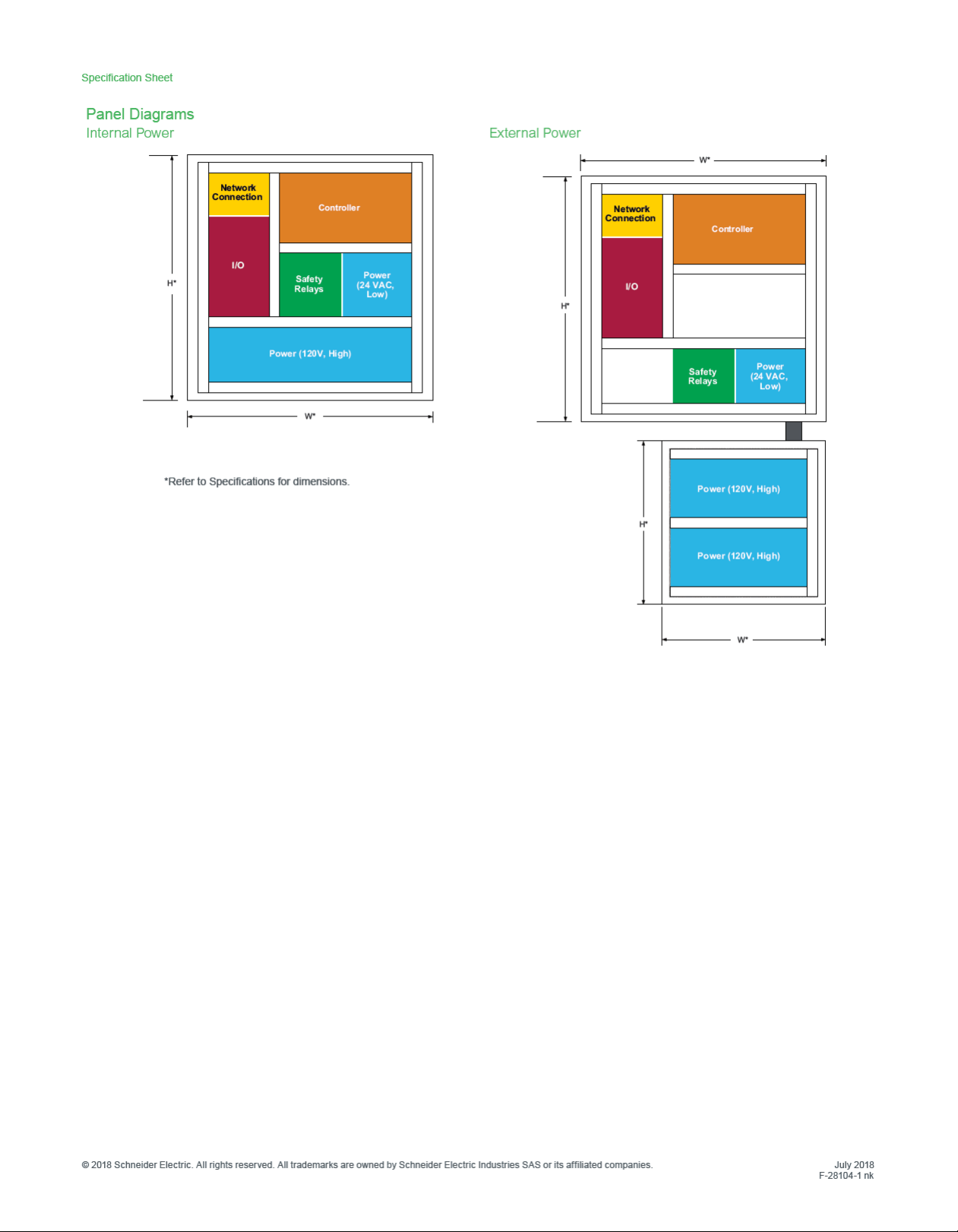

Page 5

Standard Panels Specication Sheet

)

(22.22 x 21.65 x 0.10 in.)

(37.99 x 21.65 x 0.10 in.)

(37.99 x 29.53 x 0.10 in.)

Controller

(Used in Which Panels)

Panel Identifier

Type

Building Block

Part Number Description

(1 to 4 digits)

(3 digits)

(up to n digits)*

PNL

Panel Options

1 = Panel 1 2 = Panel 2 3 = Panel 3 4 = Panel 4

Type Options

BOX = Box

PWR = Power

EQP = Equipment

CTL = Controller

Part Number Example:

PNL1234 PWR IF22

Example Breakdown: Used in panels 1 4 Type = Power I = Internal F = Fuses 2 = AC 200 VA 2 = DC 15 kW

*If a building block can be configured in more than one box, the part number must include all box numbers. Controller building block options will exceed four characters.

**Refer to Specifications for relay count capacities.

...

Building Block Options

Box (3 sizes) Panel: PNL1 = 600 x 600 x 200 mm (23.62 x 23.62 x 7.87 in. PNL2 = 1000 x 600 x 250 mm

PNL3 = 1000 x 600 x 250 mm

PNL4 = 1000 x 800 x 250 mm

Backplane Only: BPL1 = 565 x 550 x 2.5 mm

BPL2 = 965 x 550 x 2.5 mm

BPL3 = 965 x 550 x 2.5 mm

BPL4 = 965 x 750 x 2.5 mm

Power (4 digits) Digit 1: Power Type I = Internal E = External Digit 2: Disconnect Type X = No network F = Fuses C = Circuit breakers Digit 3: AC Power 0 = 50 VA 1 = 100 VA 2 = 200 VA 3 = 300 VA Digit 4: DC Power X = No DC power 1 = 7.5 kW 2 = 15 kW 3 = 30 kW Equipment (3 digits) Digit 1: Terminal Block X = No terminal blocks A = 8 UIO, 8 BO B = 12 UIO, 8 BO C = 20 UIO, 4 BO D = 28 UIO, 8 BO Digit 2: Communication X = No communication 2 = 2 CAT5 3 = 3 CAT5 4 = RS485 Digit 3: Safety Relays** X = No relays 1 = 1 relay 2 = 2 relays 3 = 3 relays 4 = 4 relays 5 = 5 relays 6 = 6 relays

(39.37 x 23.62 x 9.84 in.

(39.37 x 31.50 x 9.84 in.

Page 6

Standard Panels Specication Sheet

Building Blocks

Building blocks are designed to create specic engineered solutions. Available building blocks are shown in the tables below and are linked across each section (Box, Power, Equipment

and Controller).

Box

PNL1 PNL2 PNL3 PNL4

PNL1-BOX-PNL1 PNL2-BOX-PNL2 PNL3-BOX-PNL3 PNL4-BOX-PNL4

PNL1-BOX-BPL1 PNL2-BOX-BPL2 PNL3-BOX-BPL3 PNL4-BOX-BPL4

Power

PNL1 PNL2 PNL3 PNL4

PNL1-PWR-IF0X

PNL1-PWR-IF01

PNL1-PWR-IC0X

PNL1-PWR-IC01

PNL1-PWR-EC0X

PNL1-PWR-EC01

PNL1234-PWR-IF1X

PNL1234-PWR-IF11

PNL1234-PWR-IF2X

PNL1234-PWR-IF21

PNL1234-PWR-IC1X

PNL1234-PWR-IC11

PNL1234-PWR-IC2X

PNL1234-PWR-IC21

PNL1234-PWR-EC1X

PNL1234-PWR-EC11

PNL1234-PWR-EC2X

PNL1234-PWR-EC21

PNL234-PWR-IF12

PNL234-PWR-IF22

PNL234-PWR-IF3X

PNL234-PWR-IC12

PNL234-PWR-IC22

PNL234-PWR-IC3X

PNL234-PWR-EC12

PNL234-PWR-EC22

PNL234-PWR-EC3X

Page 7

Standard Panels Specication Sheet

Building Blocks (cont.)

Power (cont.)

PNL1 PNL2 PNL3 PNL4

Equipment

PNL1 PNL2 PNL3 PNL4

PNL1-EQP-AXX

PNL1-EQP-AX1

PNL1-EQP-AX2

PNL1-EQP-AX3

PNL1-EQP-A3X

PNL1-EQP-A31

PNL1-EQP-A32

PNL1-EQP-A33

PNL1-EQP-A4X

PNL1-EQP-A41

PNL1-EQP-A42

PNL1-EQP-A43

PNL4-PWR-IF13

PNL4-PWR-IF23

PNL4-PWR-IC13

PNL4-PWR-IC23

PNL4-PWR-EC13

PNL4-PWR-EC23

PNL1234-EQP-XXX

PNL1234-EQP-XX1

PNL1234-EQP-XX2

PNL1234-EQP-XX3

PNL234-EQP-XX4

PNL234-EQP-XX5

PNL2-EQP-BXX

PNL2-EQP-BX1

PNL2-EQP-BX2

PNL2-EQP-BX3

PNL2-EQP-BX4

PNL2-EQP-BX5

PNL2-EQP-B3X

PNL2-EQP-B31

PNL2-EQP-B32

PNL2-EQP-B33

PNL2-EQP-B34

Page 8

Standard Panels Specication Sheet

Building Blocks (cont.)

Equipment (cont.)

PNL1 PNL2 PNL3 PNL4

PNL2-EQP-B35

PNL2-EQP-B4X

PNL2-EQP-B41

PNL2-EQP-B42

PNL2-EQP-B43

PNL2-EQP-B44

PNL2-EQP-B45

PNL3-EQP-CXX

PNL3-EQP-CX1

PNL3-EQP-CX2

PNL3-EQP-CX3

PNL3-EQP-CX4

PNL3-EQP-CX5

PNL3-EQP-C2X

PNL3-EQP-C21

PNL3-EQP-C22

PNL3-EQP-C23

PNL3-EQP-C24

PNL3-EQP-C25

PNL3-EQP-C3X

PNL3-EQP-C31

PNL3-EQP-C32

PNL3-EQP-C33

PNL3-EQP-C34

PNL3-EQP-C35

PNL3-EQP-C4X

PNL3-EQP-C41

PNL3-EQP-C42

PNL3-EQP-C43

PNL3-EQP-C44

PNL3-EQP-C45

PNL4-EQP-XX6

PNL4-EQP-DXX

PNL4-EQP-DX1

PNL4-EQP-DX2

PNL4-EQP-DX3

PNL4-EQP-DX4

PNL4-EQP-DX5

PNL4-EQP-DX6

Page 9

Standard Panels Specication Sheet

Building Blocks (cont.)

Equipment (cont.)

PNL1 PNL2 PNL3 PNL4

PNL4-EQP-D2X

PNL4-EQP-D21

PNL4-EQP-D22

PNL4-EQP-D23

PNL4-EQP-D24

PNL4-EQP-D25

PNL4-EQP-D26

PNL4-EQP-D3X

PNL4-EQP-D31

PNL4-EQP-D32

PNL4-EQP-D33

PNL4-EQP-D34

PNL4-EQP-D35

PNL4-EQP-D36

PNL4-EQP-D4X

PNL4-EQP-D41

PNL4-EQP-D42

PNL4-EQP-D43

PNL4-EQP-D44

PNL4-EQP-D45

PNL4-EQP-D46

Controller

PNL1 PNL2 PNL3 PNL4

PNL1-CTL-B3851 PNL2-CTL-I2810 PNL3-CTL-MNL-800-101 PNL4-CTL-B3920

PNL1-CTL-B3867 PNL2-CTL-B3810 PNL3-CTL-SXWASB24H10001 PNL4-CTL-I2920

PNL1-CTL-I2851 PNL2-CTL-B3814 PNL3-CTL-SXWASB24X10001 PNL4-CTL-SXWASB36H10001

PNL1-CTL-I2867 PNL2-CTL-B3804 PNL3-CTL-SXWASB24H10002 PNL4-CTL-MNB-1000

PNL1-CTL-MNB-300 PNL2-CTL-I2814 PNL3-CTL-SXWASB24X10002 PNL4-CTL-SXWASB36H10002

PNL1-CTL-MNL-15RS3 PNL2-CTL-SXWMPC18A10001 PNL3-CTL-SXWMPC24A10001 PNL4-CTL-SXWASB36X10001

PNL1-CTL-MNL-20RS3 PNL2-CTL-SXWMPC18B10001 PNL4-CTL-SXWASB36X10002

PNL1-CTL-MNL-20RS4 PNL2-CTL-I2800 PNL4-CTL-SXWMPC36A10001

PNL1-CTL-SXWMPC15A10001 PNL2-CTL-B3800

PNL2-CTL-I2804
