SmartStruxure™ solution
SmartStruxure Lite solution

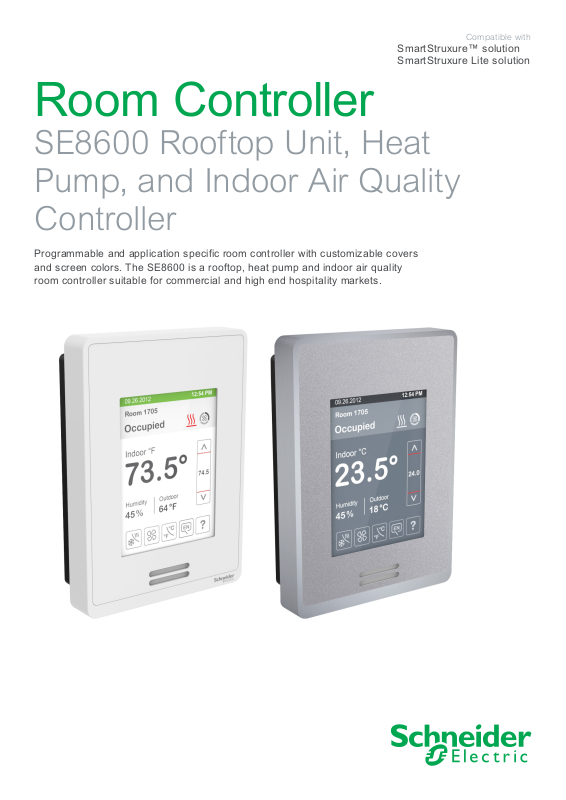

Room Controller
SE8600 Rooftop Unit, Heat
Pump, and Indoor Air Quality
Controller
Programmable and application specific room controller with customizable covers
and screen colors. The SE8600 is a rooftop, heat pump and indoor air quality
room controller suitable for commercial and high end hospitality markets.
Compatible with
Page 2
SE8600 RTU HP IAQ Room Controller Features
The perfect balance between simplicity and
sophistication. Select from a wide variety of casings,
fascias, and configurable screen colors to match decor.
Display your own logo and custom messages on screen
to reinforce your brand and provide a more enjoyable
occupant experience.
Introduction
Smart energy management has never been easier than with the
SE8600 room controllers for Rooftop Units, Indoor Air Quality, and
Heat Pump applications. Designed for new construction and retrot
projects, the room controllers dramatically decrease project delivery
costs by reducing installation, conguration and commissioning time.
No complex software or tools are required to customize functionality
to meet your applications requirements. The room controllers provide
all the advanced features and monitoring functions required by
modern building automation systems in a simple compact enclosure.
2
AT A GLANCE
Custom design
•
Color touch screen interface
• 2 casing options
• Multiple fascia options
• 5 selectable screen color schemes
• Supports the upload of a custom standby screen
• Supports the display of custom messages when
integrated via BACnet MS/TP
•
English, French, Spanish, Chinese, Russian
and other selectable languages
•
Interchange between °C/°F
• Universal inputs and outputs including:
• CO2 sensor input
• Fresh air station input
•
Configurable Economizer
• Configurable Scheduler
Options and accessories
•
On-board occupancy sensor (optional)
• RH sensor with dehumidification control
(optional)
•
Can be used with ZigBee Pro wireless sensors
• Free downloadable Uploader SE8000 tool for
the upload of Lua Scripts, standby screen im-
ages, and firmware upgrades, using a USB/
Micro-USB cable
Application specic and programmable
The SE8600 room controllers are both application-specic AND
programmable. This enables the modication of pre-congured
control sequences, or the creation of entirely new control sequences
for HVAC, lighting and other applications. The SE8600 room
controllers provide exceptional control of staged heating and cooling
equipment such as packaged roof-top units. Their congurable
control sequences, economizer, and scheduler functionalities deliver
all the exibility necessary for optimal indoor air quality applications.
Touch screen with customizable user experience
The touch screen of the SE8600 room controller offers a
customizable user experience with selection of languages,
temperature scales, buttons, and screen colors. Using the Uploader
SE8000 tool, it also supports the upload of an image or logo that
becomes the default standby screen of the device. Custom messages
can also be displayed on-screen using BACnet® objects when the
SE8600 room controller is integrated via a BACnet MS/TP system.
Selectable languages
Select from the following 20 languages: English, French, Spanish,
Chinese, Russian, Arabic, Czech, Danish, Dutch, Finnish, German,
Hungarian, Indonesian, Italian, Norwegian, Polish, Portuguese, Slovak,
Swedish and Turkish.
Optional passive infrared (PIR) motion sensor
All models can be equipped with a discrete optional passive infrared
(PIR) motion sensor. With the embedded sensor, the SE8600 room
controller uses advanced occupancy routines to generate automatic
energy savings during occupied and unoccupied periods without
sacricing occupant comfort.
Page 3
SE8600 RTU HP IAQ Room Controller Features
Product highlights
• Suitable for both commercial and hospitality markets
and systems.
• Customizable color digital touch screen interface
with multi-language support.
• Fully programmable control sequences using
scripting.
• On board conguration interface utility.
• Congurable sequence of operations.
• Congurable Economizer.
• Congurable Scheduler.
• Change of value (COV) function for BMS
integration.
• Humidity sensor with on-board dehumidication
strategy (model dependent).
• Universal inputs and outputs including a CO2
sensor input, and a Fresh air station input.
• Optional passive infrared (PIR) occupancy sensor.
• Advanced occupancy functions for commercial and
lodging applications.
• Optional wireless motion sensors, door and window
switches (with optional ZigBee Pro® card) available.
Supported Networking Protocols
• BACnet MS/TP (B) (selectable)
• Modbus (B) (selectable)
• ZigBee Pro wireless mesh network (P) (optional)
INTEGRATION
SE8600
BACnet
MS/TP
ZigBee
Pro
MPM device
CUSTOM STANDBY SCREEN & MESSAGES
> Custom
standby
screen
Automation
Server
StruxureWare
Building Expert
> Custom
BACnet MS/TP
messages
3
StruxureWare
Building Operation
Integration to Schneider Electric Systems
• SE8600 can be integrated to SmartStruxure™ Lite,
SmartStruxure, and other Schneider Electric systems.
• Wireless integration to MPM devices (P)
• Wireless integration to BACnet IP, oBIX and EWS
via MPM devices (P)
• Direct wired integration to BACnet MS/TP (B)
• Direct wired integration to Modbus (B)
> 5 configurable
screen color
schemes
> Multiple
fascias
Silver finish
White
Glossy
white
> 2 casings
Architects and designers can match their decor
• Select from 2 casings and multiple fascias.
• Five screen colors are also selectable through the interface.
Lig ht tan
wood
Dar k
brown
wood
Dark black
wood
Brushed
steel finish
White
Silver
Page 4
SE8600 RTU HP IAQ Room Controller Features
4
Programming the SE8600 with Lua
The SE8600 room controllers are programmable using
the open programming language Lua. Although building
management systems often use open protocols and
standards, their Program BACnet objects and scripting
features remain proprietary and incompatible with third
party devices. The SE8600 room controllers use of an
open language enables interopreability with all systems.
Programming with BMS integration
When integrated into a BACnet MS/TP building
management system, the SE8600 room controller
offers 10 Program BACnet objects able to contain 480
characters each. No special software, license or tool is
required.
• BACnet MS/TP integration into BMS
• 10 Program BACnet objects (Lua scripts)
• Each object can contain 480 characters max.
Programming without integration
When there is no BACnet MS/TP integration, a Lua script
can be uploaded directly into the SE8600 room controoler
using the Uploader SE8000 tool. Unlike the 10 PG objects
used when the unit is integrated via BACnet MS/TP, there is
only one script, which can contain up to 16KB.
• No BACnet MS/TP integration
• 1 Lua script of 16KB (max)
• Uploader SE8000: upload scripts using this PC software
tool and a USB/Micro-USB cable
Applications for HVAC and beyond
Programming can be used to go beyond the pre-congured
control sequences of the SE8000 room controller to create
customized HVAC applications. It can also be used to
comply with specic project requirements and manage other
applications, such as lighting and other equipment.
Using Lua scripts enables you to take advantage of the extra
inputs and outputs of the SE8000 room controller to manage
other devices, such as sensors and relays.
Uploader SE8000
Lua scripts, standby screen images and rmware upgrades
can be loaded into the SE8600 room controller using the
Uploader SE8000 tool and a USB/Micro-USB cable.

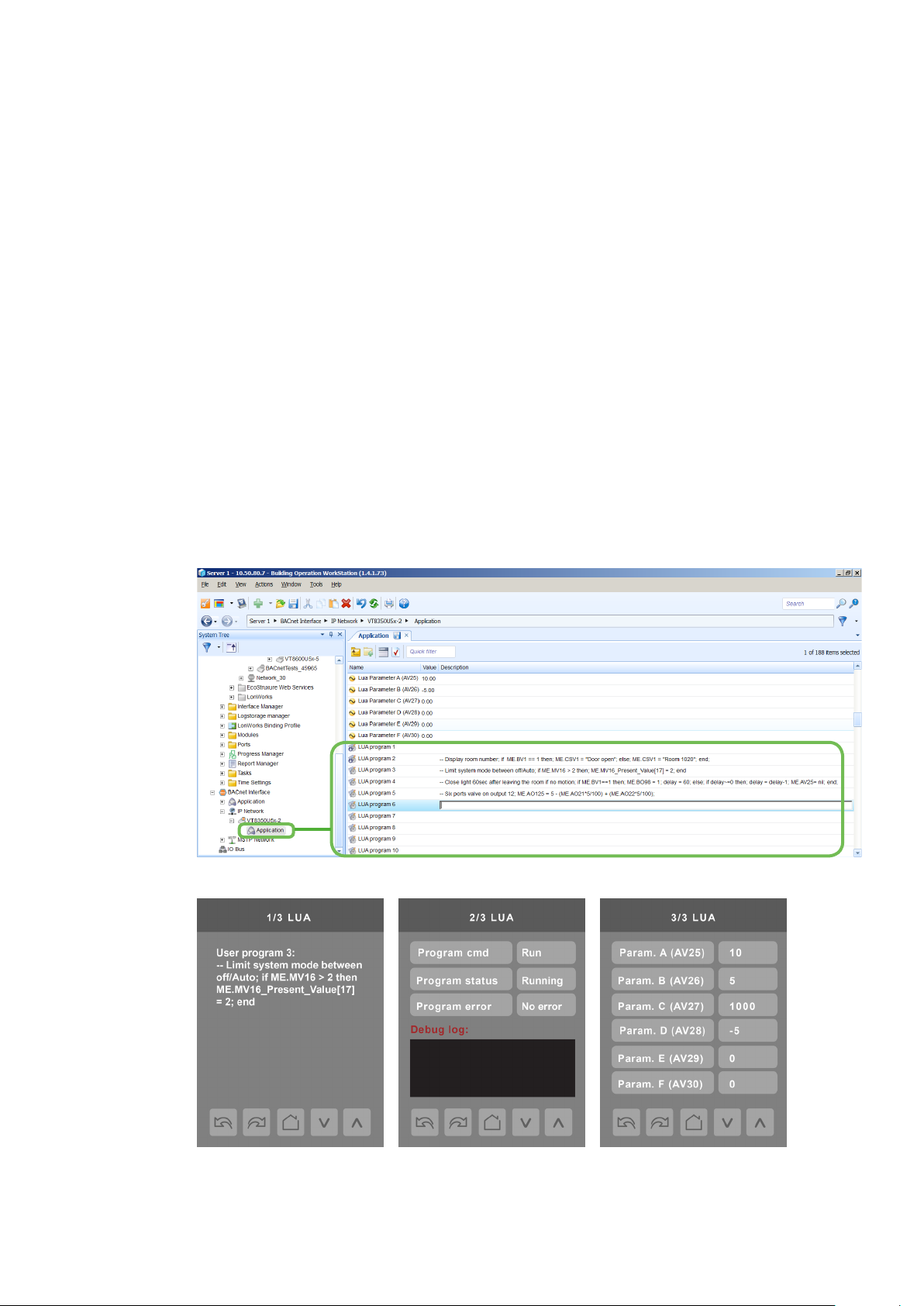

> PG objects of the
SE8600 room
controller viewed
through a BMS
> PG objects of the
SE8600 room
controller viewed
through its touchscreen display
Page 5
Cooling coil Fan Heating coil
Return air
Supply air
SE8600 RTU HP IAQ Room Controller Features
Airflow direction
Return air
Supply air
Cooling coil Fan Heating coil
5
Roof Top Units
The SE8600 room controller can be congured to manage
different types of staged equipment, such as the following:
• 1 Heating stage / 1 Cooling stage
• 2 Heating stages / 2 Cooling stages
• 3 Heating stages / 2 Cooling Stages
• Modulating heat / 2 Cooling stages

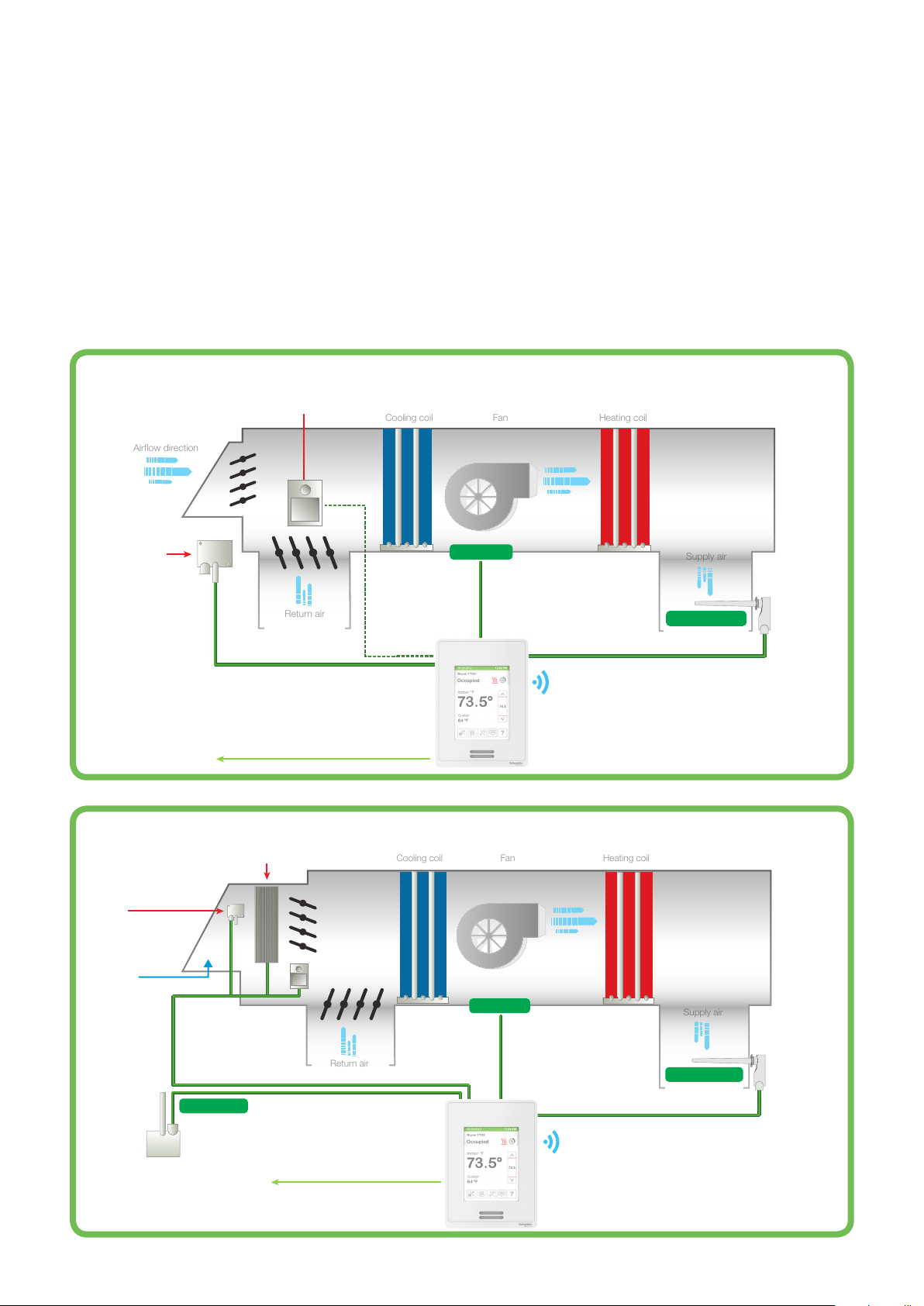

TYPICAL ROOFTOP UNIT APPLICATION
Optional economizer
damper control output
Outdoor
air sensor
Indoor Air Quality
Indoor air quality is increasingly becoming a major concern to
businesses, building managers, tenants, and employees because
of its direct impact on the comfort, well-being, and productivity of
the building’s occupants. The SE8600 room controller, along with
a CO2 sensor, is a cost-effective solution capable of controlling
economiser free cooling, and demand-based ventilation strategies,
while providing a fresh air measurement input. When integrated to
a building management system, the room controller can monitor
and verify the CO2 and fresh air levels, ensuring optimal air quality
and energy efciency.
Control Board
BACnet MS/TP
Wired communication
TYPICAL INDOOR AIR QUALITY APPLICATION
Fresh air
measurement station
Outside air sensor
Outside air
Supply air sensor
ZigBee@Pro
Optional wireless communication
SE8600
RTU, HP, IAQ Controller
Control Board
CO2 air sensor
BACnet MS/TP
Wired communication
Supply air sensor
ZigBee@Pro
Optional wireless communication
SE8600
RTU, HP, IAQ Controller
Page 6
SE8600 RTU HP IAQ Room Controller Features
Heat Pump
• Selectable single or dual stage compressor stages.
• High balance point: Locks out auxiliary heating when outside
air temperature is above this value.
• Low balance point: Locks out heat pump compressor
operation when outside air temperature is below this value.
• Comfort/economy mode: In economy mode, heat pump use
is maximized before turning On auxiliary heating.
• Compressor/auxiliary interlock: Adds flexibility by locking out
heat pump operation during auxiliary heating to prevent high
pressure trip when the coil is downstream of the auxiliary
heat source.

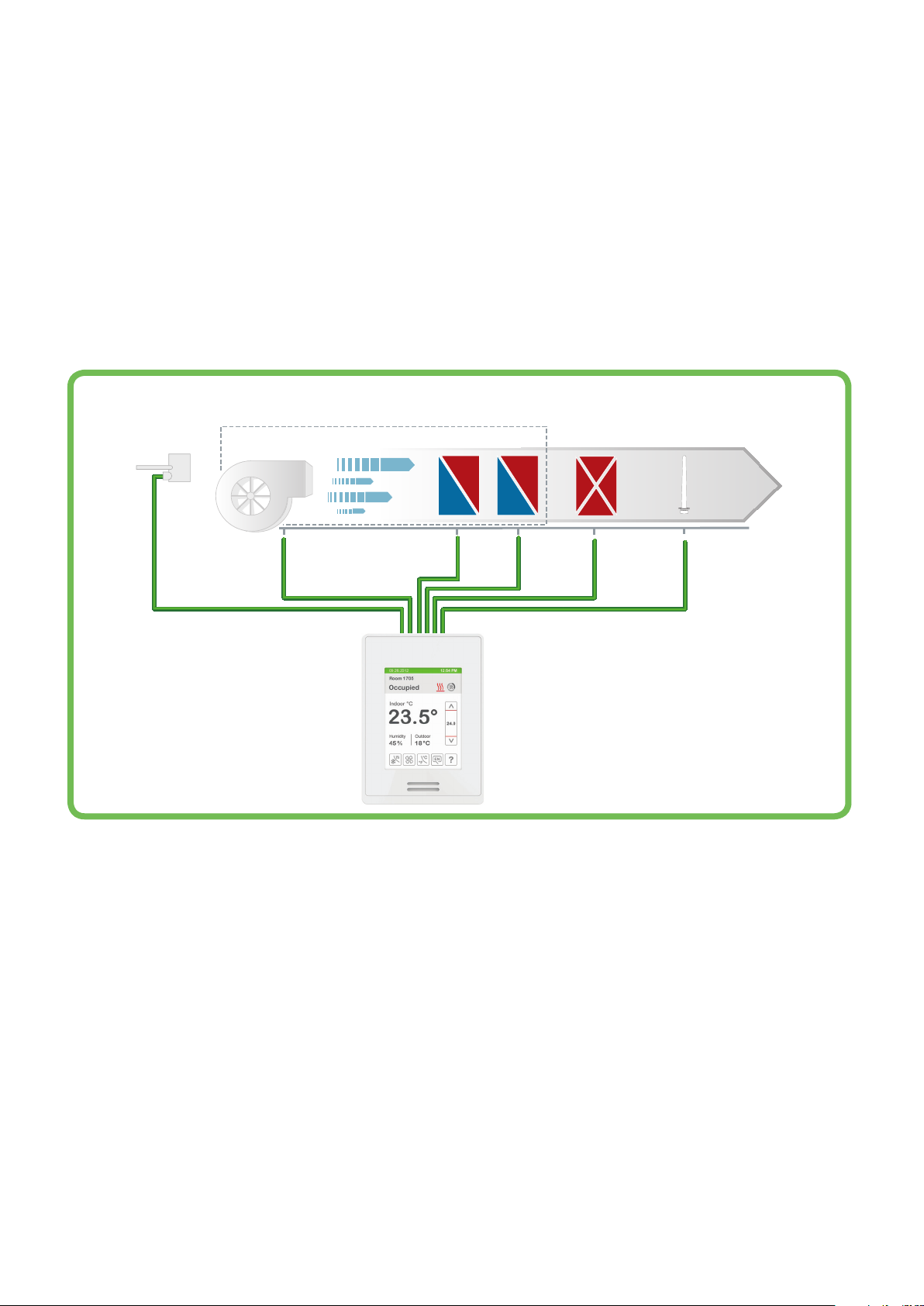

TYPICAL HEAT PUMP APPLICATION
HEAT PUMP
OUSIDE AIR
SENSOR
Fan
Airflow Direction
Comp.1 Comp.2
Duct Heating
6
Supply Sensor
BACnet MS/TP
Wired communication
ZigBee@Pro
Optional wireless communication
SE8600
RTU, HP, IAQ Controller
Page 7
SE8600 RTU HP IAQ Room Controller Specifications
Specifications
7

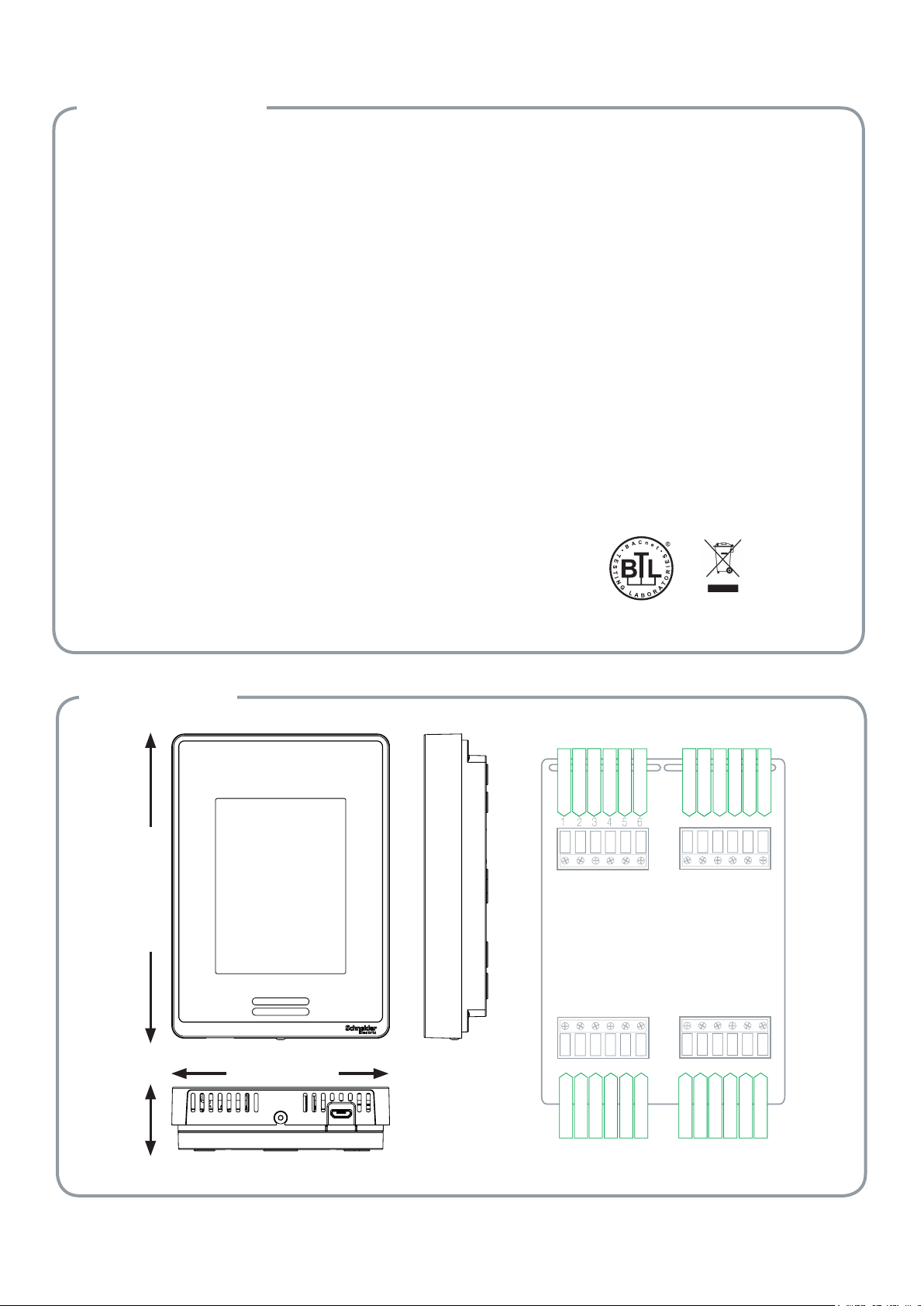

SE8600
Dimensions
12cm/4.72in (H) x 8.6cm/3.38in (W) x 2.5cm/1in (D)
Power Requirements
Input: 24Vac ±15%, 50/60Hz
Device consumption: 6 VA
Maximum rating: 100 VA, 4.17 A
Output Ratings
Maximum total output: 94 VA
Relay rating: 28 Vac 50/60Hz, 1.0 Amp., in-rush =
3.0 Amps; pins 1, 2, 3, 4, 5, 8, 9
Digital optomos output rating: 28 Vac 50/60Hz, 0.3
Amp., in-rush = 1.5 Amps; pins 9, 10, 11, 12
Analog: 0 - 10 Vdc in 2 kilo-ohm resistance minimum load (maximum 5 mA); pins 9, 10, 11, 12
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 75% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 75% R.H. non-condensing
Temperature Sensor
Local 10 K NTC type 2 thermistor
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F )@ 21 °C ( 70 °F ) typical calibrated
Humidity Sensor and Calibration
Single point calibrated bulk polymer type sensor
Humidity Sensor Precision
Reading range from 10-90 % R.H. non-condensing
10 to 20% precision: 10%
20% to 80% precision: 5%
80% to 90% precision: 10%
Humidity Sensor Stability
Less than 1.0 % yearly (typical drift)
Dehumidication Setpoint Range
30% - 95% R.H.
Occ, Stand-By and Unocc Cooling
Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ, Stand-By and Unocc Heating
Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room and Outdoor Air Temperature
Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Proportional Band for Room Temperature
control
Cooling and Heating: Default: 1.8°C ( 3.2°F )
Analog Inputs
Modulating 0-10 vdc across UI19 to Common
Binary Inputs
Dry contact across terminals UI 16, UI 17 and UI 19
to Common
Remote Temperature Sensor Requirements
10 K NTC type 2 thermistor
Wire Gauge
Power supply: 18 gauge or larger,
Communications: 24 gauge or larger
Approximate Shipping Weight
0.34 kg (0.75 lb)
Safety Standards All Models
LVD Directive 2006/95/EC
EN 60950-1:2006/A2:2013UL 873
CSA C22.2 No. 24-93
EMC Standards All Models
EMC Directive 2004/108/EC
IEC 61326-1:2005
FCC 15 Subpart B
ICES-003
Radio Standards (Wireless Models)
R&TTE Directive 1999/5/EC
ETSI EN 300 328 V1.8.1
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 328 V1.8.1
FCC 15 Subpart C
RSS 210
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Check with your
local government
for instruction on
disposal of these
products.
THIS PRODUCT FOR COMMERCIAL USE ONLY
Dimensions
120mm (4.72”)
86mm (3.37”)
BO 4 - G
BO 2 - Y2
BO 3 - Y1
BO 1 - Aux
13 14 15 16 17 18
13 14 15 16 17 18
BACnet +
BACnet -
BACnet REF
UI 16
RC (24 Vac)
UI 17
C (Common)
Common
RH
UO 10
UO 11
UO 12
BO 8 - W1
UO 9 - W2
7 8 9 10 11 12
7 8 9 10 11 12
19 20 21 22 23 24
19 20 21 22 23 24
UI 19 - CO2
UI 20 - RS
Common
UI 22 - SS
UI 23 - OS
UI 24
25mm (0.99”)
Page 8
SE8600 RTU HP IAQ Room Controller Ordering Information
Ordering information
SE86 U 5 B 0 05 0
8
RH sensor and control
-00 = No RH sensor or control
-50 = RH sensor with
dehumidification control
Compatibility
-U = Universal outputs
PIR motion sensor
-0 = No PIR
-5 = PIR on board
ZigBee® Pro communication module
(ordered separately)
VCM8000V5045P
Casing and fascia
-00 = Silver/Silver
-11 = White/White
(Replacement fascias available separately)
Network
-B = BACnet
(ZigBee
module available separately)
®
MS/TP
Pro communication
Replacement fascias (ordered separately)
FAS-00 Silver
FAS-01 White
FAS-03 Glossy translucent white
FAS-05 Light tan wood
FAS-06 Dark brown wood
FAS-07 Dark black wood
FAS-10 Brushed steel finish
Part numbers
SE8600
part numbers
SE8600U0B00
SE8650U0B00 x x
SE8600U5B00 x x
SE8650U5B00 x x x
SE8600U0B11 x
SE8650U0B11 x x
SE8600U5B11 x x
SE8650U5B11 x x x
RH sensor &
control
PIR motion
sensor
Silver casing
& fascia
x
White casing
& fascia
Part numbers
Communication modules
and Fascias
Consult their respective
datasheets for the latest
available part numbers and
features
Schneider Electric | SDS-SE86 00-RTUIAQ-A4.EN.07.2016.v5 July 2016
Loading...
