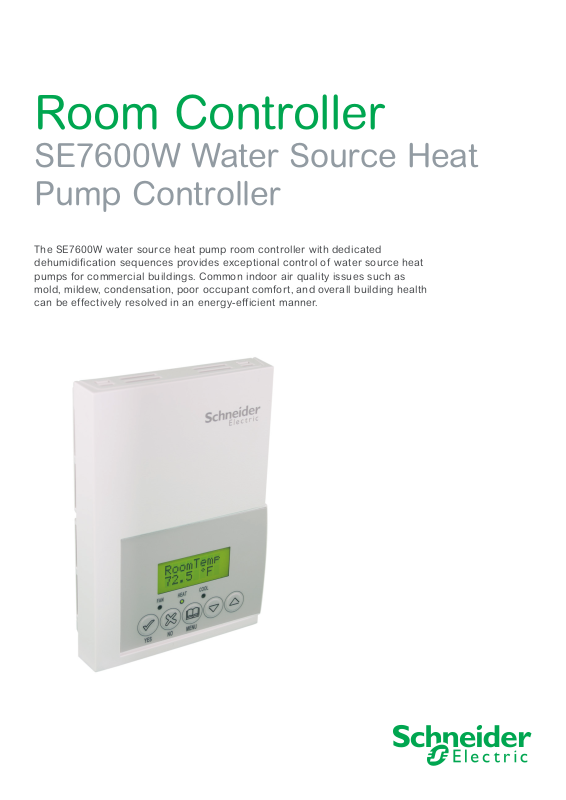

Page 1
Room Controller
SE7600W Water Source Heat
Pump Controller
The SE7600W water source heat pump room controller with dedicated
dehumidification sequences provides exceptional control of water source heat
pumps for commercial buildings. Common indoor air quality issues such as
mold, mildew, condensation, poor occupant comfort, and overall building health
can be effectively resolved in an energy-efficient manner.
Page 2
SE7600W Water Source Heat Pump Features
Simple to install and commission, the SE7600W monitors water
temperature, as well as other points, offering added value
without the additional costs related to more complex systems.
Introduction
The SE7600W water source heat pump controller with dedicated
dehumidication sequences provides exceptional control of water source
heat pumps for commercial buildings. Common indoor air-quality issues
such as mould, mildew, condensation, poor occupant comfort, and overall
building health can be effectively resolved in an energy efcient manner
using our new controller.
Water source heat pump controller
Designed for new construction and retrot projects, the SE7600W water
source heat pump controllers dramatically decreases project delivery costs
by reducing installation, conguration, and commissioning time. No complex
software or tools are required to customise functionality to meet your
required applications.
2
AT A GLANCE
Custom design
• Built-in dehumidification strategies
• Extra monitoring points provided
• Open protocol for easy integration into any
network system
• Network Ready and can be field retrofit with
optional communication modules
• One simple wall-mounted device to install,
wire and commission
• Fully em
Options and accessories
• PIR occupancy sensor
• Advanced occupancy and monitoring
functions
• 7-day programmable
The water source heat pump controller provides all the advanced features
and monitoring functions required by most modern building automation
systems in one simple “thermostat-like” enclosure.
The water source heat pump controllers also feature an intuitive
menu-driven, and backlit LCD display that guides users through the
conguration steps, making conguration extremely simple. This menu is
used to congure parameters such as temperature, time events, system
mode, and fan mode.
Open protocol design provides compatibility to BACnet® MS/TP and
wireless ZigBee® Pro network systems. Our network ready “standalone”
versions can be eld retrot with optional communication modules, which
enable the controllers to be integrated into virtually any leading building
automation system as building requirements change.
All models can be customised with passive infrared (PIR) motion sensor
functionality via an optional PIR accessory cover. The PIR cover can be
ordered as a factory-installed option. PIR functionality provides advanced
occupancy routines and automatic energy savings during occupied periods
without sacricing occupant comfort.
When compared to traditional building automation controllers, the SE7600W
water source heat pump controller with RH control for dehumidication
provides building owners with unmatched return on investment while
maximising prots for system integrators.
Page 3
Schneider Electric | SDS-SE760 0W-A4.EN.08.2015.v2 August 2015
SE7600W Water Source Heat Pump Specifications
Specifications
3
Dimensions
12.5cm/4.9in (H) x 8.6cm/3.38in (W) x 2.9cm/1in (D)
Power Requirements
19-30Vac, 50/60 Hz; 2 VA (RC & C) Class 2
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 95% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 95% R.H. non-condensing
Temperature Sensor
Local 10 K NTC thermistor
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F ) @ 21 °C ( 70 °F ) typical
calibrated
±0.5 RH from 20 to 0% RH at 50 to
90 °F (10 - 32 ° C)
Humidity Sensor Precision
±5% RH from 20 to 80% RH
Humidication Setpoint Range
10% RH to 90% RH
Dehumidication Setpoint Range
15% RH to 95% RH
Occ and Unocc Cooling Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ and Unocc Heating Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room and Outdoor Air Temperature
Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Proportional Band for Room Temperature
control
Factory set, heating and cooling at: 1.1°C ( 2.0°F )
Digital Inputs
Relay dry contact only across C terminal to DI1 or
DI2
Contact Output Rating
Each relay output: ( Y1, Y2, G, & AU )
30 Vac, 1 Amp. maximum
30 Vac, 3 Amp. in-rush
Wire Gauge
18 gauge maximum, 22 gauge recommended
Approximate Shipping Weight
0.75 lb (0.34 kg)
Agency Approvals All Models
UL: UL 873 (US) and CSA C22.2 No. 24 (Canada),
File E27734 with CCN XAPX (US) and XAPX7
(Canada)
Industry Canada: ICES-003 (Canada)
FCC: Compliant to CFR 47, Part 15, Subpart B,
Class A (US)
CE: EMC Directive 89/336/EEC (Europe Union)
C-Tick: AS/NZS CISPR 22 Compliant (Australia /
New Zealand) Supplier Code Number N10696
Agency Approvals Wireless Models
FCC: Compliant to: Part 15, Subpart C
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Check with your
local government
for instruction on
disposal of these
products.
Ordering information
SE76
Programmability:
-00= No local scheduling
/ Non programmable
-52= Local scheduling
/ programmable
W
PIR options:
-50 = PIR ready but PIR
-55 = Factor y asse mbled
45
cover not included
with PIR cover
Communication options:
-B = BACnet® MS/TP
-P = ZigBee Pro wireless
-W = ZigBee® wireless
- = Network ready
* Some part number configura-
tions may not be available.
