Page 1
Compatible with
SmartStruxure™ solution
SmartStruxure Lite solution

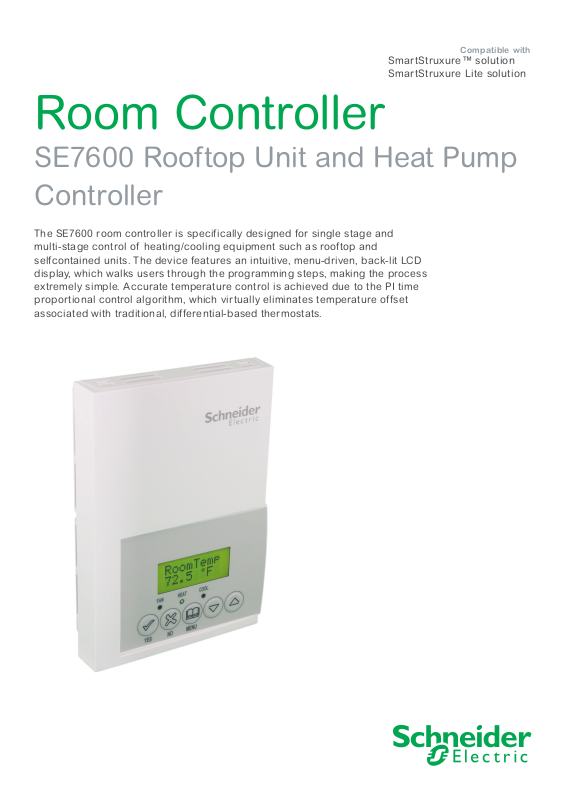

Room Controller
SE7600 Rooftop Unit and Heat Pump
Controller
The SE7600 room controller is specifically designed for single stage and
multi-stage control of heating/cooling equipment such as rooftop and
selfcontained units. The device features an intuitive, menu-driven, back-lit LCD
display, which walks users through the programming steps, making the process
extremely simple. Accurate temperature control is achieved due to the PI time
proportional control algorithm, which virtually eliminates temperature offset
associated with traditional, differential-based thermostats.
Page 2
Schneider Electric | SDS-SE7600-EN.A 4.08.2015.v2 August 2015
SE7600 RTU and HP Room Controller Features
When compared to traditional building automation Room
Controllers, the SE7600 series roof top and heat pump
wall mounted Room Controllers provide unmatched
return on investment to building owners while maximizing
profits for system integrators
Introduction
Smart energy management has never been easier than with the SE7600
series roof top and heat pump room controllers. Designed for new
construction and retrofit projects, the controllers dramatically decrease total
installed costs by reducing installation, configuration and commissioning
time. No complex software or tools are required to customize functionality
to meet your applications requirements. They provide all advanced features
and monitoring functions required by modern building automation systems
in a simple, “thermostat like” enclosure.
The SE7600 series offers control of staged heating and cooling equipment
such as packaged roof top units and heat pumps for commercial buildings.
Advanced models are available with built-in economizer or humidity
strategies.
AT A GLANCE
Custom design
• Advanced occupancy functions
• Equipt for optional PIR cover
• 2 digital inputs
• Smart fan operation
• Unique configuration key with password
• Lockable keypad
• 6 hour reservable time for clock
• Remote room and outdoor temperature sensor
• Auxiliary output
• Discharge air sensor
• Intuitive menu-driven programming
Options and accessories
• Intuitive menu-driven programming
• Economizer output 0-10 Vdc
• 3Heat/2Cool for heat pump models
Open protocol design provides network compatibility to BACnet
MS/TP, LonWorks
Network Ready“ stand-alone” versions can be field retrofit with optional
communication modules which enable the controllers to be integrated
into most building automation systems as budgets allow or as the building
requirements change.
All models can be customized with PIR motion sensor functionality via an
optional PIR accessory cover. The cover can be installed in the field or
ordered as a factory installed option. This provides advanced occupancy
routines and automatic energy savings during occupied periods without
sacrificing occupant comfort.
Product Highlights
• Open protocol allows for easy integration into most network systems
• Network Ready models can be retrofit with optional communication
modules
• One simple wall mounted device to install, wire and commission
• Intuitive “thermostat like” interface
• Application specific controllers can be configured to meet most
applications
• No special software required for configuration
• Fully embedded local configuration utility
• Occupancy and monitoring functions through PIR cover
• Available with or without 7 day scheduling
• Single-stage, multi-stage and heat pump models available
• Available with economizer control
®
and Wireless ZigBee Pro® network systems. Our
2
®
Page 3
Schneider Electric | SDS-SE7600-EN.A 4.08.2015.v2 August 2015

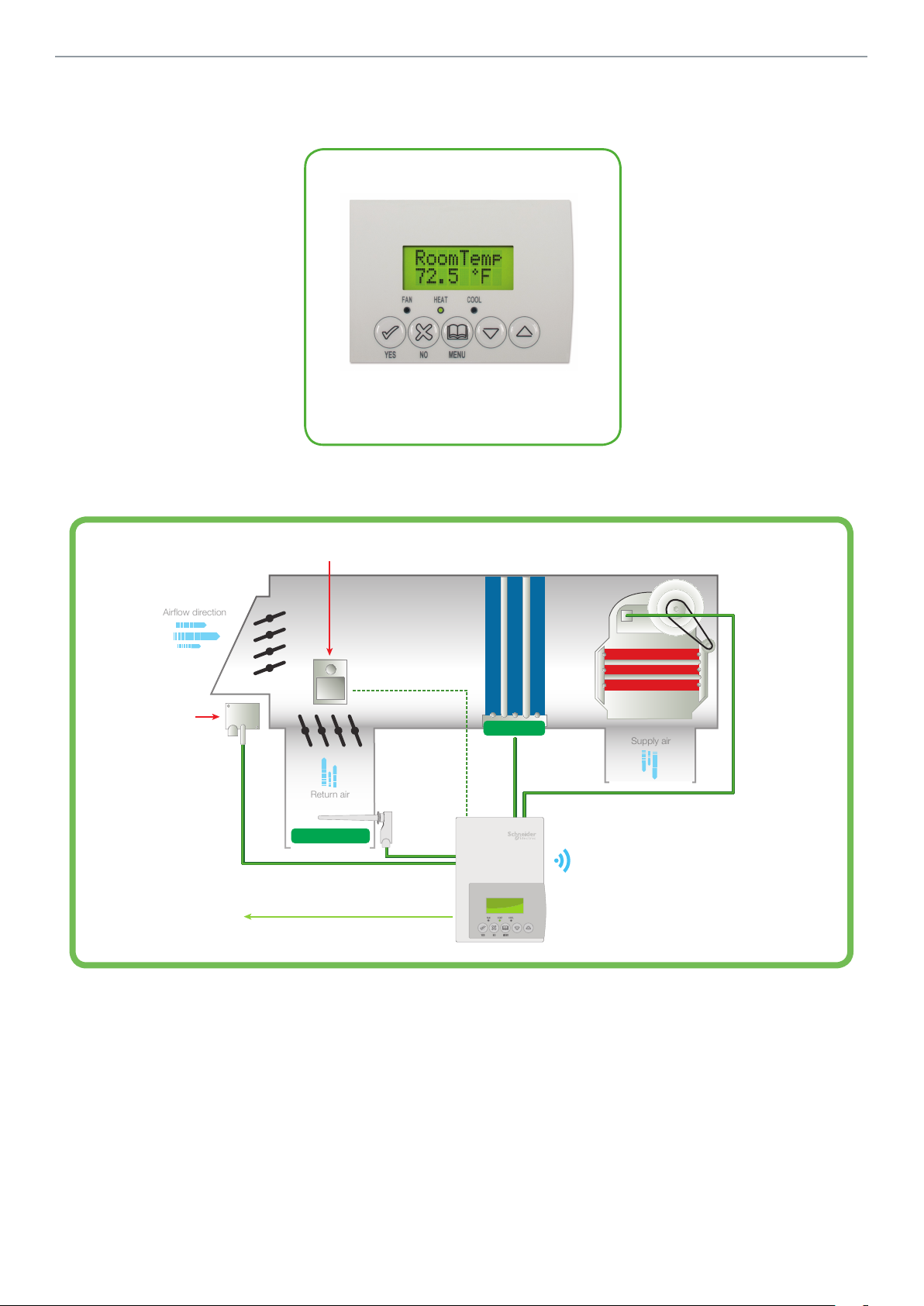

SE7600 RTU and HP Room Controller Applications
Airflow direction
Return air
Supply air
Simplified HMI
Unique 5 button menu driven user interface
simplifies programming and commissioning
time during typical installation of unit.
3
Outdoor
air sensor
Optional economizer
damper control output
Supply air sensor
BACnet MS/TP
Wired communication protocol
Control Board
®
ZigBee
Pro
Optional wireless communication
SE7600E
RTU IAQ Controller
Fan current
switch
Page 4
Schneider Electric | SDS-SE7600-EN.A 4.08.2015.v2 August 2015
SE7600 RTU and HP Room Controller Specifications
Specifications
4
Dimensions
12.5cm/4.9in (H) x 8.6cm/3.38in (W) x 2.9cm/1in (D)
Power Requirements
19-30Vac, 50/60 Hz; 2 VA (RC & C) Class 2
RC to RH jumper 2.0 Amps 48 VA maximum
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 95% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 95% R.H. non-condensing
Temperature Sensor
Local 10 K NTC thermistor
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F ) @ 21 °C ( 70 °F ) typical
calibrated
Occ and Unocc Cooling Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ and Unocc Heating Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room and Outdoor Air Temperature
Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Proportional Band for Room Temperature
control
Factory set, heating and cooling at: 1.1°C ( 2.0°F )
Digital Inputs
Relay dry contact only across C terminal to DI1 or
DI2
Contact Output Rating
Each relay output: ( Y1, Y2, G, W1, W2 & AU )
30 Vac, 1 Amp. maximum
30 Vac, 3 Amp. in-rush
Economizer Analog Output Rating
0 to 10 Vdc into 2KΩ resistance min.
Wire Gauge
18 gauge maximum, 22 gauge recommended
Approximate Shipping Weight
0.75 lb (0.34 kg)
Agency Approvals All Models
UL: UL 873 (US) and CSA C22.2 No. 24 (Canada),
File E27734 with CCN XAPX (US) and XAPX7
(Canada)
Industry Canada: ICES-003 (Canada)
FCC: Compliant to CFR 47, Part 15, Subpart B,
Class A (US)
CE: EMC Directive 89/336/EEC (Europe Union)
C-Tick: AS/NZS CISPR 22 Compliant (Australia /
New Zealand) Supplier Code Number N10696
Agency Approvals Wireless Models
FCC: Compliant to: Part 15, Subpart C
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Check with your
local government
for instruction on
disposal of these
products.
Ordering information
SE76
Programmability:
-0 = No local scheduling
/ Non programmable
-5 = Local scheduling
/ programmable
Economizer / Humidity Control:
-0 = No local scheduling
/ Non programmable
-2 = Local scheduling
/ programmable)
-5 = With economizer
No local scheduling
/ Non programmable
-6 = With economizer
Local scheduling
/ programmable
PIR options:
-50 = PIR ready but PIR
cover not included
-55 = F actory assembled
with PIR cover
Communication options:
-B = BACnet® MS/TP
-E = LonWorks
-P = ZigBee Pro wireless
-W = ZigBee® wireless
- = Network ready
Application:
-A = 1H / 1C roof top
unit applications
-B = 2H / 2C roof top
unit applications
-H = 3H / 2C heat pump
applications
45
®
* Some part
number
configurations
may not be
available.
