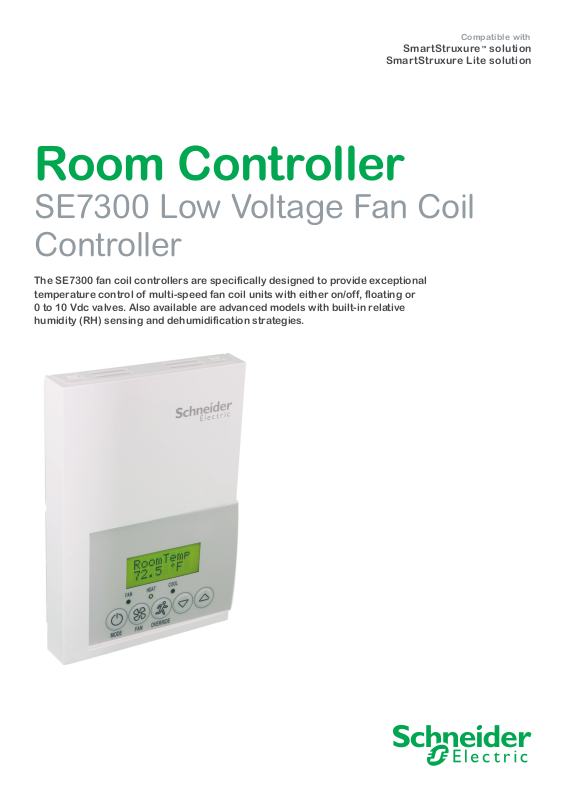

Page 1
Compatible with
SmartStruxure™ solution
SmartStruxure Lite solution
Room Controller
SE7300 Low Voltage Fan Coil
Controller
The SE7300 fan coil controllers are specifically designed to provide exceptional
temperature control of multi-speed fan coil units with either on/off, floating or
0 to 10 Vdc valves. Also available are advanced models with built-in relative
humidity (RH) sensing and dehumidification strategies.
Page 2
Schneider Electric | SDS-SE7300-EN.A4.08.2015.v2 August 2015
SE7300 Series room controller Features
Smart energy management has never been easier than with
the SE7300 series fan coil controllers. Designed for new
construction and retrofit projects, the controllers dramatically
decrease total installed costs by reducing installation,
configuration and commissioning time. The SE7300 series
provides advanced features and monitoring functions required
by modern building automation systems without the use of
software and commissioning tools.
Introduction
The SE7300 fan coil controllers are specically designed to provide
exceptional temperature control of multi-speed fan coil units with either onoff, oating or 0 to 10 Vdc valves. Also available are advanced models with
built-in relative humidity (RH) sensing and dehumidication strategies.
Open protocol design provides network compatibility to BACnet® MS/TP,
LonWorks® and Wireless ZigBee Pro® network systems. Our Network
Ready “stand-alone” versions can be upgraded with optional communication
modules which enable the controllers to be integrated into most building
automation systems as building requirements change.
All models can be customized with PIR motion sensor functionality via an
optional PIR accessory cover. The cover can be installed in the eld or
ordered as a factory installed option. This provides advanced occupancy
routines and automatic energy savings during occupied periods without
AT A GLANCE
sacricing occupant comfort.
• Open protocol allows for easy integration into
any network system
•
Network Ready models can be retrofit in the
field with optional communication modules
•
One simple wall mounted device to install, wire
and commission
• Familiar “thermostat like” look and feel
•
Application specific controllers can be
configured to meet most used applications
• No special software required for configuration
• Fully embedded local configuration utility
•
Factory installed PIR sensor or PIR ready
controller
• Advanced occupancy and monitoring functions
• Simplified user interface
•
Hospitality and commercial models available
with market specific HMI
When compared to traditional building automation controllers, the SE7300
series provides unmatched return on investment to building owners while
maximizing prots for system integrators.
Page 3
Schneider Electric | SDS-SE7300-EN.A4.08.2015.v2 August 2015

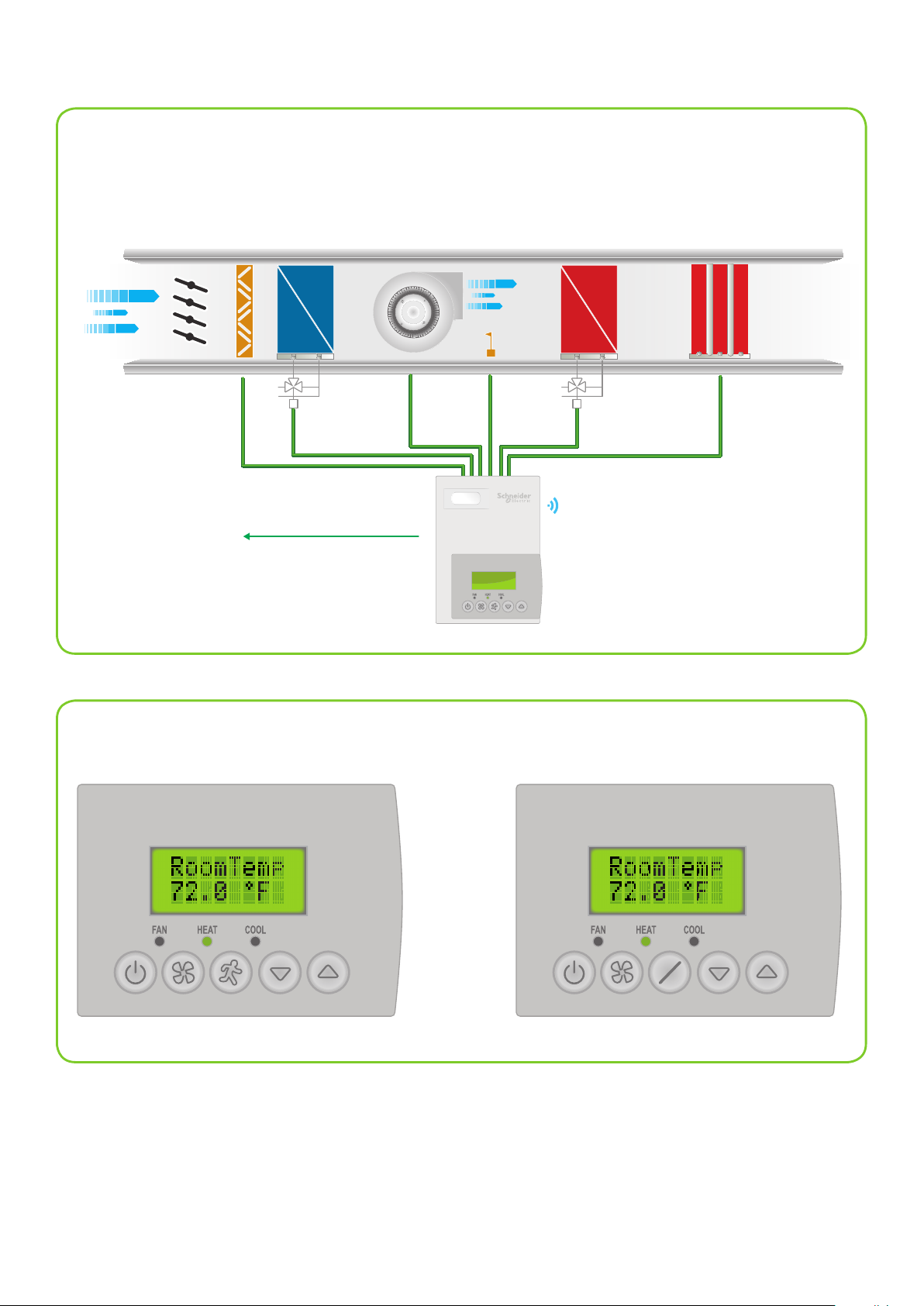

TYPICAL APPLICATION
Cooling coil 3-speed fan Heating coil Electric heater
Return Air
Filter status
switch
c
c
BACnet MS/TP
Wired communication protocol
H
C
Fan status
switch
ZigBee® Pro
Optional wireless communication
FANMODE OVERRIDE
MARKET SPECIFIC HMI TAILORS PRODUCT TO APPLICATION
Commercial Application Hotel and Lodging Application
O
C
O
F
FANMODE OVERRIDEFANMODE OVERRIDE
Page 4
Schneider Electric | SDS-SE7300-EN.A4.08.2015.v2 August 2015
SE7300 Series Room Controller Specifications
Specifications
Dimensions
12.5cm/4.9in (H) x 8.6cm/3.38in (W) x 2.9cm/1.13in
(D)
Power Requirements
19-30Vac, 50/60 Hz; 2 VA (RC & C) Class 2
Operating Conditions
0 °C - 50 °C ( 32 °F - 122 °F )
0% - 95% R.H. non-condensing
Storage Conditions
-30 °C - 50 °C ( -22 °F - 122 °F )
0% - 95% R.H. non-condensing
Temperature Sensor
Local 10 K NTC thermistor
Temperature Sensor Resolution
± 0.1 °C ( ± 0.2 °F )
Temperature Control Accuracy
±0.5 ° C ( ± 0.9 °F ) @ 21 °C ( 70 °F ) typical
calibrated
±0.5 RH from 20 to 0% RH at 50 to
90 °F (10 - 32 ° C)
Humidity Sensor Precision
±5
% RH from 20 to 80% RH
Humidication Setpoint Range
10% RH to 90% RH
Dehumidication Setpoint Range
15% RH to 95% RH
Occ and Unocc Cooling Setpoint Range
12.0 - 37.5 °C ( 54 - 100 °F )
Occ and Unocc Heating Setpoint Range
4.5 °C - 32 °C ( 40 °F - 90 °F )
Room and Supply Air Temperature
Display Range
-40 °C - 50 °C ( -40 °F - 122 °F )
Digital Inputs
Relay dry contact only across C terminal to BI1 or
BI2
Contact Output Rating
30 Vac, 1 Amp. maximum
30 Vac, 3 Amp. in-rush
Analog Output Rating
0 to 10 Vdc into 2KΩ resistance min.
Fan Speed
3-speed fan: Low, Medium and High
Wire Gauge
18 gauge maximum, 22 gauge recommended
Approximate Shipping Weight
0.75 lb (0.34 kg)
Agency Approvals All Models
UL: UL 873 (US) and CSA C22.2 No. 24 (Canada),
File E27734 with CCN XAPX (US) and XAPX7
(Canada)
Industry Canada: ICES-003 (Canada)
FCC: Compliant to CFR 47, Part 15, Subpart B,
Class A (US)
CE: EMC Directive 89/336/EEC (Europe Union)
C-Tick: AS/NZS CISPR 22 Compliant (Australia /
New Zealand) Supplier Code Number N10696
Agency Approvals Wireless Models
FCC: Compliant to: Part 15, Subpart C
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OP-
ERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
Check with your
local government
for instruction on
disposal of these
products.
Ordering information
a
SE73
Programmability:
-0 = No humidity sensor
-5 = Internal humidity
sensor
Control key function:
-0 = Override, for
commercial applications
-5 = °C/°F, for hotels/lodging
applications
Compatibility:
-C = Floating or on/off
-F = Analogue 0 - 10 VDC
45
PIR options:
-50 = PIR ready but PIR
cover not included
-55 = Factory assembled
with PIR cover
digital control outputs
control outputs
Communication options:
-B = BACnet® MS/TP
-E = LonWorks®
-P = ZigBee® Pro wireless
-W = ZigBee® wireless
- = Network ready
* Some part number configurations may not be available.
