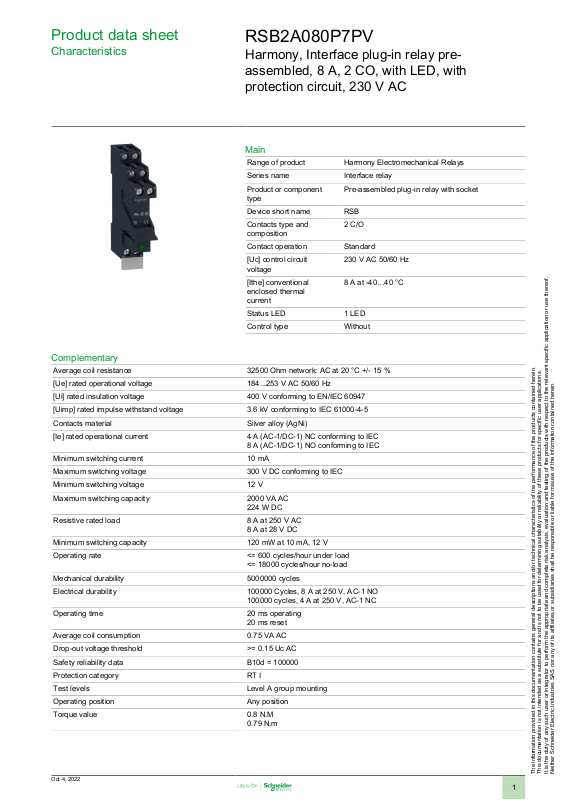

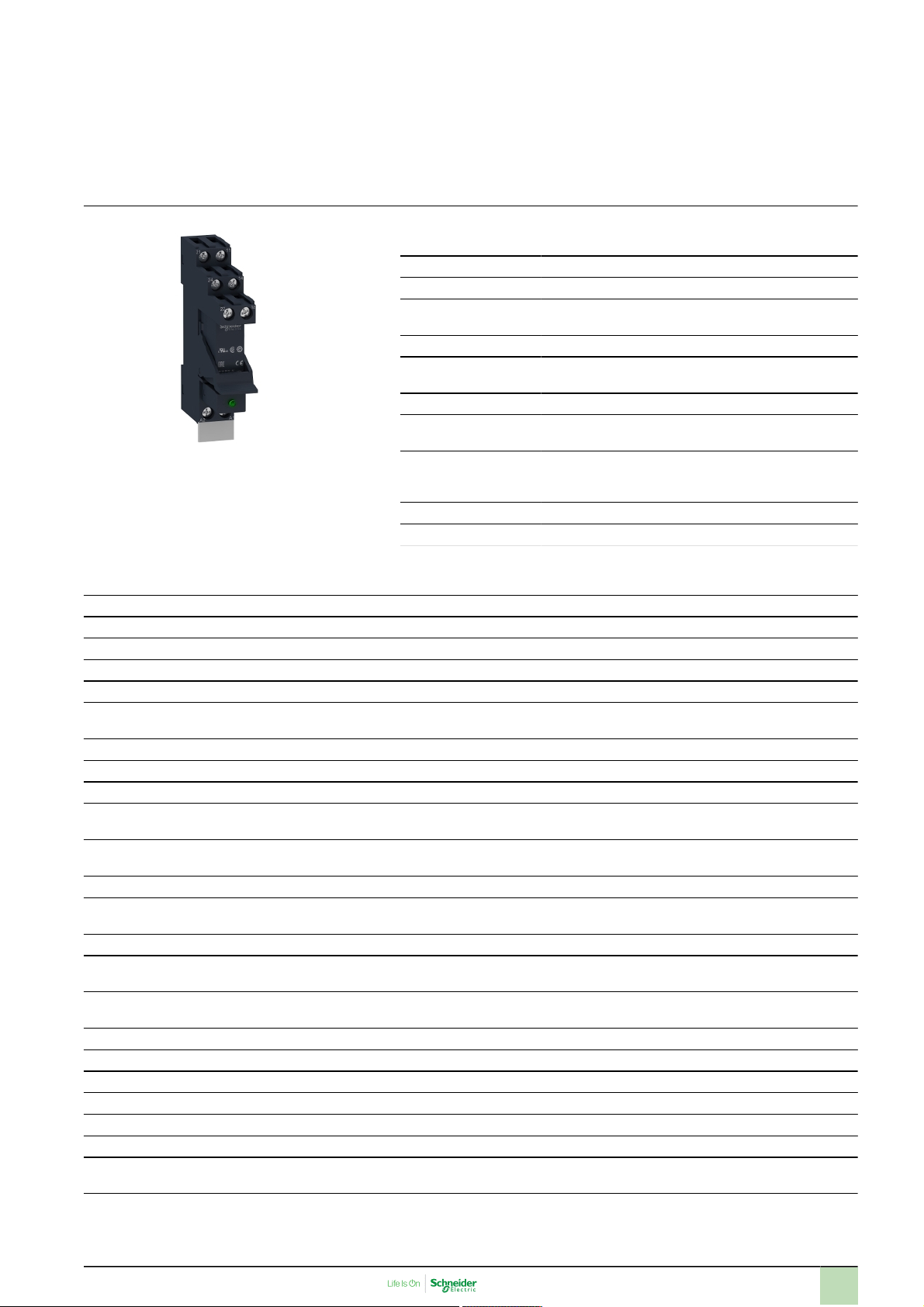

Product data sheet
Characteristics
RSB2A080P7PV
Harmony, Interface plug-in relay preassembled, 8 A, 2 CO, with LED, with
protection circuit, 230 V AC
Main
Range of product Harmony Electromechanical Relays
Series name Interface relay
Product or component
type
Device short name RSB
Contacts type and
composition
Contact operation Standard
[Uc] control circuit
voltage
[Ithe] conventional
enclosed thermal
current
Status LED 1 LED
Control type Without
Pre-assembled plug-in relay with socket
2 C/O
230 V AC 50/60 Hz
8A at -40…40°C
Complementary
Average coil resistance 32500Ohm network: AC at 20 °C +/- 15 %
[Ue] rated operational voltage 184...253 V AC 50/60 Hz
[Ui] rated insulation voltage 400V conforming to EN/IEC 60947
[Uimp] rated impulse withstand voltage 3.6kV conforming to IEC 61000-4-5
Contacts material Silver alloy (AgNi)
[Ie] rated operational current 4A (AC-1/DC-1) NC conforming to IEC
Minimum switching current 10mA
Maximum switching voltage 300V DC conforming to IEC
Minimum switching voltage 12V
Maximum switching capacity 2000 VA AC
Resistive rated load 8A at 250 V AC
Minimum switching capacity 120 mW at 10mA, 12V
Operating rate <= 600 cycles/hour under load
Mechanical durability 5000000cycles
Electrical durability 100000Cycles, 8A at 250 V, AC-1 NO
Operating time 20 ms operating
Average coil consumption 0.75VA AC
Drop-out voltage threshold >= 0.15 Uc AC
Safety reliability data B10d = 100000
Protection category RT I
Test levels Level A group mounting
Operating position Any position
Torque value 0.8N.M
8A (AC-1/DC-1) NO conforming to IEC
224 W DC
8A at 28 V DC
<= 18000 cycles/hour no-load
100000cycles, 4A at 250 V, AC-1 NC
20 ms reset
0.79N.m
Oct 4, 2022
1
Page 2
Connections - terminals Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Net weight 0.057kg
Sale per indivisible quantity 30
Device presentation Complete product
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Environment
Dielectric strength 1000V AC between contacts
Standards EN/IEC 61810-1
Product certifications CE
Ambient air temperature for storage -40…85°C
Vibration resistance +/- 1 mm (f= 10…55Hz) conforming to EN/IEC 60068-2-6
IP degree of protection IP20 conforming to EN/IEC 60529
Shock resistance 10 gn (duration = 11ms) for not operating conforming to EN/IEC 60068-2-27
Ambient air temperature for operation -40…70°C (AC)
2500V AC between poles
5000V AC between coil and contact
CSA C22.2 No 14
UL 508
IEC 61984
UL
CSA
EAC
5 gn (duration = 11ms) for in operation conforming to EN/IEC 60068-2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 60.0g
Package 1 Height 8.42cm
Package 1 width 1.56cm
Package 1 Length 6.42cm
Unit Type of Package 2 S03
Number of Units in Package 2 180
Package 2 Weight 12.797kg
Package 2 Height 30.0cm
Package 2 width 30.0cm
Package 2 Length 40.0cm
Unit Type of Package 3 BB1
Number of Units in Package 3 30
Package 3 Weight 1.968kg
Package 3 Height 18.0cm
Package 3 width 9.0cm
Package 3 Length 27.0cm
Offer Sustainability
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
2
Page 3
WEEE The product must be disposed on European Union markets following specific
California proposition 65 WARNING: This product can expose you to chemicals including: Nickel
waste collection and never end up in rubbish bins
compounds, which is known to the State of California to cause cancer, and
Di-isodecyl phthalate (DIDP), which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Contractual warranty
Warranty 18 Months
3
Page 4
Product data sheet

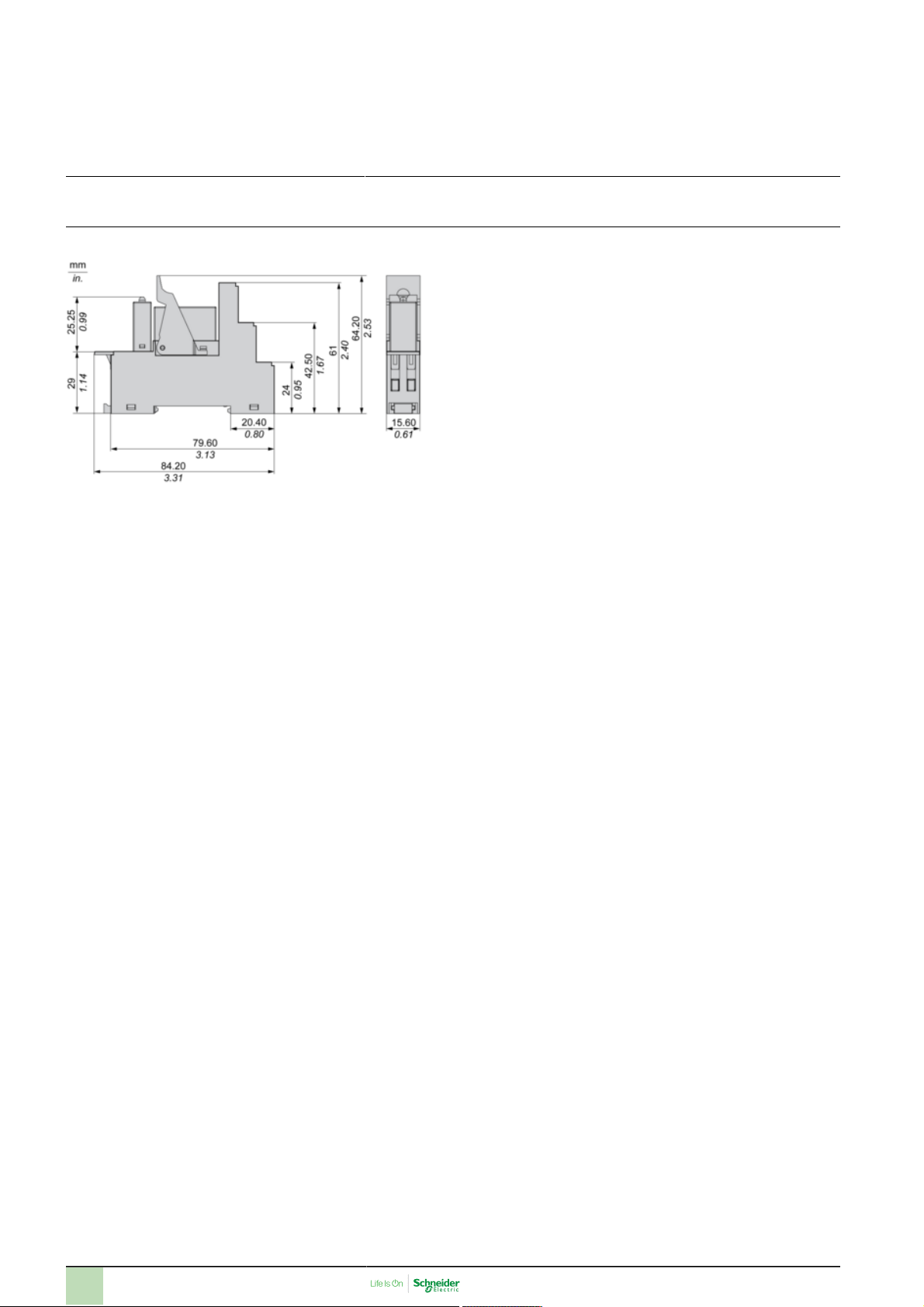

Dimensions Drawings
Dimensions
RSB2A080P7PV
4
Page 5
Product data sheet
Connections and Schema

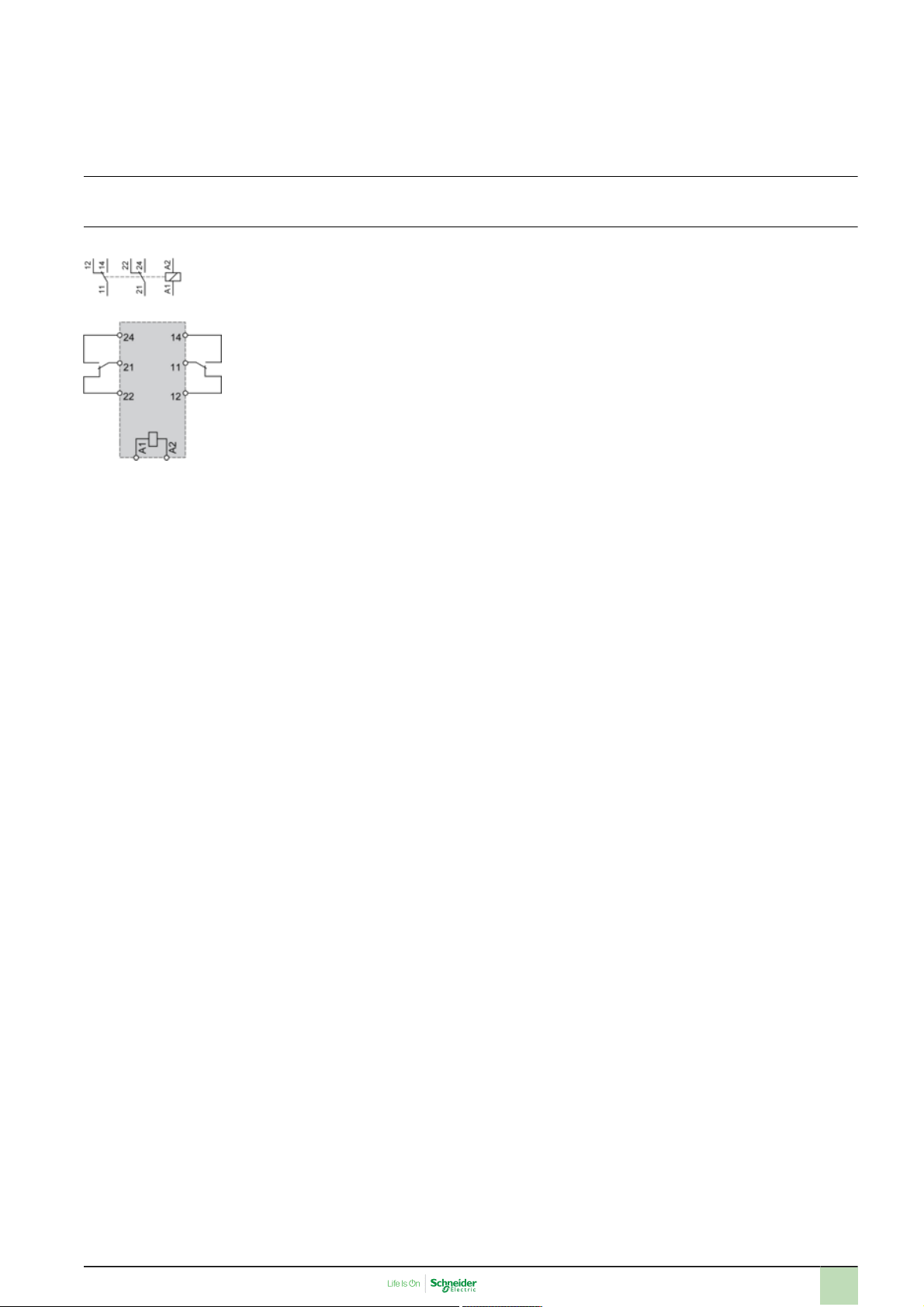

Wiring Diagram
NOTE: For DC input, A1 have to be +, otherwise it would short circuit from protection module
RSB2A080P7PV
5
Page 6
Product data sheet
RSB2A080P7PV
Performance Curves

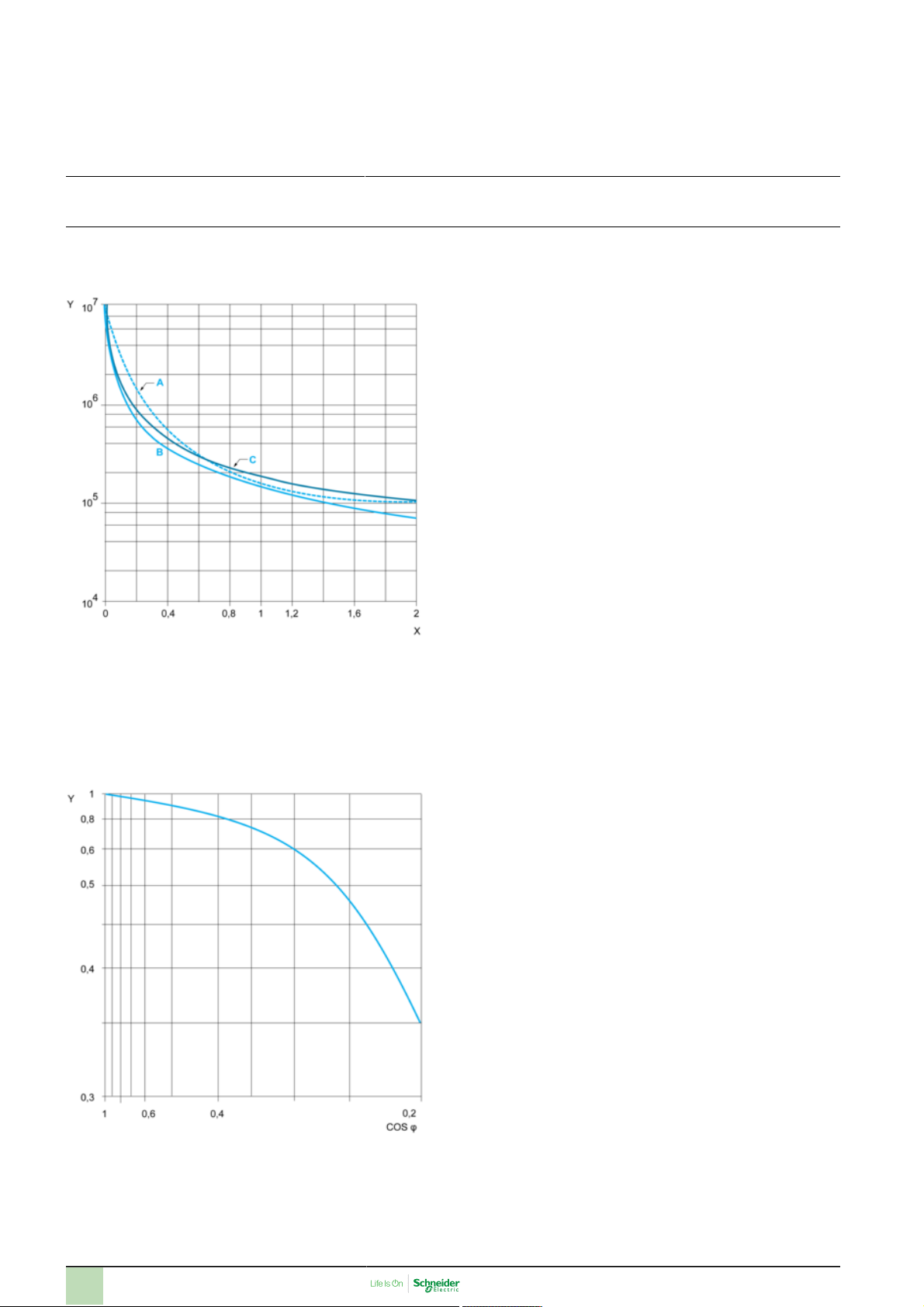

Electrical Durability of Contacts
Durability (Inductive Load) = Durability (Resistive Load) x Reduction Coefficient.
Resistive AC Load
(y) Durability (Number of operating cycles)
(x) Switching capacity (kVA)
A : RSB2A080●●
B : RSB1A160●●
C : RSB1A120●●
Reduction Coefficient for Inductive AC Load (Depending on Power Factor cos ϕ)
(y) Reduction coefficient (A)
6
Page 7

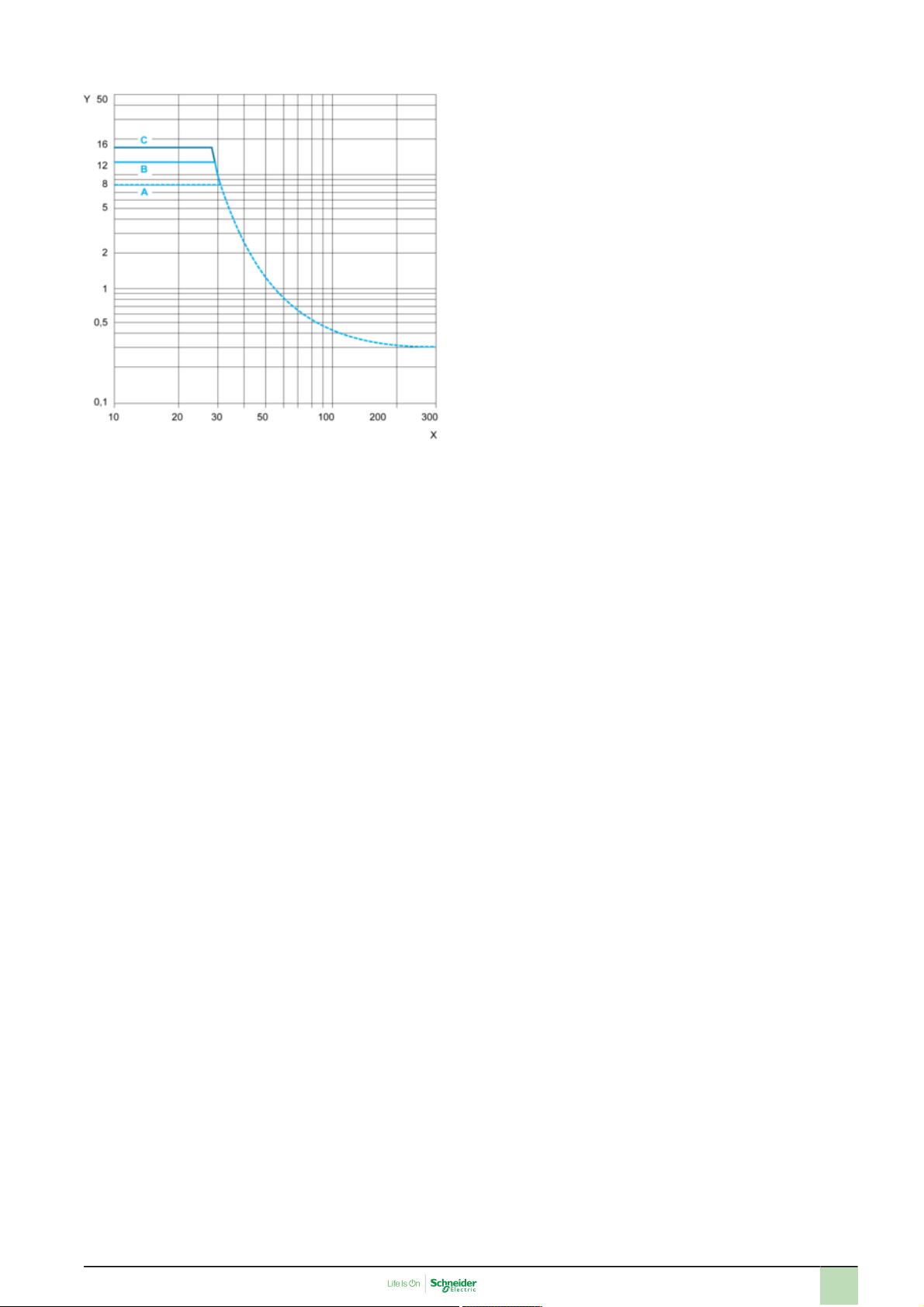

Maximum Switching Capacity on Resistive DC Load
(y) Current DC
(x) Voltage DC
A : RSB2A080●●
B : RSB1A160●●
C : RSB1A120●●
NOTE: These are typical curves, actual durability depends on load, environment, duty cycle, etc.
