Schneider Electric Rack Power Distribution Catalog

Rack Power Distribution & Rack Systems

Worldwide

Introduction

APCTM by Schneider ElectricTM offers a wide array of

standardized Rack Power Distribution Units (PDUs) designed to increase manageability and efficiency in your data center.

Basic Rack PDUs

• reliable power distribution

Metered Rack PDUs

• real-time remote monitoring of connected loads

• user-defined alarms warn IT and data center

managers of potential circuit overloads to prevent accidental power loss to critical equipment

Switched Rack PDUs

• metered functionality

• individual outlet control to power cycle outlets

• manage on/off equipment sequencing

Metered-by-Outlet Rack PDUs

• provide greater power management

• individual outlet-level power metering

• user-resettable energy (kWh) logs for capacity

planning and energy-efficency initiatives

AP8000 Series Rack PDUs

The AP8000 Series Rack PDU platform will help IT and facilities managers more effectively manage power capacity and functionality for critical network, server, and data center equipment. These Rack PDUs solve rack-level power needs while incorporating intelligent features, such as real power measurement and environmental monitoring, all in a spaceefficient, zero-U form factor. AP8000 Series Rack PDUs include active power metering and remote alarming with volts, amps, real power (kW), and energy (kWh) measurements.

2

3

✓ ✓ ✓ ✓

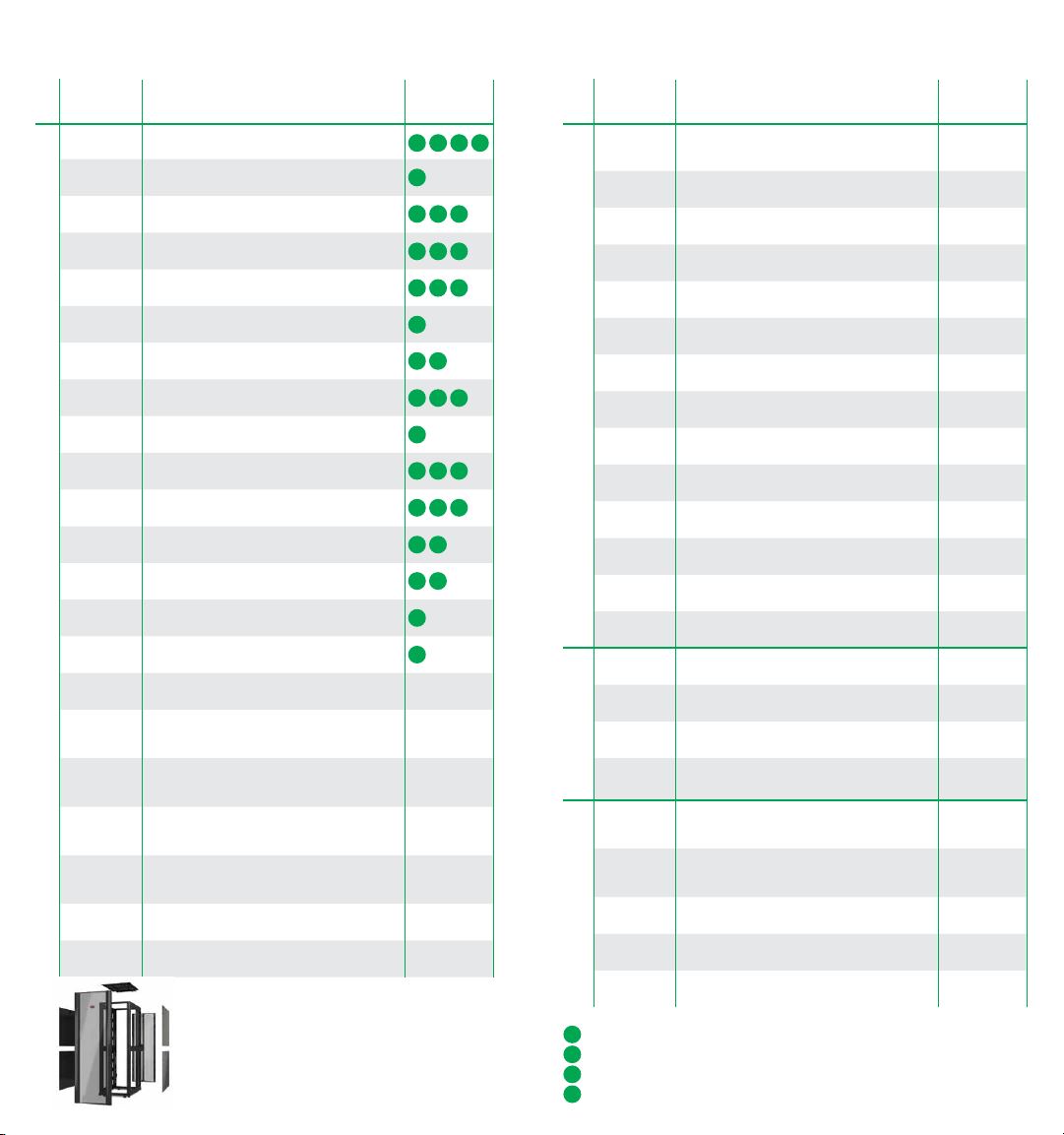

Product Feature by Rack PDU by Family/Series

Design Features

Ultra-low-proﬁle, space-saving design

Hydraulic-magnetic circuit breakers (in units conﬁgured with circuit breakers)

Ultra-low-proﬁle circuit breakers (for units with breakers)

Locking IEC receptacles and locking power cord compatible

Environmental monitoring port for external temperature/humidity monitoring

Display and Network Management

Full-featured network management capability via Web, SNMP, Telnet

Two-digit, seven-segment LED display

User-interactive LCD display for local access

Field-replaceable Network Management Module

Network port sharing (up to four rack PDUs share one IP address in one enclosure)

Local USB port for easy local ﬁrmware updates

Metering Capability

Active current measurements (amps)

Active power measurements (including volts, amps, real power (kW), and energy (kWh))

User-customizable alarms and warnings

Embedded log memory to record/review/report historic metered data

Individual outlet power metering

Outlet Control

Individual outlet remote power on/off control

Power-on sequencing and time delays with full user customization

Outlet level grouping (multiple outlets in same or multiple units follow single command)

User access control with assignable roles, access levels at device and outlet level

Outlet grouping feature for synchronized control of outlets on multiple Rack PDUs

Maintenance and Upgradeability

Redundant internal power supply for improved Switched Rack PDU reliability

Field-replaceable network management module

*Not applicable on AP8965.

4

Metered-byOutlet with Switching

AP8600 Series

Basic

Metered

AP7800 Series

AP8800 Series

Metered-

Outlet

by-

AP8400 Series

Switched

AP7900 Series

AP8900 Series

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓

*

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓

✓

5

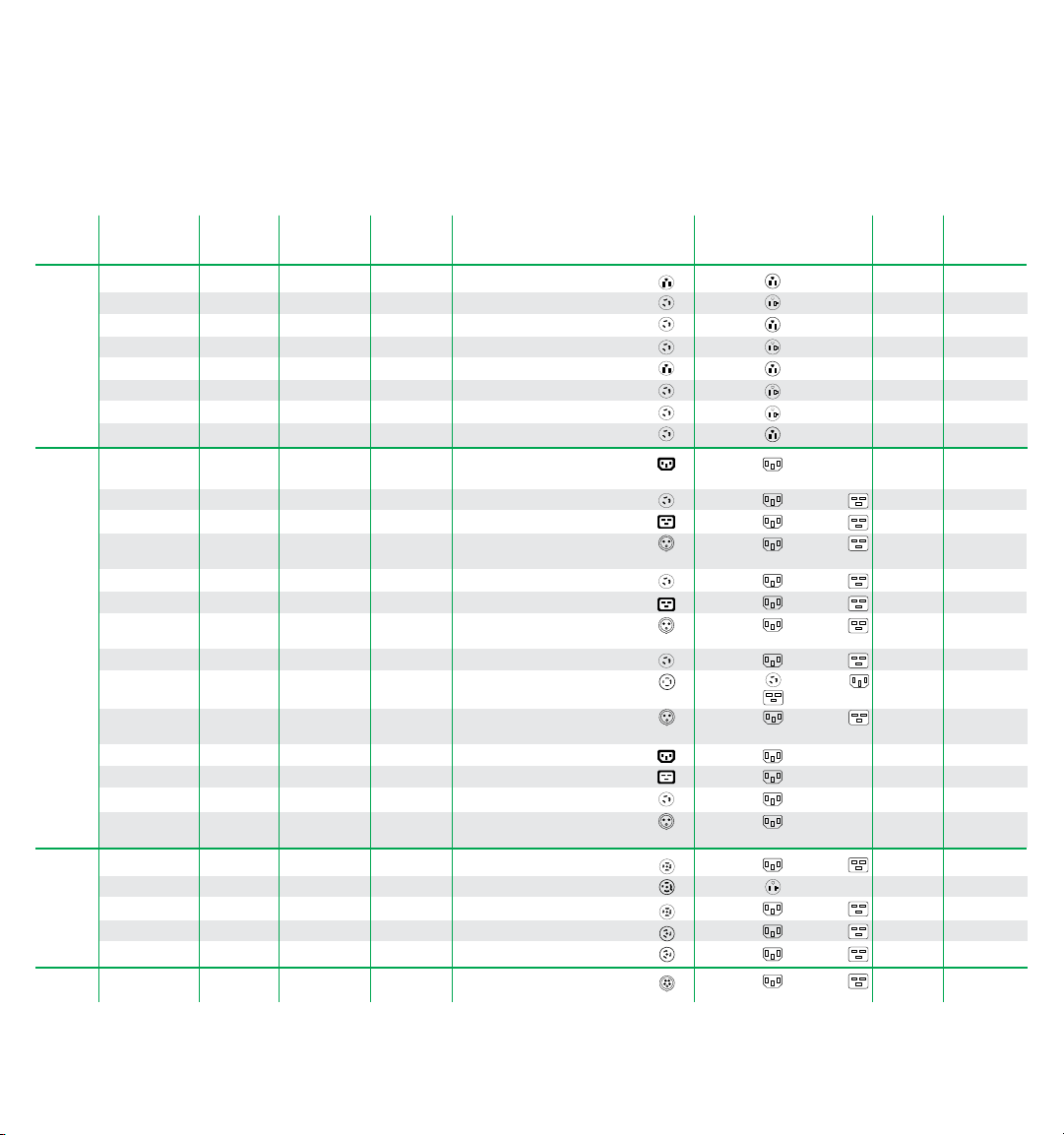

Basic Rack PDUs

APC Basic Rack PDUs provide reliable power distribution via a single input with multiple output receptacles and distributes power from low-amperage, single-phase circuits to higher-power, three-phase solutions.

Voltage

Mounting U-space

Vertical, 0U 100 – 120 NAM, LAM 15 A 1.4 kW NEMA 5-15P (14) 5-15 3.6 m AP9567

Vertical, 0U 120 NAM 20 A 1.9 kW NEMA L5-20P (24) 5-20 3.0 m AP7530

Vertical, 0U 100 – 120 NAM 20 A 1.9 kW NEMA L5-20P (14) 5-15 3.6 m AP9551

Vertical, 0U 100 – 120 Japan 20 A 2.0 kW NEMA L5-20P (24) 5-15 3.0 m AP7530J

Vertical, 0U 120 NAM 30 A 2.9 kW NEMA L5-30P (24) 5-20 3.0 m AP7532

100 – 120 V Input

200 – 240 V Input

Vertical, 0U 100 Japan 30 A 3.0 kW NEMA L5-30P (24) 5-15 3.0 m AP7532J

Horizontal, 1U 100 – 120 NAM, LAM 15 A 1.4 kW NEMA 5-15P (10) 5-15 3.6 m AP9562

Horizontal, 1U 100 – 120 NAM 20 A 1.9 kW NEMA 5-20P (10) 5-20 3.6 m AP9563

Horizontal, 1U 100 – 120 NAM 20 A 1.9 kW NEMA L5-20P (10) 5-20 3.6 m AP9564

Horizontal, 1U 100 – 120 NAM 30 A 2.9 kW NEMA L5-30P (10) 5-20 3.6 m AP9560

Vertical, 0U 120 – 240 Worldwide 10 A 2.3 kW IEC-320 C14* (15) C13 2.0 m AP9568

Vertical, 0U 230 GCN 16 A 3.5 kW IEC-309 16 A (14)C13 (4)C19 1.0 m AP6351CH

Vertical, 0U 230 GCN 16 A 3.5 kW IEC-309 16 A (18)C13 (6)C19 1.0 m AP6451CH

Vertical, 0U 120 – 230 Worldwide 16 A 3.3 kW IEC-320 C20 (15) C13 2.5 m AP9572

Vertical, 0U 230 LAM, EMEA, 16 A 3.7 kW IEC-309 16 A (20) C13 (4) C19 1.0 m AP7551

Vertical, 0U 230 Worldwide 16 A 3.7 kW IEC-320 C20* (20) C13 (4) C19 3.0 m AP7552

Vertical, 0U 200 – 240 NAM 20 A 3.3 kW NEMA L6-20P (20) C13 (4) C19 3.0 m AP7540

Vertical, 0U 200 – 240 NAM 30 A 5.0 kW NEMA L6-30P (20) C13 (4) C19 3.0 m AP7541

Vertical, 0U 230 GCN 32 A 7.0 kW IEC-309 32 A (18)C13 (6)C19 2.0 m AP6453CH

Vertical, 0U 230 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (20) C13 (4) C19 3.0 m AP7553

Horizontal, 1U 230 GCN 16 A 3.5 kW IEC-320 C20 (8) GB Inlet AP6201CH

Horizontal, 1U 230 GCN 16 A 3.5 kW IEC-320 C20 (20) C13 Inlet AP6221CH

Horizontal, 1U 120 – 240 Worldwide 16 A 3.7 kW IEC-320 C20* (10) C13 (2) C19 2.5 m AP9559

Horizontal, 1U 100 – 240 Worldwide 16 A 3.7 kW IEC-320 C20* (12) C13 2.5 m AP9565

Horizontal, 1U 208 NAM, LAM 20 A 3.3 kW NEMA L6-20P (12) C13 3.6 m AP9566

Horizontal, 1U 208 NAM 30 A 5.0 kW NEMA L6-30P (4) C19 3.0 m AP9570

Horizontal, 1U 200 – 240 NAM, LAM 30 A 5.0 kW NEMA L6-30P (10) C13 3.6 m AP9571A

Horizontal, 2U 230 LAM, EMEA, 32 A 7.4 kW Hardwire (4) C19 8.5 m AP7585

Horizontal, 2U 230 LAM, EMEA, 32 A 7.4 kW Hardwire (4) IEC 309 32A 8.5 m AP7586

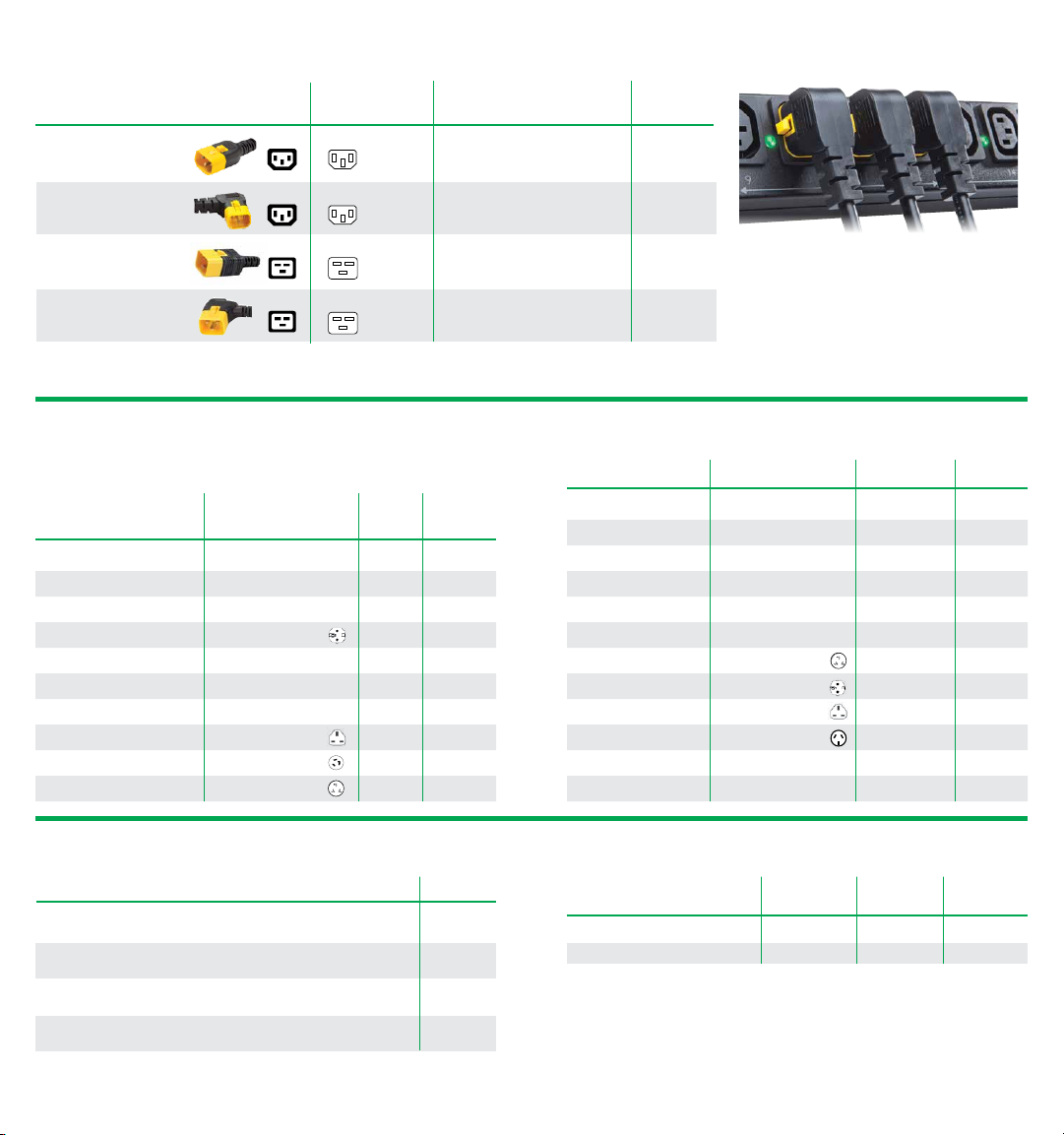

* See page 20/21 for inlet power cord options

Nominal Voltage

Region

GCN, APJ

Input Circuit

Nominal Power

Input Plug Type

Output Receptacles

Cord Length

APC SKU

Rack PDU Mounting Styles

> Horizontal 1/2U mounting > Space-saving 0U

6

> Vertical 0U

mounting with toolless mounting

mounting options (AR7711)

7

Basic Rack PDUs (continued ...)

Voltage

208 V Three-phase Input

400 – 415 V

Mounting U-space

Vertical, 0U 208 NAM 20 A, 3ø 5.8 kW NEMA L21-20P (42) 5-20 1.0 m AP7562

Vertical, 0U 208 NAM 20 A, 3ø 5.8 kW NEMA L21-20P (42) 5-20 3.0 m AP7592

Vertical, 0U 208 NAM 20 A, 3ø 5.8 kW NEMA L21-20P (21) 5-20 (6) L6-20 1.0 m AP7563

Vertical, 0U 208 NAM 20 A, 3ø 5.8 kW NEMA L21-20P (36) C13 (6) C19 1.0 m AP7564

Vertical, 0U 200 – 240 NAM 50 A, 3ø 12.5 kW CS8365C (30) C13 (6) C19 1.0 m AP7568

Vertical, 0U 200 – 240 NAM 50 A, 3ø 12.5 kW CS8365C (30) C13 (6) C19 3.0 m AP7598

Vertical, 0U 200 – 240 NAM 50 A, 3ø 14.4 kW CS8365C (24) C13 (4) C19 1.0 m AP7569

Vertical, 0U 200 – 240 NAM 50 A, 3ø 14.4 kW CS8365C (24) C13 (4) C19 3.0 m AP7599

Vertical, 0U 208 NAM 50 A, 3ø 12.5 kW CS8365C (6) C19 (3) C13 1.8 m AP7567A

Horizontal, 1U 200 – 240 NAM 50 A, 3ø 14.4 kW CS8365C (6) C19 2.4 m AP7516

Horizontal, 2U 120/208 NAM 30 A, Split ø 5.8 kW NEMA L14-30P (4) L5-20 8.5 m AP7580

Horizontal, 2U 120/208 NAM 30 A, Split ø 5.8 kW NEMA L14-30P (4) L6-20 8.5 m AP7581

Horizontal, 2U 120/208 NAM 30 A, Split ø 5.8 kW NEMA L14-30P (12) 5-20 8.5 m AP7582

Horizontal, 2U 120/208 NAM 30 A, Split ø 5.8 kW NEMA L14-30P (4) L5-30 8.5 m AP7583

Horizontal, 2U 120/208 NAM 30 A, Split ø 5.8 kW NEMA L14-30P (4) L6-30 8.5 m AP7584

Vertical, 0U 400 LAM, EMEA, 16 A, 3ø 11 kW IEC-309 16 A 3P+N+PE (36) C13 (6) C19 1.0 m AP7557

Vertical, 0U 400 LAM, EMEA, 16 A, 3ø 22 kW IEC-309 32 A 3P+N+PE (6) C19 (3) C13 1.8 m AP7555A

Vertical, 0U 415 NAM 20 A, 3ø 11.5 kW IEC-309 20 A 3P+N+PE (36) C13 (6) C19 1.0 m AP7557NA

Horizontal, 1U 400 LAM, EMEA, 32 A, 3ø 22 kW IEC-309 32 A 3P+N+PE (6) C19 2.4 m AP7526

Three-phase Input

Nominal Voltage

Region

GCN, APJ

Input Circuit

Nominal Power

Input Plug Type

Output Receptacles

(2) L6-30

Cord Length

APC SKU

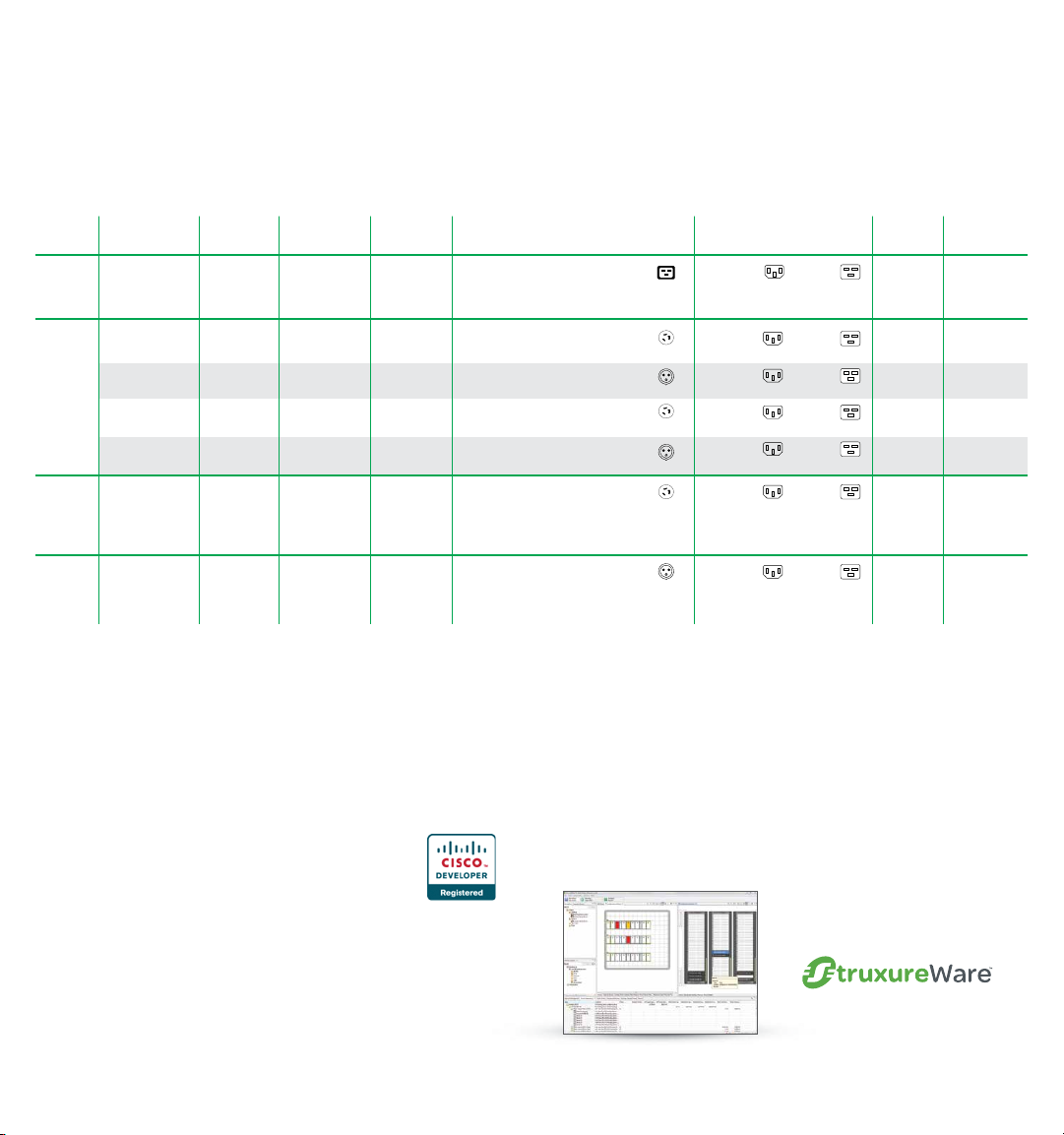

Choosing APC Rack PDUs

Use the Rack PDU Selector to help you choose from our diverse rack power distribution offerings, designed to meet the needs of entry-level networking equipment and high-density server and blade environments.

www.apc.com/tools/selector/pdu/

8

The APC Rack PDU Selector can filter Rack PDU selection by:

> Family type > Output voltage > Mount style (vertical or horizontal) > Input plug > Localized price

A wide selection of APC Rack PDUs are also available in Schneider Electric Design Portal tools such as:

> InfraStruxure

TM

Designer

> Small IT Solution Designer

9

Metered Rack PDUs

Metered Rack PDUs provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Voltage Input

Mounting U-space

Vertical, 0U 100 – 120 NAM, Japan 15 A 1.4 kW NEMA 5-15P (16) 5-15 3.0 m AP8831

Vertical, 0U 100 – 120 NAM 20 A 1.9 kW NEMA L5-20P (24) 5-20 3.0 m AP8830

Vertical, 0U 100 – 120 Japan 20 A 2.0 kW NEMA L5-20P (24) 5-15 3.0 m AP8830J

Vertical, 0U 100 – 120 Japan 20 A 1.9 kW NEMA L5-20P (10) 5-15 3.0 m AP8833J

100 – 120 V Input200 – 240 V Input

Vertical, 0U 100 – 120 NAM, Japan 30 A 2.9 kW NEMA L5-30P (24) 5-20 3.0 m AP8832

Vertical, 0U 100 – 120 Japan 30 A 2.4 kW NEMA L5-30P (24) 5-15 3.0 m AP8832J

Horizontal, 1U 120 NAM, LAM 15 A 1.4 kW NEMA 5-15P (8) 5-15 3.6 m AP7800

Horizontal, 1U 120 NAM, LAM 20 A 1.9 kW NEMA L5-20P (8) 5-20 3.6 m AP7801

Horizontal, 2U 120 NAM, LAM 30 A 2.9 kW NEMA L5-30P (16) 5-20 3.6 m AP7802

Horizontal, 2U 100 Japan 30 A 3.0 kW NEMA L5-30P (16) 5-15 3.6 m AP7802J

Vertical, 0U 230 Worldwide 10/15 A 2.3 kW IEC-320 C14 (16) C13 3.0 m AP7850

Vertical, 0U 100 – 240 Worldwide 16 A 3.3 kW IEC-320 C20* (18) C13 (2) C19 Inlet AP8858

Vertical, 0U 100 – 240 EMEA, APJ, 16 A 3.7 kW IEC-309 16 A (18) C13 (2) C19 3.0 m AP8858EU3

Vertical, 0U 100 – 240 NAM, LAM 20 A 3.3 kW NEMA L6-20P (18) C13 (2) C19 3.0 m AP8858NA3 GCN, APJ

Vertical, 0U 200 – 240 NAM, Japan 30 A 5.0 kW NEMA L6-30P (36)C13 (6) C19 3.0 m AP8841 LAM

Vertical, 0U 208 NAM 30 A 5.8 kW NEMA L14-30P (16) 5-20 (12) 3.0 m AP8870 (2) C19

Vertical, 0U 220 – 240 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (36)C13 (6) C19 3.0 m AP8853 GCN, APJ

Horizontal, 1U 100 – 240 Worldwide 10/15 A 2.5 kW IEC-320 C14* (8) C13 Inlet AP7820

Horizontal, 1U 100 – 240 Worldwide 16 A 3.3 kW IEC-320 C20* (8) C13 Inlet AP7821

Horizontal, 2U 200 – 240 NAM 30 A 5.0 kW NEMA L6-30P (12) C13 (4) C19 3.6 m AP7811

Horizontal, 2U 230 LAM, EMEA, 32A 7.4 kW IEC-309 32 A (12) C13 (4) C19 3.6 m AP7822 GCN, APJ

* See page 20/21 for inlet power cord options

Nominal Voltage

Circuit

Nominal Power

Input Plug Type

Output Receptacles

Cord Length

APC SKURegion

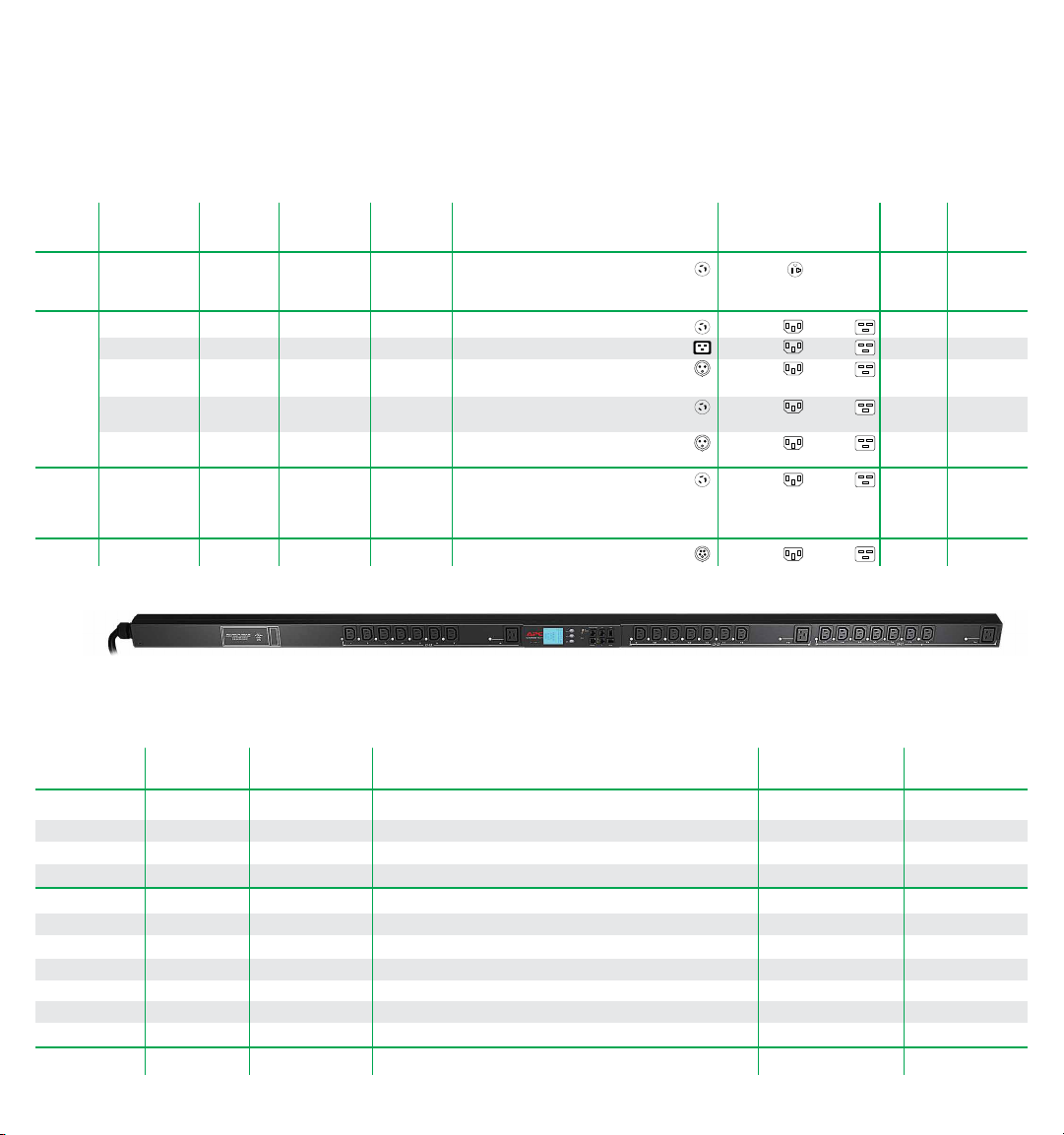

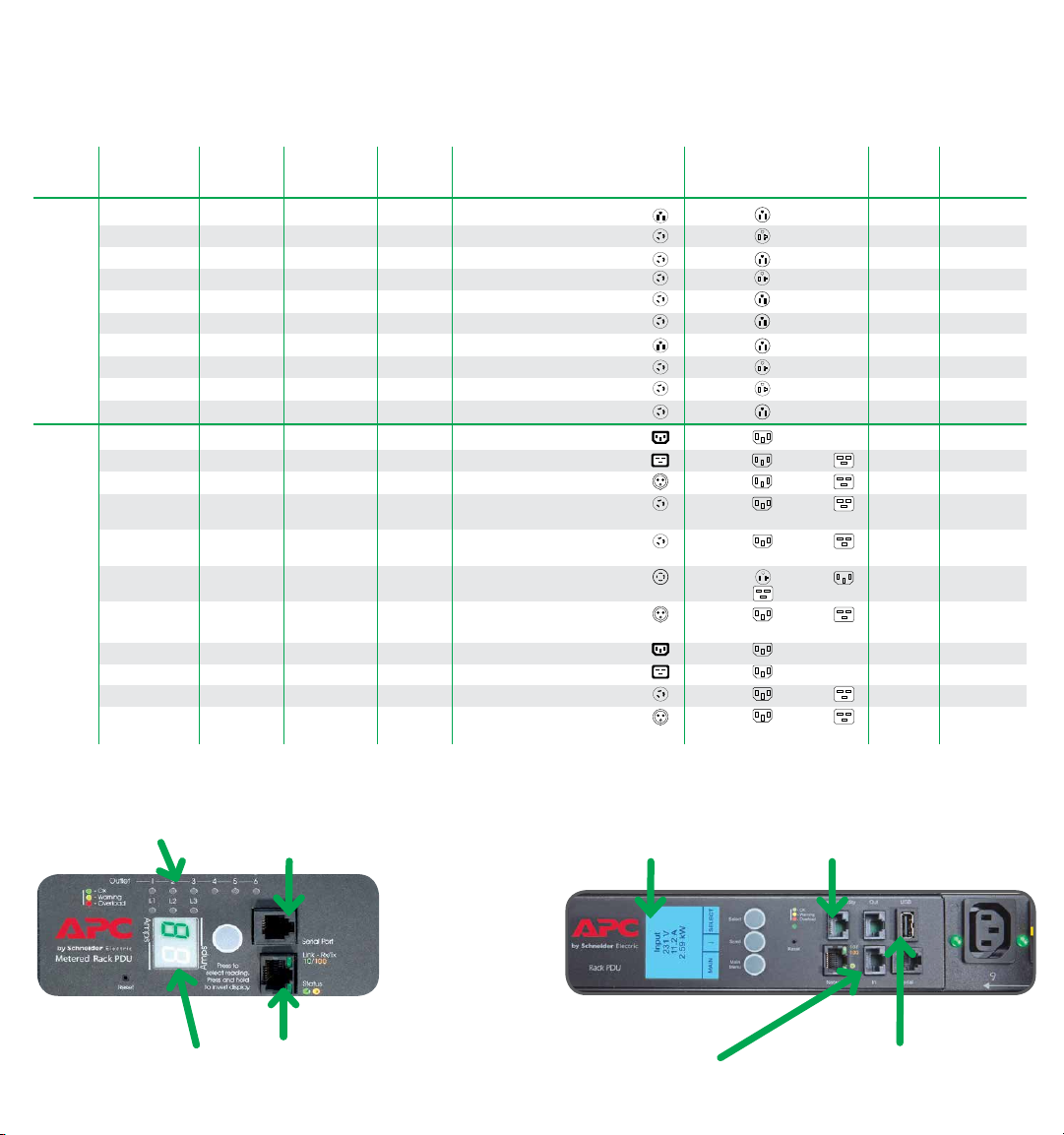

Rack PDU local display

Load indicator LEDs User-interactive

Local two-digit LED current monitoring display

10

Serial connection: local configuration and out-of-band management

Network management: access, configure, and receive warnings from remote locations via Web, SNMP, and Telnet

display for local access

AP8000 seriesAP7000 series

CAN In/Out ports for network port sharing

Environmental monitoring port for external temperature/humidity probe

Local USB port for flash firmware updates and downloading data/event logs (not to be used as serial port)

11

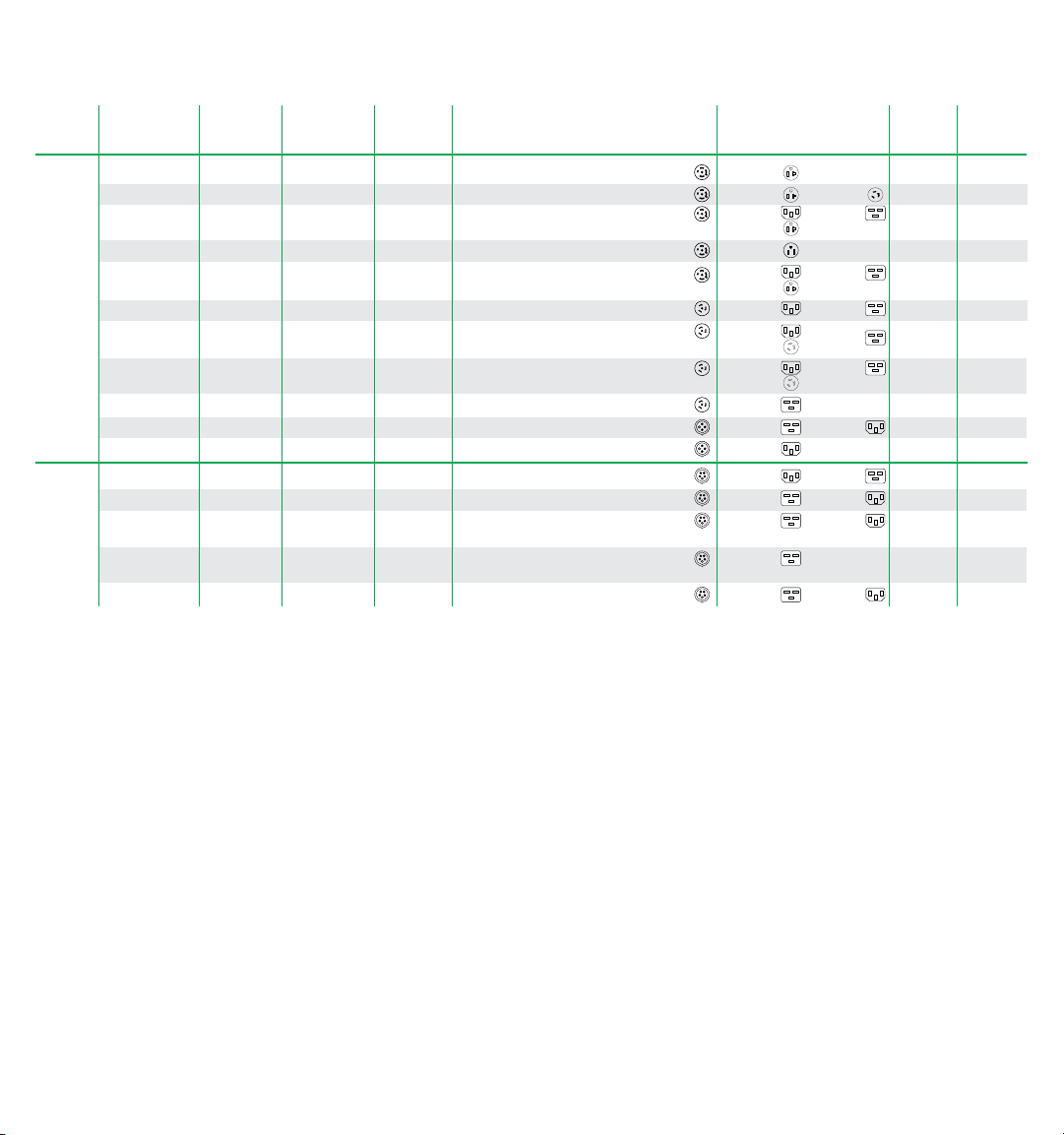

Metered Rack PDUs (continued ...)

Voltage Region Input

208 V Three-phase Input

400 – 415 V

Mounting U-space

Vertical, 0U 208 NAM 20A, 3Φ 5.7 kW NEMA L21-20P (36) 5-20 3.0 m AP8862

Vertical, 0U 208 NAM 20 A, 3Φ 5.7 kW NEMA L21-20P (24) 5-20 (6) L6-20 3.0 m AP8863

Vertical, 0U 208 NAM 20 A, 3Φ 5.7 kW NEMA L21-20P (36) C13 (6) C19 1.8 m AP8861

Vertical, 0U 208 Japan 20 A, 3Φ 6.0 kW NEMA L21-20P (42) 5-15 1.0 m AP7862J

Vertical, 0U 208 NAM 30 A, 3Φ 8.6 kW NEMA L21-30P (36) C13 (6) C19 1.8 m AP8865

Vertical, 0U 200 – 240 NAM 50 A, 3Φ 10.0 kW CS8365C (36) C13 (6) C19 1.8 m AP8868

Vertical, 0U 200 – 240 NAM 50 A, 3Φ 14.4 kW CS8365C (24) C13 (4) C19 1.0 m AP7869

Vertical, 0U 200 – 240 NAM 50 A, 3Φ 14.4 kW CS8365C (24) C13 (4) C19 3.0 m AP7899

Vertical, 0U 200 – 240 NAM 50 A, 3Φ 14.4 kW CS8365C (6) C19 1.8 m AP7867A

Vertical, 0U 200 – 240 NAM 60 A, 3Φ 17.3 kW IEC-309 60 A 3P+PE (12) C19 (6) C13 1.8 m AP8866

Vertical, 0U 200 – 240 NAM 60 A, 3Φ 17.3 kW IEC-309 60 A 3P+PE (30) C13 1.8 m AP8867

Vertical, 0U 400 – 415 Worldwide 16 A, 3Φ 11 kW IEC-309 16 A 3P+N+PE (36) C13 (6) C19 1.8 m AP8881

Vertical, 0U 415 NAM 30 A, 3Φ 17.3 kW IEC-309 30 A 3P+N+PE (12) C19 (30) C13 1.8 m AP8887

Vertical, 0U 400 LAM, EMEA, 32 A, 3Φ 22 kW IEC-309 32 A 3P+N+PE (12) C19 (30) C13 1.8 m AP8886

Vertical, 0U 400 LAM, EMEA, 32 A, 3Φ 22 kW IEC-309 32 A 3P+N+PE (6) C19 1.8 m AP7855A

Vertical, 0U 415 NAM 40 A, 3Φ 23 kW IEC-309 60 A 3P+N+PE (12) C19 (30) C13 1.8 m AP8888

Three-phase Input

Nominal Voltage

Circuit

GCN, APJ

Nominal Power

Input Plug Type

Output Receptacles

(2) 5-20

(2) L6-30

Cord Length

APC SKU

What is metered on AP8800, AP8400, AP8900, and AP8600 Series Rack PDUs?

> Device: Power and energy > Phase: Current*, power, and voltage > Internal circuit breaker (bank): Current* > Outlet: Current, power, energy

(AP8600 & AP8400 Series only)

*AP7000 series monitors current per phase and breaker only.

12

Why do we meter?

> Device: Rack level capacity change, planning,

and efficiency calculations

> Phase: Balance loads between phases to protect

against tripping upstream branch circuit breakers

> Internal circuit breaker (bank): Protect against

tripping internal circuit breakers

> Outlet: Detailed capacity change, equipment

efficiency, and trends

13

Metered-by-Outlet Rack PDUs

Metered-by-Outlet Rack PDUs provide real-time remote monitoring of each individual outlet to empower IT professionals with the necessary tools for advanced data center energy management.

Voltage Region Input

100 –

200 – 240 V Input208 V

400-415 V

Mounting U-space

Vertical, 0U 100 – 240 Worldwide 16 A 3.3 kW IEC-320 C20* (21) C13 (3) C19 3.0 m AP8459WW

Input

120 V

Vertical, 0U 200 - 240 NAM, LAM, 20 A 3.3 kW NEMA L6-20P (21) C13 (3) C19 3.0 m AP8459NA3 Japan

Vertical, 0U 200 - 240 LAM, EMEA, 16 A 3.7 kW IEC-309 16 A (21) C13 (3) C19 3.0 m AP8459EU3 GCN, APJ

Vertical, 0U 200 - 240 NAM, Japan, 30 A 5.0 kW NEMA L6-30P (21) C13 (3) C19 3.0 m AP8441 LAM

Vertical, 0U 200 - 240 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (21) C13 (3) C19 3.0 m AP8453 GCN, APJ

Vertical, 0U 208 NAM 20A, 3Φ 5.7 kW NEMA L21-20P (21) C13 (3) C19 1.8 m AP8461

phase

Three-

Vertical, 0U 400 - 415 Worldwide 16A, 3Φ 11 kW IEC-309 16 A (21) C13 (3) C19 1.8 m AP8481 3P+N+PE

Input

* See page 20/21 for inlet power cord options

Three-phase

Nominal Voltage

Circuit

Rack PDU Software options:

APC Intelligent Rack PDUs provide remote power utilization data and optional outlet control to allow data center managers to make informed decisions on load balancing and right-sizing IT environments to lower total cost of ownership. Latest feature additions include Cisco EnergyWise™, wireless sensor capability, and network port sharing.

Nominal Power

Input Plug Type

Output Receptacles

Cord Length

APC SKU

Integration with StruxureWare for Data Centers Software

APC Rack PDUs, when combined with StruxureWareTM Data Center Operations, help provide an instant overview of data center operations with additional inventory management, PUE calculation, real-time device alarms, and location-based drill-down of power distribution.

Remote access to Intelligent Rack PDUs is available via:

> Web browser > Telnet (CLI) > SNMP

14

15

Switched Rack PDUs

8

Switched Rack PDUs provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.

Voltage Region Input

Mounting U-space

Vertical, 0U 100 – 120 NAM, Japan 15 A 1.4 kW NEMA 5-15P (16) 5-15 3.0 m AP8931

Vertical, 0U 120 NAM 20 A 1.9 kW NEMA L5-20P (24) 5-20 3.0 m AP8930

Vertical, 0U 100 Japan 20 A 1.9 kW NEMA L5-20P (24) 5-15 3.0 m AP8930J

Vertical, 0U 120 NAM, Japan 30 A 2.9 kW NEMA L5-30P (24) 5-20 3.0 m AP8932

100 – 120 V Input200 – 240 V Input

208 V

400 – 415 V

Horizontal, 1U 100 – 120 NAM, LAM 15 A 1.4 kW NEMA 5-15P (8) 5-15 3.6 m AP7900

Horizontal, 1U 100 – 120 NAM 20 A 1.9 kW NEMA L5-20P (8) 5-20 3.6 m AP7901

Horizontal, 2U 120 NAM 30 A 2.9 kW NEMA L5-30P (16) 5-20 3.6 m AP7902

Horizontal, 2U 100 Japan 32 A 3.0 kW NEMA L5-30P (16) 5-15 3.6 m AP7902J

Vertical, 0U 230 EMEA, GCN, 10 A 2.3 kW IEC-320 C14* (16) C13 3.0 m AP7950 APJ

Vertical, 0U 100 – 240 NAM, LAM 20 A 3.3 kW NEMA L6-20P (7) C13 (1) C19 3.0 m AP8958NA3

Vertical, 0U 100 – 240 Worldwide 16 A 3.3 kW IEC-320 C20* (7) C13 (1) C19 Inlet AP8958

Vertical, 0U 230 LAM, EMEA, 16 A 3.7 kW IEC-309 16 A (7) C13 (1) C19 3.0 m AP8958EU3 GCN, APJ

Vertical, 0U 100 – 240 NAM, LAM 20 A 3.3 kW NEMA L6-20P (21) C13 (3) C19 3.0 m AP8959NA3

Vertical, 0U 100 – 240 Worldwide 16 A 3.3 kW IEC-320 C20* (21) C13 (3) C19 Inlet AP8959

Vertical, 0U 230 LAM, EMEA, 16 A 3.7 kW IEC-309 16 A (21) C13 (3) C19 3.0 m AP8959EU3 GCN, APJ

Vertical, 0U 200 – 240 NAM, LAM 30 A 5.0 kW NEMA L6-30P (21) C13 (3) C19 3.0 m AP8941

Vertical, 0U 120/208 NAM 30 A 5.8 kW NEMA L14-30P (16) 5-20 (12) C13 3.0 m AP8970 (2) C19

Vertical, 0U 220 – 240 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (21) C13 (3) C19 3.0 m AP8953 GCN, APJ

Horizontal, 1U 208 – 230 Worldwide 10/15 A 2.5 kW IEC-320 C14* (8) C13 2.0 m AP7920

Horizontal, 1U 208 – 230 Worldwide 16 A 3.3 kW IEC-320 C20* (8) C13 2.4 m AP7921

Horizontal, 2U 200 – 240 NAM 30 A 5.0 kW NEMA L6-30P (16) C13 3.6 m AP7911A

Horizontal, 2U 230 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (16) C13 3.6 m AP7922 GCN, APJ

Vertical, 0U 208 NAM 20 A, 3ø 5.7 kW NEMA L21-20P (21) C13 (3) C19 1.8 m AP8961

Vertical, 0U 208 NAM 20A, 3 Φ 6.0 kW NEMA L21-20P (24) 5-20 3.0 m AP8962

Input

Vertical, 0U 208 NAM 30 A, 3ø 8.6 kW NEMA L21-30P (21) C13 (3) C19 1.8 m AP8965

Vertical, 0U 200 – 240 NAM 50 A, 3ø 12.5 kW CS8365C (21) C13 (3) C19 1.0 m AP7968

Three-phase

Vertical, 0U 200 – 240 NAM 50 A, 3ø 12.5 kW CS8365C (21) C13 (3) C19 3.0 m AP7998

Vertical, 0U 400 – 415 Worldwide 16 A, 3ø 11 kW IEC-309 16 A (21) C13 (3) C19 1.8 m AP8981 3P+N+PE

Input

* See page 20/21 for inlet power cord options

Three-phase

Nominal Voltage

Circuit

Nominal Power

Input Plug Type

Output Receptacles

Cord Length

APC SKU

16

17

Metered-by-Outlet with Switching Rack PDUs

Metered-by-Outlet with Switching Rack PDUs provide real-time remote monitoring of each individual outlet combined with remote on/off outlet switching control to empower IT professionals with the necessary tools for complete control their power distribution and advanced data center energy management.

Voltage Cord

100-

200 – 240 V

208 V

400 – 415 V

Mounting U-space

Vertical, 0U 100-120 NAM, Japan 30 A 2.9 kW NEMA L5-30P (24) 5-20 3.0 m AP8632

120V

Input

Vertical, 0U 208 NAM 20 A 3.3 kW NEMA L6-20P (21) C13 (3) C19 3.0 m AP8659NA3

Vertical, 0U 100 – 240 Worldwide 20 A 3.3 kW IEC-320 C20* (21) C13 (3) C19 Inlet AP8659

Input

Vertical, 0U 230 LAM, EMEA, 16 A 3.7 kW IEC-309 16 A (21) C13 (3) C19 3.0 m AP8659EU3 GCN, APJ

Vertical, 0U 200 – 240 NAM, Japan 30 A 5.0 kW NEMA L6-30P (21) C13 (3) C19 3.0 m AP8641 LAM

Vertical, 0U 220 – 240 LAM, EMEA, 32 A 7.4 kW IEC-309 32 A (21) C13 (3) C19 3.0 m AP8653 GCN, APJ

Vertical, 0U 208 NAM 20 A, 3ø 5.7 kW NEMA L21-20P (21) C13 (3) C19 1.8 m AP8661

Input

phase

Three-

Vertical, 0U 400 – 415 Worldwide 16 A, 3ø 11 kW IEC-309 16 A 3P+N+PE (21) C13 (3) C19 1.8 m AP8681

Input

phase

* See page 20/21 for inlet power cord options

Three-

Nominal Voltage

Region Input Plug

Input Circuit

Nominal Power

Type

Receptacles

Length

AP8661

Rack-mount Transfer Switch

Input Voltage Mounting Input Circuit Input Plug Type Output Receptacles Cord Length APC SKU U-space

100 V

1 20 A NEMA L5-20P (8) 5-15 2.4 m AP7752J

100/120 V 1 15 A NEMA 5-15P (8) 5-15 2.4 m AP7750A 120 V 1 20 A NEMA L5-20P (10) 5-20 2.4 m AP7752 120 V 2 30 A NEMA L5-30P (16) 5-20 2.4 m AP7753

200 – 208 V 1 20 A NEMA L6-20P (8) C13, (1) C19 2.4 m AP7730 200 – 208 V 2 30 A NEMA L6-30P (16) C13, (2) C19 2.4 m AP7732 208 V 2 30 A NEMA L6-30P (1) L6-30R 2.4 m AP7731 208/230 V 1 15 A IEC-C14 Inlet (12) C13 None AP7721 200-/230 V 1 20 A IEC-C20 Inlet (8) C13, (1) C19 None AP7723 230 V 1 16 A (2) IEC-309 (1) IEC-309 0.9 m AP7722A 230 V 2 32 A IEC-309 (16) C13, (2) C19 2.4 m AP7724

208 V 3ø 1 20 A, 3ø NEMA L21-20P (1) L21-20R 0.9 m AP7701

APC SKUOutput

18

19

Locking IEC Power Cords

PDU Server Cord Cords APC SKU Input Input Length per SKU

IEC C14 IEC-C13 0.6 m 6 AP8702S*

Straight 1.2 m 6 AP8704S*

1.8 m 6 AP8706S* IEC C14 IEC-C13 0.6 m 6 AP8702R* (Three right, three left) 1.2 m 6 AP8704R*

1.8 m 6 AP8706R* IEC C20 IEC-C19 0.6 m 6 AP8712S Straight 1.2 m 6 AP8714S

1.8 m 6 AP8716S IEC C20 IEC-C19 0.6 m 6 AP8712R (Three right, three left) 1.2 m 6 AP8714R

1.8 m 6 AP8716R

*-NA and -WW designation are required in SKU numbers for AP870xS and AP870xR e.g., AP8702S-NA.

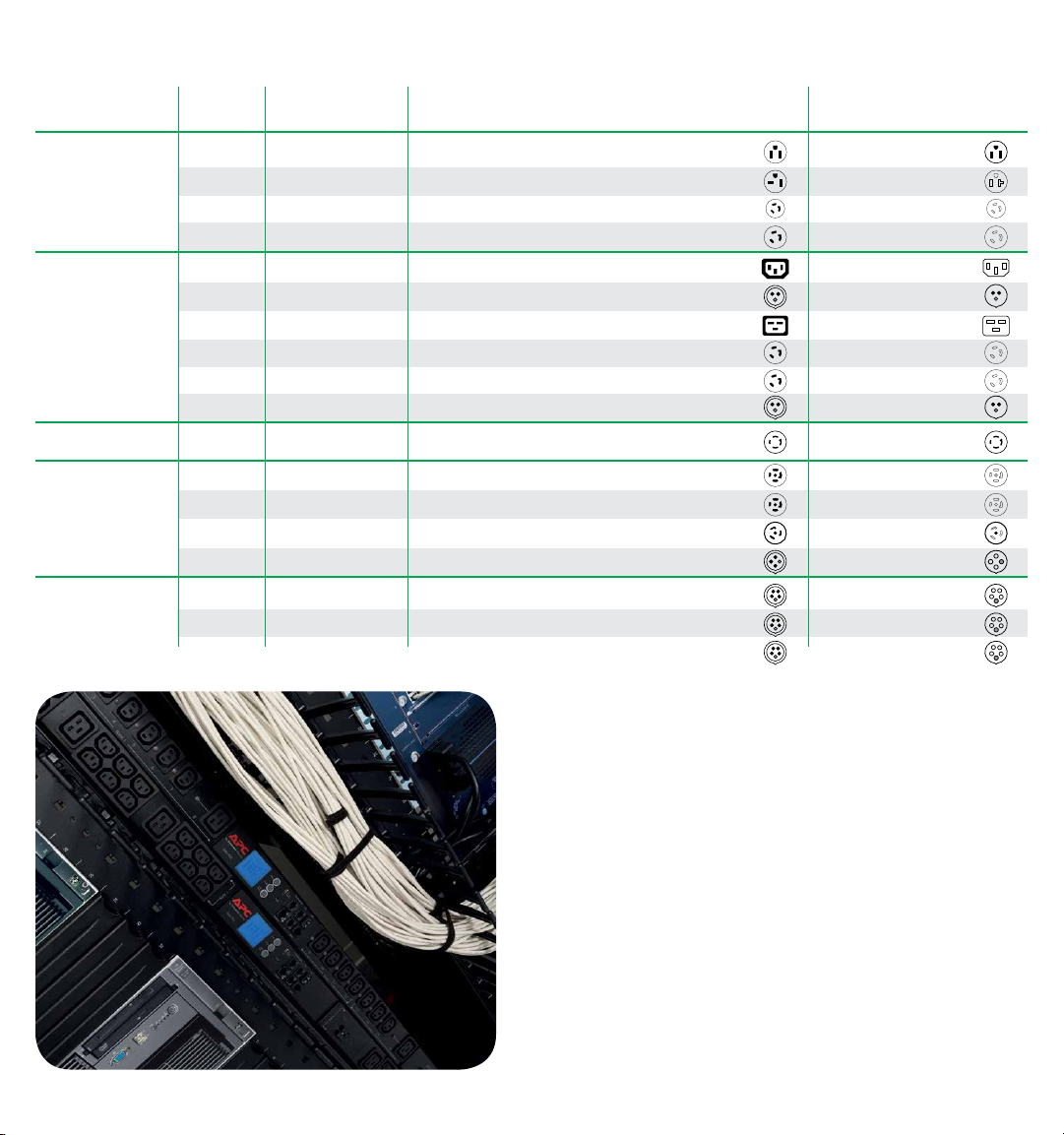

Input Power Cords

Input power cords for devices with C14 or C20 inlet.

Non-locking PDU Input

IEC-C19 Straight NEMA L6-20P 3.7m AP9871

IEC-C19 Straight NEMA 5-20P 2.5m AP9872

IEC-C19 Straight NEMA L5-20P 2.5m AP9873

IEC-C19 Straight Shuko (CEE 7) 2.5m AP9875

IEC-C19 Straight IEC-309 2.5m AP9876

IEC-C13 Straight NEMA 5-15P 2.4m AP9893

IEC-C13 Straight NEMA L5-15P 2.4m AP9894

IEC-C19 Straight UK (BS1363) 2.4m AP9895

IEC-C19 Straight NEMA L6-30P 2.4m AP9896

IEC-C19 Straight Australia AS3112 3.7m AP9897

Plug type Cord

Length

APC SKU

Locking PDU Input Plug type Cord Length APC SKU

IEC-C19 Straight NEMA 5-15P 3.0 m AP8750

IEC-C19 Straight NEMA 5-20P 3.0 m AP8751

IEC-C19 Straight NEMA L5-20P 3.0 m AP8752

IEC-C19 Straight NEMA L5-20P 3.0 m AP8752J

IEC-C19 Straight NEMA L6-20P 3.0 m AP8753

IEC-C19 Straight NEMA L6-20P 3.0 m AP8753J

IEC-C19 Straight Australia AS3112 3.0 m AP8754

IEC-C19 Straight Shuko (CEE 7) 3.0 m AP8755

IEC-C19 Straight UK (BS1363) 3.0 m AP8756

IEC-C19 Straight China (16A) 3.0 m AP8757

IEC-C19 Straight IEC-309 3.0 m AP8758

IEC-C19 Straight Rewireable 3.0 m AP8759

Locking IEC power cords provide a mechanism to secure power cord connections to the Rack PDU when used with any AP8000 Series unit.

Bracket Kits

Description APC SKU

Vertical, 0U mounting brackets AP7400*

®

for Dell

and Rittal® enclosures

Vertical, 0U mounting brackets AP7406*

®

for HP

enclosures

TM

NetShelter 0U accessory and PDU bracket

Horizontal to Vertical, AR8417 0U mounting bracket for horizontal 1U Rack PDUs

*Brackets for AP7000 series Rack PDUs only.

20

SX and third party racks, AR7711

Environmental

Description Connector Cord APC Type Length SKU

Temp. sensor RJ-45 3.9 m AP9335T

Temp. and humidity sensor RJ-45 3.9 m AP9335TH

Note: Environmental sensors only compatible with AP8000 Series Rack PDUs. Each Rack PDU includes one environmental sensor port for an optional sensor.

21

Choose a Rack System

Part Number

AR3100 NetShelter SX 42U 600mm Wide x 1070mm

AR3104 NetShelter SX 24U 600mm x 1070mm

AR3105 NetShelter SX 45U 600mm Wide x 1070mm

AR3107 NetShelter SX 48U 600mm Wide x 1070mm

AR3150 NetShelter SX 42U 750mm Wide x 1070mm

AR3155 NetShelter SX 45U 750mm Wide x 1070mm

AR3157 NetShelter SX 48U 750mm Wide x 1070mm

AR3300 NetShelter SX 42U 600mm Wide x 1200mm

AR3305 NetShelter SX 45U 600mm Wide x 1200mm

Premium Data Center InfraStruxure™ & Server Room

AR3307 NetShelter SX 48U 600mm Wide x 1200mm

AR3350 NetShelter SX 42U 750mm Wide x 1200mm

AR3355 NetShelter SX 45U 750mm Wide x 1200mm

AR3357 NetShelter SX 48U 750mm Wide x 1200mm

AR3140 NetShelter SX 42U 750mm Wide x 1070mm

AR3340 NetShelter SX 42U 750mm Wide x 1200mm

AR3347 NetShelter SX 48U 750mm Wide x 1200mm

AR3200 NetShelter SX Colocation 2 x 20U 600mm

AR3810 NetShelter AV 42U 600mm Wide x 825mm

AR3812 NetShelter AV 42U 600mm Wide x 825mm

AR3814 NetShelter AV 24U 600mm Wide x 825mm

AR2144BLK NetShelter VX Seismic 42U Enclosure w/

AR2145BLK NetShelter VX Seismic 42U Enclosure w/out

Description Alternate

Deep Enclosure

Deep Enclosure with Sides Black

Deep Enclosure

Deep Enclosure with Sides Black

Deep Enclosure

Deep Enclosure with Sides Black

Deep Enclosure

Deep Enclosure with Sides Black

Deep Enclosure

Deep Networking Enclosure with Sides

Wide x 1070mm Deep Enclosure with Sides Black

Deep Enclosure with Sides and 10-32 Threaded Rails Black

Deep Enclosure 10-32 Threaded Rails No Sides/Roof/Doors Black

Deep Enclosure with Sides and 10-32 Threaded Rails Black

Sides Black

ATO options

>

Without sides add X609

>

Without doors add X610

>

Without sides & doors add X617

e.g. AR3100X609 - 42U x 24in W42in deep without sides

22

option

TAA W X SP

SP

TAA X SP

W X SP

SP

X SP

W X SP

SP

W X SP

X SP

W

Part Number

AR2400FP1 NetShelter SV 42U 600mm Wide x 1060mm

AR2400 NetShelter SV 42U 600mm Wide x 1060mm

AR2401 NetShelter SV 42U 600mm Wide x 1060mm

AR2407 NetShelter SV 48U 600mm Wide x 1060mm

AR2480 NetShelter SV 42U 800mm Wide x 1060mm

AR2487 NetShelter SV 48U 800mm Wide x 1060mm

AR2500 NetShelter SV 42U 600mm Wide x 1200mm

Data Center, Server Room, Network Closet

AR2507 NetShelter SV 48U 600mm Wide x 1200mm

AR2580 NetShelter SV 42U 800mm Wide x 1200mm

AR2587 NetShelter SV 48U 800mm Wide x 1200mm

AR201 NetShelter 2 Post Rack 45U #12-24

AR203A NetShelter 4 Post Open Frame Rack 44U

AR204A NetShelter 4 Post Open Frame Rack 44U

VDIM33174 Overhead Zone Cabling 4U 19 in (482 mm)

AR4000MV NetShelter CX Mini soundproofed Server

AR4018A NetShelter CX 18U Secure Soundproof

AR4024A NetShelter CX 24U Secure Soundproof

AR4038A NetShelter CX 38U Secure Soundproof

Data Center, Server

Room, Network Closet

AR100 NetShelter WX 13U w/ Square or Threaded

AR100HD NetShelter WX 13U w/ Square or Threaded

Wallmounted

AR106 NetShelter WX 6U w/ Square Vertical

Remote Locations

AR109 NetShelter WX 9U w/ Square Vertical

AR112 NetShelter WX 12U w/ Square Vertical

X

options without sides add X609 without doors add X610, without sides/doors add X617

TAA

TAA compliant add TAA

W

White color add W

SP

Shock packaging for up to 2000lb of equipment add SP

Description Alternate

Deep Enclosure with Sides, Black, Single Rack Unassembled

option

Deep Enclosure with Sides Black

Deep Enclosure without Sides Black

Deep Enclosure with Sides Black

Threaded Holes Black

Square Holes

#12-24 Threaded Holes

W Patch Frame

Room in a Box Enclosure

Server Room in a Box Enclosure

Hole 12-24 Vertical Mounting Rail Glass Front Door Black

Hole 12-24 Vertical Mounting Rail Vented Front Door Black

Mounting Rail Vented Front Door Black

23

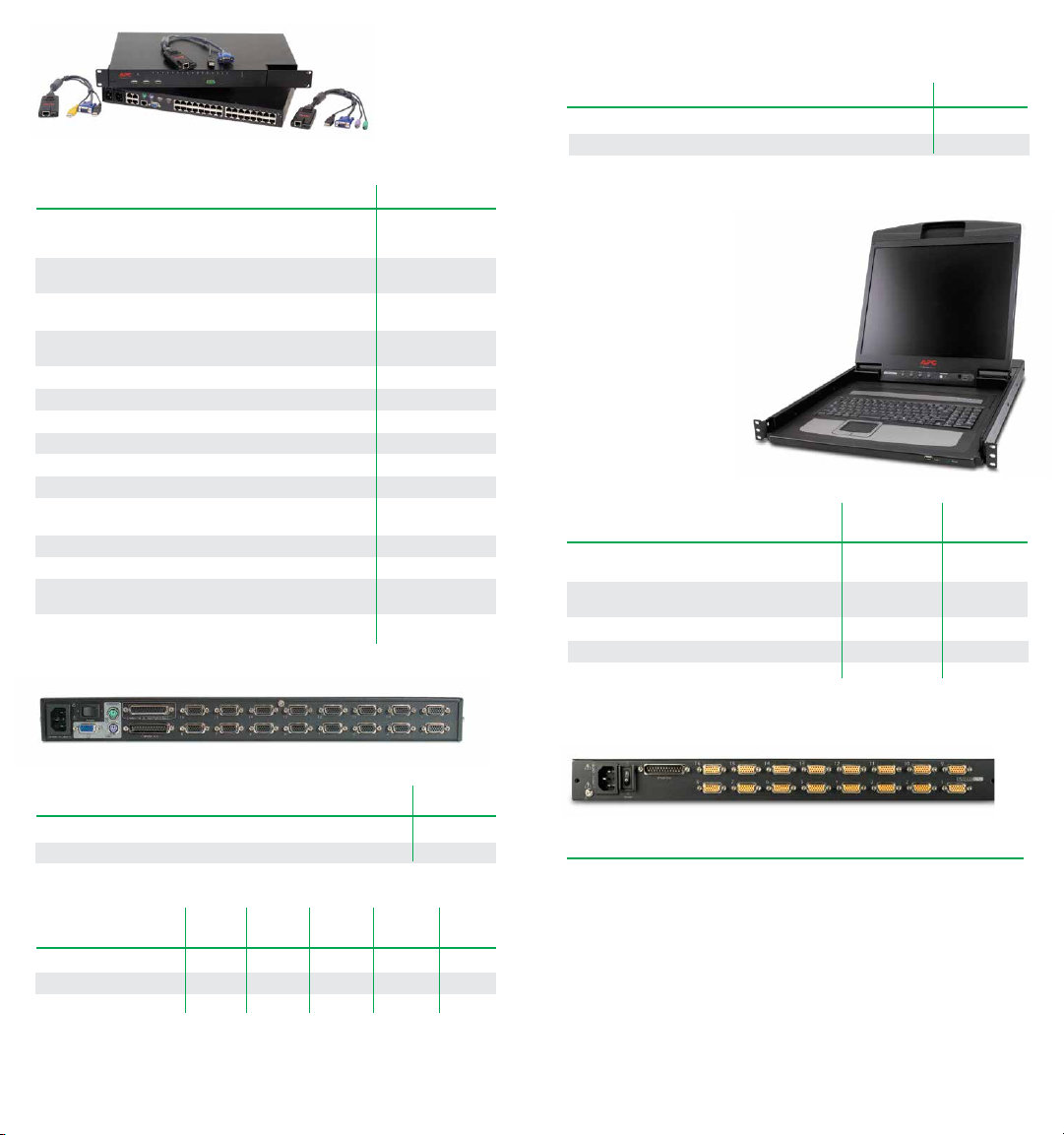

KVM Switches

KVM Switches with CAT-5 Type Connection APC SKU

32-port Digital Enterprise IP KVM KVM2132P with Virtual Media, two remote users

16-port Digital Enterprise IP KVM KVM2116P with Virtual Media, two remote users

16-port Digital IP KVM with Virtual Media KVM1116P one remote user

16-port Analog Enterprise KVM with Virtual Media, KVM0216A two local users

16-port Analog KVM, one local user KVM0116A

8-port Analog KVM, one local user KVM0108A

KVM USB Server Module KVM-USB

KVM PS/2 Server Module KVM-PS2

KVM USB Server Module with Virtual Media KVM-USBVM

KVM PS/2 Server Module with Virtual Media KVM-PS2VM

KVM USB Server Module with Virtual Media KVM-USBVMCAC and CAC Support

KVM Serial Server Module KVM-SERIAL

KVM to APC Rack PDU Power Management Cable AP5641

KVM 1U Bracket for rear mount KVM-LCDMOUNT behind Rack LCD Console

KVM Access Software License Upgrade SEKVM1024N to Enterprise (1,024 Nodes)

Rack LCD Consoles

Rack LCD Consoles APC SKU

17" Rack LCD console AP5717

19" Rack LCD console AP5719

> Ultra-thin 17" or 19" LCD monitor

> Integrated keyboard with number pad

> USB port for external media

> Space-saving 1U design

> Touchpad mouse

> Easy to install

> Localized keyboard versions available;

check www.apc.com for availability

Rack LCD Console Cable APC SKU with Integrated KVM Switch Length

17" Rack LCD console 1.8 m AP5808 with integrated 8-port KVM Switch

17" Rack LCD console 1.8 m AP5816 with integrated 16-port KVM Switch

KVM USB cable 1.8 m AP5821

KVM USB cable 3.0 m AP5822

KVM USB cable 5.2 m AP5823

* KVM PS/2 cables available, see cables for coaxial type connection on page 20.

Rear view of AP5202

KVM Switches with Coaxial Type Connection APC SKU

8-port analog KVM AP5201

16-port analog KVM AP5202

Cables for Coaxial 0.6 m 0.9 m 0.5 m 3.7 m 7.6 m Type Connection

KVM USB cable AP5253 AP5257 AP5261

KVM PS/2 cable AP5264 AP5250 AP5254 AP5258

KVM Daisy-chain cable AP5262 AP5263

24

Rear view of AP5816

The functionality of a Rack LCD console and an analog KVM switch in one convenient package optimizes U-space in the rack environment and eliminates cable clutter. Daisy-chain with AP5201 or AP5202 for additional ports.

25

Receptacle and Plug Types

Voltage Amps Typical # Wires Plug Name Mating Connector

Rating

100 – 120 V 15 A 1.4 kW 3 NEMA 5-15P NEMA 5-15R

20 A 1.9 kW 3 NEMA 5-20P NEMA 5-20R

20 A 1.9 kW 3 NEMA L5-20P NEMA L5-20R

30 A 2.9 kW 3 NEMA L5-30P NEMA L5-30R

200 – 240 V 15 A 2.5 kW 3 IEC-C14 IEC-C13

16 A 3.7 kW 3 IEC-309 16 A, 2P, 3W IEC-309 16 A, 2P, 3

20 A 3.3 kW 3 IEC-C20 IEC-C19

20 A 3.3 kW 3 NEMA L6-20P NEMA L6-20R

30 A 5.0 kW 3 NEMA L6-30P NEMA L6-30R

32 A 7.4 kW 3 IEC-309 32 A, 2P, 3W IEC-309 32 A, 2P, 3W

120 / 208 V 30 A 5.8 kW 3 NEMA L14-30P NEMA L14-30R

208 V 20 A 5.8 kW 5 NEMA L21-20P NEMA L21-20R Three-phase

30 A 8.7 kW 5 NEMA L21-30P NEMA L21-30R

50 A 12.5 – 14.4 kW 4 CS8365C CS8364C, CS8369

60 A 16.2 – 17.3 kW 4 IEC-309 60 A, 3P, 4W IEC-309 60 A, 3P, 4W

400 – 415 V 16/20 A 11 kW 5 IEC-309 16/20 A, 3P, 5W IEC-309 16/20 A, 3P, 5W

32 A 22 kW 5 IEC-309 32 A, 3P, 5W IEC-309 32 A, 3P, 5W

Three-phase

40 A 23 kW 5 IEC-309 60 A, 3P, 5W IEC-309 60 A, 3P, 5W

Extended Warranties*

APC offers extended warranties that provide a continuation of coverage beyond the original factory warranty period. This service extends the security and protection provided by your factory warranty and ensures that your product will be repaired or replaced if necessary, at no additional charge. Extended warranties are available for purchase in one-year increments.

This service is available for all Rack PDUs, Rack ATSs, Rack LCD consoles, and KVM switches, and includes:

> Technical support from product-specific support engineers to

assist with questions or concerns

> Cross shipment of parts or replacement product — no waiting

for your critical equipment

Add an extended warranty to your shopping cart on www.apc.com for new purchases or purchase an extended warranty for your existing product.

* Check with your local sales representative for extended warranty services available.

26

27

truxureWare, and NetShelter are trademarks owned by Schneider Electric Industries

SAS or its afﬁliated companies. All other trademarks are the property of their

respective owners. • www.schneider-electric.com • 998-1165125_GMA-US_A
