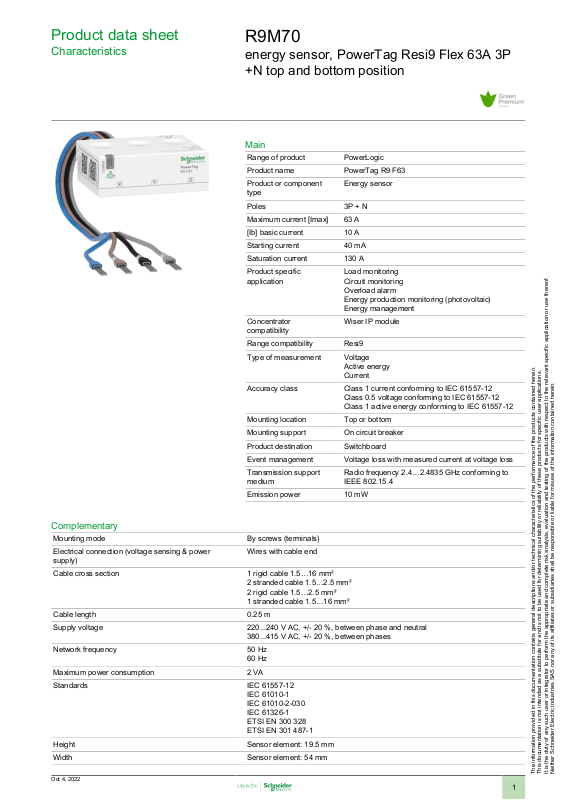

Product data sheet

Characteristics

R9M70

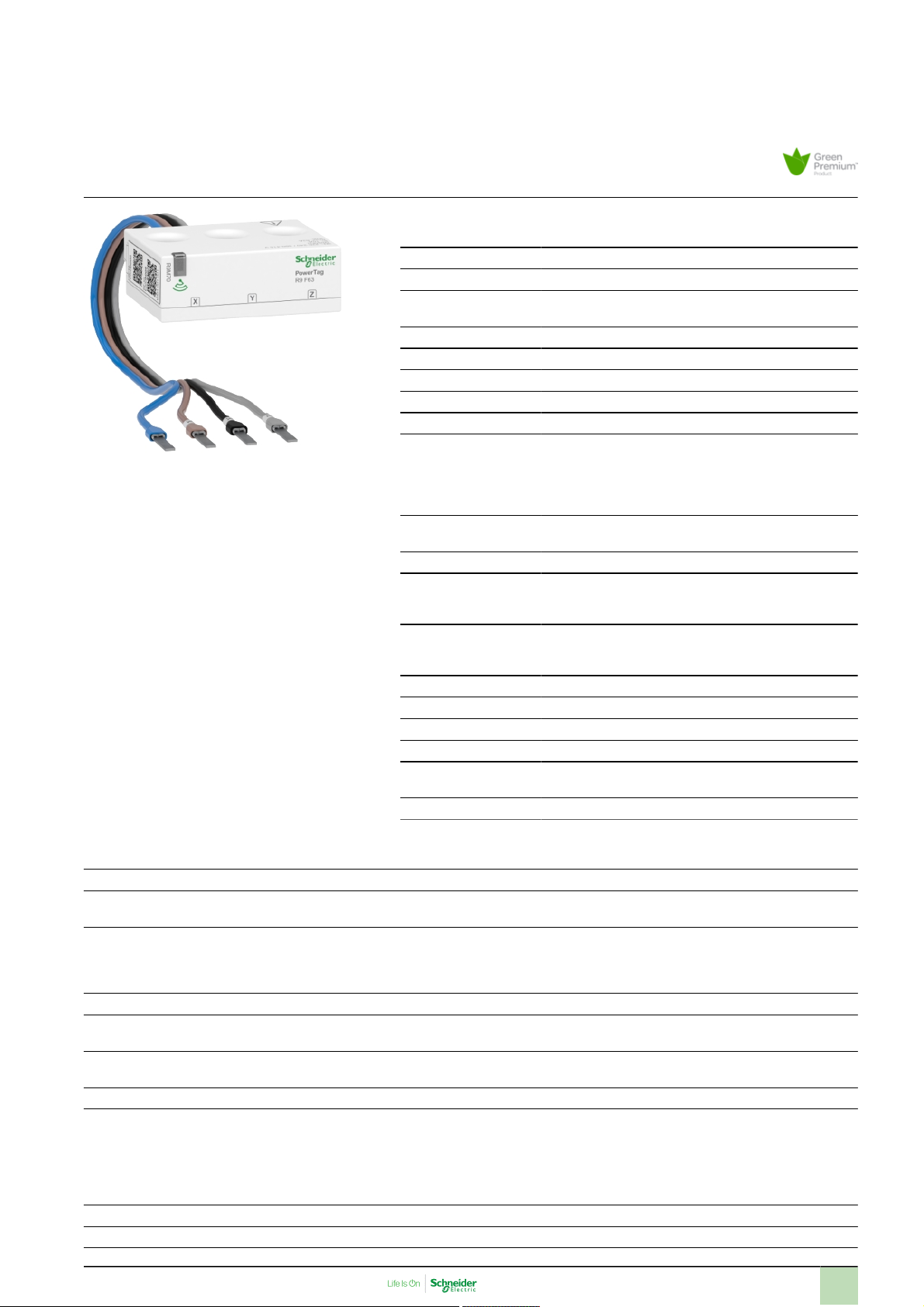

energy sensor, PowerTag Resi9 Flex 63A 3P +N top and bottom position

Main

Range of product PowerLogic

Product name PowerTag R9 F63

Product or component type

Poles 3P + N

Maximum current [Imax] 63 A

[Ib] basic current 10A

Starting current 40mA

Saturation current 130A

Product specific application

Concentrator compatibility

Range compatibility Resi9

Type of measurement Voltage

Accuracy class Class 1 current conforming to IEC 61557-12

Mounting location Top or bottom

Mounting support On circuit breaker

Product destination Switchboard

Event management Voltage loss with measured current at voltage loss

Transmission support medium

Emission power 10mW

Energy sensor

Load monitoring Circuit monitoring Overload alarm Energy production monitoring (photovoltaic) Energy management

Wiser IP module

Active energy Current

Class 0.5 voltage conforming to IEC 61557-12 Class 1 active energy conforming to IEC 61557-12

Radio frequency 2.4…2.4835GHz conforming to IEEE 802.15.4

Complementary

Mounting mode By screws (terminals)

Electrical connection (voltage sensing & power supply)

Cable cross section 1 rigid cable 1.5…16mm²

Cable length 0.25m

Supply voltage 220...240 V AC, +/- 20 %, between phase and neutral

Network frequency 50 Hz

Maximum power consumption 2VA

Standards IEC 61557-12

Height Sensor element: 19.5mm

Width Sensor element: 54mm

Oct 4, 2022

Wires with cable end

2 stranded cable 1.5…2.5mm² 2 rigid cable 1.5…2.5mm² 1 stranded cable 1.5…16mm²

380...415 V AC, +/- 20 %, between phases

60 Hz

IEC 61010-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328 ETSI EN 301 487-1

Page 2

Depth Sensor element: 43mm

Net weight 40g

Colour White (RAL 9003)

Environment

Quality labels CE

Directives 2014/53/EU - radio equipment directive

Operating altitude 0...2000 m

Ambient air temperature for operation -25…60°C

Ambient air temperature for storage -40…85°C

Overvoltage category III conforming to IEC 61010-1

Measurement category Category III conforming to IEC 61010-2-030

IP degree of protection IP20 conforming to IEC 60529

IK degree of protection IK05

Pollution degree 3

Relative humidity 0…95% at 45°C conforming to IEC 60721-3-3

Vibration resistance 3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility Residential electromagnetic environment conforming to IEC 61326-1

Environmental characteristics Dustproof class 3S3 conforming to IEC 60721-3-3

Radiated EMC conforming to ETSI EN 301 489-17 Electromagnetic emission conforming to IEC 62311

Salt mist class 3C2 conforming to IEC 60721-3-3 Indoor use

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 72.0g

Package 1 Height 6.5cm

Package 1 width 7.5cm

Package 1 Length 8.0cm

Unit Type of Package 2 S02

Number of Units in Package 2 30

Package 2 Weight 2.501kg

Package 2 Height 15.0cm

Package 2 width 30.0cm

Package 2 Length 40.0cm

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

EU RoHS Directive

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

Circularity Profile

WEEE The product must be disposed on European Union markets following specific

California proposition 65 WARNING: This product can expose you to chemicals including: Lead and

REACh Declaration

Compliant EU RoHS Declaration

Yes

China RoHS Declaration

Product Environmental Profile

End Of Life Information

waste collection and never end up in rubbish bins

lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
