[ PIR-EAS-PET ] Security Expert
1

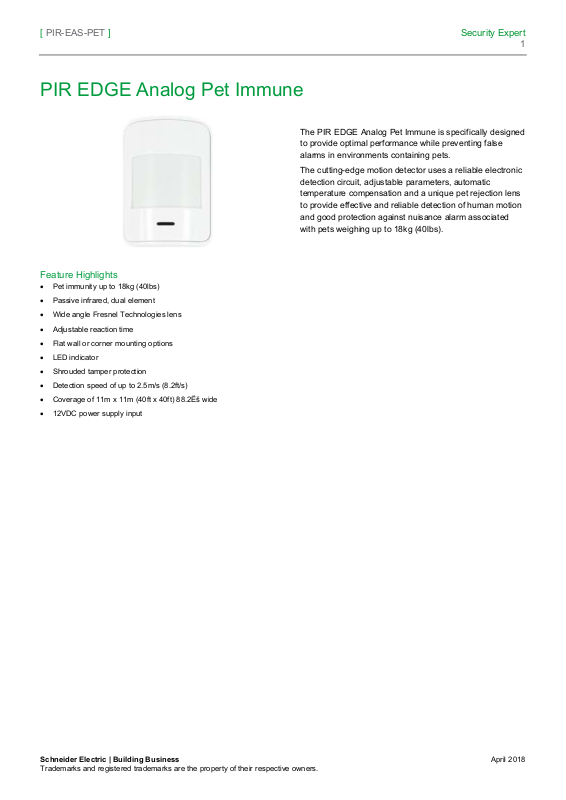

PIR EDGE Analog Pet Immune
The PIR EDGE Analog Pet Immune is specifically designed
to provide optimal performance while preventing false
alarms in environments containing pets.
The cutting-edge motion detector uses a reliable electronic
detection circuit, adjustable parameters, automatic
temperature compensation and a unique pet rejection lens
to provide effective and reliable detection of human motion
and good protection against nuisance alarm associated
with pets weighing up to 18kg (40lbs).
Feature Highlights
Pet immunity up to 18kg (40lbs)
Passive infrared, dual element
Wide angle Fresnel Technologies lens
Adjustable reaction time
Flat wall or corner mounting options
LED indicator
Shrouded tamper protection
Detection speed of up to 2.5m/s (8.2ft/s)
Coverage of 11m x 11m (40ft x 40ft) 88.2Ëš wide
12VDC power supply input
Schneider Electric | Building Business April 2018
Trademarks and registered trademarks are the property of their respective owners.
Page 2
Page 3
[ PIR-EAS-PET ] Security Expert
3
Regulatory Notices
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class A.
This equipment complies with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause
harmful interference; (2) This device must accept any interference
received, including interference that may cause undesired
operation.
Industry Canada
ICES-003
This is a Class A digital device that meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
CAN ICES-3 (A)/NMB-3(A)
RCM (Australian Communications and Media Authority
(ACMA))
This equipment carries the RCM label and complies with EMC and
radio communications regulations of the Australian
Communications and Media Authority (ACMA) governing the
Australian and New Zealand (AS/NZS) communities.
CE – Compliance with European Union (EU)
Conforms to European Union (EU) Low Voltage Directive (LVD)
2014/35/EU, Electro-Magnetic Compatibility (EMC) Directive
2014/30/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU.
This equipment complies with the rules of the Official Journal of
the European Union for governing the Self Declaration of the CE
Marking for the European Union as specified in the above
directive(s).
Schneider Electric | Building Business April 2018
Trademarks and registered trademarks are the property of their respective owners.
