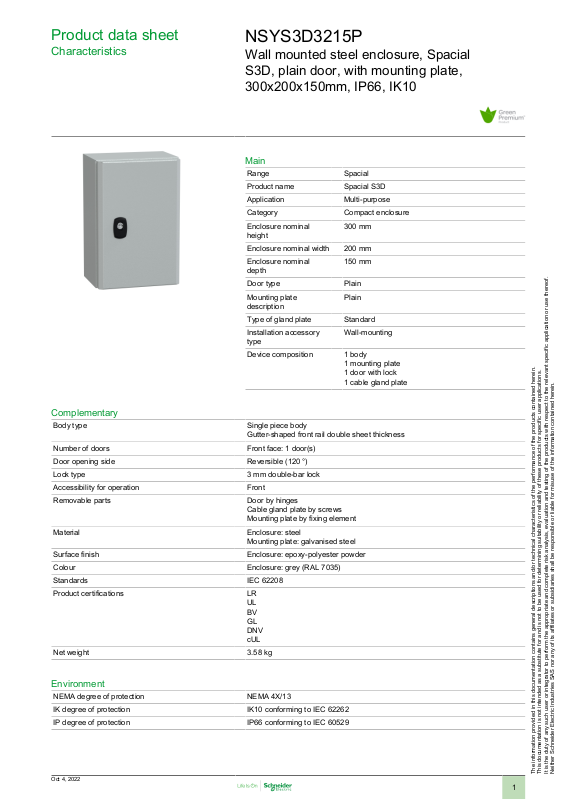

Product data sheet
Characteristics
NSYS3D3215P
Wall mounted steel enclosure, Spacial
S3D, plain door, with mounting plate,
300x200x150mm, IP66, IK10
Main
Range Spacial
Product name Spacial S3D
Application Multi-purpose
Category Compact enclosure
Enclosure nominal
height
Enclosure nominal width 200mm
Enclosure nominal
depth
Door type Plain
Mounting plate
description
Type of gland plate Standard
Installation accessory
type
Device composition 1 body
300mm
150mm
Plain
Wall-mounting
1 mounting plate
1 door with lock
1 cable gland plate
Complementary
Body type Single piece body
Number of doors Front face: 1 door(s)
Door opening side Reversible (120°)
Lock type 3 mm double-bar lock
Accessibility for operation Front
Removable parts Door by hinges
Material Enclosure: steel
Surface finish Enclosure: epoxy-polyester powder
Colour Enclosure: grey (RAL 7035)
Standards IEC 62208
Product certifications LR
Net weight 3.58kg
Gutter-shaped front rail double sheet thickness
Cable gland plate by screws
Mounting plate by fixing element
Mounting plate: galvanised steel
UL
BV
GL
DNV
cUL
Environment
NEMA degree of protection NEMA 4X/13
IK degree of protection IK10 conforming to IEC 62262
IP degree of protection IP66 conforming to IEC 60529
Oct 4, 2022
1
Page 2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 3.602kg
Package 1 Height 19.5cm
Package 1 width 21.0cm
Package 1 Length 31.5cm
Unit Type of Package 2 PAM
Number of Units in Package 2 105
Package 2 Weight 381.0kg
Package 2 Height 170.0cm
Package 2 width 100.0cm
Package 2 Length 120.0cm
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation
REACh free of SVHC Yes
EU RoHS Directive
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
REACh Declaration
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
Contractual warranty
Warranty 18 months
