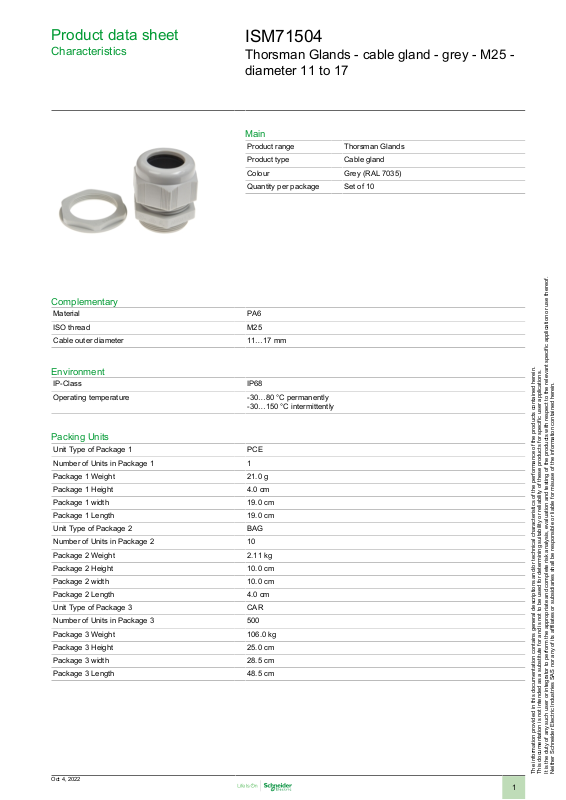

Product data sheet
Characteristics
ISM71504
Thorsman Glands - cable gland - grey - M25 diameter 11 to 17
Main
Product range Thorsman Glands
Product type Cable gland
Colour Grey (RAL 7035)
Quantity per package Set of 10
Complementary
Material PA6
ISO thread M25
Cable outer diameter 11…17mm
Environment
IP-Class IP68
Operating temperature -30…80°C permanently
-30…150°C intermittently
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 21.0g
Package 1 Height 4.0cm
Package 1 width 19.0cm
Package 1 Length 19.0cm
Unit Type of Package 2 BAG
Number of Units in Package 2 10
Package 2 Weight 2.11kg
Package 2 Height 10.0cm
Package 2 width 10.0cm
Package 2 Length 4.0cm
Unit Type of Package 3 CAR
Number of Units in Package 3 500
Package 3 Weight 106.0kg
Package 3 Height 25.0cm
Package 3 width 28.5cm
Package 3 Length 48.5cm
Oct 4, 2022
1
Page 2
Offer Sustainability
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
Contractual warranty
Warranty 18 months
