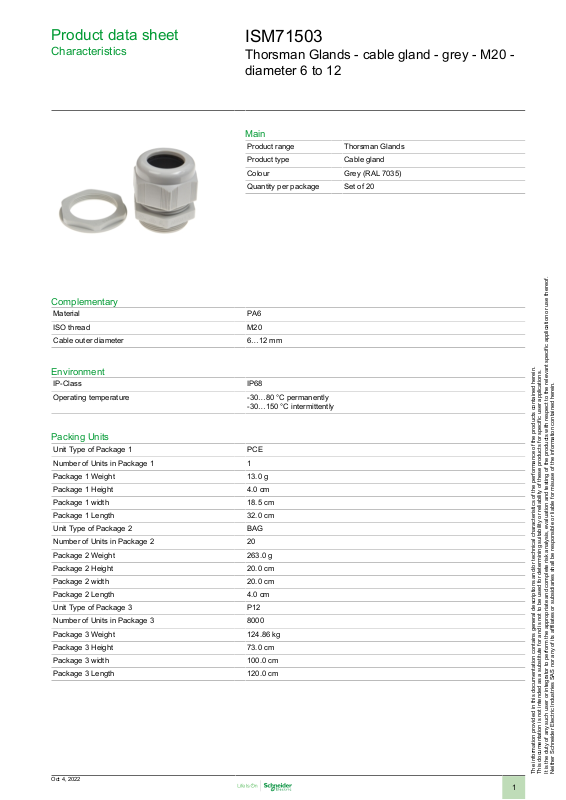

Product data sheet
Characteristics
ISM71503
Thorsman Glands - cable gland - grey - M20 diameter 6 to 12
Main
Product range Thorsman Glands
Product type Cable gland
Colour Grey (RAL 7035)
Quantity per package Set of 20
Complementary
Material PA6
ISO thread M20
Cable outer diameter 6…12mm
Environment
IP-Class IP68
Operating temperature -30…80°C permanently
-30…150°C intermittently
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 13.0g
Package 1 Height 4.0cm
Package 1 width 18.5cm
Package 1 Length 32.0cm
Unit Type of Package 2 BAG
Number of Units in Package 2 20
Package 2 Weight 263.0g
Package 2 Height 20.0cm
Package 2 width 20.0cm
Package 2 Length 4.0cm
Unit Type of Package 3 P12
Number of Units in Package 3 8000
Package 3 Weight 124.86kg
Package 3 Height 73.0cm
Package 3 width 100.0cm
Package 3 Length 120.0cm
Oct 4, 2022
1
Page 2
Offer Sustainability
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
Contractual warranty
Warranty 18 months
