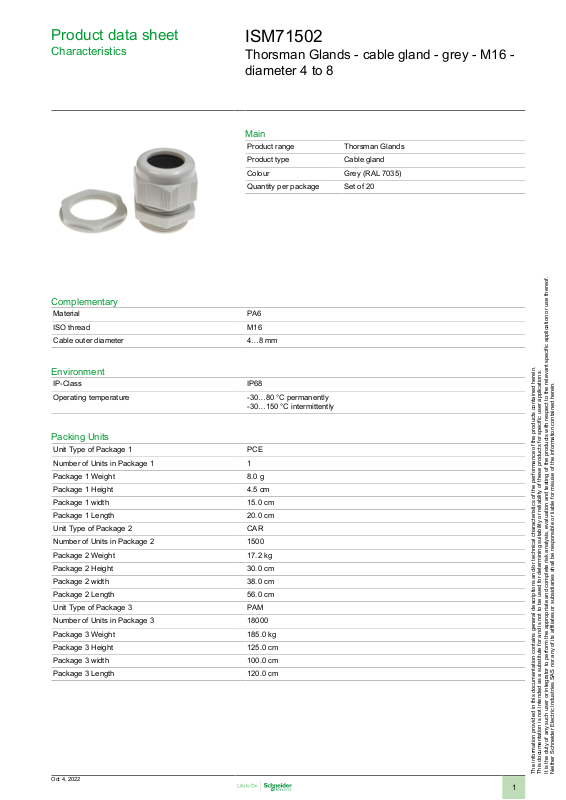

Product data sheet
Characteristics
ISM71502
Thorsman Glands - cable gland - grey - M16 diameter 4 to 8
Main
Product range Thorsman Glands
Product type Cable gland
Colour Grey (RAL 7035)
Quantity per package Set of 20
Complementary
Material PA6
ISO thread M16
Cable outer diameter 4…8mm
Environment
IP-Class IP68
Operating temperature -30…80°C permanently
-30…150°C intermittently
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 8.0g
Package 1 Height 4.5cm
Package 1 width 15.0cm
Package 1 Length 20.0cm
Unit Type of Package 2 CAR
Number of Units in Package 2 1500
Package 2 Weight 17.2kg
Package 2 Height 30.0cm
Package 2 width 38.0cm
Package 2 Length 56.0cm
Unit Type of Package 3 PAM
Number of Units in Package 3 18000
Package 3 Weight 185.0kg
Package 3 Height 125.0cm
Package 3 width 100.0cm
Package 3 Length 120.0cm
Oct 4, 2022
1
Page 2
Offer Sustainability
EU RoHS Directive
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS
Declaration
Yes
China RoHS Declaration
Product Environmental Profile
Contractual warranty
Warranty 18 months
