SCHNEIDER ELECTRIC IMT46101 Datasheet

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

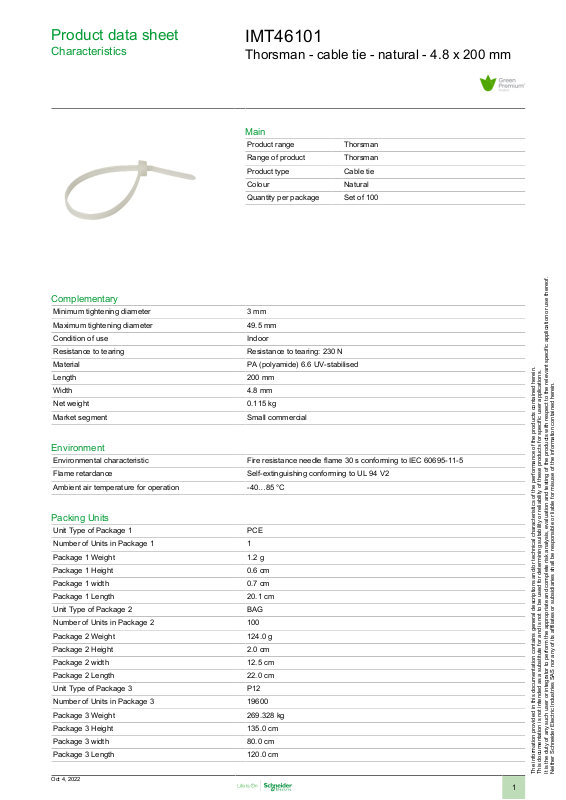

Product data sheet

Characteristics

IMT46101

Thorsman - cable tie - natural - 4.8 x 200 mm

Main

Product range Thorsman

Range of product Thorsman

Product type Cable tie

Colour Natural

Quantity per package Set of 100

Complementary

Minimum tightening diameter 3mm

Maximum tightening diameter 49.5mm

Condition of use Indoor

Resistance to tearing Resistance to tearing: 230N

Material PA (polyamide) 6.6 UV-stabilised

Length 200mm

Width 4.8mm

Net weight 0.115kg

Market segment Small commercial

Environment

Environmental characteristic Fire resistance needle flame 30 s conforming to IEC 60695-11-5

Flame retardance Self-extinguishing conforming to UL 94 V2

Ambient air temperature for operation -40…85°C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 1.2g

Package 1 Height 0.6cm

Package 1 width 0.7cm

Package 1 Length 20.1cm

Unit Type of Package 2 BAG

Number of Units in Package 2 100

Package 2 Weight 124.0g

Package 2 Height 2.0cm

Package 2 width 12.5cm

Package 2 Length 22.0cm

Unit Type of Package 3 P12

Number of Units in Package 3 19600

Package 3 Weight 269.328kg

Package 3 Height 135.0cm

Package 3 width 80.0cm

Package 3 Length 120.0cm

Oct 4, 2022

1

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

China RoHS Declaration

Product Environmental Profile

2
