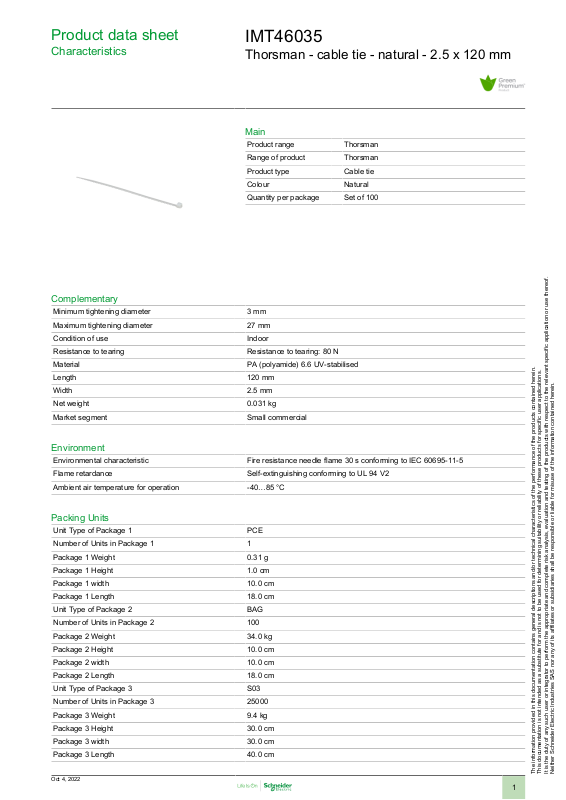

Product data sheet

Characteristics

IMT46035

Thorsman - cable tie - natural - 2.5 x 120 mm

Main

Product range Thorsman

Range of product Thorsman

Product type Cable tie

Colour Natural

Quantity per package Set of 100

Complementary

Minimum tightening diameter 3mm

Maximum tightening diameter 27mm

Condition of use Indoor

Resistance to tearing Resistance to tearing: 80N

Material PA (polyamide) 6.6 UV-stabilised

Length 120mm

Width 2.5mm

Net weight 0.031kg

Market segment Small commercial

Environment

Environmental characteristic Fire resistance needle flame 30 s conforming to IEC 60695-11-5

Flame retardance Self-extinguishing conforming to UL 94 V2

Ambient air temperature for operation -40…85°C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 0.31g

Package 1 Height 1.0cm

Package 1 width 10.0cm

Package 1 Length 18.0cm

Unit Type of Package 2 BAG

Number of Units in Package 2 100

Package 2 Weight 34.0kg

Package 2 Height 10.0cm

Package 2 width 10.0cm

Package 2 Length 18.0cm

Unit Type of Package 3 S03

Number of Units in Package 3 25000

Package 3 Weight 9.4kg

Package 3 Height 30.0cm

Package 3 width 30.0cm

Package 3 Length 40.0cm

Oct 4, 2022

1

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

REACh Declaration

Compliant EU RoHS Declaration

Yes

China RoHS Declaration

Product Environmental Profile
