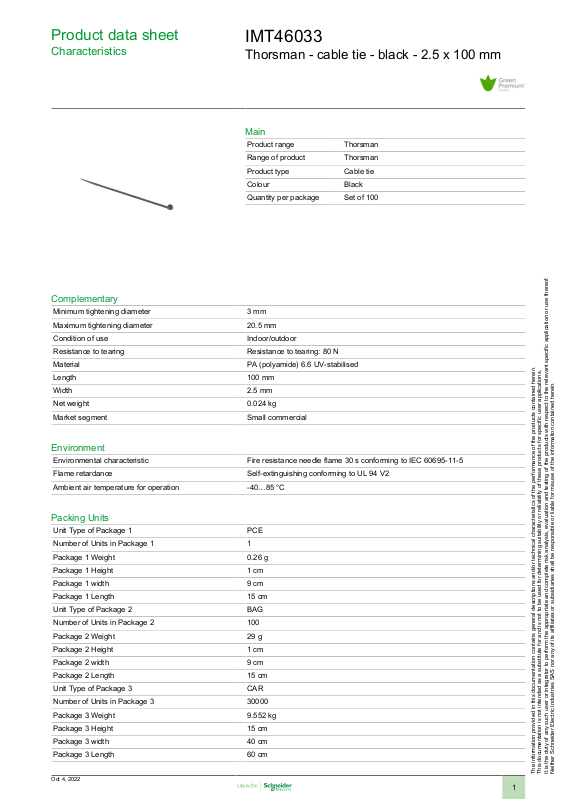

Product data sheet

Characteristics

IMT46033

Thorsman - cable tie - black - 2.5 x 100 mm

Main

Product range Thorsman

Range of product Thorsman

Product type Cable tie

Colour Black

Quantity per package Set of 100

Complementary

Minimum tightening diameter 3mm

Maximum tightening diameter 20.5mm

Condition of use Indoor/outdoor

Resistance to tearing Resistance to tearing: 80N

Material PA (polyamide) 6.6 UV-stabilised

Length 100mm

Width 2.5mm

Net weight 0.024kg

Market segment Small commercial

Environment

Environmental characteristic Fire resistance needle flame 30 s conforming to IEC 60695-11-5

Flame retardance Self-extinguishing conforming to UL 94 V2

Ambient air temperature for operation -40…85°C

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 0.26g

Package 1 Height 1cm

Package 1 width 9cm

Package 1 Length 15cm

Unit Type of Package 2 BAG

Number of Units in Package 2 100

Package 2 Weight 29g

Package 2 Height 1cm

Package 2 width 9cm

Package 2 Length 15cm

Unit Type of Package 3 CAR

Number of Units in Package 3 30000

Package 3 Weight 9.552kg

Package 3 Height 15cm

Package 3 width 40cm

Package 3 Length 60cm

Oct 4, 2022

1

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation

REACh free of SVHC Yes

EU RoHS Directive

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information

China RoHS Regulation

Environmental Disclosure

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS

Declaration

Yes

China RoHS Declaration

Product Environmental Profile
