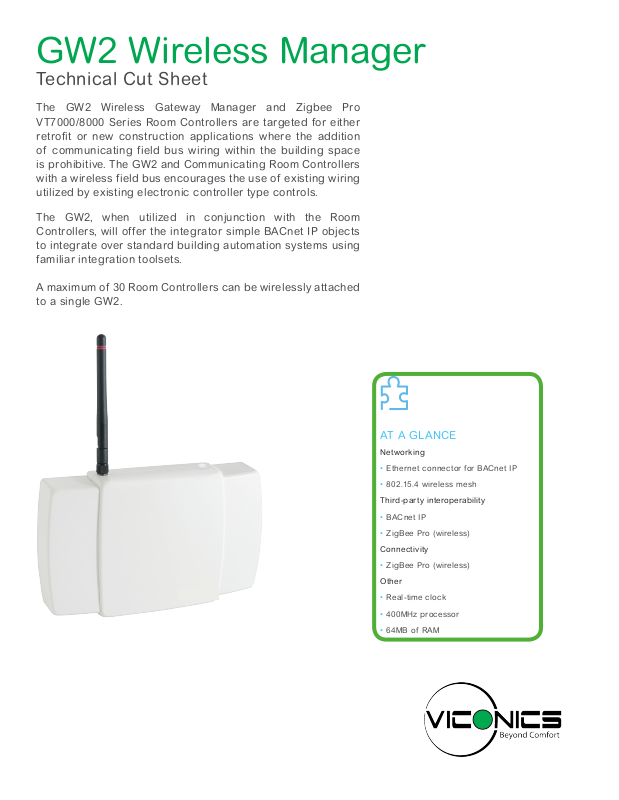

Page 1
GW2 Wireless Manager
Technical Cut Sheet
The GW2 Wireless Gateway Manager and Zigbee Pro
VT7000/8000 Series Room Controllers are targeted for either
retrofit or new construction applications where the addition
of communicating field bus wiring within the building space
is prohibitive. The GW2 and Communicating Room Controllers
with a wireless field bus encourages the use of existing wiring
utilized by existing electronic controller type controls.
The GW2, when utilized in conjunction with the Room
Controllers, will offer the integrator simple BACnet IP objects
to integrate over standard building automation systems using
familiar integration toolsets.
A maximum of 30 Room Controllers can be wirelessly attached
to a single GW2.
AT A GLANCE
Networking
•
Ethernet connector for BACnet IP
• 802.15.4 wireless mesh
Third-party interoperability
•
BACnet IP
• ZigBee Pro (wireless)
Connectivity
•
ZigBee Pro (wireless)
Other
•
Real-time clock
• 400MHz processor
• 64MB of RAM
Page 2
Wireless GW2 Manager Specifications
Specifications
2
Power
Voltage
24VAC; ± 15%; 50/60HZ
24VDC ± 10%
Typical consumption
5 VA + Output (VAC), 1.6 W + Output (VDC)
Battery
CR1220 3v Lithium Coin Cell Battery
General
Processor
ARM9 32-bit, 400MHz
Memory
64MB flash
Storage
4GB flash for local storage
Real-time clock
Battery backed (10,000 hours)
Communication
ZigBee Pro, Ethernet (10/100 Mbps)
Enclosure
Material
Rigid ABS
Dimensions
116mm (4.57 in) x 191mm (7.52 in)
Rating
UL94V0-5VB
Mounting
Din-rail, wall or ceiling mount
Environmental
OperatingTemperature
0°C (32°F) - 60°C (140°F)
Storage Temperature
-20°C (-4°F) - 60°C (140°F)
Relative Humidity
0 to 90% non-condensing
Receiver Sensitivity
–95dBm
Conducted Output Power
5dBm
Range
Recommended: 45ft/15m
Line of sight: 100ft/30m
Antenna
External whip, RP SMA 0dBi
ZigBee Pro
Frequency
2400 – 2483.5MHz, 16RF channels
Data rate/Mod.type
250Kbps
Receiver Sensitivity
-101dBm/-105dBm (amplified)
Nominal Output Power
8dBm/18dBm (amplified)
Range
Recommended to GW2: 150ft/50m
Line of sight to GW2: 300ft/100m
Recommended to peripherals: 50ft/17m
Line of sight to peripherals: 100ft/30m
Antenna
External whip, RP SMA 2.5dbi
Building Expert
Software type
Embedded web interface
Local installation
None necessary
Browser compatibility
Firefox ESR
Internet Explorer 10 (only)
Google Chrome
Safari (Mac only)
Agency approvals
Energy Management Equipment, UL 916,
Fourth Edition, December 23, 1998, rev.
December 17, 2007
CSA Standard for Signal Equipment
C22.2 No. 205-M1983 (R2004)
CFR47 FCC Part15, Subpart B:2009
ICES-003: Issue 4 (2004)
CE
Japanese Radio Law
RoHS
Disclaimer
If the equipment is used in a manner not
specified by the manufacturer, the
protection provided by the equipment
may be impaired.
Page 3

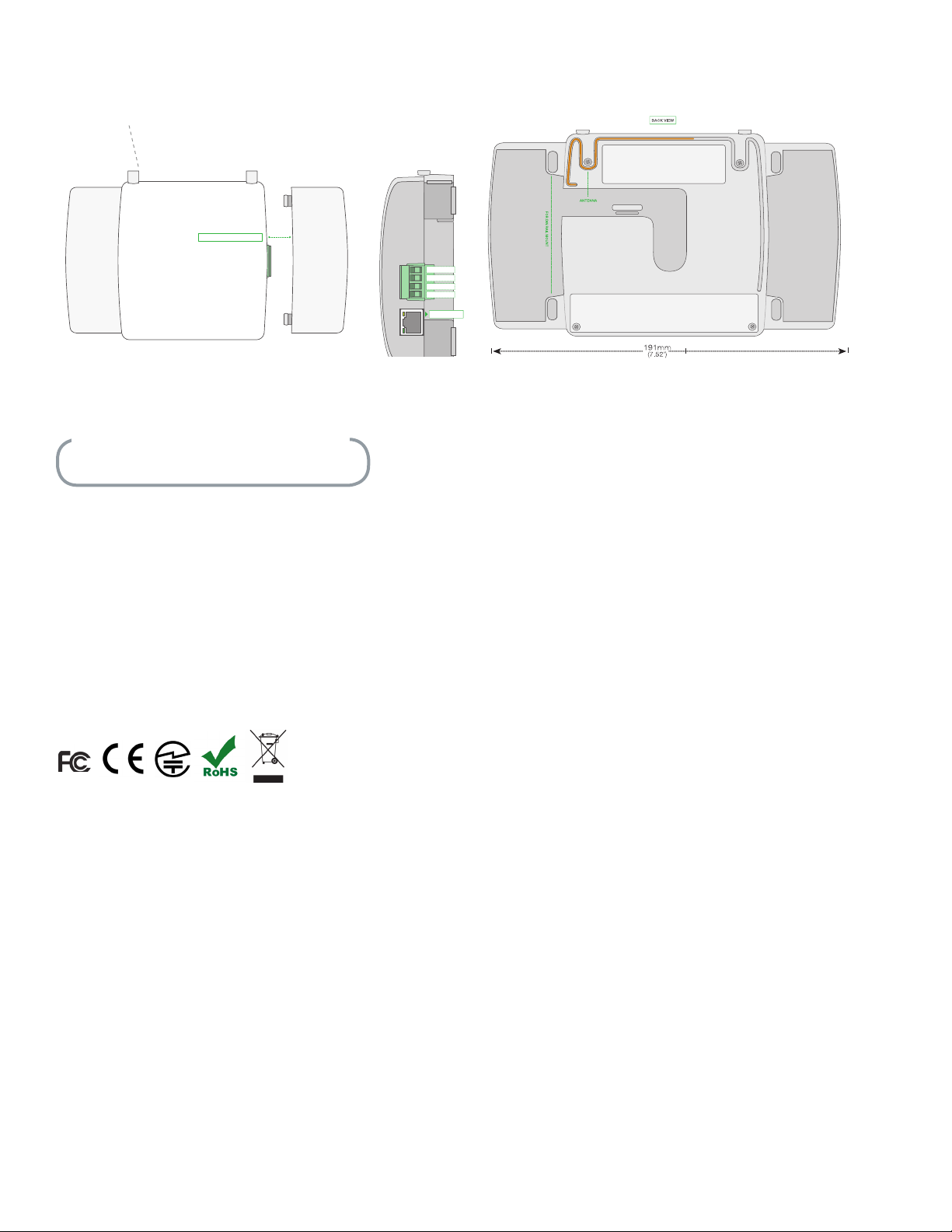

Dimensions and Ordering
3
(Pink striped antenna for 2.4GHz)
ZigBee Pro (optional)
DETACHABLE SIDE PANEL
Ordering information
Part number GW2: GW2-0I0-00
24 VAC AC/DC
CAN H
CAN L
GND
ETERNET 100 B/T
Disclaimer
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference and this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: this device may not cause interference and this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage et l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Changes or modifications not approved by the manufacturer could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Viconics Technologies Inc.
028-6103-00 October 2015
