BACnet bCX1 Controller/Router Series
03
Features
Advanced Flash Memory Management
The bCX1 Series uses non-volatile Flash memory
to store the operating system and application
programs. When a power loss in sensed, an
on-board battery maintains all logs, trends, and
other run-time data. When power is restored, both
application and run-time data are restored. Memory
backup or restore settings are configurable.
The Flash-based operating system simplifies
feature upgrades.
(continued)
Controller/Router Combo Models (BCX1-CR)
BTL Listed BACnet Building Controller (B-BC)
The bCX1-CR is listed with the BACnet Testing
Laboratories (BTL) as a BACnet Building Controller
or B-BC, with interoperability BACnet Data Sharing,
Alarm and Event Management, Scheduling,
Trending, and Device Management.

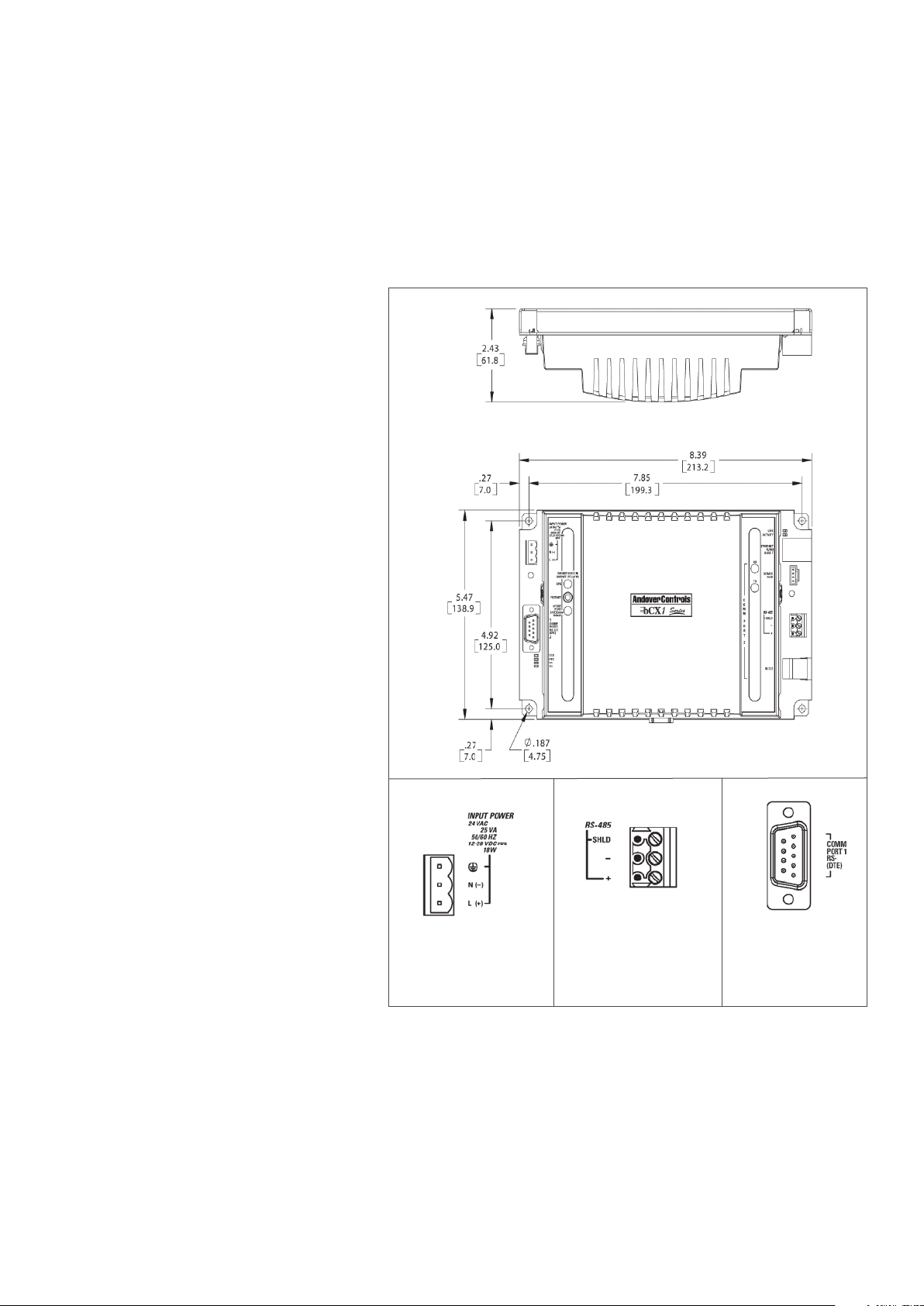

Dimensional Drawings
Programmable
The dynamic memory of the bCX1-CR can
be allocated for any combination of programs
and BACnet object (including Schedules,
Alarms, and Trends). Our powerful Plain English
programming language can directly reference
any BACnet object either locally or globally.
Our object-oriented Plain English, with intuitive
keywords, provides an easy method to tailor the
controller to meet your exact requirements. As
a programmable controller, the bCX1-CR can
locally support a wide range of BACnet objects,
including BACnet loops, trends, and schedules.
Plain English programs may be created to
program coordinated control strategies, giving
you the freedom to move data between third party
devices that do not have peer to peer functionality
provided in all Andover Continuum controllers.
Embedded Web Server
With the power of Plain English, standard HTML
web pages can be created and embedded into the
bCX1-CR to provide a simple-to-use, browser-based
interface for monitoring or changing data points.
The embedded web pages are fully customizable
to meet any special customer requirements.
Power Drawing RS 485
Communi cations
Drawing
RS 232
Communi cations
Drawing
Schneider Electric
SDS-BACNET-BCX1-A4.BU.N.EN.7.2008.0.00.CC
Page 4
Page 5
BACnet bCX1 Controller/Router Series
Specifications
bCX1 Controller/Router Series
05
Electrical
Power
24VAC, +10% -15%, 50/60 Hz
12-28 VDC auto-sensing
Power Consumption
40 VA, 25W
Overload Protection
Fused with 3 amp fuse. MOV protected
Real-Time Clock
Battery-backed real-time clock
Mechanical
Operating Environment
32°–120°F (0–49°C),
10–95% RH (non-condensing)
Size
Module: 5.47˝ H x 8.39˝ W x 2.43˝ D
(139H x 213 W x 62 D) mm
Weight
Module: 1.12 lb (0.508 kg)
Enclosure Type
UL Open class, IP 20.
Flammability rating of UL94-5VB
Mounting
Panel mount
Battery
Battery Backup
Replaceable, rechargeable battery.
Provides 30 days typical accumulated
power failure backup of RAM memory.
All data stored in Flash on power loss.
Communications
Communications Interface,
BACnet/IP:
10/100 BaseT*
Communications Interface,
BACnet MS/TP:
RS-485, 127 devices max
Communications Interface,
Wireless BACnet:
RS-485, 32 devices
Communications Speed,
BACnet MS/TP
9600, 19.2K, 38.4k, 76.8k baud
RS-485 Bus Length
4,000 ft. (1,220m) standard;
BACnet repeater allows extension
to longer distances.
RS-485 Bus Media
Twisted, shieldedpair,
low capacitance cable
*Note: Auto-sensing cable polarity
BACnet Device Profile
B-BC, BACnet Building Controller
BTL Listed
B-BC
WSPCert Listed
B-BC
Connections
Power
3-position removable screw
terminal connector
Communications
Ethernet RJ-45
Comm1: 9-pin D-Sub - female-DTE
Comm2: RS-485 BACnet MS/TP:
Removable 3-position
screw terminal connector
RS-485 Wireless BACnet:
4-position shrouded
connector (Service Port)
(if RS-485 port is not used):
RJ-45 8-pin (only 3 of the 8 pins
are supported - RXD, TXD, GND)
Expansion Port
6-position shrouded connector
User LEDs/Switches
Status Indicator LEDs
CPU CPU Active
Green = BACnet
COMM1:
TD-232 Transmit Data-RS-232
RD-232 Receive Data-RS-232
DCD-232 Data Carrier Detect
RTS-232 Request to Send
ETHERNET Link/Act
10/100 Mbps
COMM2:
TD-485 Transmit Data-RS-485
RD-485 Receive Data-RS-485
EXPANSION
PORT PWR Power Status
Switches
CPU RESET
IP ADDRESS RESET
Schneider Electric
SDS-BACNET-BCX1-A4.BU.N.EN.7.2008.0.00.CC
Page 6
BACnet bCX1 Controller/Router Series
06
Specifications
bCX1 Controller/Router Series
General
Memory
32MB SDRAM, 16MB FLASH
Processor
Motorola 32-bit Coldfire, 66 MHz
Network Setup
Via embedded web interface
Note: bCX1 REQUIRES CyberStation
software v1.7 version (or later):
v1.82 (or later) is required for
XDriver support.
Agency Listings
UL/CUL 916, UL 864 9th Edition, FCC CFR
47 Part 15, ICES-003, EN55022, AS/NZS
3548, Class A, VCCI, EN61000-6-1, CE
(continued)
Models
BACnet Router
BCX1-R-64
BACnet Router, 64 Node MS/TP Support
BACnet Controller/Routers
BCX1-CR-0
Controller/Router, 0 Node Support
BCX1-CR-8
Controller/Router, 8 Node Support
BCX1-CR-32
Controller/Router, 32 Node Support
BCX1-CR-64
Controller/Router, 64 Node Support
BCX1-CR-127
Controller/Router, 127 Node Support
Options
-SA SNMP Alarming Option
-X1 XDriver Option (Ethernet & Comm1)
-X2 XDriver Option (Ethernet & Comm2
-X12 XDriver Option (Ethernet, Comm1 &
Comm2)
-S Smoke Control Option
All brand names, trademarks and registered trademarks are the propert y of their respective owners. Information contained within this document is subject to change
without notice.
On October 1st, 2009, TAC became the Buildings Business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric,
however there remains references to TAC as a corporate brand in the body copy. As each docume nt is updated, the body copy will be changed to reflect appropriate
corporate brand changes.
Schneider Electric
SDS-BACNET-BCX1-A4.BU.N.EN.7.2008.0.00.CC
July 2008 pdw
© 2008-2009 Schneider Electric. All rights reserved.
