Operating instructions
Hinge safety switch
Operating instructions. . . . . . . . . . . . .pages 1 to 6
EN
Original
TV.S 335
TV.S 355
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear. The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device.
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.
1.3 Explanation of the symbols used
Content
1 About this document
1.1 Function ..............................................1
1.2 Target group: authorised qualied personnel..................1
1.3 Explanation of the symbols used ...........................1
1.4 Appropriate use ........................................1
1.5 General safety instructions ...............................1
1.6 Warning about misuse ...................................1
1.7 Exclusion of liability .....................................2
2 Product description
2.1 Ordering code .........................................2
2.2 Special versions........................................2
2.3 Destination and use .....................................2
2.4 Technical data .........................................2
2.5 Safety classication .....................................2
3 Mounting
3.1 General mounting instructions .............................3
3.2 Dimensions ...........................................3
Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant.
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, the country-specific installation standards as well
as all prevailing safety regulations and accident prevention rules.
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications.
x.000 / 03.2017 / v.A. - 101112849-EN / P / 2017-03-28 / AE-Nr. 7307
4 Electrical connection
4.1 General information for electrical connection..................3
4.2 Contact variants........................................4
4.3 Switch travel diagrams ..................................4
5 Set-up and maintenance
5.1 Functional testing.......................................4
5.2 Maintenance ..........................................4
6 Disassembly and disposal
6.1 Disassembly...........................................4
6.2 Disposal ..............................................4
7 EU Declaration of conformity
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed.
1.6 Warning about misuse
In case of improper use or manipulation of the safety
switchgear, personal hazards or damages to machinery
or plant components cannot be excluded when safety
switchgear is used. The relevant requirements of the
standard ISO 14119 must be observed.
EN
1
Operating instructions
MT
Bdxxhs/h3600
0,1 x n
op
t
cycle
Hinge safety switch
TV.S 335
TV.S 355
1.7 Exclusion of liability
We shall accept no liability for damages and malfunctions resulting from
defective mounting or failure to comply with this operating instructions
manual. The manufacturer shall accept no liability for damages
resulting from the use of unauthorised spare parts or accessories.
For safety reasons, invasive work on the device as well as arbitrary
repairs, conversions and modifications to the device are strictly
forbidden; the manufacturer shall accept no liability for damages
resulting from such invasive work, arbitrary repairs, conversions and/or
modifications to the device.
2. Product description
2.1 Ordering code
This operating instructions manual applies to the following types:
TV➀S 3➁5-➂Z-
➃
No. Option Description
8 Shaft bore ø 8 mm
➀
10 Shaft bore ø 10 mm
3 slim design
➁
5 large design
02 2 NC contacts
➂
03 3 NC contacts
11 1 NO contacts / 1 NC contacts
12 1 NO contacts / 2 NC contacts
➃
cable entry M20
NPT Cable entry NPT 1/2"
ST M12 connector (A coding)
2310 M12 connector (B coding)
Only if the information described in this operating instructions
manual are realised correctly, the safety function and
therefore the compliance with the Machinery Directive is
maintained.
2.2 Special versions
For special versions, which are not listed in the order code below 2.1,
these specifications apply accordingly, provided that they correspond to
the standard version.
2.3 Destination and use
The hinge safety switches (Type 1 according to ISO 14119) are suitable
for hinged guards, which need to be closed in order to provide for the
necessary operational safety.
The user must evaluate and design the safety chain in
accordance with the relevant standards and the required
safety level.
2.4 Technical data
Standards: IEC 60947-5-1; BG-GS-ET-15
Design: EN 50041
Enclosure: light-alloy diecast, paint finish
Protection class: IP67
Contact material: Silver
Contact type: change-over contact with double break, type Zb or
1 NC or 2 NC contacts,
with galvanically separated contact bridges
Switching system: A IEC 60947-5-1; slow action,
NC contact with positive break
Connection: screw terminals
Cable section (rigid / flexible): min. 0.75 mm²,
max. 2.5 mm²
(including conductor ferrules)
Cable entry: TV.S 335: 1 x M20
TV.S 355: 3 x M20
Rated impulse withstand voltage U
: 6 kV;
imp
- Versions TV.S 355-03 and ...-12: 4 kV
- Connector: 0.8 kV
Rated insulation voltage Ui: 500 V;
- Versions TV.S 355-03 and ...-12: 250 V
- Connector: 50 V
Thermal test current I
: 10 A
the
Utilisation category: AC-15, DC-13
Rated operating current/voltage Ie/Ue: 4 A / 230 VAC,
4 A / 24 VDC
- connector: 50 V
Required short-circuit current: 1000 A
Max. fuse rating: 6 A gG D-fuse
Ambient temperature: −25 °C … +70 °C
Mechanical life: 1 million operations
Max. switching frequency: 1000/h
Shaft bore: ø 8 mm / 10 mm
Positive break angle: 7°
Positive break torque: 0.6 Nm
2.5 Safety classification
Standards: ISO 13849-1
Envisaged structure:
- Basically: applicable up to Cat. 1 / PL c
- With 2-channel usage and
fault exclusion mechanism*: applicable up to Cat. 3 / PL d
with suitable logic unit
B
NC contact: 20,000,000
10D
B
NO contact at 10% ohmic contact load: 1,000,000
10d
Service life: 20 years
* If a fault exclusion to the 1-channel mechanics is authorised.
TF
D
10Dopop
n
op
The entire concept of the control system, in which the safety
component is integrated, must be validated to the relevant
standards.
2
(Determined values can vary depending on the application-specific
parameters hop, dop and t
as well as the load.)
cycle
If multiple safety components are wired in series, the Performance
Level to ISO 13849-1 will be reduced due to the restricted error
detection under certain circumstances.
EN
Operating instructions
60
65,3
66,5
40,5
65,3
Hinge safety switch
3. Mounting
3.1 General mounting instructions
The mounting dimensions are mentioned at the rear of the enclosure.
Fit the hinge safety switch so that the shaft of the hinge safety switch
is aligned with the pin of the door hinge. Use the supplied tamperproof
safety screws to fix the hinge safety switch. To set the switching point,
first adjust the plug/shaft connection by means of a threaded pin. Then
establish the positive link between the shaft and the door hinge. To that
effect, use the offset arranged mounting holes and the supplied spiral
clamping pin. The switch enclosure must not be used as end stop. Any
mounting position. The head can be turned by 4 x 90°. Loosen the four
screws of the head by means of a Torx screwdriver (T 20), turn the
head in the desired position and retighten the screws.

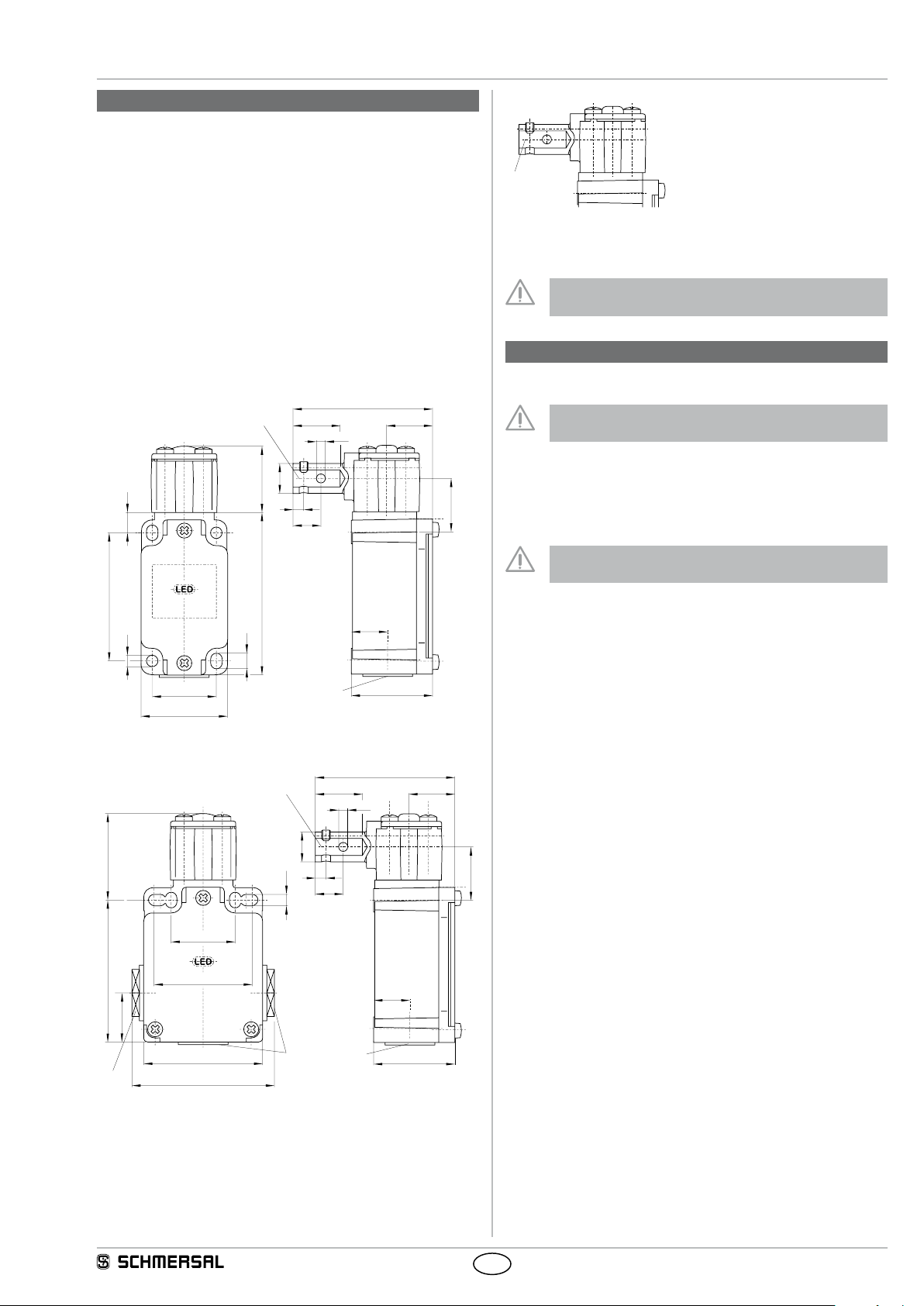

3.2 Dimensions
All measurements in mm.
TV.S 335
TV.S 355
(A)
A = TV8S 335/355: ø 8 mm
TV10S 335/355: ø 10 mm
Please observe the remarks of the standards
ISO 12100, ISO 14119 and ISO 14120.
4. Electrical connection
TV.S 335
9,5
5,3
TV.S 355
40.5
4.1 General information for electrical connection
(A)
22
21,5
4,2
31
¤ 14
5
25
13
The contact labelling can be found in the wiring compartment of the
switch. For the cable entry, suitable cable glands with an appropriate
degree of protection must be used. Non-used input openings must be
sealed by means of threaded plugs. After wiring, dust and soiling must
be removed from the wiring compartment.
The electrical connection may only be carried out by
authorised personnel in a de-energised condition.
According to IEC 60204-1, the versions with connector
must only be used in PELV circuits.
76
17
7,3
30
(A)
M20
22
38
21,5
4,2
¤ 14
5,3
5
13
25
30
40-46
17
23
55,7
SW 22
66,7
M20
M20
38
EN
3
Operating instructions
13
21
14
22
11
21
12
22
13
31
14
22
32
11
31
12
22
32
1234
13
14
1234
11
12
L-
L+
13 14
3°
0
354°
354°
3°
13-14
21-22
3°
0
354°
354°
3°
11-12
21-22
Hinge safety switch
TV.S 335
TV.S 355
4.2 Contact variants
Contacts are shown with safety guard closed.
The switch is in resting position.
TV.S 335-11Z
TV.S 355-11Z
1 NO contacts / 1 NC contacts
TV.S 335-12Z
TV.S 355-12Z
1 NO contacts / 2 NC contacts
21
with connector
TV.S 335-11Z-ST
TV.S 355-11Z-ST
1 NO contacts / 1 NC contacts
21
22
TV.S 335-02Z
TV.S 355-02Z
2 NC
TV.S 335-03Z
TV.S 355-03Z
3 NC
21
TV.S 335-02Z-ST
TV.S 355-02Z-ST
2 NC
21
5. Set-up and maintenance
5.1 Functional testing
The safety function of the safety components must be tested.
The following conditions must be previously checked and met:
1. Check the positive link between the shaft and the door hinge
2. Check for correct installation of the hinge safety switch
3. Check the switch enclosure for damage
4. Check the integrity of the cable entry and connections
5.2 Maintenance
In case of correct installation in accordance with the instructions
described above, the component requires little maintenance.
A regular visual inspection and functional test, including the following
steps, is recommended:
1. Check the positive link between the shaft and the door hinge
2. Check for correct installation of the hinge safety switch
3. Remove particles of dust and soiling
4. Check cable entry and connections
Damaged or defective components must be replaced.
6. Disassembly and disposal
22
6.1 Disassembly
The safety switchgear must be disassembled in a de-energised
condition only.
LED version
13
24 VDC
14
3
YE GN
GN YE
1
2
32
1
4.3 Switch travel diagrams
1 NO contacts / 1 NC contacts 2 NC
7
°
1 NO contacts / 2 NC contacts 3 NC
7
°
6.2 Disposal
The safety switchgear must be disposed of in an appropriate manner
in accordance with the national prescriptions and legislations.
7
°
7
°
4
EN
Operating instructions
Hinge safety switch
7. EU Declaration of conformity
EU Declaration of conformity
TV.S 335
TV.S 355
Original K.A. Schmersal GmbH & Co. KG
We hereby certify that the hereafter described components both in their basic design and construction conform
to the applicable European Directives.
Name of the component: TV.S 335,
Type: See ordering code
Description of the component: Hinge safety switch
Relevant Directives: Machinery Directive
Applied standards: DIN EN 60947-5-1:2010
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
TV.S 355
RoHS-Directive
2006/42/EC
2011/65/EU
Person authorised for the compilation
of the technical documentation:
Place and date of issue: Wuppertal, February 28, 2017
TVS335_355-D-EN
Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Authorised signature
Philip Schmersal
Managing Director
The currently valid declaration of conformity can be
downloaded from the internet at www.schmersal.net.
EN
5
K. A. Schmersal GmbH & Co. KG
Möddinghofe 30, D - 42279 Wuppertal
Postfach 24 02 63, D - 42232 Wuppertal
Phone: +49 - (0)2 02 - 64 74 - 0
Telefax: +49 - (0)2 02 - 64 74 - 1 00
E-Mail: info@schmersal.com
Internet: http://www.schmersal.com
Loading...
