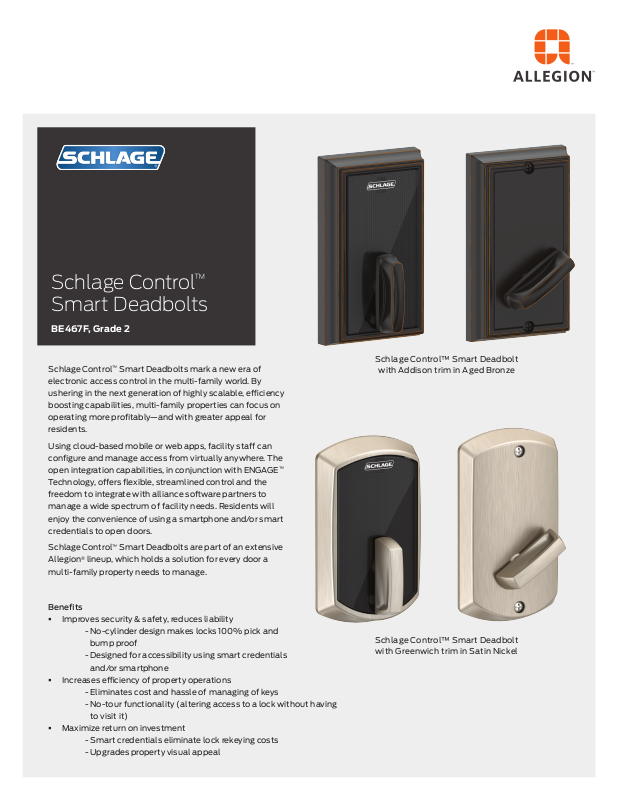

Schlage BE467F Datasheet
Schlage Control
™
Smart Deadbolts
BE467F, Grade 2
Schlage Control™ Smart Deadbolts mark a new era of
electronic access control in the multi-family world. By
ushering in the next generation of highly scalable, eciency
boosting capabilities, multi-family properties can focus on
operating more profitably—and with greater appeal for
residents.
Using cloud-based mobile or web apps, facility staff can
configure and manage access from virtually anywhere. The
open integration capabilities, in conjunction with ENGAGE™
Technology, offers flexible, streamlined control and the
freedom to integrate with alliance soware partners to
manage a wide spectrum of facility needs. Residents will
enjoy the convenience of using a smartphone and/or smart
credentials to open doors.
Schlage Control™ Smart Deadbolts are part of an extensive
Allegion® lineup, which holds a solution for every door a
multi-family property needs to manage.
Benefits
§ Improves security & safety, reduces liability
- No-cylinder design makes locks 100% pick and
bump proof
§ - Designed for accessibility using smart credentials
and/or smartphone
§ Increases eciency of property operations
- Eliminates cost and hassle of managing of keys
- No-tour functionality (altering access to a lock without having
to visit it)
§ Maximize return on investment
- Smart credentials eliminate lock rekeying costs
- Upgrades property visual appeal
Schlage Control™ Smart Deadbolt
with Addison trim in Aged Bronze
Schlage Control™ Smart Deadbolt
with Greenwich trim in Satin Nickel
Features
§ Keyless, no cylinder design — 100% bump and pick-proof
§ Modern credentials — smart credential and/or smartphone as key
§ Lock programming via mobile application on phone and/or tablet
(Bluetooth® connection)
§ Supports both on-line (Gateway Required) and off-line applications
§ Up to 500 users per lock
§ Audit trail reports up to 1,000 events
§ Fits standard door prep
§ 2-year battery life (Off-Line Mode)
§ Full suiting with Schlage decorative mechanical locks
§ ADA compliant design
Markets
§ Multi-family communities
§ Senior living communities
§ Student housing
§ Military housing
Specifications
§ Latch: 1” x 2-1/4” square and round corner faceplate (round corner
standard, square corner included in package) 1” edge bore required
§ Strikes: 1-1/8” x 2-3/4”, round corner, no box, latch strike
§ Backset: Adjustable backset, fits 2-3/8” to 2-3/4” backsets
§ Door Range: 1-3/8” to 1-3/4” (thick door kit available - up 2-1/4”)
§ Hole Distance: Minimum 4” center-to-center distance between cross
bore holes
§ Battery: 4-AA batteries included, (If loss of battery power occurs, a 9V
battery can be used to jump start the lock and provide access with an
assigned credential.)
§ Construction: All-metal chassis and escutcheons
§ Bore: 2-1/8”
§ Credential: Supports smart and multi-technology aptiQ MIFARE classic
or aptiQ DESFire EV1
§ Stile width: Minimum 4-1/2” stile for 2-3/8” backset, minimum 5” stile
for 2-3/4”
§ Certifications: 90 minute UL Listed A 156.12 Grade 2 ANSI/BHMA
certified
§ Operating Temperature Exterior Side: -35C to 66C
§ Operating Temperature Interior Side: -10C to 50C
Style Options
BE467F
Schlage Control™
Smart Deadbolt with
Addison trim
in Aged Bronze
BE467F
Schlage Control™
Smart Deadbolt with
Greenwich trim
in Satin Nickel
Finish Options
619
Satin
Nickel
622
Matte
Black
625
Bright
Chrome
626
Satin
Chrome
Matching Lever Designs (Ordered separately)
716
Aged
Bronze
BE467F
Schlage Control™
Smart Deadbolt Lock
with Addison trim
in Aged Bronze
with Accent lever
About Allegion
TM
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®,
Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door
and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and
other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries.
For more, visit www.allegion.com.
BE467F
Schlage Control™
Smart Deadbolt Lock
with Greenwich trim
in Satin Nickel
with Broadway Lever
© 2016 Allegion
MF-6048 Rev. 12-16
allegion.com
