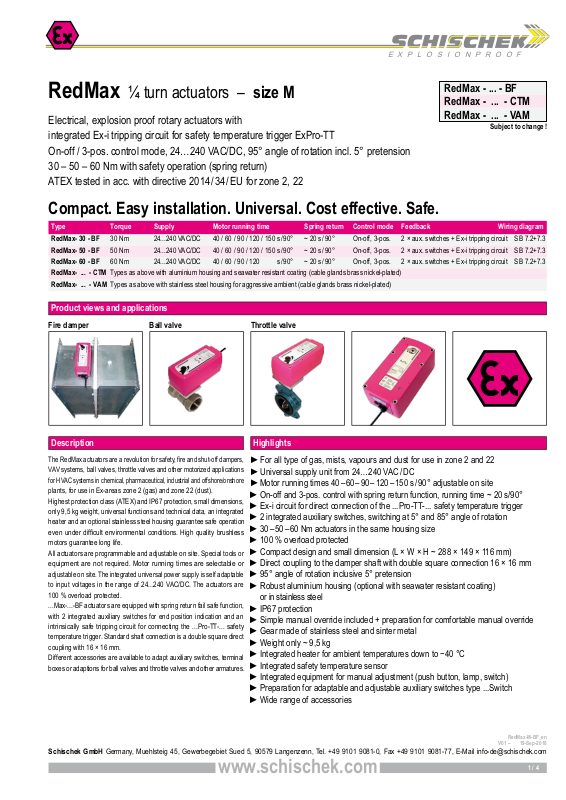

Schischek RedMax-30-BF, RedMax-50-BF, RedMax-...-CTM Series, RedMax-60-BF, RedMax-...-VAM Series User Manual
Page 1
EXPLOSIONPROOF
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail [email protected]
RedMax-M-BF_en
V01 – 19-Sep-2018
RedMax ¼ turn actuators – size M
Electrical, explosion proof rotary actuators with
RedMax - ... - BF
RedMax - ... - CTM
RedMax - ... - VAM
Subject to change!
integrated Ex-i tripping circuit for safety temperature trigger ExPro-TT
On-off / 3-pos. control mode, 24…240 VAC/DC, 95° angle of rotation incl. 5° pretension
30 – 50 – 60 Nm with safety operation (spring return)
ATEX tested in acc. with directive 2014/ 34/ EU for zone 2, 22
Compact. Easy installation. Universal. Cost effective. Safe.
Type Torque Supply Motor running time Spring return Control mode Feedback Wiring diagram
RedMax- 30 - BF 30 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/90° ~ 20 s /90° On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2+7.3
RedMax- 50 - BF 50 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/90° ~ 20 s /90° On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2+7.3
RedMax- 60 - BF 60 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 s/90° ~ 20 s /90° On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2+7.3
RedMax- ... - CTM Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
RedMax- ... - VAM Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)
Product views and applications
Fire damper Ball valve Throttle valve
Description Highlights
The RedMax actuators are a revolution for safety, fire and shut-off dampers,
VAV systems, ball valves, throttle valves and other motorized applications
for HVAC systems in chemical, pharmaceutical, industrial and offshore/onshore
plants, for use in Ex-areas zone 2 (gas) and zone 22 (dust).
Highest protection class (ATEX) and IP67 protection, small dimensions,
only 9,5 kg weight, universal functions and technical data, an integrated
heater and an optional stainless steel housing guarantee safe operation
even under difficult environmental conditions. High quality brushless
motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools or
equipment are not required. Motor running times are selectable or
adjustable on site. The integrated universal power supply is self adaptable
to input voltages in the range of 24...240 VAC/DC. The actuators are
100 % overload protected.
...Max-...-BF actuators are equipped with spring return fail safe function,
with 2 integrated auxiliary switches for end position indication and an
intrinsically safe tripping circuit for connecting the ...Pro-TT-... safety
temperature trigger. Standard shaft connection is a double square direct
coupling with 16 × 16 mm.
Different accessories are available to adapt auxiliary switches, terminal
boxes or adaptions for ball valves and throttle valves and other armatures.
► For all type of gas, mists, vapours and dust for use in zone 2 and 22
► Universal supply unit from 24…240 VAC/ DC
►Motor running times 40– 60 – 90– 120 – 150 s/90° adjustable on site
► On-off and 3-pos. control with spring return function, running time ~ 20 s/90°
► Ex-i circuit for direct connection of the ...Pro-TT-... safety temperature trigger
► 2 integrated auxiliary switches, switching at 5° and 85° angle of rotation
► 30– 50 – 60 Nm actuators in the same housing size
► 100 % overload protected
► Compact design and small dimension (L × W × H ~ 288 × 149 × 116 mm)
► Direct coupling to the damper shaft with double square connection 16 × 16 mm
► 95° angle of rotation inclusive 5° pretension
► Robust aluminium housing (optional with seawater resistant coating)
or in stainless steel
► IP67 protection
► Simple manual override included + preparation for comfortable manual override
► Gear made of stainless steel and sinter metal
► Weight only ~ 9,5 kg
► Integrated heater for ambient temperatures down to −40 °C
► Integrated safety temperature sensor
► Integrated equipment for manual adjustment (push button, lamp, switch)
► Preparation for adaptable and adjustable auxiliary switches type ...Switch
► Wide range of accessories
1 / 4
Page 2
EXPLOSIONPROOF
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail [email protected]
RedMax-M-BF_en
V01 – 19-Sep-2018
RedMax-...-BF
Special option ... -CTM ... -VAM
Technical data RedMax- 30 - BF RedMax- 50 - BF RedMax- 60 - BF
Torque motor (min.) 30 Nm 50 Nm 60 Nm
Torque spring (F) min. 30 Nm min. 50 Nm min. 60 Nm
Torque blockade In blockade and end positions torques are higher than above specified torques for motor and spring.
Dimensioning of external load Upon spring return the external load should be max. 80 % of torque spring (F), but min. 10 Nm
Supply voltage / frequency 24...240 VAC/DC, ± 10 %, self adaptable, frequency 50...60 Hz ± 20 %
Power consumption max. starting currents see
Protection class Class I (grounded)
Angle of rotation and indication 95° incl. ~ 5° pretension, mechanical value indication
Working direction Selectable by left/right mounting to the damper/valve shaft
Motor running times 40 / 60 / 90 / 120 / 150 s/90° 40 / 60 / 90 / 120 / 150 s / 90° 40 / 60 / 90 / 120 s /90° selectable on site
Motor Brushless DC motor
Control mode On-off and 3-pos. in acc. with wiring, selectable on site
Spring return (F) spring return upon voltage interruption, response time up to 1 sec. after voltage interruption
Spring return running time (F) ~ 20 s/ 90°
Safety operations at 20 sec. (F) min. 10,000 acc. to construction of damper and ambient
Ex-i tripping circuit Intrinsically safe circuit to connect the ExPro-TT-... safety temperature trigger directly to the actuator with M12 quick connection
Auxiliary switches 2 integrated auxiliary switches, switching at 5° and 85° angle of rotation, potential free. Grid fuse-protection is recommended!
/ I
U
U
Axle of the actuator Double square 16 × 16 mm, direct coupling, 100 % overload protected
Electrical connection Cable ~ 1 m, wire cross section 0.5 mm², equipotential bonding 4 mm².
Connections in hazardous areas require a terminal box!
Diameter of cable ~ Ø 9,6 mm ~ Ø 9,6 mm ~ Ø 9,6 mm
Cable gland M16 × 1.5 mm
Manual override Use delivered socket wrench, max. 4 Nm
Heater Integrated, controlled heater for ambient temperature down to −40 °C
Housing material Aluminium die-cast housing, coated. Optional with seawater resistant coating (...-CTM) or stainless steel housing,
№ 1.4581 / UNS-J92900 / similar AISI 316Nb (...-VAM)
Dimensions (L × W × H) ~ 288 × 149 × 116 mm, for diagrams see
Weight ~ 9.5 kg aluminium housing, stainless steel ~ 15 kg
Ambients Storage temperature −40…+70 °C, working temperature −40…+40 °C at T6 and −40…+50 °C at T5
Humidity 0...90 % rH, non condensing
Operation mode 80 % ED are permitted (ED = duty cycle)
Maintenance Maintenance free relative to function, maintenance must comply with regional standards, rules and regulations
Wiring diagrams SB 7.2 + 7.3 SB 7.2 + 7.3 SB 7.2 + 7.3
Scope of delivery Actuator with 1 m cable, 4 screws M8 × 140 mm, 4 nuts M8, Allen key for simple manual override
Parameter at delivery 30 Nm, 90 s/90° 50 Nm, 90 s / 90° 60 Nm, 90 s/90°
AC = 250 V/ 5 A; U
max
max
/ I
DC = 48 V/1 A; I
max
max
Extra information (in acc. with voltage, I
AC/DC = 5 V; After one-time operation with U > 24 V AC/DC or I > 100 mA: U
min
AC/DC = 5 mA; I
min
Extra information
start
>> I
), approx. 5 W holding power, approx. 16 W for heater
rated
AC/DC = 12 V
min
AC/DC = 100 mA
min
Approbations Special solutions and accessories
ATEX directive 2014/34/EU
EC type-approved PTB 04 ATEX 2106
IECEx certified IECEx PTB 08.0059
Approval for gas II 3 (1) G Ex nC [ia] IIC T6, T5; II 3 G Ex nC II T6, T5
Types ...-CTM II 3 (1) G Ex nC [ia] IIB T6, T5; II 3 G Ex nC IIB T6, T5
Approval for dust II 3 D Ex tD A22 IP66 T80, T95°C
Ex-i circuit data see table (T 1.0)
CE identification CE № 0158
EMC directive 2014/30/EU
Low voltage directive 2014 / 35 / EU
Enclosure protection IP67 in acc. with EN 60529
EAC № ТС RU С-DE.ГБ08.В.01510
...-CTM Types in aluminium housing with seawater resistant coating,
parts nickel-plated
...-VAM Types in stainless steel housing, parts nickel-plated
RedBox-... Terminal boxes for zone 2, 22
MKK-M Mounting bracket for boxes type ...Box-... directly on actuator
ExPro-TT-... Safety temperature trigger for fire dampers
RedSwitch 2 external aux. switches, adjustable for zone 2, 22
HV-MK Comfortable manual override for ...Max actuators size M
AR-16-xx Reduction part for 16 mm square connection to 14 or 12 mm shafts
Kit-S8 Cable glands nickel-plated
Adaptions for dampers and valves on request
RedMax-...-S3 Ambient temperature up to +60 °C (T4), 110...240 VAC/ DC, 25 % ED
2 / 4
Page 3
EXPLOSIONPROOF
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail [email protected]
RedMax-M-BF_en
V01 – 19-Sep-2018
RedMax-...-BF
Special option ... -CTM ... -VAM
Electrical connection Parameters, adjustments and failure indication
All actuators are equipped with a universal supply unit working at a voltage range from
24...240 VAC/DC. The supply unit is self adjusting to the connected voltage!
The safety operation of the spring return function works if the supply voltage is cut.
For electrical connection inside hazardous areas a terminal box is required (e.g. RedBox).
An over-current protection fuse < 10 A has to be provided by installer.
Note: the initial current is appr. 2 A for 1 second.
Integrated auxiliary switches signal the rotation angle’s position. U
min
and I
change once
min
the switches were operated with higher voltage or current.
Switch – Push button – Lamp
for adjustment
(behind the blanking plug)
10-position switch (S)
Push button (T)
3-colour LED
S
T
On-off (1-wire) – spring return + Ex-i tripping circuit SB 7.2
24...240 VAC/ DC
+
−
~
~
PE
1122334
Attention!
At 1-wire control
mode the heater
does not work
in case of
open contact.
Integrated auxiliary switches,
Grid fuse-protection recommended.
min. max.
U < 90 V AC/DC 2 AT 10 AT
U > 90 V AC/DC 5 AT 10 AT
< 5°
5
> 85°
8
7
Ex-i tripping circuit for
ExPro-TT-... safety
temperature trigger
112
10
ExPro-TT
°C
Test
button
PA
On-off / 3-pos. – spring return + Ex-i tripping circuit SB 7.3
24...240 VAC/ DC
+
−
~
~
PE
a b
4
Integrated auxiliary switches,
Grid fuse-protection recommended.
min. max.
U < 90 V AC/DC 2 AT 10 AT
U > 90 V AC/DC 5 AT 10 AT
< 5°
667
8
> 85°
9910
Ex-i tripping circuit for
ExPro-TT-... safety
temperature trigger
ExPro-TT
°C
Test
button
2
PA5
Parameter selection
Example:
RedMax-30-BF
Requested parameter:
Torque 30 Nm
Motor running time 90 s/90°
Result:
Switch position 02
Type
RedMax- 30 -BF ►
RedMax- 50 -BF ►
RedMax- 60 -BF ►
Running times Position of switch (S)
40 s/90° ►
60 s/90° ►
90 s /90° ►
120 s /90° ►
150 s /90° ►
30 Nm
50 Nm
60 Nm
▼
00
01
02
03
04
Torques
05
06
07
08
09
Functions, adjustments and parameters
A) Self adjustment of angle of rotation
Turn switch (S) to position 02. Press button (T) for a minimum of 3 seconds. The
actuator drives to both end positions and detects the blocking positions. The LED
flashes GREEN during adjustment.
The adjustment takes about 60 seconds (30 sec. “On”, 30 sec. “Off”).
B) Selecting motor running time and torque
Adjust parameters only if actuator is in idle state or without applied potential.
Turn switch (S) to the position required for the intended operation acc. to table
above. The selected parameters will be carried out at the actuator’s next operation.
C) Function of the ExPro-TT-... in the Ex-i tripping circuit
When the ...Pro-TT’s tripping circuit is opened the actuator runs into its end position
with spring return.
D) Additional information for control in 3-pos. operation
a closed, b open = direction I a and b closed = motor doesn’t work
b closed, a open = direction II a and b open = motor doesn’t work
The rotation direction (I and II) depends on left/right mounting of the actuator to the
damper. To reverse the rotation direction (by motor) exchange the electrical wiring
of terminal 3 and 4.
Ex-i intrinsic safe data – for temperature trigger ExPro-TT T 1.0
Uo = 10,6 V
I
= 11 mA
o
= 30 mW
P
o
C
= 0
i
L
= 0
i
During commissioning apply a self adjustment drive.
IIC IIB IIA
2 mH 5 mH 10 mH
L
o
Co 830 nF 3,7 μF 4,5 μF
! !
Attention
Installation
Ex area –
zone 2, 22
Safe area
Auxiliary switches *
RedBoxExPro-TT
Supply *
24...240 VAC/DC ± 10 %
* electrical wiring see diagrams
Regard duty cycle at motor running times!
Never use spring return actuators without external load.
see Technical data
3 / 4
Page 4
EXPLOSIONPROOF
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail [email protected]
RedMax-M-BF_en
V01 – 19-Sep-2018
RedMax-...-BF
Special option ... -CTM ... -VAM
Important information for installation and operation
A. Installation, commissioning, maintenance
All national and international standards, rules and regulations for hazardous Ex-areas
must be complied. Certified apparatus must be installed in accordance with manufacturer
instructions. If the equipment is used in a manner not specified by the manufacturer, the
safety protection provided by the equipment may be impaired. For electrical installations
design, selection and erection, EN/IEC 60079-14 can be used.
For electrical connection an Ex-e terminal box is required (e.g. RedBox-...).
Attention: If the actuator is put out of operation all Ex rules and regulations must be
applied. You have to cut the supply voltage before opening the terminal box!
The cables of the actuator must be installed in a fixed position and protected against
mechanical and thermical damage. Connect potential earth. Avoid temperature transfer
from armature to actuator! Close all openings with min. IP67.
For outdoor installation a protective weather shield against sun, rain and snow should be
applied to the actuator as well as a constant supply at terminal 1 and 2 for the integrated
heater. During commissioning apply a self adjustment drive.
Actuators are maintenance free. An annual inspection is recommended. For electrical
installations inspection and maintenance, EN/IEC 60079-17 can be used. Ex-actuators
must not be opened by the customer.
B. Manual override
Manual override only if supply voltage is cut. Use delivered socket wrench with slow
motions, usage can be tight.
Attention: Releasing or letting go the Allen key too fast at manual operating actuators
with spring return causes risk of injury!
C. Shaft connection, selection of running time
Actuators are equipped with a direct coupling double square shaft connection of 16 × 16 mm.
The housing of the actuator is axially symmetrically built to select Open-close direction
of the spring return function by left-right mounting. Using the 10-position switch different
motor running times and spring return running times can be selected on site in acc. to
the actuator type.
D. Temperature trigger ...Pro-TT-...
The actuator ...Max-...-BF will work only with the temperature trigger ExPro-TT-...
E. 3-position control mode
...Max actuators are in the best way suitable for the 3-pos. operation. To protect such
elements as gears and mounting elements against harmful influences like minimum
pulse time, ...Max actuators are protected via internal electronics. It ignores impulses
< 0,5 s, the cyclic duration must be min. 0,5 s. At changing direction the pause is 1 s.
F. Spring return
Spring return function works only if the supply voltage for terminal 1 or 2 is cut. In the
event of an electrical interruption, the spring returns to its end position even if supply
voltage is available again during return function. Thereafter operation will continue.
G. Operation at ambient temperatures below −20 °C
All actuators are equipped with a regulated integrated heating device designed for
employments down to −40 °C ambient temperature. The heater will be supplied automatically
by connecting the constant voltage supply on the clamps 1 and 2.
1. After mounting the actuator must bei immediately electrically connected.
2. The heater switches on automatically when actuator reaches internally −20 °C. It
heats up the actuator to a proper working temperature, then heater switches off
automatically. Actuator will not run during heating process.
3. The adjustment options are only ensured after this heating up period.
H. Excess temperatures
In acc. to the ATEX rules and regulations Ex actuators must be protected against excess
temperature. The internal thermostat works as a maximum limiter and, in the event of
failure at incorrect temperatures, shuts off the actuator irreversible. An upstream connected
temperature sensor stops the actuator before reaching its max. temperature. This safety
feature is reversible, after cooling down the actuator is completely functional again. In
this case the failure must be eliminated immediately on site!
I. Synchron mode
Do not connect several actuators to one shaft or link mechanically together.
J. Mechanical protection
Actuators must be operated with a minimum external load.
After installing the actuator to the damper/armature a self adjustment drive has to be
performed in order to protect the damper/armature against mechanical overload.
During operation the actuator reduces briefly its speed (motor power) before reaching
the end position for a “gentle” blockade/stop.
K. Intrinsically safe circuits
The supply of the push button (adjustment drive), the 10-position switch (adjustment of
torque and running time), the LED indicator and the sensor connection ExPro-TT are
intrinsically safe!
L. Routine tests of fire dampers
For periodic inspection of fire dampers cut off the supply line (current of actuator).
The test button at ExPro-TT-... is only for test aims of actuator’s function.
Extra information (see additional data sheet)
Additional technical information, dimensions, installation instruction, illustration
and failure indication
Accessory RedBox – adaptable terminal boxAccessory RedSwitch – adaptable auxiliary switch
For an end or inclined position indication it is possible to
retrofit external, adjustable, explosion proof auxiliary switches
type RedSwitch. The switch housing is mounted directly to
the actuator and the switches are linked to the actuator’s
square connector. The switches deliver a potential free
output and can be adjusted separately. They are connected
by the included cable tail.
For electrical connection of ...Max actuators inside the
hazardous area a terminal box is required.
RedBoxes are appropriate terminal boxes and placed at
the disposal. To adapt the ...Box directly to the actuator
housing a mounting bracket type MKK-M is required.
RedBox- BF for ...Max-...-BF with integrated
auxiliary switches
4 / 4
Loading...
