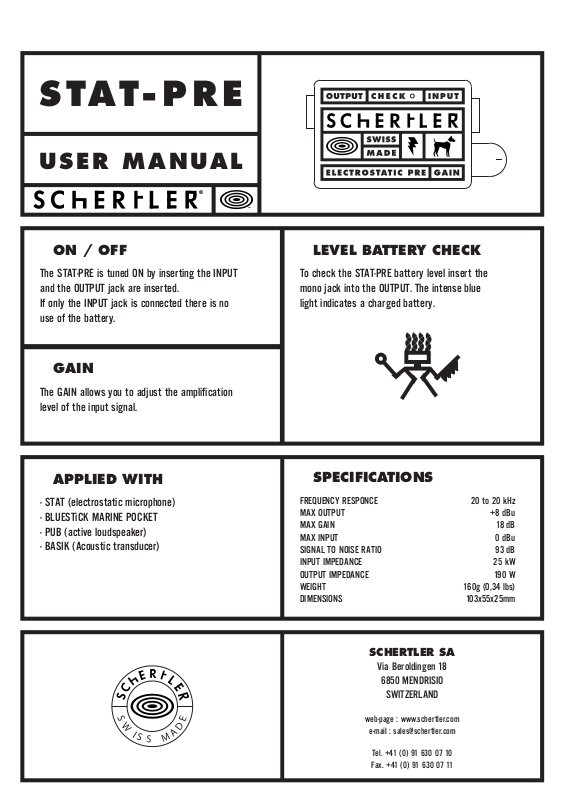

SChERtLER STAT-PRE USER MANUAL

STAT-PRE

USER MANUAL

®

™

ON / OFF

The STAT-PRE is tuned ON by inserting the INPUT
and the OUTPUT jack are inserted.
If only the INPUT jack is connected there is no
use of the battery.

GAIN

The GAIN allows you to adjust the amplification
level of the input signal.

APPLIED WITH

- STAT (electrostatic microphone)

- BLUESTiCK MARINE POCKET

- PUB (active loudspeaker)

- BASIK (Acoustic transducer)

LEVEL BATTERY CHECK

To check the STAT-PRE battery level insert the
mono jack into the OUTPUT. The intense blue
light indicates a charged battery.

SPECIFICATIONS

FREQUENCY RESPONCE
MAX OUTPUT
MAX GAIN
MAX INPUT
SIGNAL TO NOISE RATIO
INPUT IMPEDANCE
OUTPUT IMPEDANCE
WEIGHT
DIMENSIONS

20 to 20 kHz

160g (0,34 lbs)

103x55x25mm

+8 dBu

18 dB
0 dBu

93 dB
25 kW
190 W
