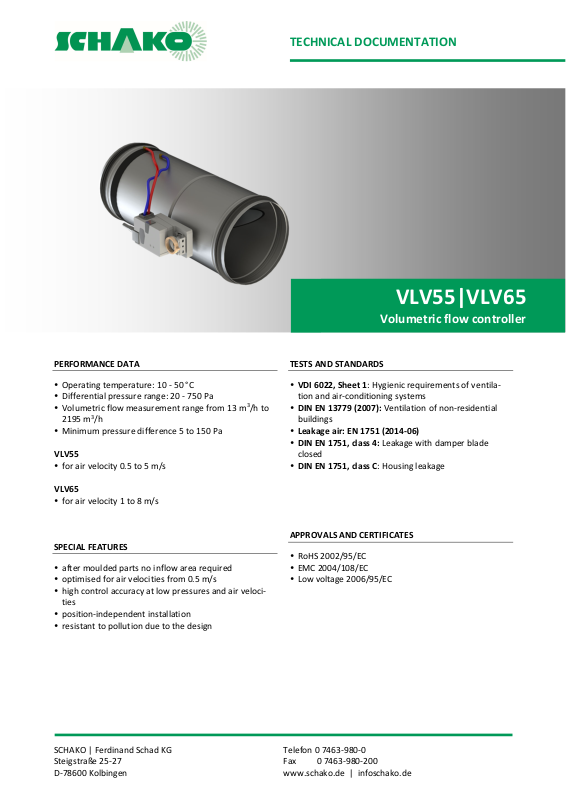

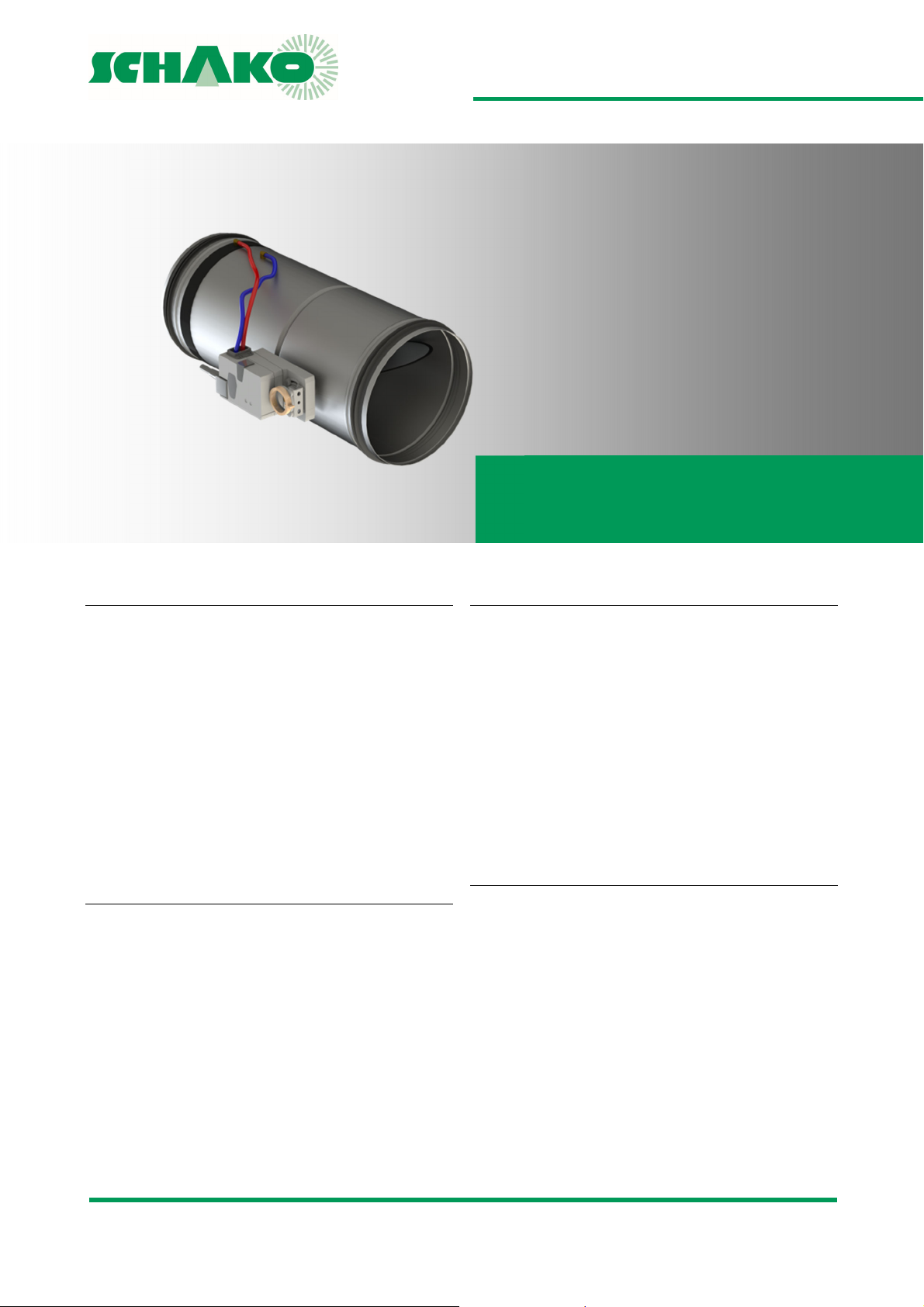

Schako VLV55, VLV65 Technical Documentation Manual

TECHNICAL DOCUMENTATION

PERFORMANCE DATA

TESTS AND STANDARDS

VLV55|VLV65

Volumetric flow controller

 Operating temperature: 10 - 50 °C
 Differential pressure range: 20 - 750 Pa
 Volumetric flow measurement range from 13 m

3

2195 m

/h

 Minimum pressure difference 5 to 150 Pa

VLV55

 for air velocity 0.5 to 5 m/s

VLV65

 for air velocity 1 to 8 m/s

3

/h to

 VDI 6022, Sheet 1: Hygienic requirements of ventila-

tion and air-conditioning systems

 DIN EN 13779 (2007): Ventilation of non-residential

buildings

 Leakage air: EN 1751 (2014-06)
 DIN EN 1751, class 4: Leakage with damper blade

closed

 DIN EN 1751, class C: Housing leakage

APPROVALS AND CERTIFICATES

SPECIAL FEATURES

 RoHS 2002/95/EC
 after moulded parts no inflow area required
 optimised for air velocities from 0.5 m/s
 high control accuracy at low pressures and air veloci-

ties

 position-independent installation
 resistant to pollution due to the design

 EMC 2004/108/EC

 Low voltage 2006/95/EC

SCHAKO | Ferdinand Schad KG Telefon [phone]
Steigstraße 25-27 Fax [phone]
D-78600 Kolbingen www.schako.de | infoschako.de

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Table of Contents

TABLE OF CONTENTS

Table of Contents ................................................................................................................... 2

Overview of product versions ................................................................................................ 3

Function ................................................................................................................................. 3

Areas of application ............................................................................................................... 4

Processing .............................................................................................................................. 4

Available sizes ........................................................................................................................ 5

Useable volumetric flow ranges ............................................................................................ 5

Accessories ............................................................................................................................ 6

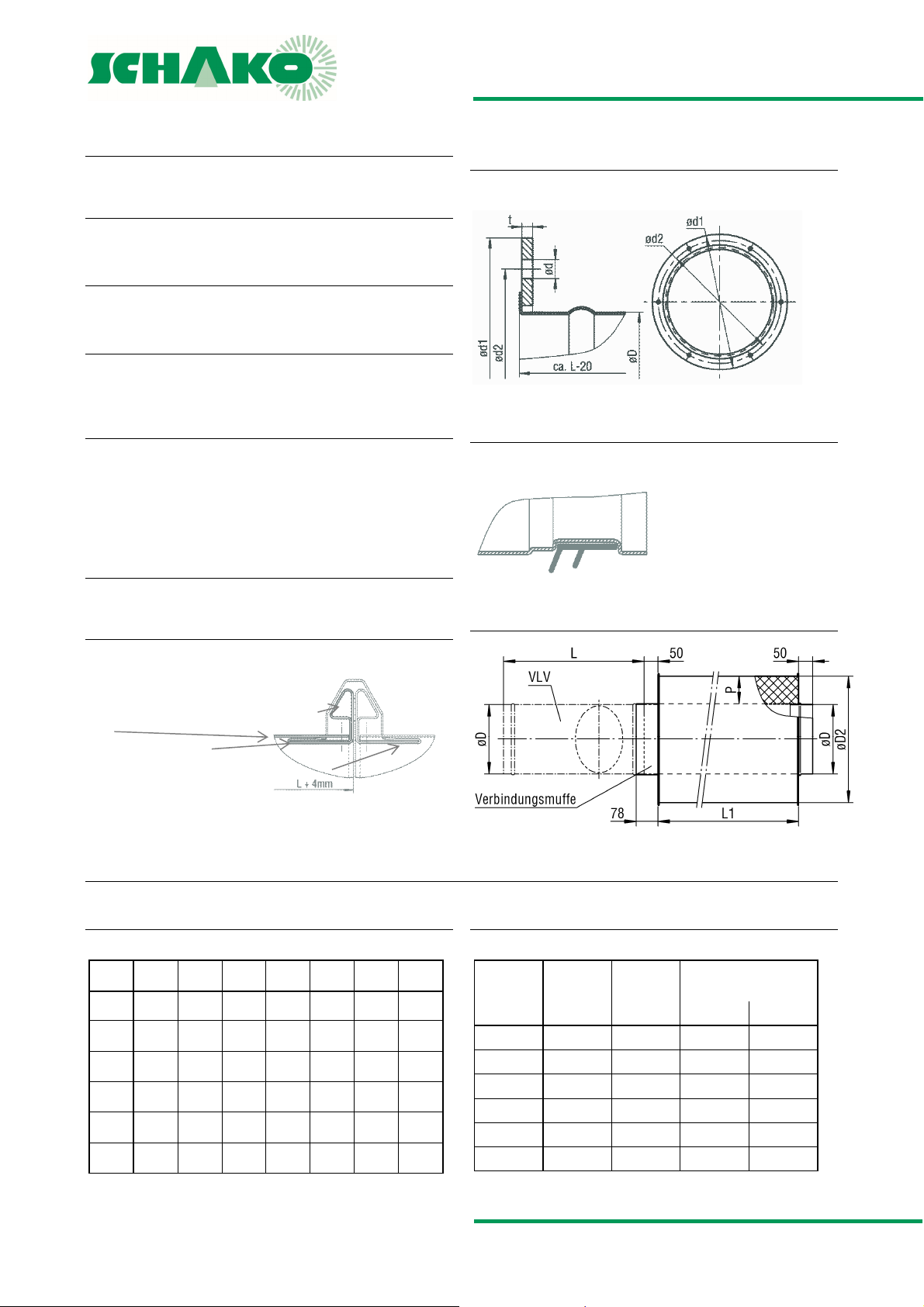

Dimensions of accessories ..................................................................................................... 6

Available sizes of accessories ................................................................................................. 6

Static minimum pressure difference ..................................................................................... 7

VLV55 - flow generated noise ................................................................................................ 8

VLV55 - flow generated noise - relative sound spectrum ...................................................... 9

VLV55 - radiated noise ......................................................................................................... 10

VLV55 - radiated noise - relative sound spectrum ............................................................... 11

VLV65 - flow generated noise .............................................................................................. 12

VLV65 - flow generated noise - relative sound spectrum .................................................... 13

VLV65 - Radiated noise ........................................................................................................ 14

VLV65 - Radiated noise - relative sound spectrum .............................................................. 15

Duct silencer (-RS) - insertion loss ....................................................................................... 16

Controller selection ............................................................................................................. 17

Technical data of control components ................................................................................ 17

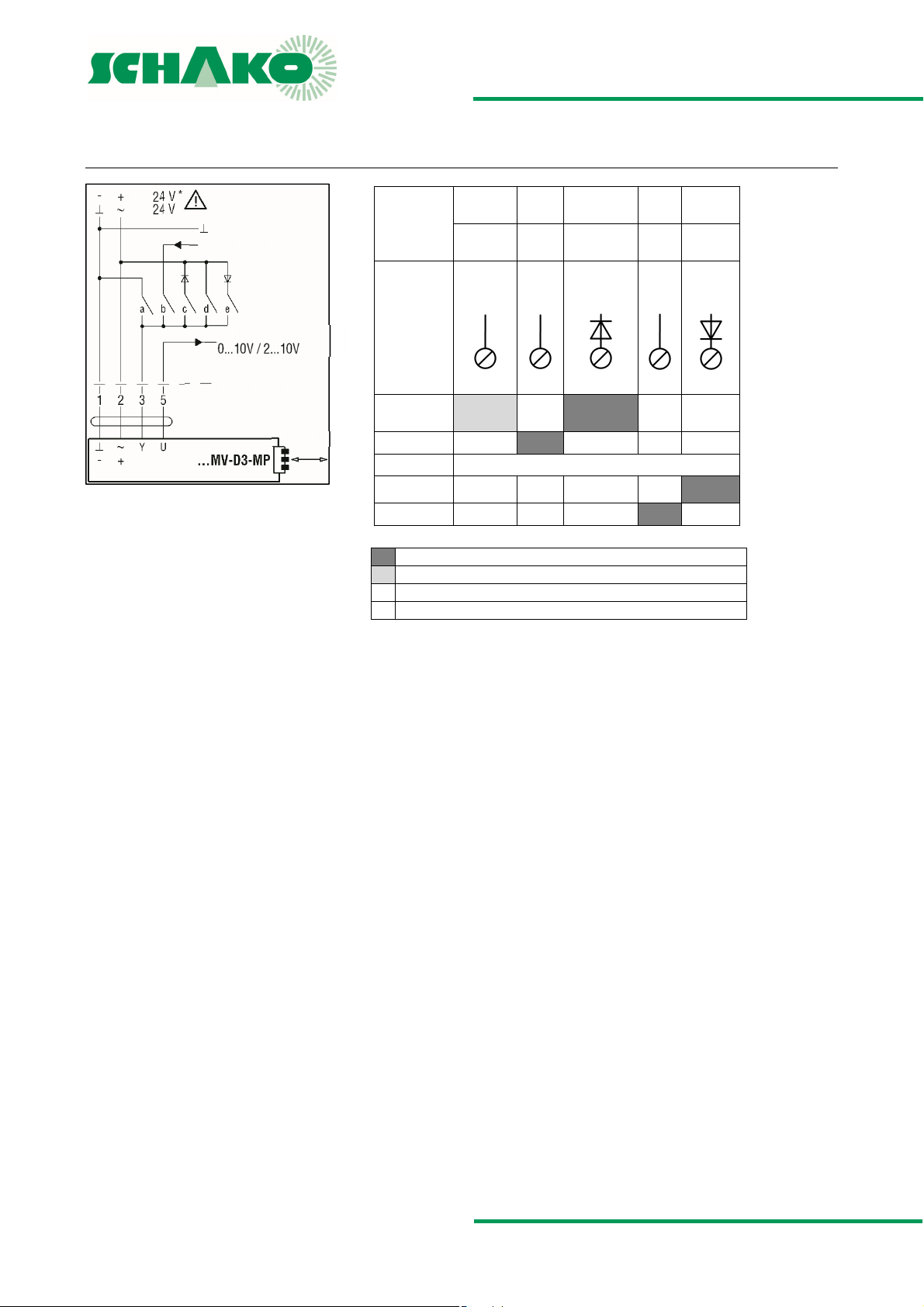

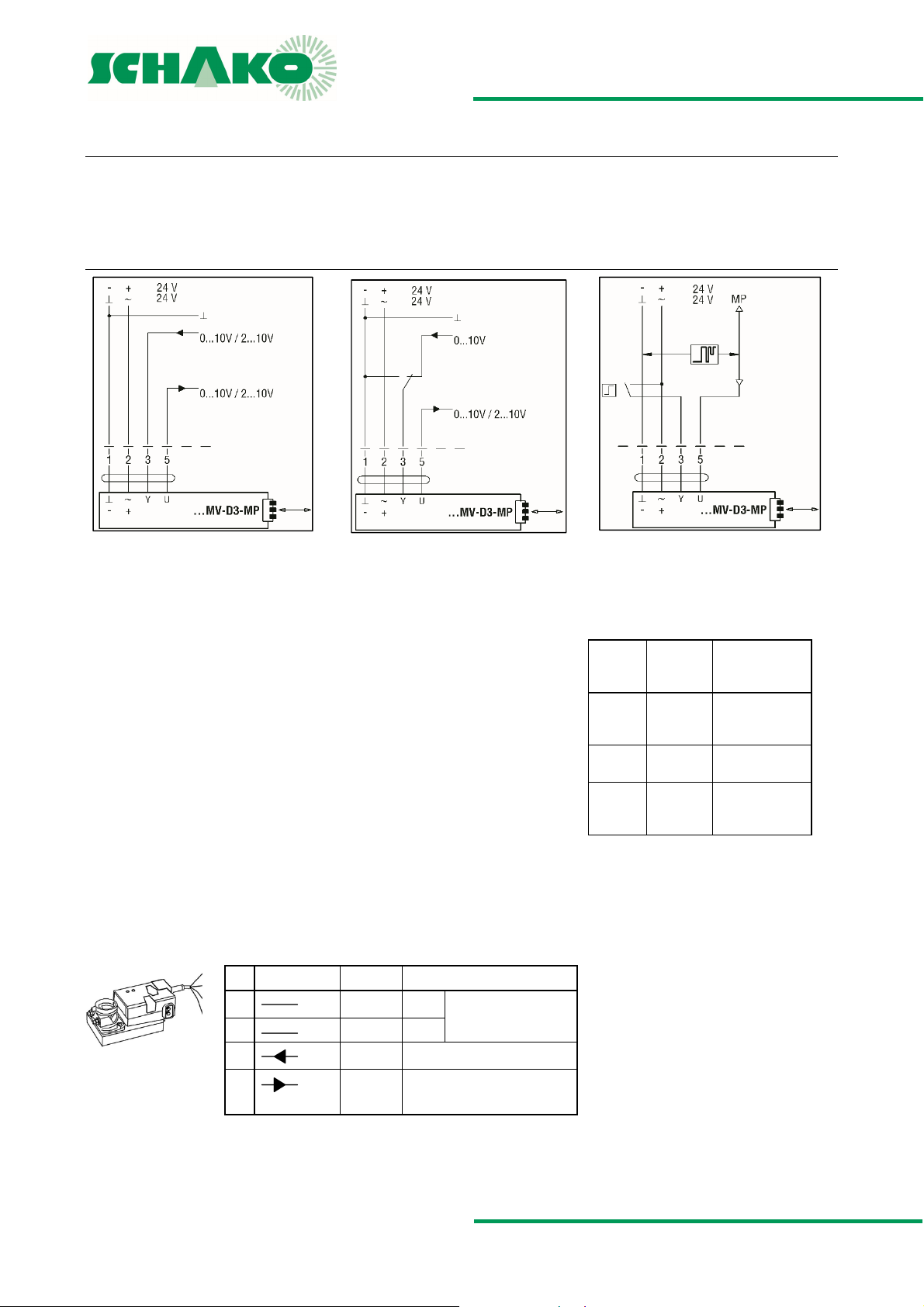

Circuit diagrams - Belimo ..................................................................................................... 18

Circuit diagrams - Gruner..................................................................................................... 21

Setting the operating potentiometers ................................................................................. 22

Technical data of controllers and motors ............................................................................ 24

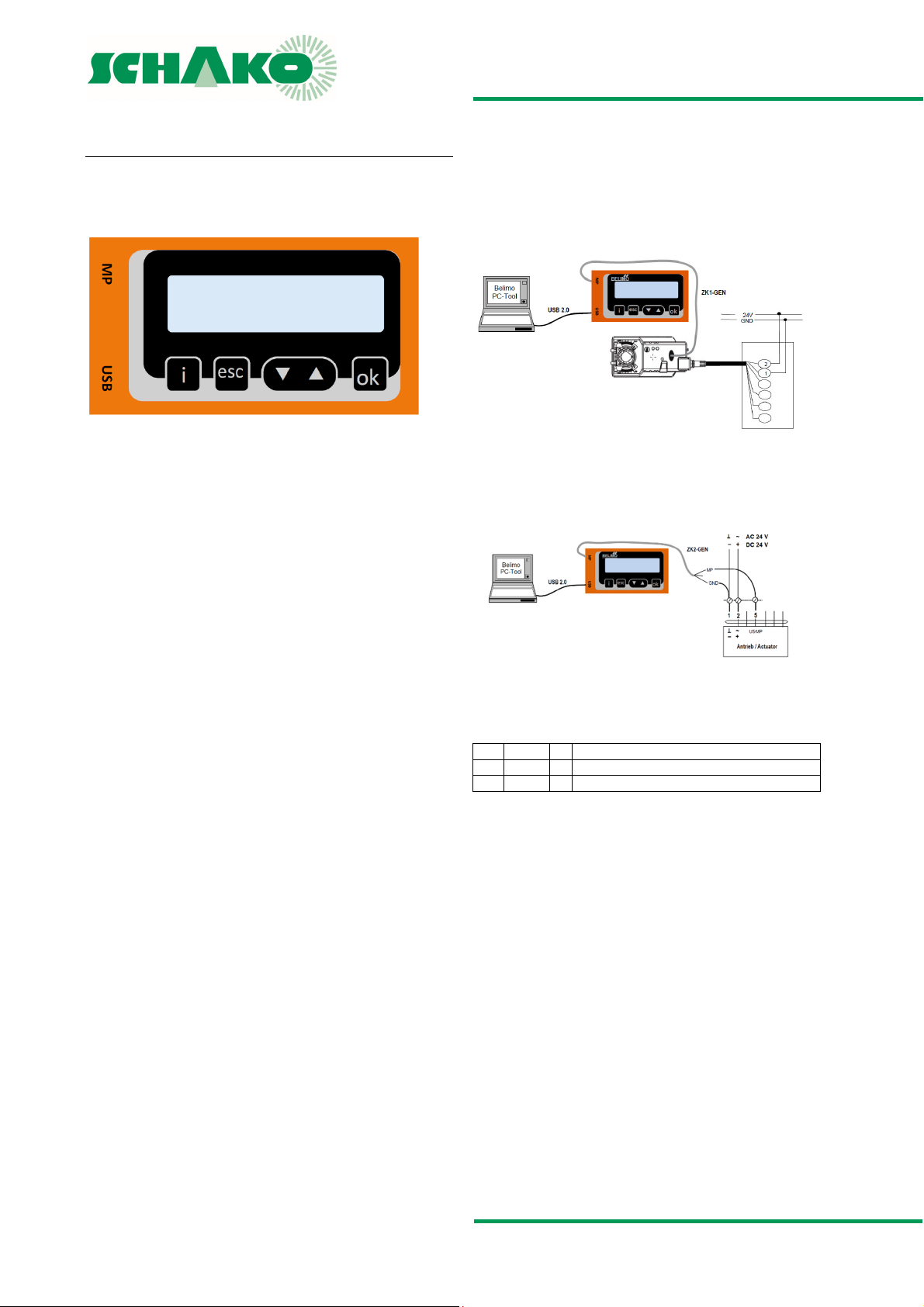

Startup using PC-Tool .......................................................................................................... 26

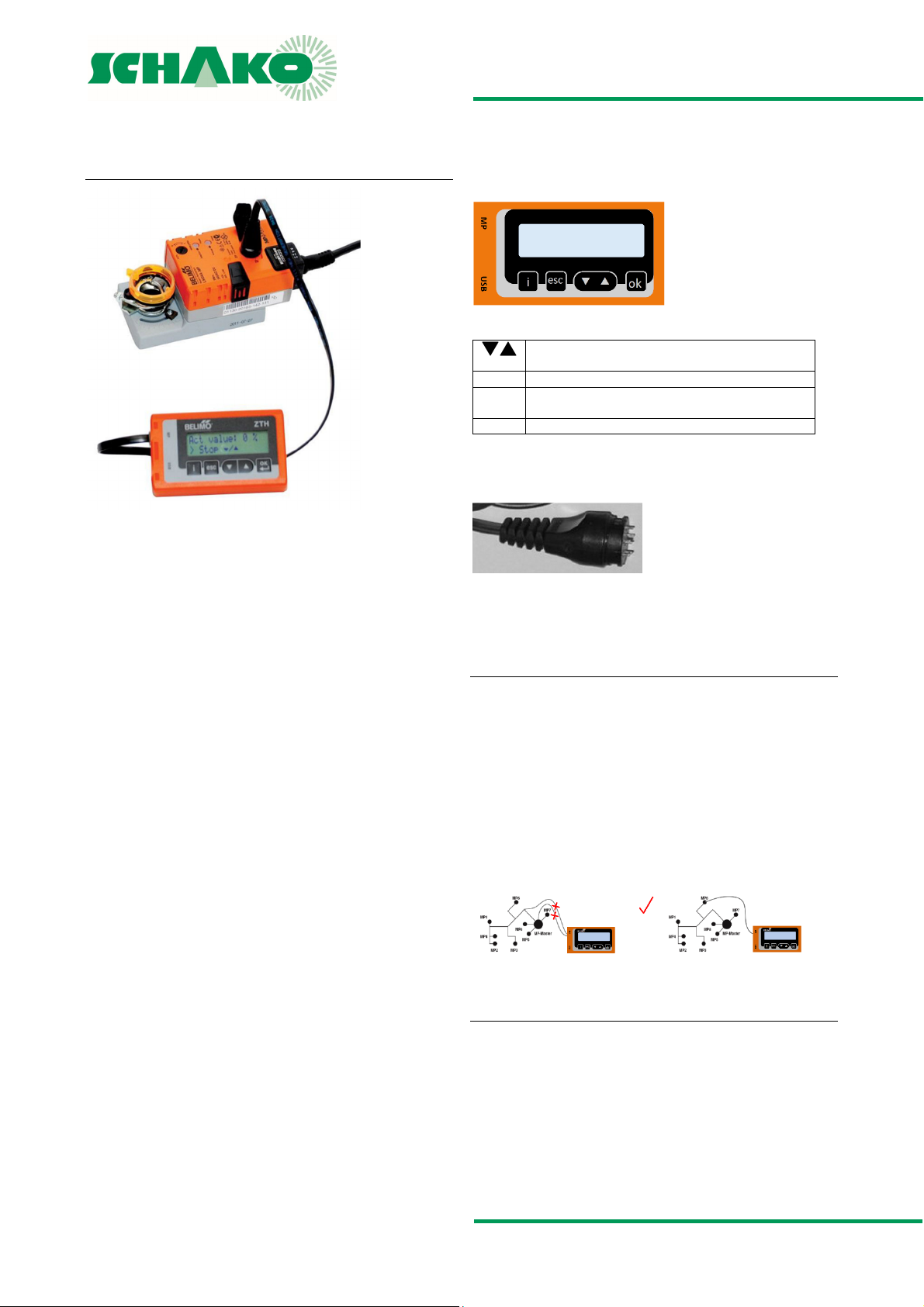

Startup using the setting and diagnostic device ZTH EU (Belimo) ....................................... 27

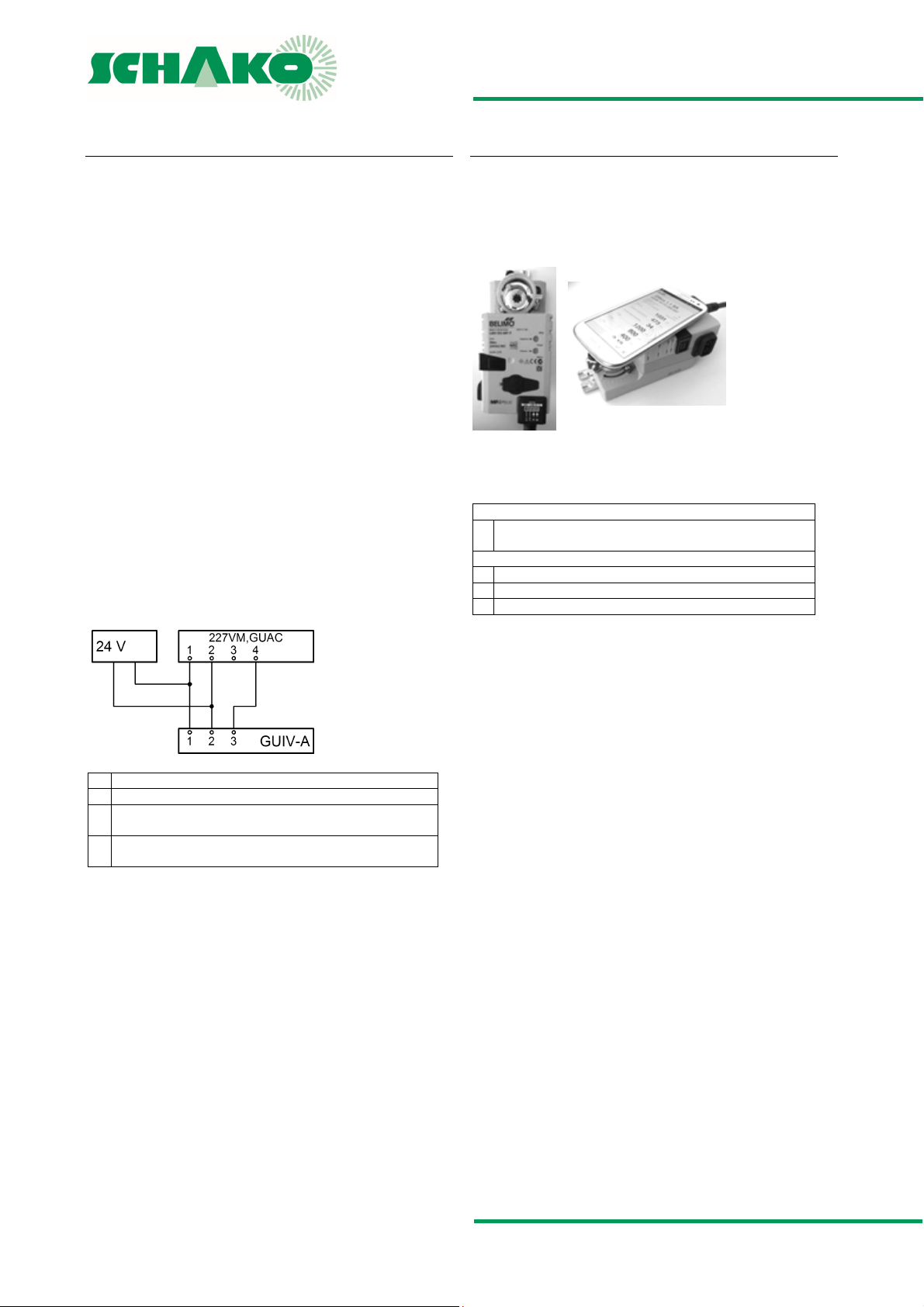

Startup using the setting device GUIV-A ............................................................................. 28

Smartphone app - Belimo Assistant .................................................................................... 28

Prior to assembly and commissioning ................................................................................. 29

Installation information ....................................................................................................... 29

Maintenance and service ..................................................................................................... 29

Legend ................................................................................................................................. 29

Order code ........................................................................................................................... 30

Specification text ................................................................................................................. 31

Construction subject to change
No return possible Version: 2017-04-24 | Page 2

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

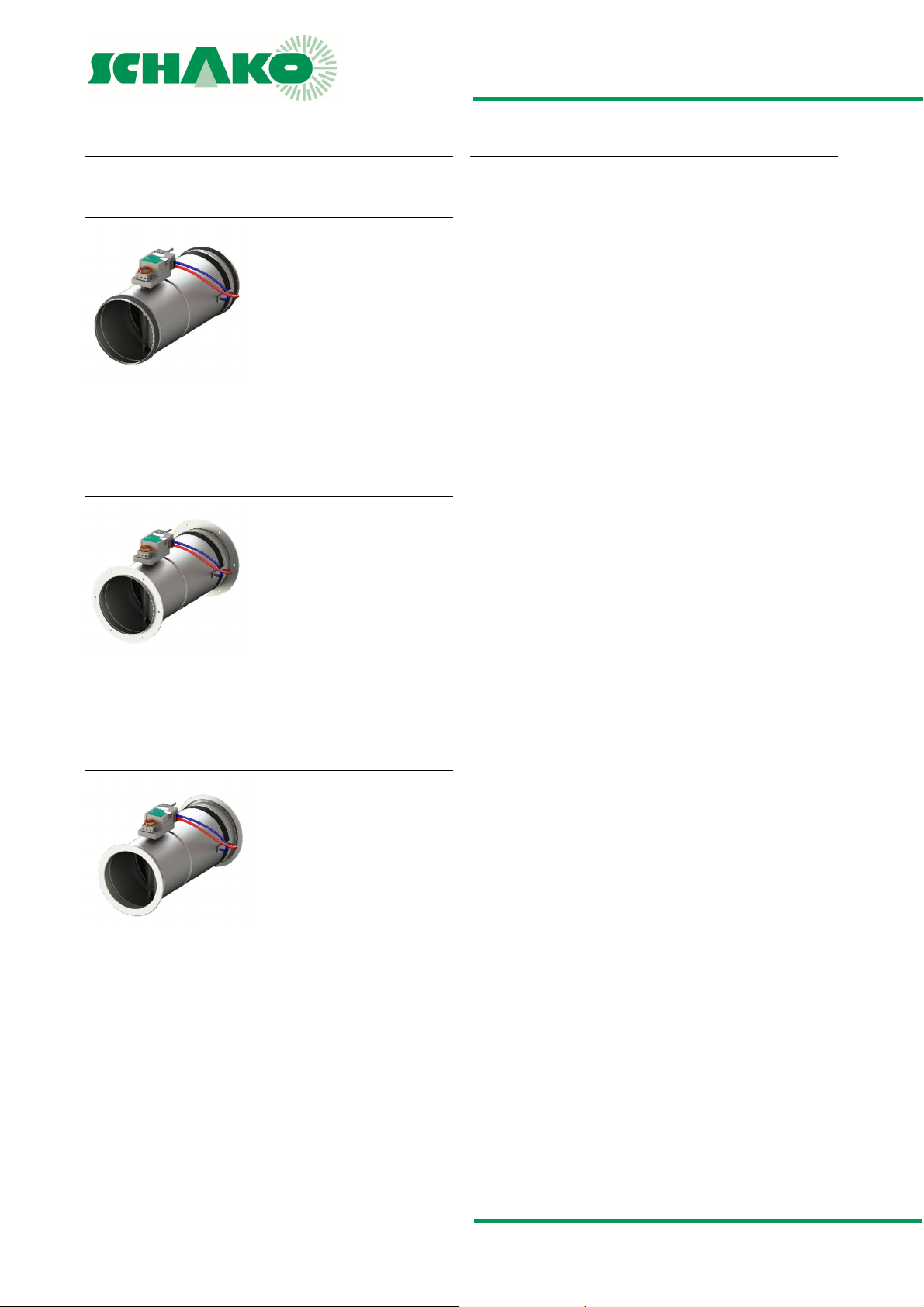

Overview of product versions | Function

OVERVIEW OF PRODUCT VERSIONS

FUNCTION

VLV55|VLV65 with rubber lip seal

Round volumetric flow controller

 Volumetric flow range 0.5-5 m/s (VLV55) or 1-8 m/s (VLV65)
 With rubber lip seal (-GD1)

VLV55|VLV65 with flat flange

Round volumetric flow controller

 Volumetric flow range 0.5-5 m/s (VLV55) or 1-8 m/s (VLV65)
 With flat flange according to DIN 24154, class 5 (-FF1)

VLV55|VLV65 with METU flange

A volumetric flow controller is used for pressure-independent

volumetric flow regulation in ventilation and air-conditioning

systems. It serves to keep the volumetric flow either constant

within specified limits (CAV) or to control it variably (VAV).

The housing, measuring nozzle and the controller with pressure

sensor form a closed control loop with feedback, allowing de-

mand-dependent, energy-saving air-conditioning of the single

rooms or areas of air-conditioning systems also at low duct

pressures and air velocities. When suitable controller types are

used, room or duct pressure regulation can be achieved.

For the measurement of the effective pressure, SCHAKO is us-

ing its measuring method by means of a standardised Venturi

nozzle made of aluminium to DIN EN ISO 5167. In front of the

Venturi nozzle and in the nozzle neck, the volumetric flow con-

troller is fitted with openings for pressure take-off. The result-

ing differential pressure (effective pressure) is measured and

evaluated by a universal or compact controller. The VLV meas-

urement principle allows measurement of small volumetric

flows. In comparison with measuring rods, measuring crosses

or measuring orifices having fewer measuring points, this gives

higher accuracy, allowing the inflow area required in front of

the volumetric flow controller to be omitted. This also allows

smaller measurement tolerances to be achieved.

The volumetric flow controllers of the VLV type are insensitive

to dirt caused by dust and can be installed and used inde-

pendently of their position. The mounting instructions docu-

mented by the manufacturer must be adhered to, as otherwise

the correct functioning of the volumetric flow controller is not

guaranteed. The volumetric flow controllers type VLV are not

suitable for air containing sticky and greasy particles (e.g.

kitchen exhaust air).

Round volumetric flow controller

 Volumetric flow range 0.5-5 m/s (VLV55) or 1-8 m/s (VLV65)
 With METU flange type AF, without tension ring (-MF1)

Construction subject to change
No return possible Version: 2017-04-24 | Page 3

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Areas of application | Processing

AREAS OF APPLICATION

PROCESSING

 for supply and return air systems with low pressures

and low air velocity

 for constant CAV or variable VAV installations
 for positive control V
 For volumetric flow and linear pressure control
 at ambient temperatures 0° to +50°C,

requirement: measuring air 0...+50°C/5...95% rH,
non-condensing

 for regulating the air velocity in the duct in

the range of 0.5...8 m/s

 VLV55 for air velocity 0.5 - 5 m/s
 VLV65 for air velocity 1 - 8 m/s
 Minimum pressure difference of 5 - 150 Pa

When using volumetric flow controllers in roof central units, in
extreme cases, condensation can build up in the measuring
pipes of the volumetric flow controller as a result of the large
temperature differences between the air flowing through the
volumetric flow controller and the surrounding air. This con­densation may affect or damage the sensor. This is why for this
field of application care must be taken to insulate the housings
of the volumetric flow controllers and the measuring hoses (to
prevent condensation) and to mount the controllers in such a
way that any condensate formed on the outside of the measur­ing hoses can run downward and be drained (without entering
the sensor).

When connecting SCHAKO components to customer installa­tions, any compatibility problems are beyond our scope of re­sponsibility and must be solved on site.

min

, V

, V

, "OPEN" or "CLOSED"

mid

max

Tests and standards

The volumetric flow controller VLV-… has been tested by the
designated body in accordance with the following regulations:

Completed tests

 VDI 6022, Sheet 1: Hygienic requirements of ventilation and

air-conditioning systems

 DIN EN 1751: Ventilation for buildings - Air terminal devices -

Aerodynamic testing of damper and valves

 DIN EN 13779 (2007): Ventilation of non-residential buildings

Applied standards

 Leakage classification: DIN EN 1751 (2014-06)
 RoHS 2002/95/EC
 EMC 2004/108/EC

Housing

 Galvanised sheet steel (-SV)

 Galvanised sheet steel with DD coating (-DD)

 Housing leakage according to DIN EN 1751, class C

Damper blade

 Galvanised sheet steel (-SV)

 Galvanised sheet steel with DD coating (-DD)

Damper axle

 Passivated steel

 Brass

Damper blade seal

 made of EPDM, silicone-free, halogen-free

 airtight sealing design to DIN-EN 1751, class 4

Ring chamber sealing

 made of EPDM, silicone-free, halogen-free

Damper bearing

 Plastic bearing

Measuring sensor

 round Venturi nozzle made of aluminium

to DIN EN ISO 5167 (-SV)

 round Venturi nozzle made of aluminium

to DIN EN ISO 5167 with DD coating (-DD)

Model

round model, for round ductwork connection to DIN EN 1506,

with damper blade seal for airtight sealing to DIN EN 1751,

class 4

 VLV55 for air velocity 0.5 to 5 m/s

 VLV65 for air velocity 1 to 8 m/s

Controller

 LMV-D3-MP-SO, 5 Nm (-A001)

 LMV-D3-MF-SO, 5 Nm (-A006)

 227VM-024-05, 5 Nm (-A061)

Other controllers available on request

Construction subject to change
No return possible Version: 2017-04-24 | Page 4

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Available sizes | Useable volumetric flow ranges

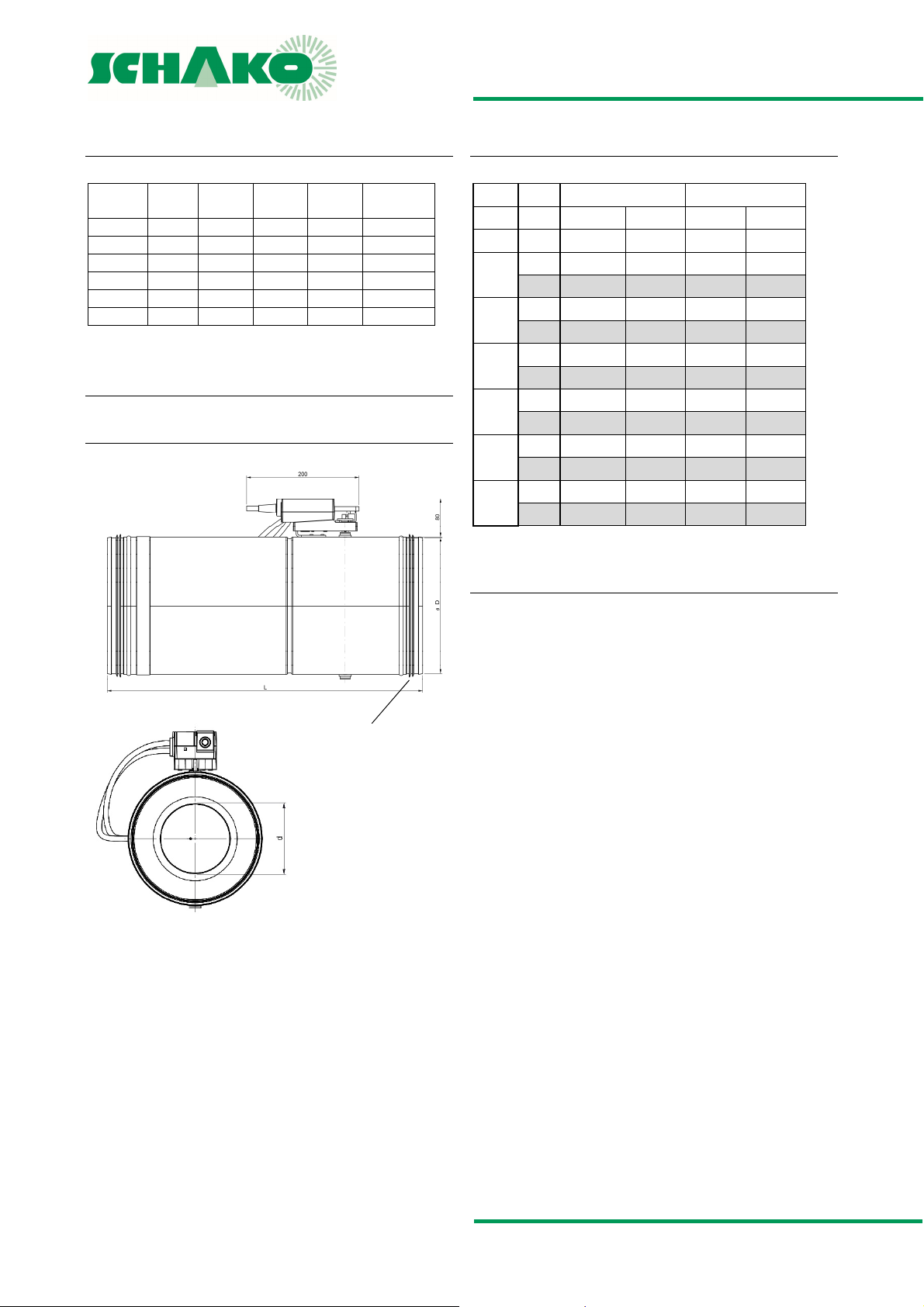

AVAILABLE SIZES

USEABLE VOLUMETRIC FLOW RANGES

NW

[mm]

øD

[mm]

d (55)
[mm]

d (65)
[mm] L [mm]

Weight

[kg]

100 98 53 63 330 1.5
125 123 67 79 370 1.9
160 158 86 102 420 2.5
200 198 108 128 480 3.4
250 248 136 160 570 4.8
315 313 171 203 690 7.0

NW 100 - NW 315 sealing airtight to DIN-EN 1751, class 4.

Dimensions

VLV55 / VLV65

Detail X

VLV55 VLV65

NW V V

min

V

V

max

V

min

max

(mm) (0.5 m/s) (5 m/s) (1 m/s) (8 m/s)

m³/h 13 132 26 211

100

l/s 4 37 7 59

m³/h 21 210 42 334

125

l/s 6 58 12 93

m³/h 35 346 69 554

160

l/s 10 96 19 154

m³/h 55 546 109 874

200

l/s 15 152 30 243

m³/h 86 859 172 1374

250

l/s 24 239 48 382

m³/h 137 1372 274 2195

315

l/s 38 381 76 610

ATTENTION: Important for parameterisation of the VLV

 The table corresponds to the complete measuring range.

 When the air volume drops below V

ing of the volumetric flow controller is no longer guaranteed.

 If only V

is specified in the order, a variable volumetric

max

flow controller will be delivered. The V
the value specified in the catalogue.

 If only one air volume is specified in the order (as V

), then the volumetric flow controller will be delivered as

stant

a constant volumetric flow controller. The volume specified
in the order is set to the V

value, and the V

min

to 100%.

 The air volumes V

min

and V

and the operating mode 0/2-10

max

V can be changed directly at the controller within the nomi­nal volumetric flow.

 For the parameter setting of the control components, an air

density of 1.2 kg/m³ has been taken into account.

 If no values are specified in the order, the controller will be

programmed with the values of the complete measuring
range. The following calibration curves are taken into ac­count:

--- VLV55 ... 5 m/s;

--- VLV65 ... 8 m/s.

The first adjustment of the V

min

, V
metric flows is done prior to delivery ex works in accordance
with customer specifications (calibration for delivery address).

When these values are set, the functions of all volumetric flow
controllers are also checked.

the correct function-

min,

value will be set to

min

and V

max

nenn

min

value is set

max

operating volu-

or V

kon-

Construction subject to change
No return possible Version: 2017-04-24 | Page 5

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Accessories | Dimensions of accessories

ACCESSORIES

Flat flange (-FF1), on both sides

to DIN 24154/5

METU flange (-MF1)

 on both sides, duct flange type AF.

Flat flange (-FF1)

 on both sides, according to DIN 24154/5.

Rubber lip seal (-GD1)

 on both sides, special rubber.

Duct silencer (-RS)

Rubber lip seal (-GD1)

 Rigid model
 Outer jacket and perforated sheet made of galvanised sheet

steel

 mineral wool filling

DIMENSIONS OF ACCESSORIES

METU flange (-MF1)

Tension ring (provided by the customer)
VLV
Metu flange (-MF1)
Counter flange (provided by the customer)

AVAILABLE SIZES OF ACCESSORIES

-FF - Flat flange

Detail X

Duct silencer (-RS)

-RS - Duct silencer

NW øD ød1 ød2 ød L LOA t

100 98 154 129 7 340 4 3

125 123 177 155 7 360 4 3

160 158 222 194 7 410 6 4

200 198 263 235 7 450 6 4

250 248 313 286 7 500 6 4

315 313 388 356 9.5 600 8 5

NW L øD øD2

50 100

100 340 98 200 300

125 360 123 225 325

160 410 158 260 360

200 450 198 300 400

250 500 248 350 450

315 600 313 415 515

Construction subject to change
No return possible Version: 2017-04-24 | Page 6

P (mm)

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Static minimum pressure difference |

STATIC MINIMUM PRESSURE DIFFERENCE

VLV55

NW vk V V ∆p

(m/s) (m3/h) [l/s] (Pa) ±%

0.5 13

2 53 15 15 10

100

4 105 29 75 7

5 132 37 100 5

0.5 21

2 84 23 20 10

125

4 167 46 75 7

5 209 57 110 5

0.5 35

2 139 38 15 10

160

4 277 77 60 7

5 346 96 100 5

0.5 55

2 218 61 20 10

200

4 436 121 60 7

5 546 152 100 5

0.5 86

2 344 96 20 10

250

4 687 191 60 7

5 859 239 90 5

0.5 137

2 549 153 20 10

315

4 1097 305 65 7

5 1372 381 90 5

4 5 15

6 5 15

10 5 15

15 5 15

24 5 15

38 5 15

V

t min

VLV65

NW vk V V ∆p

(m/s) (m3/h) [l/s] (Pa) ±%

1 26

3 79 22 25 10

100

6 158 44 90 7

8 210 58 150 5

1 42

3 125 35 25 10

125

6 250 70 90 7

8 334 93 140 5

1 69

3 208 58 20 10

160

6 416 116 50 7

8 554 154 90 5

1 109

3 328 91 20 10

200

6 655 182 65 7

8 874 243 100 5

1 172

3 515 143 15 10

250

6 1031 286 55 7

8 1374 382 85 5

1 274

3 823 229 20 10

315

6 1646 457 55 7

8 2195 610 90 5

7 5 15

12 5 15

19 5 15

30 5 15

48 5 15

76 5 15

V

t min

Construction subject to change
No return possible Version: 2017-04-24 | Page 7

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV55 - flow generated noise |

VLV55 - FLOW GENERATED NOISE

VLV55

NW

100

125

160

200

250

315

--- = value below the static minimum pressure difference

VK

(m/s) V (m3/h) V [l/s]

0.5 13 4

2 53 15

4 105 29

5 132 37

0.5 21

2 84 23

4 167 46

5 209 57

0.5 35

2 139 38

4 277 77

5 346 96

0.5 55 15

2 218 61

4 436 121

5 546 152

0.5 86 24

2 344 96

4 687 191

5 859 239

0.5 137

2 549 153

4 1097 305

5 1372 381

6

10

38

∆pt = 50 Pa
LWA [dB(A)]

29 33

44 50

44 54

--- 56

35 38

49 54

47 58

--- 56

38 45

51 57

50 60

--- 58

41 45

49 59

49 59

--- 59

42 50

50 59

51 60

--- 63

44 48

52 60

53 61

--- 63

∆pt = 100 Pa

LWA [dB(A)]

∆pt = 150 Pa

LWA [dB(A)]

36 41 43

54 56 58

59 62 64

61 65 67

43 45 48

58 59 61

63 65 67

63 67 69

46 50 51

60 62 63

64 67 68

65 68 71

47 49 51

59 66 68

64 67 70

65 68 71

56 60 62

63 66 69

64 67 70

65 68 71

52 54 57

64 66 69

65 69 71

67 70 72

∆pt = 200 Pa

LWA [dB(A)]

∆pt = 250 Pa

LWA [dB(A)]

Construction subject to change
No return possible Version: 2017-04-24 | Page 8

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV55 - flow generated noise - relative sound spectrum |

VLV55 - FLOW GENERATED NOISE - RELATIVE SOUND SPECTRUM

NW100

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -6 -8 -6 -1 -4 -13 -18 -25

NW125

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -8 -9 -5 -1 -3 -12 -19 -26

Size 160

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -6 -7 -3 -1 -4 -9 -17 -27

NW200

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -6 -5 -1 0 -7 -11 -18 -26

NW250

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -1 -2 1 -1 -7 -10 -18 -28

Size 315

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -3 -1 3 -1 -6 -10 -18 -28

Differential pressure range: 0 - 300 Pa
Air velocity: 0.5 - 5.0 m/s
KL= correction value; relative sound power level, relative to LWA
KLW = LWA + {KL}

C A L C U L A T I O N E X A M P L E

VLV55 design data

NW 160 mm | V=247 m³/h |
p=100 Pa | L

Hz 63 125 250 500 1000 2000 4000 8000
KL -6 -7 -3 -1 -4 -9 -17 -27

Calculate sound values according to formula

K

LW(relativ)

gives

Hz 63 125 250 500 1000 2000 4000 8000
LWA 60 60 60 60 60 60 60 60
KL -6 -7 -3 -1 -4 -9 -17 -27
KLW 54 53 57 59 56 51 43 33

= 60 dB(A)

WA

= LWA + {KL}

Construction subject to change
No return possible Version: 2017-04-24 | Page 9

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV55 - radiated noise |

VLV55 - RADIATED NOISE

VLV55

NW

100

125

160

200

250

315

--- = values below 25 dB(A)

VK

(m/s)

0.5 13 4

2 53 15

4 105 29

5 132 37

0.5 21

2 84 23

4 167 46

5 209 57

0.5 35 10

2 139 38

4 277 77

5 346 96

0.5 55 15

2 218 61

4 436 121

5 546 152

0.5 86 24

2 344 96

4 687 191

5 859 239

0.5 137 38

2 549 153

4 1097 305

5 1372 381

V

(m3/h) V [l/s]

6

∆pt = 50 Pa
LWA [dB(A)]

--- ---

--- ---

--- 27

--- 32

--- ---

--- 25

25 28

--- 33

--- ---

--- 28

--- 34

--- 38

--- ---

--- 33

--- 41

--- 43

--- ---

--- 34

--- 40

--- 41

--- 33

--- 45

--- 45

--- 44

∆pt = 100 Pa

LWA [dB(A)]

∆pt = 150 Pa

LWA [dB(A)]

--- --- ---

25 28 30

30 33 34

34 36 38

--- --- ---

--- 29 30

32 33 36

35 38 42

--- --- 25

31 33 36

37 39 40

40 42 44

--- 25 26

36 39 41

45 47 49

46 49 52

--- 27 31

36 39 41

43 45 47

43 46 48

35 38 40

46 48 50

47 48 50

46 50 52

∆pt = 200 Pa

LWA [dB(A)]

∆pt = 250 Pa

LWA [dB(A)]

Construction subject to change
No return possible Version: 2017-04-24 | Page 10

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV55 - radiated noise - relative sound spectrum |

VLV55 - RADIATED NOISE - RELATIVE SOUND SPECTRUM

NW100

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 1 -1 -9 -8 -7 -5 -9 -11

NW125

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 4 2.4 -7 -3 -7 -7 -9 -14

Size 160

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 3 2 -3 -5 -6 -8 -9 -10

NW200

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -3 -4 -8 -6 -7 -6 -7 -9

NW250

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 2 0 -2 -5 -8 -6 -8 -11

Size 315

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -3 -4 -2 -4 -8 -7 -7 -18

Differential pressure range: 0 - 300 Pa
Air velocity: 0.5 - 5.0 m/s
KL= correction value; relative sound power level, relative to LWA
KLW = LWA + {KL}

C A L C U L A T I O N E X A M P L E

VLV55 design data

NW 160 mm | V=247 m³/h |
p=100 Pa | L

Hz 63 125 250 500 1000 2000 4000 8000
KL 3 2 -3 -5 -6 -8 -9 -10

Sound values calculated according to formula

K

LW(relativ)

gives

Hz 63 125 250 500 1000 2000 4000 8000
LWA 34 34 34 34 34 34 34 34
KL 3 2 -3 -5 -6 -8 -9 -10
KLW 37 36 31 29 28 26 25 24

= 34 dB(A)

WA

= LWA + {KL}

Construction subject to change
No return possible Version: 2017-04-24 | Page 11

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV65 - flow generated noise |

VLV65 - FLOW GENERATED NOISE

VLV65

NW

VK

(m/s)

V

(m3/h) V [l/s]

1 26 7

3 79 22

∆pt = 50 Pa

[dB(A)]

L

WA

38 43

48 53

∆p

L

100

5 130 35

8 210 58

1 42

12

3 125 35

48 57

--- ---

41 45

50 58

125

5 210 60

8 334 93

1 69

19

3 208 58

47 59

--- ---

45 49

50 58

160

5 345 95

8 554 154

1 109 30

3 328 91

51 59

--- 61

46 52

49 59

200

5 545 150

8 874 243

1 172 48

3 515 143

51 60

--- 60

49 54

49 59

250

5 860 240

8 1374 382

1 274

76

3 823 229

52 60

--- 62

50 55

52 60

315

5 1370 380

8 2195 610

54 62

64 67

--- = value below the static minimum pressure difference

= 100 Pa

t

[dB(A)]

WA

∆p

= 150 Pa

t

L

WA

[dB(A)]

∆p

= 200 Pa

t

[dB(A)]

L

WA

∆p

= 250 Pa

t

[dB(A)]

L

WA

46 48 51

57 59 61

62 65 66

62 66 69

49 51 53

61 63 64

63 67 70

65 69 71

53 54 57

63 65 67

64 67 69

65 68 71

54 57 58

63 66 68

64 67 69

67 69 72

56 59 61

63 66 68

64 67 69

67 69 71

58 60 62

64 67 70

65 68 70

69 72 74

Construction subject to change
No return possible Version: 2017-04-24 | Page 12

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV65 - flow generated noise - relative sound spectrum |

VLV65 - FLOW GENERATED NOISE - RELATIVE SOUND SPECTRUM

NW100

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -7 -8 -5 -2 -3 -12 -18 -25

NW125

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -9 -8 -5 -2 -3 -10 -17 -25

Size 160

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -7 -7 -3 -1 -4 -9 -17 -26

NW200

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -5 -3 0 -1 -6 -11 -18 -27

NW250

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -4 -2 1 -2 -6 -9 -16 -25

Size 315

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -1 0 1 -2 -5 -9 -16 -27

Differential pressure range: 0 - 300 Pa
Air velocity: 0.5 - 5.0 m/s
KL= correction value; relative sound power level, relative to LWA
KLW = LWA + {KL}

C A L C U L A T I O N E X A M P L E

VLV65 design data

NW 200 mm | V=545 m³/h |
p=100 Pa | L

Hz 63 125 250 500 1000 2000 4000 8000
KL -5 -3 0 -1 -6 -11 -18 -27

Sound values calculated according to formula

K

LW(relativ)

gives

Hz 63 125 250 500 1000 2000 4000 8000
LWA 60 60 60 60 60 60 60 60
KL -5 -3 0 -1 -6 -11 -18 -27
KLW 55 57 60 59 54 49 42 33

= 60 dB(A)

WA

= LWA + {KL}

Construction subject to change
No return possible Version: 2017-04-24 | Page 13

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV65 - Radiated noise |

VLV65 - RADIATED NOISE

VLV65

NW

VK

(m/s)

V

(m3/h) V [l/s]

1 26 7

3 79 22

100

5 130 35

8 210 58

1 42

3 125 35

125

5 210 60

8 334 93

1 69

3 208 58

160

5 345 95

8 554 154

1 109 30

3 328 91

200

5 545 150

8 874 243

1 172 48

3 515 143

250

5 860 240

8 1374 382

1 274

3 823 229

315

5 1370 380

8 2195 610

--- = values below 25 dB(A)

12

19

76

∆pt = 50 Pa

[dB(A)]

L

WA

∆p

= 100 Pa

t

[dB(A)]

L

WA

--- ---

--- ---

--- 25

--- ---

--- ---

--- ---

--- 30

--- 38

--- ---

--- 33

--- 39

--- 44

--- 25

--- 35

--- 38

--- 43

--- 26

--- 37

--- 40

--- 45

--- 26

--- 38

--- 40

--- 47

∆p

= 150 Pa

t

L

WA

[dB(A)]

∆p

= 200 Pa

t

[dB(A)]

L

WA

∆p

= 250 Pa

t

[dB(A)]

L

WA

--- --- ---

26 28 30

30 32 35

35 39 40

--- --- ---

26 29 30

33 34 36

40 41 42

25 28 31

36 38 40

41 43 45

46 47 48

29 32 34

38 40 42

42 44 46

46 48 50

30 34 36

40 42 44

43 45 47

47 49 51

29 35 38

42 42 44

44 44 47

50 50 51

Construction subject to change
No return possible Version: 2017-04-24 | Page 14

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

VLV65 - Radiated noise - relative sound spectrum |

VLV65 - RADIATED NOISE - RELATIVE SOUND SPECTRUM

NW100

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 1 0 -8 -6 -5 -5 -10 -13

NW125

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 2 1 -5 -2 -8 -7 -9 -12

Size 160

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 0 -1 -6 -4 -7 -7 -8 -10

NW200

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 0 -2 -6 -4 -7 -7 -7 -11

NW250

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL -1 -2 -5 -6 -9 -6 -7 -12

Size 315

Relative sound spectrum (dB)

Correction value KL

Frequency (Hz)

Hz 63 125 250 500 1000 2000 4000 8000

KL 0 -2 -2 -6 -8 -6 -7 -19

Differential pressure range: 0-300 Pa
Air velocity: 0.5 – 5.0 m/s
KL= correction value; relative sound power level, relative to LWA
KLW = LWA + {KL}

C A L C U L A T I O N E X A M P L E

VLV65 design data

NW 200 mm | V=545 m³/h |
p=100 Pa | LWA = 38 dB(A)

Hz 63 125 250 500 1000 2000 4000 8000
KL 0 -2 -6 -4 -7 -7 -7 -11

Sound values calculated according to formula

K

gives

= LWA + {KL}

LW(relativ)

Hz 63 125 250 500 1000 2000 4000 8000
LWA 38 38 38 38 38 38 38 38
KL 0 -2 -6 -4 -7 -7 -7 -11
KLW 38 36 32 34 31 31 31 27

Construction subject to change
No return possible Version: 2017-04-24 | Page 15

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Duct silencer (-RS) - insertion loss |

DUCT SILENCER (-RS) - INSERTION LOSS

L1=500

(dB/Okt)

D

P=50 - f

125

250

m

500

NW

63

100 3 6 10 16 22 30 14 13 5 13 15 19 33 31 25 15

125 3 5 9 14 20 24 12 11 4 10 13 18 29 25 18 12

160 2 4 7 12 18 19 10 9 3 9 11 16 26 19 14 10

200 1 3 6 10 16 15 7 6 3 7 9 15 25 17 11 9

250 1 2 4 9 15 11 4 3 2 6 8 14 23 15 9 7

315 1 1 3 8 12 8 3 2 2 4 7 13 20 12 7 5

e

(Hz) P=100 - fm (Hz)

63

125

250

500

1000

2000

4000

8000

1000

2000

L1=950

(dB/Okt)

D

P=50 - f

125

250

m

500

NW

63

100 5 12 23 36 50 50 34 21 7 19 28 40 50 50 50 32

e

(Hz) P=100 - fm (Hz)

63

125

250

500

1000

2000

4000

8000

1000

2000

L1=1450

(dB/Okt)

D

P=50 - f

250

m

500

NW

63

4000

8000

100 8 22 44 50 50 50 46 28 - - - - - - - -

125 7 20 39 50 50 50 39 25 - - - - - - - -

160 6 14 27 42 48 42 26 18 6 17 30 47 50 49 30 18

200 4 6 15 29 42 30 17 14 5 14 26 42 50 46 28 16

250 3 4 10 20 37 24 13 11 4 12 22 36 46 43 25 14

315 2 4 8 16 34 19 10 7 2 8 15 27 35 32 17 9

125

e

(Hz) P=100 - fm (Hz)

63

125

250

500

1000

2000

4000

8000

1000

2000

4000

8000

L1=1950

(dB/Okt)

D

P=50 - f

250

m

500

NW

63

4000

8000

100 9 30 50 50 50 50 50 38 - - - - - - - -

125

e

(Hz) P=100 - fm (Hz)

63

125

250

500

1000

2000

4000

8000

1000

2000

4000

8000

125 4 11 21 33 50 50 32 19 6 17 25 34 49 50 36 22

160 3 8 15 23 34 9 18 14 5 12 18 28 41 48 26 16

200 2 5 11 18 30 24 14 11 4 10 15 24 35 41 22 13

250 2 4 9 15 27 18 11 9 3 8 13 20 31 35 20 11

315 1 3 6 12 24 14 7 6 2 6 8 15 26 7 14 8

P = packing thickness in mm

125 8 26 50 50 50 50 50 33 - - - - - - - -

160 - - - - - - - - 8 23 39 50 50 50 41 25

200 - - - - - - - - 7 19 34 50 50 50 37 21

250 - - - - - - - - 6 16 29 48 50 49 33 18

315 - - - - - - - - - - - - - - - -

Construction subject to change
No return possible Version: 2017-04-24 | Page 16

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Controller selection | Technical data of control components

control to a minimum volumetric flow

V

CONTROLLER SELECTION

Type Size Controller Product

LMV-D3-MP NW100 - 315 Compact Belimo

LMV-D3-MF NW100 - 315 Compact Belimo

227VM-024-05 NW100 - 315 Compact Gruner

Other controllers available on request. Make Belimo,
Gruner, Sauter, Siemens and Delta Controls possible.

TECHNICAL DATA OF CONTROL COMPONENTS

Measured value collection and control function

The volumetric flow controllers of the Belimo make, type LMV­D3-MP/-MF Compact and the Gruner make, type 227VM Com­pact are delivered by SCHAKO as standard with the operating
mode (Y signal, U5 signal) 2-10 V DC. When activated by 2 V DC,

volume is controlled, the smallest possible V

the V

min

that can be controlled can be seen from the "Volumetric Flow
Range" tables.

NOTE: When the air volume drops below the V

min

table, the correct functioning of the volumetric flow controller
is no longer guaranteed!

Positive control damper "CLOSED"

Airtight sealing to DIN EN 1751 is achieved on site either via a
positive control "CLOSED" by means of a switch or a relay, or
via an actuator signal of 0 V DC applied to the input Y (all Com­pact controllers equipped with the operating mode 2-10V DC).
Accordingly, the drive will likewise close the flap in operating
range 2 - 10 V DC (however, this does not apply to the operat­ing range 0-10 V DC), and the VAV control will be inactive. To
do so, it must be ensured that the actuator signal is < 0.1 V DC.
This is why in rooms where defined pressures are active (e.g. la­boratories), the damper should be closed via a digital on site
switching contact.

If the Compact controllers of the Belimo make must be deliv­ered with the operating mode 0-10V DC on customer request,
please note that a positive control "CLOSED" can only be ef­fected via a switching contact with diode.

If the compact controllers of the Belimo make are used to­gether with the type VRP-VFP-300 in the master/slave mode or
in parallel mode, then only the 2-10 V DC operating mode is
usually possible.

Positive control damper "OPEN"

Supports smoke extraction or is used as a safety position. The
volumetric flow controller is in this case inactive, and the
damper is driven to the mechanical open position.

volume

min

shown in the

min

Depending on requirement or by not assigning them, individual
areas can be set to stand-by operation. In this way, minimum
room flushing with greatly reduced energy expenditure is
achieved.

V

control to a maximum volumetric flow

max

Individual or several rooms are supplied for a short period with
a maximum volumetric flow. This allows, for example, a room
through-ventilation or efficient heating to be effected.

Continuous operation

As a function of the continuous driving signal and the pro­grammed operating range (0-10 V DC or 2-10 V DC), the volu­metric flow controller will regulate the volumetric flow linearly

...V

between the setpoint values V

min

max

.

Constant operation

If terminal 3 (Y driving signal) has not been assigned, the air vol­ume set on the V

potentiometer will be set to a constant vol-

min

ume.

Two-stage volumetric flow rate control

Stage 1: If terminal 3 (Y command signal) has not been

assigned, the air volume set on the V

potenti-

min

ometer will be set to a constant volume.

Stage 2: If AC 24 V is applied to terminal 3 (Compact con-

troller) or terminal 7 (VRD3-SO, VRP-VFP-300),
the VSR will keep the value set on the V

max

po­tentiometer constant. With a switch or a contact
in a connection line a "secondary volume flow
control" is possible.

Construction subject to change
No return possible Version: 2017-04-24 | Page 17

VLV55|VLV65 - Volumetric flow controller

}

TECHNICAL DOCUMENTATION

Circuit diagrams - Belimo |

CIRCUIT DIAGRAMS - BELIMO

Circuit diagram - standard - controller
Compact controller - Belimo make - LMV-D3-MP / LMV-D3-MF

VAV with analogue command signal VAV with lock (CLOSED) MP bus activation with integrated

DC
AC

switch- Model 2-10V DC (LMV-D3-MP only)

DC
AC

VAV command signal

DC
AC

VAV command signal

on site

Cable designations

CLOS

ED
MP / actual value sig­nal

PC tool

No. Designation Wire colour Function

1

2

3

5

-

black

〦

+ ~ red ~ + AC/DC 24 V

Y white VAV / CAV command signal

U orange - Actual value signal

〦

CLOSED / VAV mode

VAV

switchover

MP / actual value sig­nal

on site

-

- MP bus connection

PC tool

Feed

e.g.
window
contact

MP address:
1…8

on site

PC tool

Lock mode (CLOSED): In the 2…10 V
mode, the following function can be car­ried out with a 0 - 10 V signal.

Com-

nal Y

Volumetric

flow

Operating stage

min

... V

min

mand sig-

< 0.1 V ** 0 Damper CLOSED,

0.2...2 V V

2...10 V V

Function

VAV control inac-

tive

active

V

min

continuous opera-

max

tion

v

... V

min

max

**Attention: Controller/DDC must be able
to pull the command signal to 0 V.

Construction subject to change
No return possible Version: 2017-04-24 | Page 18

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Circuit diagrams - Belimo |

CAV operation / positive contacts CAV function for …-MV-D3-MP/-MF

DC

AC

VAV command signal

MP / actual value sig­nal

on site

Note:
Please ensure mutual locking
of the contacts!

PC tool

Mode

setting

Signal

Function 33 3 3 3

Damper
CLOSED

V

...V

min

max

CAV - V

min

Damper OPEN e) OPEN*

CAV - V

max

--- 0...10 V 0...10 V

2...10 V 2...10 V 2...10 V

0...10 V

⊥

- 2...10 V +

a) CLOSED c) CLOSED*

b) VAV

everything open - V

∼

Contact closed, function active
Contact closed, function active, in mode 2...10 V only
Contact open
* not available for 24 V DC supply

min

0...10

0...10 V

V

2...10

2...10 V

V

∼

active

d) V

max

∼

Construction subject to change
No return possible Version: 2017-04-24 | Page 19

VLV55|VLV65 - Volumetric flow controller

)

TECHNICAL DOCUMENTATION

Circuit diagrams - Belimo |

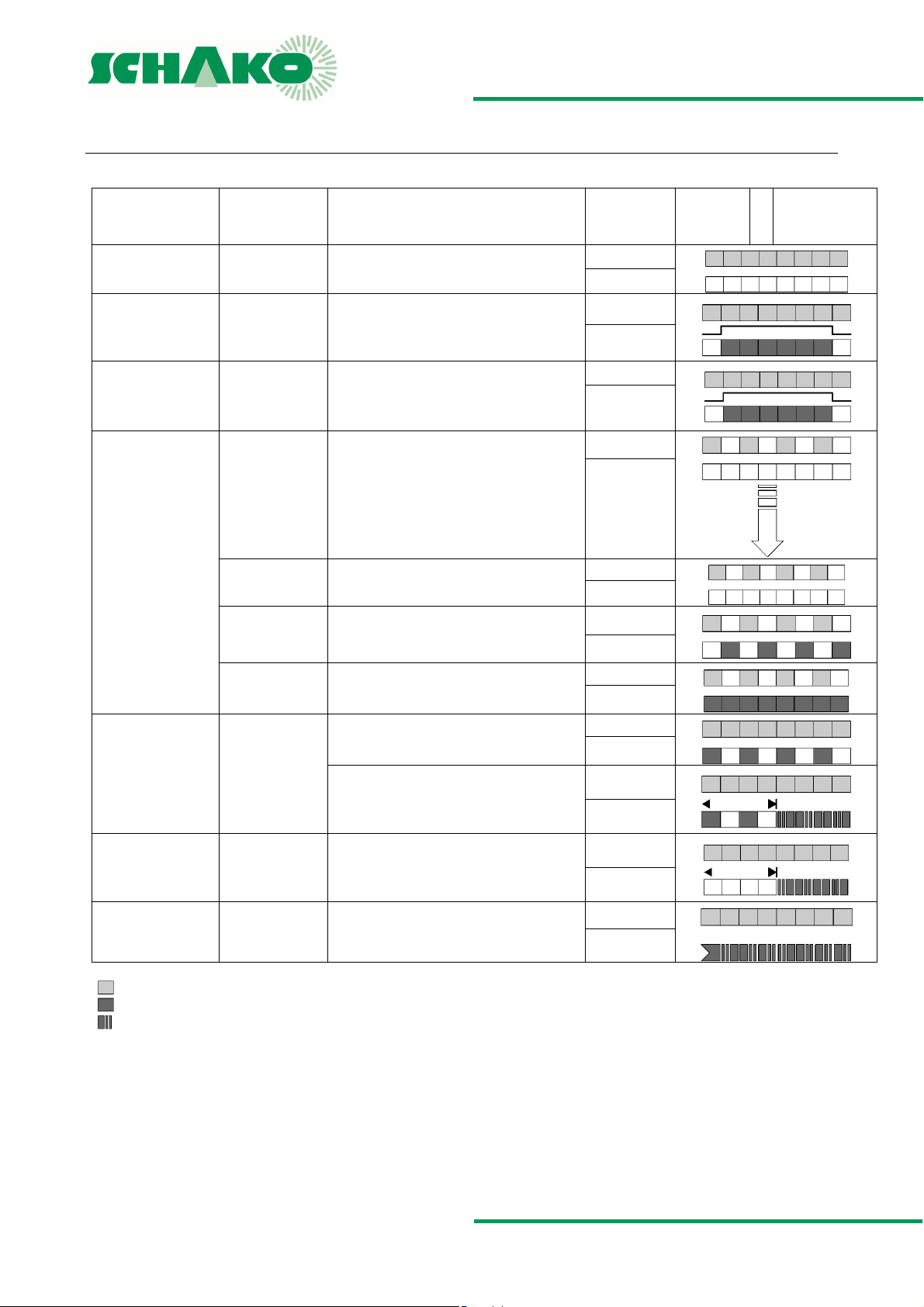

LED table of functions for LMV-D3-MP / LMV-D3-MF

Application

N1 operation Status display - 24 V power supply o.k.

S1 service function Synchronisation Synchronisation started by:

S2 service function Adaptation Adaptation started by:

Function

Description / action

- VAV-Compact ready for operation

a) Operating / service unit
b) Manual trigger device at the VAV-Compact
c) Power ON behaviour

a) Operating / service unit
b) Key on the VAV-Compact

LED pattern

LED 1

LED 2

LED 1

LED 2

LED 1

LED 2

Adaptation
Address

Start

Start

⊕

LED 1 power
LED 2 status

⊕

1.) →

→

2.

V1 VAV service VAV service

B1 bus operation Addressing via MP

B2 bus operation Addressing via MP

B3 bus operation
communication

active

Lack of air Damper opens as actual volume is too low LED 1

Target volume
reached

Air excess Damper closes as actual volume is too high LED 1

master
(Acknowledge­ment at the VAV­Compact)

master (with se­rial number)

MP-PP display
Communication

green LED (power) is lit
yellow LED (status) is lit
yellow LED (status) is flashing

1.) Synch time

2.) Adaptation time

a) Press both keys «Adaptation» & «Address»
simultaneously
b) VAV service will be activated:

- until 24 V supply is switched off

- until both keys are pressed
again

- after 2 hours have passed

Control circuit balanced

a) Addressing has been triggered at the MP
master

b) Press addressing key
LED will switch to the communication display
as soon as the addressing process is complete.

Addressing at the MP master was triggered, LED
will switch to the communication display as soon
as the addressing process is complete.

Communication display via MP master or oper­ating / service unit

LED 1

LED 2

LED 2

LED 1

LED 2

LED 2

LED 1

LED 2

LED 1

LED 2

LED 1

LED 2

LED 1

LED 2

On event

Not address.

MP communication

MP communication

MP communication

Construction subject to change
No return possible Version: 2017-04-24 | Page 20

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Circuit diagrams - Gruner |

CIRCUIT DIAGRAMS - GRUNER

227VM-024-05 Compact

Connection diagram and positive control

Connection

Edit

The selector value allows values to be changed. The position of
the arrow shows the set value. The changes are displayed as
soon as the selector is moved ± 10 ° out of its position.

Flow / Unit

To set the required actual volumetric flow unit
in m3/h and l/s.

V

min

To set the required min. volumetric flow
(setpoint value Y = 0V / 2V)

V

max

To set the required max. volumetric flow
(setpoint value Y = 10V).

Mode (to set the direction of rotation)
0-n…0-10 V normal
2-n…2-10 V normal
0-i…0-10 V inverse
2-i…2-10 V inverse

Diag (diagnostics menu)
oP - opens the damper blade
cL - closes the damper blade
Hi - activates Vmax
Lo - activates Vmin
on - diagnostic mode is on, motor is off
oFF - diagnostic mode is off, display Y setpoint

V

nom

To set the volumetric flow according to VAV box

NOTE
Further information can be found in the GRUNER technical doc­umentation:
Data sheet 227VM-024-05

Construction subject to change
No return possible Version: 2017-04-24 | Page 21

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Setting the operating potentiometers |

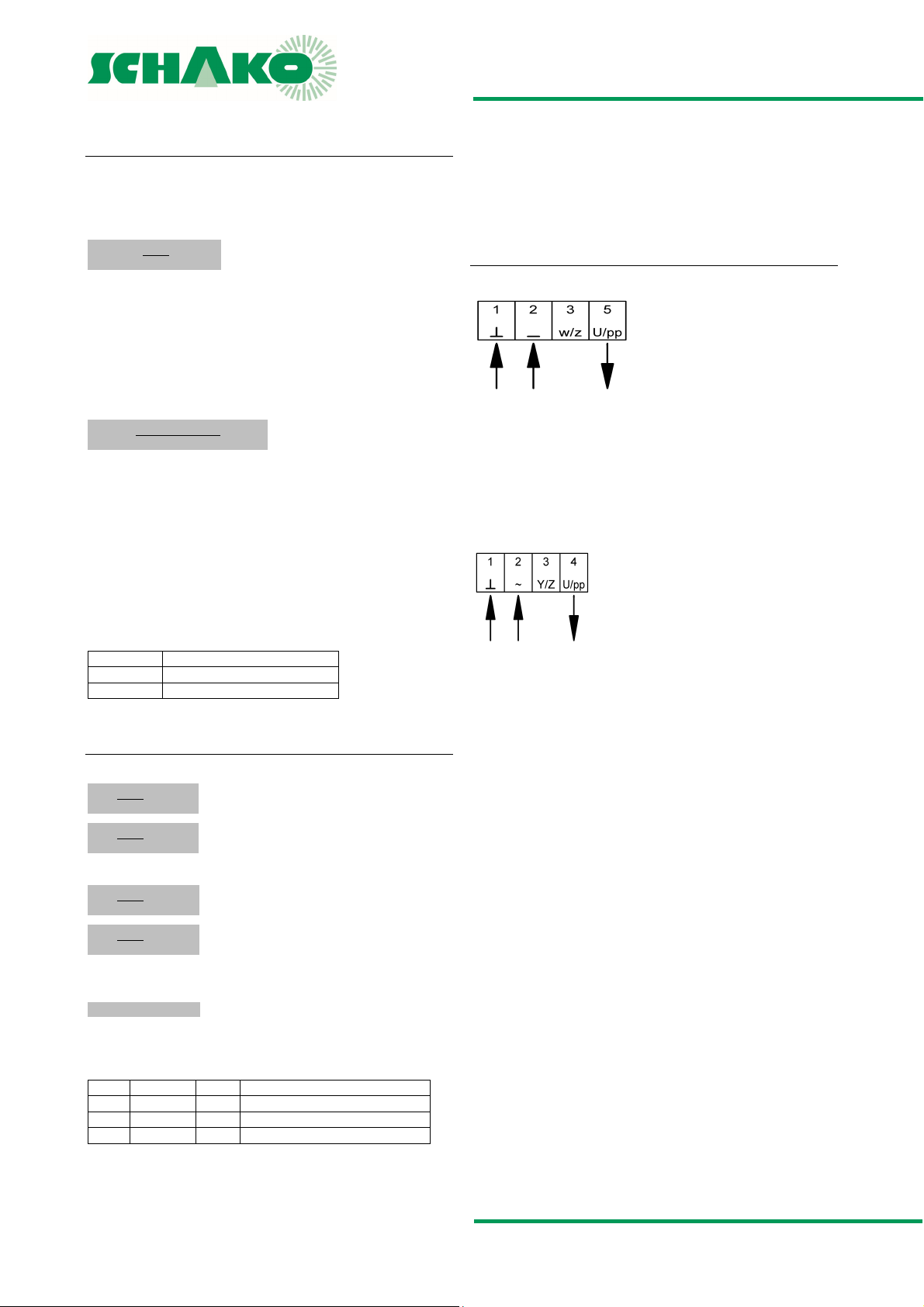

SETTING THE OPERATING POTENTIOMETERS

with calculation formulas

Set value for V

EW

V

max

The required volumetric flow that is to flow at the 10 V DC com­mand signal at terminal 3 (w/Y) or with positive control V
set in % at the V
device or PC-Tool. This value refers to the set V
umetric flow.

Set value for V

EW

=

V

min

The required volumetric flow that is to flow at the 0 V DC com­mand signal (operating mode 0-10 V DC) or at the 2 V DC driv­ing signal (operating mode 2 - 10 V DC) at terminal 3 (wY) or
with positive control V
of the controller, the ZTH EU device or PC-Tool. This value re­fers to the set V
troller type).

Information regarding the set value V

in the following controllers, V

Product Type

Belimo LMV-D3-MP/LMV-D3-MF
Gruner 227VM-024-05

Calculation of the U5 voltage value

=

V

V

V

nenn

max

nenn

max

x 100 % 

potentiometer of the controller, the ZTH EU

max

nenn

min

V

min

V

nenn

x 100% 



max

is set in % at the V

min

or V

volumetric flow (depending on con-

max

refers to V

min

min

nenn

min

:

potentiometer

is

max

nominal vol-

Actual value measurement feedback signal U

: voltme-

5

ter / PC-Tool

LMV-D3-MP / LMV-D3-MF

Supply voltage: 24 V AC/DC (terminals 1+2)
Measurement output 2 - 10 V DC (terminals 1+5)
Measurement output 0 - 10 V DC (terminals 1+5)

The actual value signal U5 is a real feedback of the volumetric
flow actual value for monitoring and controlling the air
throughput volume.

227VM-024-05

Supply voltage: 24 V AC/DC (terminals 1+2)
Measurement output 2 - 10 V DC (terminals 1+4)
Measurement output 0 - 10 V DC (terminals 1+4)

Operating mode: 2 - 10 V DC:

V

max

U5=

U5=

V

nenn

V

min

V

nenn

x 8V+2V

x 8V+2V

V

V

max

min

values

values

Operating mode: 0 - 10 V DC:

V

max

U5=

U5=

Calculation of the V

V

x 10V

V

nenn

V

min

x 10V

V

nenn

= EK x F x 3600

nenn

values

V

max

V

values

min

volumetric flow

nenn

Attention

The V

value changes as a function of the set calibration curve.

nenn

EW (%) = Set value
EK (m/s) = Calibration curve
U

(V DC) = U5 signal

5

F (m2) = Surface

Construction subject to change
No return possible Version: 2017-04-24 | Page 22

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Setting the operating potentiometers |

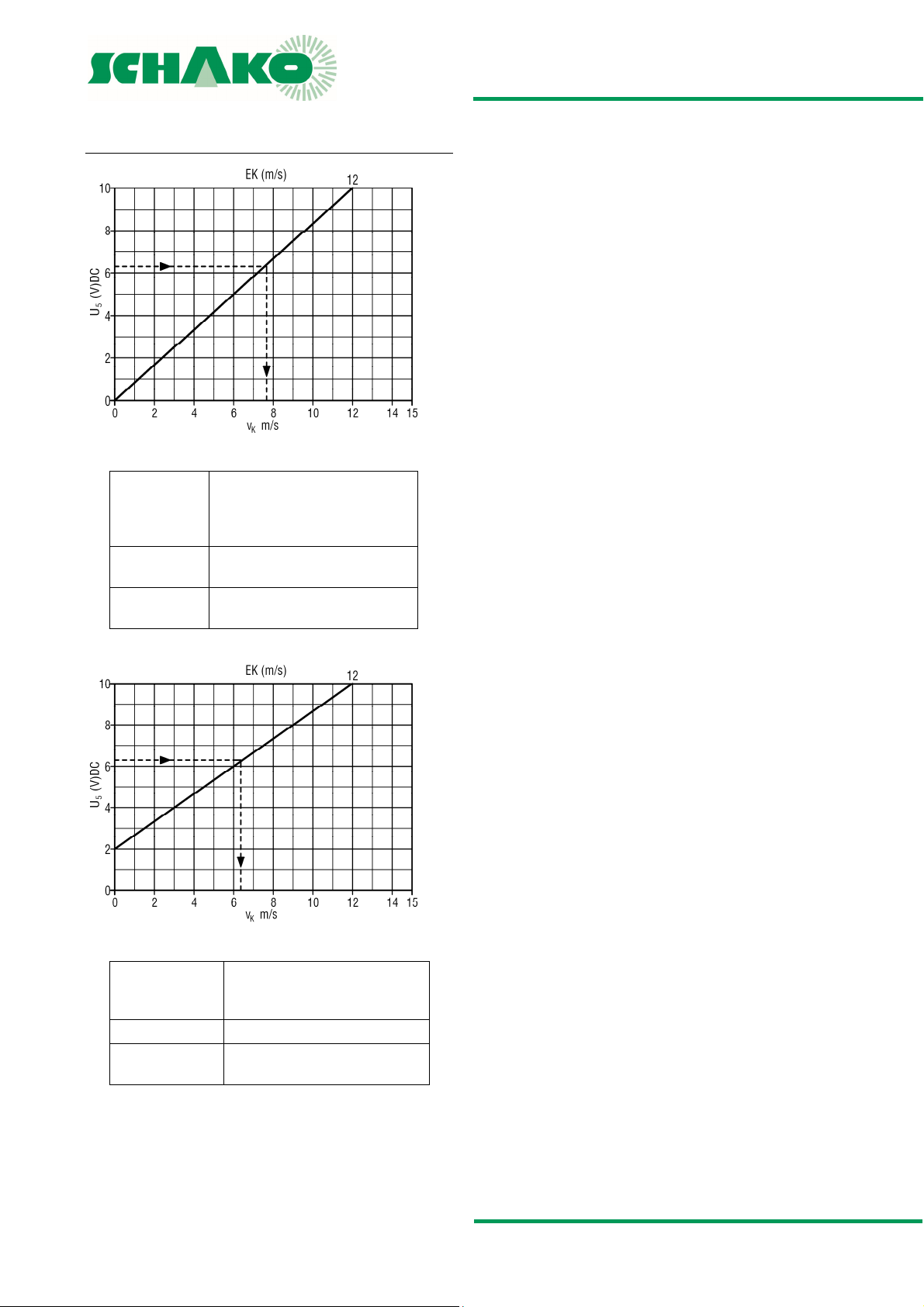

U5 signal 0-10 V DC

Example

Assume: Measurement output signal U5 =

6.3 V DC
see calibration value VRA-E = 12
m/sec

Measured va­lue:

Air volume: Duct velocity x area m² x 3600 =

Duct velocity = 7.6 m/s

m³/h

U5 signal 2-10 V DC

Example

Assume: Measurement output signal U5 =

6.3 V DC see calibration value
VRA-E = 12 m/sec

Measured value: Duct velocity = 3.6 m/s

Air volume: Duct velocity x area m² x 3600 =

m³/h

Construction subject to change
No return possible Version: 2017-04-24 | Page 23

VLV55|VLV65 - Volumetric flow controller

°

TECHNICAL DOCUMENTATION

Technical data of controllers and motors |

TECHNICAL DATA OF CONTROLLERS AND
MOTORS

Controller standard

LMV-D3-MP (make BELIMO)

Dynamic pressure sensor, digital VAV controller and damper drive as
communication-capable VAV-Compact solution.

Measuring principle: Pressure reading with volumetric flow
Measuring range sen­sor:
Supply voltage: AC 24 V 50/60 Hz; DC 24 V
Functional range: AC 19.2…28.8 V; DC 21.6…28.8 V
Power consumption: 2 W
Dimensioning: 3.5 VA
Torque: min. 5 Nm at the rated voltage
Control function: VAV/CAV/Open-Loop;

Setting range
V

:

min/Vmax

Command variable
w/Y:
(Input resistance min.
100 kΩ)

Setting range
Actual value signal U
MP bus function
Address
in bus mode:
LONWORKS®/EIB­Konnex/MODBUS
RTU/BACnet:
DDC controller: DDC controller / PLC from different manu-

Fan Optimiser: with BELIMO Optimiser COU24-A-MP
Sensor connection: Passive (Pt1000, Ni1000, etc.) and active

Protection class: III (safety extra low voltage)
Protection type: IP 54 (hose-connected)
EMC: CE according to 39/336/EEC
Measuring air and
ambient tempera­tures:
Storage temperature: -20 °C… + 80 °C
Sound power level: max. 35 dB(A)
Operation and ser­vice:
Communication: PP/MP bus, max. DC 15V, 1200 baud
Connection: cable, 4x0.75 mm2, terminals
Weight: approx. 500 g

2…∼450 PA

Supply/return air or stand-alone opera­tion;
master/slave parallel circuit;
Mixing box control

=0…100% of set V

V

min

V

=20…100% of set V

max

DC 2-10 V (4…20mA with 500 Ω
input resistance)
DC 0-10 V (0…20mA with 500 Ω
input resistance)
adjustable DC 0…10 V
DC 2…10 V

:

DC 0…10 V

5

1 … 8 (standard operation: PP)

with BELIMO interface UK24LON /
UK24EIB, 1 …8 BELIMO MP devices (VAV /
damper drive / valve)

facturers, with integrated MP interface

sensors (0…10 V), for example tempera­ture, humidity, 2-point signal (switching
power 16 mA 24 V), for example switch,
presence detector

0° C…+50 °C, 5…95% rH,
non-condensing

plug-in via service socket / PC-Tool
(from V3.1) / ZTH EU

volumetric flow

nenn

volumetric flow

nenn

LMV-D3-MF (make BELIMO)

Dynamic pressure sensor, digital actuator as VAV-Compact solution

Measuring principle: Pressure reading with volumetric flow
Measuring range sen­sor:
Supply voltage: AC 24 V 50/60 Hz; DC 24 V
Functional range: AC 19.2…28.8 V; DC 21.6…28.8 V
Power consumption: 2 W
Dimensioning: 3.5 VA
Torque: min. 5 Nm at the rated voltage
Control function: VAV/CAV/Open-Loop;

Setting range

:

V

min/Vmax

Command variable
w/Y:
(Input resistance min.
100 kΩ)

Setting range
actual value signal U
Sensor connection: Passive (Pt1000, Ni1000, etc.) and active sensors

Protection class: III (safety extra low voltage)
Protection type: IP 54 (hose-connected)
EMC: CE according to 39/336/EEC
Measuring air and
ambient tempera­tures:
Storage temperature: -20°C…+80 °C
Sound power level: max. 35dB(A)
Operation and ser­vice:
Communication: PP, max. DC 15 V, 1200 baud
Connection: cable, 4x0.75 mm2, terminals
Weight: approx. 500 g

2…∼450 PA

Supply/return air or stand-alone operation;
master/slave parallel circuit;
Mixing box control
V

=0…100 % of set V

min

=20…100 % of set V

V

max

DC 2-10 V (4…20 mA with 500 Ω
input resistance)
DC 0-10 V (0…20 mA with 500 Ω
input resistance)
adjustable DC 0…10 V
DC 2…10 V

:

DC 0…10 V

5

(0…10 V), for example temperature, humidity, 2­point signal (switching power 16 mA 24 V), for
example switch, presence detector

C…+50° C, 5…95 % rH, non-condensing

0

plug-in via service socket / PC-Tool
(from V3.1) / ZTH EU

volumetric flow

nenn

volumetric flow

nenn

Construction subject to change
No return possible Version: 2017-04-24 | Page 24

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Technical data of controllers and motors |

227VM-024-05 (make GRUNER)
Dynamic pressure sensor, digital VAV controller and damper
drive as communication-capable VAV-Compact solution.

Measuring principle: Pressure reading with volumetric flow

Measuring range sen­sor:
Supply voltage: AC 24 V 50/60 Hz, DC 24 V

Functional range: AC 19…29 V, DC 19…29 V

Power consumption: 2.5 W (5 Nm)

Dimensioning: 4.0 VA (5 Nm)

Torque: min. 5 Nm at the rated voltage

Control function: VAV/CAV

Setting range:

to V

max

V

min

Command variable Y/Z
(inherent resistance

min. 100 kΩ

)

Setting range:

(actual value signal

U/PP)
DCC controller: DCC controller or PLC

Sensor integration: passive or active sensor (0-10 V)

Protection class: III (Safety extra low voltage)

Protection type: IP54 (measuring hoses connected)

Measuring air and
ambient temperature

Storage temperature: -20 °C to +80 °C

Sound power level: <35 dB(A)

Operation and service: using the display by means of a screw-

Connection: cable 1000 mm, 4 x 0.75 mm

Dimensions:: 115 x 65 x 61 mm

Weight: approx. 435 g

Maintenance: maintenance-free

0…∼250 PA
(bursting pressure 1 bar)

(10 Nm, 15 Nm, optional)

Supply/return air or stand-alone opera­tion;
master/slave parallel circuit
V

=0…100% of V

min

V

=0…100% of V

max

V

=0…100% of V

konst.

nom

nom

nom

DC 0-10 V (0-20 mA min. 500 Ω
inherent resistance)
DC 2-10 V (4-20 mA min. 500 Ω
inherent resistance)
DC 0-10 V
DC 2-10 V

for example, humidity, temperature
2-point signal (switching power 16 mA
24 V), for example switch, motion detec­tor

0-70 °C (medium), 5-95 °C relative
0-50 °C (environment), humidity
non-condensing

driver directly at the device or via the
feedback signal with
PC software

2

(halogen-free), terminals

Construction subject to change
No return possible Version: 2017-04-24 | Page 25

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Startup using PC-Tool |

STARTUP USING PC-TOOL

Direct connection to switch cabinet or socket
(traditional application)

ZTH EU as MP level converter

Description

The ZTH EU is also a potential-free interface between the USB
port of a PC and the Belimo MP bus. It is used to connect the
Belimo PC-Tool directly to the MP bus or directly to a program­mable MFT drive.

Power supply

The ZTH EU is supplied with power by the USB port. The MP bus
voltage is obtained internally by means of DC/DC converter.
This is why no external power supply is necessary.

Driver

To be able to work with the ZTH EU, a suitable driver must be
installed on the PC. The driver can be downloaded from the
Belimo website (download section). After installation of the
driver, the ZTH EU device will log in to the PC as a virtual COM
interface.

Note

For connection to USB ports of PCs and BELIMO 24 V drives
only (to safety extra low voltage SELV or US class 2 feeds)

Connection diagram 1

…A-MF
…A-MP
…D3-MP
…ALON
…D3LON

Local connection via a service socket of the MF/MP or LON
drive using a ZK1-GEN cable.

Connection diagram 2

1.)

…MFT(2)
A-AF
…A-MP
…D3-MP

…LON
…ALON
…D3LON

Local connection via a connecting cable of the MF/MP or LON
drive using a ZK2-GEn cable.

1.) white = GND
green = MP
blue = not connected

Construction subject to change
No return possible Version: 2017-04-24 | Page 26

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Startup using the setting and diagnostic device ZTH EU (Belimo) |

STARTUP USING THE SETTING AND
DIAGNOSTIC DEVICE ZTH EU (BELIMO)

Keys / Display

Short description

The VAV setting device ZTH EU allows efficient testing of VAV
and CAV installations. Installations fitted with the Belimo VAV
controller can be simply adapted to the room and user require­ments. The VAV setting device ZTH EU replaces the previous
setting device ZTH-GEN (2007-2014).

All standard Belimo VAV controllers with integrated PP commu­nication (from 1992) that are sold in the EU can be set using the
ZTH EU.

Specifications

 easy, quick setting of the VAV boxes parameters
 diagnostic function
 one tool for all VAV units
 voltage supplied by VAV controllers - no batteries required!
 service socket VAV / CR24 controller, PP connection
 includes connecting cable RJ12 6/4, 6-pin plug
 New generation, MP bus tester
 for functional test of MP bus
 backward compatible with all Belimo PP / MP units from

1992

 efficient handling, can be operated with one hand
 Selection of stages for test (OPEN/CLOSE/MIN/MAX/STOP)
 Damper position indicator for diagnostics
 Display of the setpoint / actual volume and V

m³/s (l/s).

min/max

setting in

2 x 16-digit LCD with background lighting

Forwards / Backwards

Change value / status
OK Confirm input
ESC Cancel input /

i shows additional information if available

Connection

Locally via service socket

Dimensions

85x65x23 (WxHxD)

Leave submenu / Discard changes

Connection and supply

Stand-alone operation

Connection including supply takes place via the service socket
at the VAV controller or via the terminals.

Bus operation

The ZTH EU can be used in the following units while the bus is
running if it is connected via the local service socket: VAV­Compact L/N/SMV-D3-MP, NMVAX-D3-MP, L/NMV-D3LON.

With the VRP-M, L/NMV-D3-M and NMVAX-D3-MP, the MP-Bus
must be disconnected when the service socket is used.

Restriction

Direct connection in an MP network or via an MP-Bus master is
not possible.

The ZTH EU comes with a quick start guide in German and Eng­lish to be affixed to the back of the unit.

Construction subject to change
No return possible Version: 2017-04-24 | Page 27

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Startup using the setting device GUIV-A | Smartphone app - Belimo Assistant

STARTUP USING THE SETTING DEVICE GUIV-A

SMARTPHONE APP - BELIMO ASSISTANT

Application

The setting device GUIV-A is used by the startup or service per­sonnel in order to carry out simple settings to the equipment or
to check the actual values.
The controller type 227VM does not have any operating ele­ments such as switches or setpoint potentiometers. To program
the operating modes and the operating parameters V
V

, the setting device GUIV-A is required, which can also be

max

min

and

used to switch from 2 - 10 V DC to 0 - 10 V DC.

Connection

The GUIV-A can be connected electrically to 227 V via the U/PP
connection by direct on site or remote control, for example in a
switch cabinet.

Structure and operation

The relevant parameters can be set and queried in the individ­ual menu items, while the operating parameters programmed
in-factory can be queried under menu item 10.

Note

As long as the U/PP connector is connected to the GUIV-A, the
output signal U does not correspond to the actual value.

Connection diagram

The NFC antenna area of the VAV Compact is located between
the Belimo or OEM logo and the NFC label.
Align NFC-capable android smartphone with loaded Assistant
app on the VAV-Compact such that the two antennae are
above one another.

The Belimo Assistant app can be downloaded from the Google
Play Store.

NFC-capable devices:

- LMV-D3-MP, NMV-D3-MP, SMV-D3-MP and LHV-D3-MP with

printed NFC label.

Non-NFC-capable devices

- All devices without NFC label

- LMV-D3-MF

- LMV-D3-LON and NMV-D3-LON

1 Earth, neutral
2 Supply voltage 24 V AC
3 Setpoint value signal Y and positive control Z input 227VM,

GUAC

4 Output communication signal PP and actual volumetric flow

U

Construction subject to change
No return possible Version: 2017-04-24 | Page 28

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Prior to assembly and commissioning | Legend

PRIOR TO ASSEMBLY AND COMMISSIONING

LEGEND

An instruction leaflet containing
information on safety, transport dis­posal, installation
commissioning and maintenance is
enclosed with each SCHAKO prod­uct.
For safety reasons, this instruction
leaflet must

e read under all circumstances and

completely adhered to.

These devices are NOT suitable for use in zones where there is
a risk of explosion according to ATEX 94/9/EC. The operating
safety of the devices is only guaranteed when used in accord­ance with their designated use.

Disposal

The devices have been prepared in accordance with the RoHS
directive restricting the use of certain hazardous substances in
electrical and electronic equipment (2002/95/EC). After its final
decommissioning, the volumetric flow controller must be
properly disposed of.

INSTALLATION INFORMATION

De [dB/Okt] = Insertion loss
EK (m/s) = Calibration curve
fm (Hz) = Octave band centre frequency
V

(m³/h) [l/s] = Minimum volumetric flow

min

V

(m³/h) [l/s] = Maximum volumetric flow

max

Hz (fm) = Hertz
KL (-) = Correction value; relative

sound power level, relative to LWA

(-)

K

Lw

LOA (-) = Number of holes in flat flange
P (mm) = Packing thickness duct silencer
NW (mm) = Nominal width
U

5

V (m3/h) [l/s] = Air volume
V [%] = Tolerance for the volumetric flow setpoint

vK (m/s) = Duct velocity
øD (-) = Hydraulic diameter

∆p (Pa) = Pressure difference
∆p
∆pt (Pa) = Pressure loss

(V) DC = Measurement output (electric voltage)

(Pa) = Minimum static pressure difference

t min

= Relative sound spectrum

value

Installation and commissioning

 Installation with horizontal or vertical damper axle possible
 position-independent
 direct connection to moulded parts, such as bend or T-piece

possible

MAINTENANCE AND SERVICE

Service and maintenance instructions

 Assemble in a way to allow inspection
 maintenance-free, as there is no wear
 not suitable for air containing sticky and oily particles
 For maintenance, service, retrofitting, etc., inspection open-

ings in sufficient number and size must be provided on site.

Construction subject to change
No return possible Version: 2017-04-24 | Page 29

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Order code |

ORDER CODE

01 02 03 04 05 06 07 08

Type Size Material

Example

VLV55 -100 -SV -A001 -0 0020 -0100 -GD1

VLV65 -200 -DD -A061 -2 0150 -0600 -MF1

SAMPLE – VLV55

VLV55-100-SV-A001-0020-0100-GD1

Volumetric flow controller type VLV55, size 100 mm, galvanised
sheet steel, with compact controller Belimo LMV-D3-MP-SO,
mode 0 - 10 V, setting values 20 - 100 m³/h, with rubber lip seal

ORDER DETAILS

01 - Type

VLV55 = version with diameter ratio 55, 0.5 - 5 m/s
VLV65 = version with diameter ratio 65, 1 - 8 m/s (STANDARD)

02 - Size

100 = NW 100 mm
125 = NW 125 mm
160 = NW 160 mm
200 = NW 200 mm
250 = NW 250 mm
315 = NW 315 mm

03 - Material

SV = galvanised sheet steel (STANDARD)
DD = DD coating

04 - Attachment assembly

A001 = LMV-D3-MP-SO, 5 Nm - (STANDARD)
A006 = LMV-D3-MF-SO, 5 Nm
A061 = 227VM-024-05, 5 Nm
other controllers available on request

Attachment as­sembly

Mode

Volumetric flow
Vmin

SAMPLE – VLV65

VLV65-200-DD-A061-0150-0600-MF1

Volumetric flow controller type VLV65, size 200 mm, galvanised
sheet steel, with DD coating, with compact controller GRUNER
227VM-024-05, setting values 150 - 600 m³/h, with METU
flange

05 - Mode

0 = 0 - 10 V
2 = 2-10 V (STANDARD)

06 - Volumetric flow set value V

0000 = ex works, see table p. 5
1234 = 4-digit customer value in m³/h

07 - Volumetric flow set value V

0000 = ex works, see table p. 5
1234 = 4-digit customer value in m³/h

08 - Duct connection: GD or flange

KA0 = without rubber lip seal/without flange
GD1 = with rubber lip seal (STANDARD)
FF1 = flat flange, galvanised sheet steel
MF1 = METU flange, galvanised sheet steel
Either with GD or flange. Combination is not possible!

Volumetric flow
Vmax

min/Vkonst

max

Duct connection

Construction subject to change
No return possible Version: 2017-04-24 | Page 30

VLV55|VLV65 - Volumetric flow controller

TECHNICAL DOCUMENTATION

Specification text |

SPECIFICATION TEXT

VLV55 | VLV65

Volumetric flow controller in round design, for round ductwork
connection, for use in supply and return air systems for con­stant or variable volumetric flow regulation.

Measurement of the volumetric flows according to the Venturi
principle. Standardised Venturi nozzle with measuring points
for differential pressure measurement in front of the nozzle
and in the nozzle neck. This ensures high control accuracy at
low air velocities, duct pressures and any inflow conditions.

Nozzle and differential pressure sensor are resistant to pollu­tion. Connecting pipe is suitable for air ducts to DIN EN 1506.
Position of the control damper is visible from outside.
Leakage at the damper blade to DIN EN 1751, class C.
Housing leakage to DIN EN 1751, class 4.

Special features

 designed for use at low air velocities and duct pressures
 position-independent installation possible
 high controlling precision with any inflow
 resistant to pollution

Materials of housing and internal parts

 Housing made of galvanised sheet steel (-SV)
 Damper blade seal made of EPDM, silicone- and halogen-free
 Ring chamber sealing made of EPDM, silicone- and halogen-

free

 Venturi nozzle made of aluminium, with attached measuring

points for determining average values to DIN EN ISO 5167.

Technical data

 Nominal sizes 100 - 315 mm
 Volumetric flow range 13 - 2195 m³/h (4 - 610 l/s) approx. 10

- 100 % of nominal volumetric flow

 Minimum pressure difference of 5 - 150 Pa
 Allowed static differential pressure range: 20 - 750 Pa
 Allowed ambient temperature 0 - 50 °C
 For use with duct velocities of 0.5 - 8 m/s (depending on the

nozzle variant)

Add-on parts

Electronic compact controller suitable for individual control or
connection to a building control system. If required, in BUS­capable design (LON, Modbus RTU, KNX, BACnet).

 Supply voltage 24 V AC/DC, 50/60 Hz
 wired and parameterised ex works
 controller with potentiometer and display for subsequent ad-

justment on request

, V

 possible positive controls: CLOSED, V
 It is possible to subsequently adjust the manufacturer set op-

eration volumetric flow.

Product: SCHAKO type VLV

 Housing, damper blade and measuring sensor at an extra

charge with DD coating (-DD)

min

max

, OPEN

Accessories (at an extra charge)

 METU flange (-MF1), on both sides, duct flange type AF.
 Flat flange (-FF1), on both sides, to DIN 24154/5.
 Rubber lip seal (-GD1), on both sides, made of special rubber.
 Duct silencer (-RS), rigid design, casing and perforated sheet

made of galvanized sheet steel with mineral wool filling

Construction subject to change
No return possible Version: 2017-04-24 | Page 31
