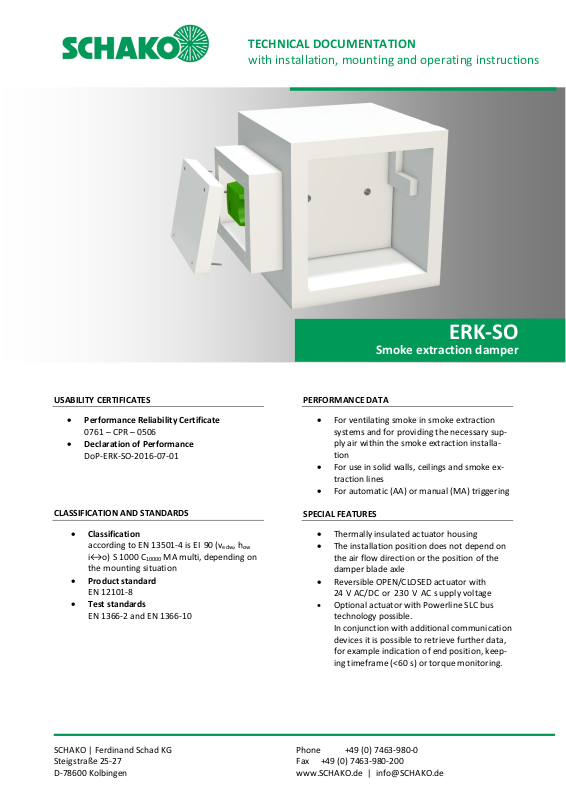

Schako ERK-SO Technical Documentation Manual

USABILITY CERTIFICATES

TECHNICAL DOCUMENTATION

with installation, mounting and operating instructions

ERK-SO

Smoke extraction damper

PERFORMANCE DATA

• Performance Reliability Certificate

0761 – CPR – 0506

• Declaration of Performance

DoP-ERK-SO-2016-07-01

CLASSIFICATION AND STANDARDS

• Classification

according to EN 13501-4 is EI 90 (v
i↔o) S 1000 C

MA multi, depending on

10000

the mounting situation

• Product standard

EN 12101-8

• Test standards

EN 1366-2 and EN 1366-10

edw

, how

• For ventilating smoke in smoke extraction

systems and for providing the necessary sup­ply air within the smoke extraction installa­tion

• For use in solid walls, ceilings and smoke ex-

traction lines

• For automatic (AA) or manual (MA) triggering

SPECIAL FEATURES

• Thermally insulated actuator housing

• The installation position does not depend on

the air flow direction or the position of the
damper blade axle

• Reversible OPEN/CLOSED actuator with

24 V AC/DC or 230 V AC s upply voltage

•

Optional actuator with Powerline SLC bus
technology possible.
In conjunction with additional communication
devices it is possible to retrieve further data,
for example indication of end position, keep­ing timeframe (<60 s) or torque monitoring.

SCHAKO | Ferdinand Schad KG Phone [phone]
Steigstraße 25-27 Fax [phone]
D-78600 Kolbingen www.SCHAKO.de | [e-mail]

Smoke extraction damper ERK-SO

Table of Contents |

TECHNICAL DOCUMENTATION

TABLE OF CONTENTS

Description ..................................................................... 3

Models and dimensions ................................................. 4

Installation details ......................................................... 8

Installation in solid walls ............................................ 8

Installation directly on solid walls............................ 14

Installation in solid ceilings ...................................... 17

Vertical installation on solid ceilings ........................ 20

Connection to smoke extraction ducts ........................ 21

Connection options on or in horizontal smoke

extraction ducts ....................................................... 21

Connection options on horizontal smoke extraction
ducts in accordance with EN 12101-7, tested

according to EN 1366-8 ........................................... 22

Connection instructions for smoke extraction duct

made of sheet metal ................................................ 23

Suspensions and weights ............................................. 24

Minimum distances and projecting ends..................... 28

Technical data .............................................................. 29

Design data .................................................................. 30

Accessories .................................................................. 31

Technical data - Actuators ........................................... 32

Add-on parts ................................................................ 34

Legend ......................................................................... 35

Order code ................................................................... 36

Specification texts ........................................................ 37

CE marking ................................................................... 38

Service ......................................................................... 39

Sample of functional test protocol .............................. 40

Foreign branch offices ................................................. 42

Lists .............................................................................. 43

Construction subject to change
No return possible Version: 2017-11-28 | Page 2

DESCRIPTION

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Description |

The smoke extraction damper ERK-SO conforms to EN 12101­8, EN 13501-4, EN 1366-2 and EN 1366-10. The ERK-SO has
been tested according to EN 1366-2 and EN 1366-10 in ac­cordance with the Declaration of Performance No. DoP-ERK­SO-2016-07-01. It is in possession of the Performance Relia­bility Certificate according to EU-BauPVO 0761 - CPR - 0506.
Its classification according to EN 13501-4, depending on the
mounting situation is:
EI 90 (v

Smoke extraction dampers are intended for ventilating smoke
in smoke extraction systems and for providing necessary sup­ply air within the smoke extraction installation.
The smoke extraction dampers are driven by a reversible
OPEN / CLOSE actuator with 24 V AC/DC or 230 V AC supply
voltage. It is located in a thermally insulated actuator housing
to ensure correct opening and closing of the smoke extrac­tion damper under fire conditions.

Optionally, the ERK-SO can be equipped with the EK12 (SEL

1.90 SLC, 24 V AC/DC) / EK14 (EK12 + SPMa-1SR) actuator.
Each smoke extraction damper is connected only with one
two-wire line by means of the SLC technology, thus allowing
detection or reporting of short-circuit or line break of the SLC
lines through constant monitoring. The function of the actua­tor EK12 is only active when an additional required communi­cation device (e.g. EK14 = EK12 + SPMa-1SR) is connected.

, how i↔o) S 1000 C

edw

MA multi.

10000

For functional test, service, retrofitting, etc., inspection open­ings must be provided on site in suspended ceilings, shaft
walls, connected ventilation ducts etc., if necessary. They
must be built in sufficient numbers and size and must not im­pair the functioning of the smoke extraction dampers.

o Housing and damper blade made of silicate struc-

tural panel,
optionally (at an extra charge):

• SR internal impregnation (ex works only) for
protection against aggressive media

o With circumferential stop bar seals to meet the cold

and hot leakage requirements

o Horizontal or vertical position of the damper blade

axle (axle made of stainless steel)

o The installation position does not depend on the air

flow direction

o The connection to smoke extraction ducts made of

wall boards is done according to inspected duct-spe­cific constructions. The connection to the tested
sheet steel lines or flexible spigots is carried out via
the profile connection frame type PAR. Smoke ex­traction systems with mechanical vents require a se­cure power supply in case of fire. A power supply
above the public supply, through a power producing
installation (replacement power) depends on each
case of public and legal requirements.

Suitable communication devices, for example SPMa1SR or
SPLM-4S 0SD Mod. allow retrieving data, such as indication of
end position, keeping timeframe (<60 s) or torque monitor­ing.

For use in solid walls and ceilings for supplying air or ventilat­ing smoke, also in combination with smoke extraction lines in
compliance with EN 121017 which have been tested accord­ing to EN 13668 or EN 13669.

The national standards and guidelines must be observed in
connection with this technical documentation, installation,
mounting and operating instructions.

ATTENTION

Building systems have to be arranged, installed and main­tained in such a way that they prevent fire and propagation
of fire and smoke (fire propagation) and allow evacuation of
persons and animals as well as efficient fire extinguishing
work.

Construction subject to change
No return possible Version: 2017-11-28 | Page 3

Smoke extraction damper ERK-SO

Models and dimensions |

TECHNICAL DOCUMENTATION

MODELS AND DIMENSIONS

Dimensions

Min. damper length

Detail A

Figure 1 - Dimensions ERK-SO

1-- ERK-SO housing (consisting of 2 x 25 mm silicate structural

panels)
2-- Profile connection frame PAR (optional)
3-- Damper blade (consisting of 3 x 20 mm silicate structural

panels)
4-- Stop bar (40 x 20 mm with milled recess for the seal)
5-- Actuator housing incl. cover
6-- Actuator
7-- Stop bar seal (to meet the cold and hot leakage require-

ments)

Construction subject to change
No return possible Version: 2017-11-28 | Page 4

Smoke extraction damper ERK-SO

Models and dimensions |

TECHNICAL DOCUMENTATION

Available sizes [mm]

The minimal length of the damper L depends on the height H.
To avoid projecting ends of the damper blade, the lengths L
(standard) are assigned to the heights H. On request, larger L
dimensions are also possible.

Length L [mm]

Width W [mm]

Other B or H dimensions (1 mm steps) are available at an ex­tra charge

* (further standard lengths at an extra charge)

Table 1 - Available sizes

200 250 300 350 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500

200

250

300

350

400

450

500

550

Height H [mm]

600

650

700

750

800

530

(630/700/800) *

630

(700/800) *

700

(800) *

800

Construction subject to change
No return possible Version: 2017-11-28 | Page 5

Smoke extraction damper ERK-SO

Models and dimensions |

ERK-SO shown without profile connection frame PAR

Min. damper length

TECHNICAL DOCUMENTATION

Detail B of the actuator housing

Standard motor installation is horizontal
as shown, vertical design is also possible
on request

Figure 2 - Actuator housing

H L a (BS) b (MS) **

200 ≤ H ≤ 400 530 65 75
401 ≤ H ≤ 565 630 65 175
566 ≤ H ≤ 634 630 50 190
635 ≤ H ≤ 711 700 85 255
712 ≤ H ≤ 800 800 135 275

Table 2 - Dimensions of the actuator housing

1 -- Housing of ERK-SO (shown without profile connection

frame PAR)
27-- Actuator
21/22/23 -- Actuator housing (consisting of the actuator cas-

ing and the cover with seal made of Insulfrax paper)
19/20/24 -- Fastening set for the inspection of the actuator

(by loosening the hexagon screws M6 x 100 mm)

Picture showing an enlargement of the actuator
enclosure (ex-works only)

* The enlargement (in 25 mm steps) depends on

the existing requirement

** A housing extension of the b side

(MS) is only possible by a dimen­sion resulting in a maximum total
housing length (L) of 800 mm (in
exceptional cases 1000 mm).

Construction subject to change
No return possible Version: 2017-11-28 | Page 6

Smoke extraction damper ERK-SO

DUCT

Models and dimensions |

TECHNICAL DOCUMENTATION

Use

The smoke extraction damper type ERK-SO can be fitted as
shown in the following table.

Use

Apparent

WALL

≥ 450 kg/m³

Apparent

≥ 650±200

CEILING

horizontal

Apparent

≥ 520 kg/m³

SMOKE EXTRACTION

solid

density

solid

density

kg/m³

density

Instal-

lation

in

3)

on

3)

in

4)

to

5)

in

5)

on

6)

to

Material/Model

for example, concrete, masonry ac­cording to EN 1996 or DIN 1053; solid
plaster wall boards according to EN
12859 or DIN 18163
for example, concrete, masonry ac­cording to EN 1996 or DIN 1053; solid
plaster wall boards according to EN
12859 or DIN 18163

for example, concrete, aerated con­crete

for example, concrete, aerated con­crete

in accordance with EN 12101-7,
tested according to EN 1366-8
in accordance with EN 12101-7,
tested according to EN 1366-8

in accordance with EN 12101-7,
tested according to EN 1366-8

Mini­mum

thickness

[mm]

100

100 200

150 200

150 200

35 200

35 200

35 200

Minimum distance

of two ERK-SO

from one another

[mm]

1)

0 (4)

2)

200

Fire resistance

class

EI 90(vew,i↔o)S

10000

EI 90(v

10000

EI 90(h

10000

EI 90(h

10000

EI 90(v

10000

EI 90(v

10000

EI 90(v

10000

MA multi

ew

MA multi

ow

MA multi

ow

MA multi

ed

MA multi

ed

MA multi

ed

MA multi

1000 C

1000 C

1000 C

1000 C

1000 C

1000 C

1000 C

,i↔o)S

,i↔o)S

,i↔o)S

,i↔o)S

,i↔o)S

,i↔o)S

For no-

tes, see

page

8

14

17

20

21

21

22

1)

when installed next to each other

2)

when installed on top of each other

3)

in connection with mounting brackets WE-S and on­site suspensions and horizontal damper blade axle

Table 3 - Usability

General information

o During mounting or installation, there is a risk of in-

juries. To avoid injuries, personal protective equip­ment (PPE) must be worn.

o Smoke extraction dampers must be installed such

that external forces do not impair their functioning.
During mounting it may be required to provide rein­forcements for the housing or the like. The require­ment of statically load-bearing lintels may have to be
taken into consideration.

o Improper transport/handling may result in dam-

age/functional impairment. In addition to that, the
film of the transport packaging must be removed
and the delivery inspected for completeness.

o In storage, smoke extraction dampers must be pro-

tected from dust, dirt, moisture and the effects of
extreme temperatures. They must not be exposed to
direct effects of the weather.

4)

in connection with ceiling frame DR-S

5)

in connection with on-site suspensions

6)

in connection with on-site fastening frames and suspen-

sions

o The smoke extraction dampers must be protected

from dirt and damage. After installation is complete,
any dirt must be removed immediately.

o Enough space must be provided for installation, mor-

tar lining, etc.

o Carry out a functional check of the smoke extraction

damper before and after mounting and ensure ready
access.

o Electrical installations or work on electrical compo-

nents may only be carried out by skilled electricians.
The supply voltage must be switched off when per­forming this work.

o Always check whether the housing needs to be ex-

tended on the b side (MS) for the corresponding in­stallation situations (e.g. the thickness of the sup­porting structure and a possible connection to the
smoke extraction duct must be considered).

Construction subject to change
No return possible Version: 2017-11-28 | Page 7

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

INSTALLATION DETAILS

Installation in solid walls

o Installation in solid walls (shaft walls, shafts, ducts

and fire walls) made of, for example, concrete, ma­sonry according to EN 1996 or DIN 1053; solid plas­ter wall boards according to EN 12859 or DIN 18163;
apparent density ≥ 450 kg/m³ and wall thickness W ≥
100 mm.

o Distance to the bearing adjacent components (wall /

solid ceiling) is minimum 75 mm.

Wet installation

o Circumferential gaps "s" must be completely filled

with mortar of category M2.5 to M15 in accordance
with EN 998-2 (previously: MG II to III according to
DIN 1053) or fire protection mortar of suitable
grades. The minimum gap size s
mum gap size s

≤ 60 mm. The mortar lining must

max

be executed such that it is permanent and, for exam­ple no mortar breaks occur. The information given
by the mortar manufacturer must be observed.

o If the smoke extraction damper is installed during

the construction of the wall, the gaps "s" can be
omitted. The mortar bed depth must be executed in
the minimum wall thickness and may not be less
than 100 mm. When performing a mortar lining or
direct installation, make sure that the housing is not
pressed toward the inside (reinforcement). If neces­sary, a statically active lintel must be provided.

o In case of dry installation next to each other, the

smoke extraction dampers (max. 2 pieces) can be in­stalled without clearance.

o In case of wet installation on top of each other, the

distance between the smoke extraction dampers
must be at least 200 mm.

Dry installation

o Circumferential gaps "s" must be completely filled

with mineral wool (non-flammable EN 13501-1, ap­parent/packing density approx. 100 kg/m³, melting
point ≥ 1000 °C) and secured with a circumferential
frame made of silicate structural panels. The mini­mum gap size s

is 10 mm; maximum gap size s

min

20 mm.

o In case of dry installation, the distance of the smoke

extraction dampers to one another must be at least
200 mm.

is 10 mm; maxi-

min

max

Plung

Opening dimen-

Opening dimension

Figure 3 - Opening dimensions of the solid wall

* Please note

Fill circumferential gaps "s" approx. 15 ±5 mm with mineral
wool (in case of wall installation only) (non-flammable EN
13501-1, apparent/packing density approx. 100 kg/m³, melt­ing point ≥ 1000 °C) or mortar (at least 10 to ≤ 60 mm) of cat­egory M2.5 to M15 in accordance with EN 998-2 (previously:
MG II to III according to DIN 1053) or fire protection mortar of
suitable grades.

≤

Figure 4 - Air flow direction

Construction subject to change
No return possible Version: 2017-11-28 | Page 8

Smoke extraction damper ERK-SO

Installation details |

TECHNICAL DOCUMENTATION

Wet installation

Detail A

Mortar of category M2.5 to M15 in accordance with EN
998-2 (previously: MG II to III according to DIN 1053) or
fire protection mortar of suitable grades. Gap ≥ 10 ≤ 60
mm

Wall

Dry installation

Suspension *

* the dimensions of the threaded rods and the U-steel can be
found on pages 24 - 27.

Detail B

Mineral wool A1, melting point
≥ 1000 °C / gap 15±5 mm

Circumferential frame 40 x 40
made of silicate structural
panel at a distance of 150 mm
screwed to the ERK-SO hous­ing with Spax screws 5 x 80
and glued with

glue (SBK 2000).

water glass

In the lower gap, place (only
in case of filling with mineral
wool) 2 spacers made of sili­cate structural panel (di­mens. W = 20 mm x L = 50
mm x H = gap height 10 – 20
mm) each approx. 50 mm
from the outer housing of
the ERK-SO.

Wall

Detail C

Profile connection frame PAR

Installation example with profile connection frame PAR when con­nected with a continuation smoke extraction duct made of sheet
metal for use within the fire area from which smoke is to be ex­tracted.

Figure 5 - Installation in solid walls

Please note

If H ≤ 400 mm, the housing must be extended for this arrangement. If the wall thickness is > 100 mm, always check
whether the housing needs to be extended on the b side (MS) - see page 6 Table 2 - (the available wall thickness and a
possible connection to the smoke extraction duct must be taken into account).

Construction subject to change
No return possible Version: 2017-11-28 | Page 9

Smoke extraction damper ERK-SO

Installation details |

Installation positions

Arrangement of the ERK-SO when installed next to each other without
clearance

With this arrangement, an additional accessory package is required for the
connection to the smoke extraction dampers as a function of the dimension

TECHNICAL DOCUMENTATION

vertical position of the damper blade axle
(independent of the actuator position)

Arrangement of the ERK-SO
when installed on top of each other with a clearance of 200 m

horizontal position of the damper blade
axle

horizontal position of
the damper blade axle

vertical position of
the damper blade
axle

Figure 6 - Minimum distances of the ERK-SO in solid wall

Construction subject to change
No return possible Version: 2017-11-28 | Page 10

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

Installation of the ERK-SO directly next to
one another in solid walls

(additional accessory package required)

View

U-steel

SECTION A-A

View

Bores Ø 10 mm

DETAIL B

Insulfrax paper 5 mm thick (glued ex
works to the ERK-SO over the entire
surface with water glass glue.)

Plunge

Mortar of category
M2.5 to M15 in ac­cordance with EN
998-2 (previously: MG
II to III according to
DIN 1053) or fire pro­tection mortar of suit­able grades.
Gap ≥ 10 ≤ 60 mm

Connection of the two smoke
extraction dampers
(on site) with hexagon head
screws with shaft similar to
DIN 931 (ISO 4014)
M8 x 100 mm

U-washers according to DIN

B vertical axle 1500

125 (ISO 7089) int. Ø 8.4 /
out. Ø 16 / 1.6 mm thick

Drive-in nut M8 with
4 prongs (galvanized steel)
d2 = 22, d3 = 10, h = 15

ERK-SO housing

Mortar of category
M2.5 to M15 according to
EN 998-2 (previously: MG II to III ac­cording to DIN 1053) or fire protec­tion mortar of suitable grades.
Gap ≥ 10 ≤ 60 mm

Figure 7 - Installation in solid wall without clearance

Please note

If H ≤ 400 mm, the housing must be extended for this arrangement. If ERK-SO are arranged next to each other with horizontal
axis, the heads of hexagon screws must be countersunk. The ERK-SO must always be filled with mortar. If the wall thickness is >
100 mm, always check whether the housing needs to be extended on the b side (MS) - see page 6 Table 2 - (the available wall
thickness and a possible connection to the smoke extraction duct must be taken into account).

Construction subject to change
No return possible Version: 2017-11-28 | Page 11

g

Installation details |

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Accessory package for installation next to each other without
clearance

The suitable accessory package for installation of the ERK-SO
without clearance next to each other must be determined as
a function of the dimension and the position of dampler
blade axle as specified in the tables below (Table 4or Table 5).

The accessory package consists of the corresponding amount
of Insulfrax paper, water glass glue and the number of re­quired screw connections.
Except for the application of the Insulfrax paper ex works (ap­plied using water glass glue), the work must be carried out on
site.

When ordering, please specify connection side (B or H side).

Vertical position of the damper blade axle

For the connection on the side (vertical position of the
damper blade axle), the position of the actuators (operation)
must be additionally specified.

Width W

200 225 250 275 300 325 350 375 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500
200IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
225IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
250IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
275IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
300IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
325IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
350IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
375IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
400IIIIIIIIIIIIIIIIIIIIIIII III III III III III III

ht H

440IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
450IIIIIIIIIIIIIIIIIIIIIIII III III III III III III

Hei

500IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
550IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
600IIIIIIIIIIIIIIIIIIIIIIII III III III III III III
650IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII III III III III III III
700IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII III III III III III III
750IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII III III III III III III
800IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII III III III III III III

Table 4 - Accessory packages for vertical damper blade axle po­sition

Accessory package I I

Accessory package II II

Accessory package III III

Construction subject to change
No return possible Version: 2017-11-28 | Page 12

g

Installation details |

Horizontal position of the damper blade axle

For the connection on the H sides (horizontal position of the
damper blade axle), the heads of the hexagon screws must be
countersunk.

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Width W

200 225 250 275 300 325 350 375 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500
200IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
225IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
250IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
275IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
300IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
325IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
350IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
375IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
400IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII

ht H

440IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII

Hei

450IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
500IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
550IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
600IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
650 II II II II II II II II II II II II II II II II II II II II II II II II
700 II II II II II II II II II II II II II II II II II II II II II II II II
750 II II II II II II II II II II II II II II II II II II II II II II II II
800 II II II II II II II II II II II II II II II II II II II II II II II II

Table 5 - Accessory packages for horizontal damper blade axle
position

Accessory package I I

Accessory package II II

Construction subject to change
No return possible Version: 2017-11-28 | Page 13

(

)

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

Installation directly on solid walls

o

Installation in solid walls (shaft walls, shafts, ducts
and fire walls) made of, for example, concrete, ma­sonry according to EN 1996 or DIN 1053; solid plas­ter wall boards according to EN 12859 or DIN 18163;
apparent density ≥ 450 kg/m³ and wall thickness W ≥
100 mm.

o

Installation with horizontal damper blade axle only

o

The distance to load-bearing, adjacent components
(wall / solid ceiling) is (due to the construction) at
least 100 mm.

o

Additional suspension required with U-steel (pole
brace).

Smoke extraction duct made of silicate
structural panel (in accordance with EN
12101-7, tested according to EN 1366-8)
or smoke extraction duct made of sheet
steel tested according to EN 13669

Housing length

Threaded rod

s. p. 16 - Table 8

Aerated concrete
wall

Suspension

(Dimensioning according to EN 1366-1
with the max. suspension length of 1500
mm, for distance between solid ceiling
and pole brace support, see pages 24 - 27

Wall opening =

U-steel (U50/38)

WE-S with bonded
Insulfrax paper

Figure 8 - Installation on solid walls

Construction subject to change
No return possible Version: 2017-11-28 | Page 14

Smoke extraction damper ERK-SO

Installation details |

Picture showing mounting bracket WE-S on ERK-SO and
solid wall

TECHNICAL DOCUMENTATION

2x threaded rod, e.g. M10

Insulfrax paper 5
mm thick

M10 H16x25 drive­in nut

U-washer DIN 9021,
e.g. (10.5/30/2.5 mm

Nut, e.g. M10

Hexagon head screw
M10x55

U-washer
(11/30/1.5 mm
thick)

Figure 9 - Fastening WE-S on ERK-SO and solid wall

1 -- Housing made of silicate structural panels (t=50 mm)
I -- Mounting bracket type WE-S

(galvanised steel 100 x 100 x 160 mm long)

II -- Seal (bonded) made of Insulfrax paper

(100 x 160 x 5 mm dick)
III -- Hexagon head screw to DIN 931 (e.g. M 10 x 30 mm)
IV -- U-washers DIN 125-A
V -- Fire protection dowels, e.g. type KMU-F10 (with rein-

forced concrete walls only) or threaded rods (on site)
VI -- Seal bonded to ERK-SO (front side to the wall

made of Insulfrax paper 50 x 5 mm thick)

Proposed installation ERK-SO in front of the concrete wall with suspension. The brackets are fastened to the reinforced con­crete wall as a function of the dimension (s. + ) with, for example, fire protection dowels type KMU-F10 . On solid walls (e.g.
aerated concrete), continuous threaded rods must be used for fastening. Damper length L depends on W x H.

Number and arrangement of mounting brackets WE-S

Please note

The exact arrangement and number of mounting brackets WE-S and U-steel are defined by SCHAKO according to the ERK­SO dimensions and can be found in the following tables!

Construction subject to change
No return possible Version: 2017-11-28 | Page 15

]

]

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

N

umber of mounting brackets type WE-S

Width W [mm

Bre ite B [m m]

200 225 250 275 300 325 350 375 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500 [mm]
200222222222444444444 4 4 4 5 5 5
225222222222444444444 4 4 4 5 5 5
250222222222444444444 4 4 4 5 5 5
275222222222444444444 4 4 4 5 5 5
300222222222444444444 4 4 4 5 5 5
325222222222444444444 4 4 4 5 5 5
350222222222444444444 4 4 4 5 5 5
375222222222444444444 4 4 4 5 5 5
400222222222444444444 4 4 4 5 5 5

Height H [mm]

450455555555666666666 7 7 7 7 7 7

Höhe H [m m]

500455555555666666666 7 7 7 7 7 7
550455555555666666666 7 7 7 7 7 7
600455555555666666666 7 7 7 7 7 7
650455555555666666666 7 7 7 7 7 7
700455555555666666666 7 7 7 7 7 7
750466666666666677777 7 7 7 7 7 7
800466666666666677777 7 7 7 7 7 7

Table 6 - Number of mounting brackets WE-S for installation on solid wall

Number with specification of the arrangement and wall fastening

Total number of WE-S
(as a function of dimensions)

Top B side

Positioning of
the WE-S brack­ets

Bottom B side

Left H side

Right H side

2 2 4 5 4 5 6 7

1 1 2 3 1 2 2 3

1 1 2 2 1 1 2 2

- - - - 1 1 1 1

- - - - 1 1 1 1

On-site wall fastening per

WE-S bracket with 2 units ......

M12 M10 M10 M10 M12 M10 M10 M10

Table 7 - Arrangement of WE-S and wall fastening for installation on solid wall

Dimensioning of the suspension (threaded rods) for U-steel

Width W [mm

Breite B [mm]

200 225 250 275 300 325 350 375 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500 [mm]
200M8M8M8M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12
225M8M8M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12
250M8M8M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12
275M8M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12 M12
300M8M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12 M12
325M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12 M12 M12
350M8M8M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M12 M12 M12 M12
375M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M10M12 M12 M12 M12 M12
400M8M8M8M8M8M8M8M8M8M8M8M10M10M10M10M10M10M10M10M12 M12 M12 M12 M12

Height H [mm]

450 M8 M8 M8 M8 M8 M8 M8 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M12 M12

Höhe H [mm]

500 M8 M8 M8 M8 M8 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M1 2 M12 M14
550 M8 M8 M8 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M1 2 M12 M14 M14
600 M8 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M12 M12 M1 4 M14 M14
650 M8 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M1 2 M12 M12 M12 M12 M14 M14 M14 M14
700 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M1 2 M12 M12 M14 M14 M14 M14 M14
750 M10 M10 M10 M10 M10 M10 M10 M12 M12 M12 M12 M12 M12 M12 M1 2 M12 M12 M12 M14 M14 M14 M14 M14 M14
800 M10 M10 M10 M10 M10 M12 M12 M12 M1 2 M12 M12 M12 M12 M12 M12 M12 M12 M14 M14 M14 M14 M14 M14 M16

Table 8 - Suspension (threaded rods) for U-steel for installation on solid wall

Length

Länge L

L

[mm]

530

630

700

800

Length

Länge L

L

[mm]

530

630

700

800

Construction subject to change
No return possible Version: 2017-11-28 | Page 16

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

Installation in solid ceilings

o

Installation in solid ceilings made, for example, of
concrete, aerated concrete, apparent density ≥
650±200 kg/m³ and ceiling thickness D ≥ 150 mm.

o

Installation with complete mortar lining:
Circumferential gaps "s" must be completely filled
with mortar of category M2.5 to M15 in accordance
with EN 998-2 (previously: MG II to III according to
DIN 1053) or fire protection mortar of suitable
grades. The minimum gap size s
mum gap size s

≤ 60 mm.

max

is 10 mm; maxi-

min

The mortar lining must be executed such that it is
permanent and, for example no mortar breaks oc­cur. The information given by the mortar manufac­turer must be observed.
If the smoke extraction damper is installed during
the construction of the ceiling, the gaps "s" can be
omitted. The mortar bed depth must be executed in
the minimum ceiling thickness and may not be less
than 150 mm. When performing a mortar lining or
direct installation, make sure that the housing is not
pressed toward the inside (reinforcement).
For load carrying when installed in solid ceilings (ver­tical/suspended), additional mounting brackets WE-S
are required.

o

The distance of the smoke extraction dampers to
one another must be at least 200 mm.

o

The distance to load-bearing, adjacent components
(wall) is at least 75 mm.

Opening dimension

Opening dimension

Figure 10 - Opening dimensions of the solid ceiling

*

Please note

Circumferential gaps "s" (at least 10 to ≤ 60 mm) must be
filled with mortar of category M2.5 to EN 998-2 (previously:
MG II to III according to DIN 1053) or fire protection mortar of
suitable grades.

Construction subject to change
No return possible Version: 2017-11-28 | Page 17

Installation details |

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Suspended/vertical installation in solid ceilings

For the correct number and positioning of the mounting brack­ets, the installation situation ((suspended/vertical) must be
specified when ordering.

suspended

Wet installation
Mortar gap ≥ 10 ≤ 60 mm

vertical in

Remarks:
When installed suspended in solid ceilings, the mount­ing brackets WE-S must usually be positioned and
mounted on site. Otherwise, if installed ex works, the
ERK-SO could not be inserted into the ceiling recess.

Mortar of category M2.5 to M15 in ac­cordance with EN 998-2 (previously: MG
II to III according to DIN 1053) or fire
protection mortar of suitable grades.

Wet installation
Mortar gap ≥ 10 ≤ 60 mm

Figure 11 - Installation in solid ceilings

Mortar of category M2.5 to M15 in accord­ance with EN 998-2 (previously: MG II to III
according to DIN 1053) or fire protection
mortar of suitable grades.

Construction subject to change
No return possible Version: 2017-11-28 | Page 18

]

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Installation details |

Example of load carrying in solid ceilings

Top view

/ Depending on the type of ceiling, fixed with, for example, Spax / concrete

Fastening the
WE-S on ERK-SO
with 2 x M10

ERK-SO housing

Figure 12 - Arrangement of WE-S when installed in solid ceilings

Please note

The exact arrangement and number of mounting brackets WE-S are defined by SCHAKO according to the ERK-SO dimensions! (s.
table below). When installing in solid ceilings, always check whether the housing needs to be extended on the b side (MS) - see
page 6 Table 2 - [the available ceiling thickness, the WE-S brackets for load carrying, especially for suspended installation (opera­tion from below), and a possible connection to the smoke extraction duct must be taken into account].

umber of mounting brackets WE-S for installation

N

in solid ceiling

Width W [mm

200 225 250 275 300 325 350 375 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500
200222222222222444444 4 4 4 4 4 4
225222222222222444444 4 4 4 4 4 4
250222222222222444444 4 4 4 4 4 4
275222222222222444444 4 4 4 4 4 4
300222222222222444444 4 4 4 4 4 4
325222222222222444444 4 4 4 4 4 4
350222222222222444444 4 4 4 4 4 4
375222222222222444444 4 4 4 4 4 4
400222222222222444444 4 4 4 4 4 4
440222222222222444444 4 4 4 4 4 4
450222222222222444444 4 4 4 4 4 4

Height H [mm]

500222222222222444444 4 4 4 4 4 4
550222222222222444444 4 4 4 4 4 4
600444444444444444444 4 4 4 4 4 4
650444444444444444444 4 4 4 4 4 4
700444444444444444444 4 4 4 4 4 4
750444444444444444444 4 4 4 4 4 4
800444444444444444444 4 4 4 4 4 4

Table 9 - Number of mounting brackets WE-S for installation in
solid ceiling

Construction subject to change
No return possible Version: 2017-11-28 | Page 19

Smoke extraction damper ERK-SO

Installation details |

TECHNICAL DOCUMENTATION

Vertical installation on solid ceilings

o Vertical installation on solid ceilings made, for exam-

ple, of concrete, aerated concrete, apparent density
≥ 650±200 kg/m³ and ceiling thickness
D ≥ 150 mm.

o The required ceiling breakthrough must correspond

to the nominal dimensions (WxH) of the ERK-SO. The
installation is possible only in connection with the
ceiling frame DR-S (accessories).

o The distance of the smoke extraction dampers to

one another must be at least 200 mm.

o The distance to load-bearing, adjacent components

(wall) is (due to the construction) at least 100 mm.

Mounting information

o Adjust connection between ERK-SO and ceiling with

water glass glue (SBK 2000).

o Additional mounting brackets made of steel (2

pieces) are required up to dimensions W and H = 500
mm (included in accessories of ceiling frame DR-S).

Fastening the ceiling frame DR-S on
aerated concrete ceilings

Hexagon head screw M8 x 70
U-washer DIN 125 M8
Dowel FTP M8

Fastening the ceiling frame DR-S on
reinforced concrete ceilings

Concrete screw FBS 8 x 70
Mudguard washer galvanised steel
i. Ø 10.5 / o. Ø 30 / 1.25 mm thick

Ceiling frame DR-S

Detail B

Ceiling breakthrough =

Dry wall screw 4x40
mm, on site

Steel dowel
M8 and screw
M8, on site

Insulfrax paper 5 mm

Mounting brackets
made of steel required
up to dimensions W
and H = 500 m.

Figure 13 - Vertical installation on solid ceiling

Construction subject to change
No return possible Version: 2017-11-28 | Page 20

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Connection to smoke extraction ducts |

CONNECTION TO SMOKE EXTRACTION DUCTS

Connection options on or in horizontal smoke extraction
ducts
in accordance with EN 12101-7, tested according to EN 1366-

Smoke extraction ducts
(to EN 12101-7, tested to EN 1366-8)

Min. damper

(suspension not shown)

Figure ­Connection to horizontal smoke extraction duct 8

Suspension according to pages 24 - 27

Optionally smoke extraction duct
or finishing protective grating
ASG-E

Smoke extraction duct to EN 12101-7,
tested to EN 1366-8

Figure 14 - Connection in horizontal smoke extraction duct

Examples of connection to smoke extraction duct

flush outside (optionally) flush inside

Details and design as specified
by duct manufacturer.

Figure 15 - Examples of connection to smoke extraction duct

Construction subject to change
No return possible Version: 2017-11-28 | Page 21

Smoke extraction damper ERK-SO

Connection to smoke extraction ducts |

TECHNICAL DOCUMENTATION

Connection options on horizontal smoke extraction ducts in
accordance with EN 12101-7, tested according to EN 1366-8

ERK-SO suspension:
Dimensioning according to pages 24 - 27

Top view: Installation of the ERK-SO in smoke extraction
duct

Circumferential fastening frame (on site)
for connecting the ERK-SO with the smoke
extraction duct used.

Spax screws at a distance of ≤
120 mm, countersunk, (incl.
water glass glue (SBK 2000)
between ERK-SO or smoke ex­traction duct and fastening
frame. (on site)

countersunk

Figure 16 - Connection on horizontal smoke extraction duct

Suspension of the smoke ex­traction duct used

Detail B Detail A

Arrangement of the duct reinforcement in the smoke extraction
duct.
The arrangement depends on the size of the ERK-SO and the
smoke extraction duct.

Construction subject to change
No return possible Version: 2017-11-28 | Page 22

Smoke extraction damper ERK-SO

Connection to smoke extraction ducts |

Connection instructions for smoke extraction duct made of
sheet metal

TECHNICAL DOCUMENTATION

Use is allowed only within the fire area from which smoke is
to be extracted.

Flexible connection spigot FS-E
with flange strengthener and
screw bolt (in accordance with EN
12101-7, tested according to EN
1366-9)

Smoke extraction duct made of sheet steel
(in accordance with EN 12101-7, tested accord­ing to EN 1366-9)

Min. damper

Smoke extraction duct made of silicate struc­tural panel
(in accordance with EN 12101-7, tested accord­ing to EN 1366-8)

Suspension

(Dimensioning according to EN 1366-1 with the max.
suspension length of 1500 mm, for distance between
ceiling and pole brace support, see pages 24 - 27)

Detail A

flush outside

Figure 17 - Connection to smoke extraction duct made of sheet metal

Please note

For suspensions from fire-resistant smoke extraction ducts, ob­serve the specifications of the associated usability certificate
(e.g. abP, ETA, etc.).

Detail B

(optional)

flush inside

Construction subject to change
No return possible Version: 2017-11-28 | Page 23

Smoke extraction damper ERK-SO

p

g

Suspensions and weights |

TECHNICAL DOCUMENTATION

SUSPENSIONS AND WEIGHTS

Fire safety dowels with European technical approval
ETA-04/0026 for suspending the smoke extraction dampers

M8 to M12

Figure 18 - Suspension fastening M8 to M12

M16 and M20

TYPE

Core bore diam-

is always 6 mm

eter

Group of 2

Concrete cei-

lin

U-washer
M8 nut
Counter nut
Threaded rod

Grou

of 4

It is recommended to secure
threaded rods screwed into
the screw sockets by means
of counter nuts.

for M16

U-weight:

5.8 kg/m

for M20

U-weight:

8.9 kg/m

Figure 19 - Suspension fastenings M16 and M20

Construction subject to change
No return possible Version: 2017-11-28 | Page 24

Smoke extraction damper ERK-SO

Suspensions and weights |

TECHNICAL DOCUMENTATION

Suspensions

The uncovered threaded rods must be dimensioned such that
the calculated tension of 6 N/mm2 is not exceeded (this ap­plies to a max. length of 1.5 m). The suspending brackets
must be guided in U-shape around the duct (EN 13661).

Nominal dimension Rod weight

* Stress cross-section

[kg/m]

M6 0.18 20.1 120.6 12.29

M8 0.32 36.6 219.6 22.38
M10 0.50 58.0 348.0 35.47
M12 0.73 84.3 505.8 51.55
M14 0.97 115.0 690.0 70.33
M16 1.35 157.0 942.0 96.02
M20 2.08 245.0 1470.0 149.84
M24 3.00 353.0 2118.0 215.90
M30 4.75 561.0 3366.0 343.11

Table 10 - Suspensions

* Stressed cross-sections of threaded rods with metric ISO
thread to DIN 13, part 28

Weight table ERK-SO [kg]

[mm²]

Note regarding steel dowels with general building supervi­sory approval:

The suspending brackets must be fastened using expansion
dowels M8 made of steel. The dowels must be installed ac­cording to the specifications of the valid approval notifica­tions of the Institute of Structural Engineering and, in addi­tion, the installation length must be twice as deep as required
in the approval notification unless stated otherwise in the ap­proval notification; the calculated tensile load per dowel must
not exceed 500 N. Special dowels with a maximum tensile
load of 700 N can be also used.

Load at 6 N/mm²
per threaded rod

[N] [KP]

200 250 300 350 400 450 500 550 600 650 700 750 800 900 1000 1100 1200 1300 1400 1500

44 48 50 54 57 60 64 68 72 74 77 81 84 89 96 104 113 118 123 129

200

47 50 54 58 61 65 69 71 75 78 81 85 88 95 102 110 116 122 129 137

250

51 54 59 63 65 69 72 76 80 83 87 90 93 101 108 117 122 130 137 143

300

54 58 63 65 69 72 76 80 83 87 90 94 98 105 112 121 130 138 143 150

350

58 61 65 70 72 78 81 84 88 91 95 99 102 111 118 126 137 142 149 157

400

67 72 76 80 84 88 94 97 102 106 110 114 117 128 137 146 155 164 172 181

450

71 75 80 85 89 94 98 104 107 112 116 120 125 134 143 153 163 173 180 189

500

74 79 84 89 93 97 103 107 113 118 121 124 127 139 149 160 166 177 187 195

550

Height H [mm]

79 84 90 93 97 102 108 113 120 123 126 131 135 145 156 164 175 182 193 201

600

83 90 97 100 106 112 117 122 126 132 137 140 143 154 164 176 182 196 205 213

650

92 97 103 108 113 118 123 128 134 140 146 151 155 165 177 187 198 209 220 230

700

103 109 115 120 125 131 136 143 149 155 161 167 173 184 196 207 219 231 244 255

750

109 115 121 128 133 139 145 151 157 163 169 176 181 193 206 219 230 242 254 266

800

Table 11 - Weight table

Width W [mm]

Length L

[mm]

530

630

700

800

Construction subject to change
No return possible Version: 2017-11-28 | Page 25

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Suspensions and weights |

Covered suspending brackets - suspension height > 1.5 m ≤
M12

The uncovered threaded rods must be dimensioned such that
the calculated tension of 6 N/mm² is not exceeded (this ap­plies to a max. length of 1.5 m). The max. extension when ex­posed to temperature according to ETK (approx. 1000 °C) for
90 min. with regard to threaded rods with a length of 1.5 m is
40 mm. Due to larger extension, suspensions with a length of
more than

1.5 m must be covered to provide safe fire protection.

Certified to: EN 1366-1

View A

Classified
smoke extraction duct

Water glass glue

(SBK 2000)

ERK-SO

Minimum gap width of 10 mm

Suspending
bracket

Continuation duct made
of sheet metal or L90

Suspension

(All dimensions in mm)

Nominal

size

+2

- 0

ød

71 75

Outer

dimen.

øD

80 85
90 95

Figure 21 - Dimensions of the suspension covering

Field of application Weights of the suspension

covering for each 0.5 m

NW 71

NW 80

NW 90

other lengths on request.

Table 12 - Suspension coverings

Please note:

The weights of the suspension covering must be added to the
weights of the smoke extraction damper, pole brace and
threaded rods.

up to max. suspen­sion height of 2.5 m
up to max. suspen­sion height of 3 m
up to max. suspen­sion height of 4 m

approx. 3.6 kg

approx. 4.9 kg

approx. 5.9 kg

Actuator housing

Figure 20 - Covered suspending brackets ≤ M12

Construction subject to change
No return possible Version: 2017-11-28 | Page 26

Smoke extraction damper ERK-SO

Suspensions and weights |

TECHNICAL DOCUMENTATION

Covered suspending brackets - suspension height > 1.5 m from
M14 to M20

Concrete ceiling

Suspension covering
type ABB

Minimum gap width
of 10 mm

Fire safety dowels or
continuous threaded rod

+2

- 0

Mounting instructions

The suspension coverings consist of a pipe made of sheet
steel with internal fireproof lining.

In the centre of it, there is an at least 21 mm large bore for
mounting the threaded rod. Starting form suspension M14,
the connection sleeve for two threaded rods cannot be lo­cated in the area of the suspension covering any more, there­fore a connection sleeve covering as shown opposite must be
mounted.

Example of dimensioning

Given: ERK-SO with the dimensions
W = 800 mm
H = 400 mm
Suspension height = 4 m

The following weights must be added:

ERK-SO according to table on page 25 102 kg
U-pole brace (U 80), see page 24 12 kg
Threaded rod M20 2 x (L = 4 m)

33.5 kg
see page 25
Covering Ø 90 16 x 5.9 kg

94.5 kg
see page 26
Ʃ=242 kg
: 2
= 121 kg
≙ M20 according to table on page 25

Order example

(only accessories for covering)
16 units Suspension covering NW 90, L = 0.5 m

2 pieces connection sleeve covering (depending on the di­mensions of the threaded rods used on site)

Connection sleeve

Water glass glue

(SBK 2000)

Counter nut
(recommended)

U-pole brace

type VMB

Connection sleeve covering in­ternal diameter = 35 mm

U-washer
Nut

Figure 22 - Covered suspending brackets M14 to M20

Construction subject to change
No return possible Version: 2017-11-28 | Page 27

Smoke extraction damper ERK-SO

Minimum distances and projecting ends |

TECHNICAL DOCUMENTATION

MINIMUM DISTANCES AND PROJECTING
ENDS

The dimensions given must be considered an installation rec­ommendation for the ERK-SO and may differ, depending on
the local situation. The smoke extraction damper must be in­stalled in accordance with the technical documentation, in­stallation, mounting and operating instructions.
For functional test, service, retrofitting, etc., inspection open­ings must be provided on site in suspended ceilings, shaft
walls, connected ventilation ducts etc., if necessary. They
must be built in sufficient numbers and size and must not im­pair the functioning of the smoke extraction dampers; they
may lead to increasing the distances.

Ceiling

Wall

Figure 23: Minimum distances to walls and ceilings and ERK-SO to one another

1) The distance between smoke extraction damper and load­carrying component (wall/ceiling) must be determined ac­cording to the particular installation situation or adjusted
to the dimensions of the projecting ends (actuator hous­ing) and is at least 75 mm.

2) The distance between two smoke extraction dampers de­pends on the particular installation situation and is de­scribed in the corresponding installation situations. (p. 7
and the following pages).

Construction subject to change
No return possible Version: 2017-11-28 | Page 28

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Technical data |

TECHNICAL DATA

Pressure loss ∆pt [Pa] and noise level LWA [dB (A)]

ζ [ ]

[m²]

min

FQ

Diagram 1 - Design diagram

Correction table for octave weighting [dB/Oct]

f

m

63 125 250 500 1000 2000 4000 8000

[Hz]

KF

O

-4 -2 0 -1 -4 -9 -15 -21

[dB]

Sound power per octave (LW = LWA + KFO)

f

m

63 125 250 500 1000 2000 4000 8000

[Hz]

L

W

37 39 41 40 37 33 26 20

[dB]

[Pa]

t

Δp

V

[m/s]

stirn

CALCULATION EXAMPLE
Given: Solution from dimension table

W = 900 mm FQ

= 0.247 m²

min

H = 400 mm ζ = 0.328
V = 6000 m³/h

Find: Solution from diagram

∆pt = ? v
L

= ? ∆pt = 8.5 Pa

WA

L

= ? LWA = 39 dB (A)

W

= 6.6 m/s

stirn

Construction subject to change
No return possible Version: 2017-11-28 | Page 29

Smoke extraction damper ERK-SO

Design data |

TECHNICAL DOCUMENTATION

DESIGN DATA

Height

(mm)

200 250 300 350 400 450 500 550 600 650 700 750 800 900 1000 1200 1300 1400 1500

0.014 0.018 0.023 0.027 0.032 0.036 0.041 0.045 0.050 0.054 0.059 0.063 0.068 0.077 0.086 0.104 0.113 0.122 0.131

1.356 1.232 1.158 1.085 1.017 0.915 0.848 0.821 0.780 0.740 0.700 0.660 0.633 0.599 0.565 0.537 0.509 0.480 0.452

200

0.040 0.050 0.060 0.070 0.080 0.090 0.100 0.110 0.120 0.130 0.140 0.150 0.160 0.180 0.200 0.240 0.260 0.280 0.300

0.021 0.028 0.035 0.042 0.049 0.056 0.063 0.070 0.077 0.084 0.091 0.098 0.105 0.119 0.133 0.161 0.175 0.189 0.203

1.209 1.085 0.961 0.836 0.757 0.735 0.678 0.658 0.629 0.599 0.569 0.540 0.520 0.486 0.452 0.429 0.407 0.384 0.362

250

0.050 0.063 0.075 0.088 0.100 0.113 0.125 0.138 0.150 0.163 0.175 0.188 0.200 0.225 0.250 0.300 0.325 0.350 0.375

0.029 0.038 0.048 0.057 0.067 0.076 0.086 0.095 0.105 0.114 0.124 0.133 0.143 0.162 0.181 0.219 0.238 0.257 0.276

1.062 0.938 0.836 0.735 0.667 0.644 0.588 0.570 0.543 0.517 0.490 0.464 0.446 0.418 0.396 0.373 0.350 0.328 0.305

300

0.060 0.075 0.090 0.105 0.120 0.135 0.150 0.165 0.180 0.195 0.210 0.225 0.240 0.270 0.300 0.360 0.390 0.420 0.450

0.036 0.048 0.060 0.072 0.084 0.096 0.108 0.120 0.132 0.144 0.156 0.168 0.180 0.204 0.228 0.276 0.300 0.324 0.348

0.915 0.791 0.712 0.633 0.576 0.554 0.497 0.482 0.458 0.435 0.412 0.388 0.373 0.350 0.339 0.316 0.294 0.271 0.249

350

0.070 0.088 0.105 0.123 0.140 0.158 0.175 0.193 0.210 0.228 0.245 0.263 0.280 0.315 0.350 0.420 0.455 0.490 0.525

0.044 0.058 0.073 0.087 0.102 0.116 0.131 0.145 0.160 0.174 0.189 0.203 0.218 0.247 0.276 0.334 0.363 0.392 0.421

0.836 0.712 0.644 0.576 0.542 0.475 0.452 0.439 0.420 0.401 0.382 0.363 0.350 0.328 0.294 0.280 0.266 0.251 0.237

400

0.080 0.100 0.120 0.140 0.160 0.180 0.200 0.220 0.240 0.260 0.280 0.300 0.320 0.360 0.400 0.480 0.520 0.560 0.600

0.051 0.068 0.085 0.102 0.119 0.136 0.153 0.170 0.187 0.204 0.221 0.238 0.255 0.289 0.323 0.391 0.425 0.459 0.493

0.757 0.644 0.582 0.520 0.486 0.452 0.429 0.415 0.394 0.373 0.352 0.331 0.316 0.294 0.283 0.266 0.249 0.232 0.215

450

0.090 0.113 0.135 0.158 0.180 0.203 0.225 0.248 0.270 0.293 0.315 0.338 0.360 0.405 0.450 0.540 0.585 0.630 0.675

0.059 0.078 0.098 0.117 0.137 0.156 0.176 0.195 0.215 0.234 0.254 0.273 0.293 0.332 0.371 0.449 0.488 0.527 0.566

0.701 0.610 0.542 0.475 0.429 0.418 0.407 0.393 0.371 0.350 0.329 0.308 0.294 0.283 0.249 0.237 0.226 0.215 0.203

500

0.100 0.125 0.150 0.175 0.200 0.225 0.250 0.275 0.300 0.325 0.350 0.375 0.400 0.450 0.500 0.600 0.650 0.700 0.750

0.066 0.088 0.110 0.132 0.154 0.176 0.198 0.220 0.242 0.264 0.286 0.308 0.330 0.374 0.418 0.506 0.550 0.594 0.638

0.678 0.596 0.527 0.458 0.417 0.404 0.390 0.377 0.357 0.337 0.318 0.298 0.284 0.270 0.239 0.228 0.217 0.206 0.195

550

0.110 0.138 0.165 0.193 0.220 0.248 0.275 0.303 0.330 0.358 0.385 0.413 0.440 0.495 0.550 0.660 0.715 0.770 0.825

0.074 0.098 0.123 0.147 0.172 0.196 0.221 0.245 0.270 0.294 0.319 0.343 0.368 0.417 0.466 0.564 0.613 0.662 0.711

0.644 0.575 0.504 0.432 0.398 0.383 0.364 0.353 0.335 0.317 0.302 0.284 0.269 0.251 0.224 0.213 0.203 0.193 0.182

600

0.120 0.150 0.180 0.210 0.240 0.270 0.300 0.330 0.360 0.390 0.420 0.450 0.480 0.540 0.600 0.720 0.780 0.840 0.900

0.081 0.108 0.135 0.162 0.189 0.216 0.243 0.270 0.297 0.324 0.351 0.378 0.405 0.459 0.513 0.621 0.675 0.729 0.783

0.610 0.554 0.480 0.407 0.379 0.362 0.339 0.328 0.313 0.297 0.286 0.270 0.254 0.232 0.209 0.199 0.189 0.179 0.170

650

0.130 0.163 0.195 0.228 0.260 0.293 0.325 0.358 0.390 0.423 0.455 0.488 0.520 0.585 0.650 0.780 0.845 0.910 0.975

0.089 0.118 0.148 0.177 0.207 0.236 0.266 0.295 0.325 0.354 0.384 0.413 0.443 0.502 0.561 0.679 0.738 0.797 0.856

0.576 0.533 0.457 0.381 0.359 0.340 0.314 0.304 0.290 0.276 0.266 0.252 0.239 0.213 0.194 0.185 0.176 0.166 0.157

700

0.140 0.175 0.210 0.245 0.280 0.315 0.350 0.385 0.420 0.455 0.490 0.525 0.560 0.630 0.700 0.840 0.910 0.980 1.050

0.096 0.128 0.160 0.192 0.224 0.256 0.288 0.320 0.352 0.384 0.416 0.448 0.480 0.544 0.608 0.736 0.800 0.864 0.928

0.542 0.511 0.434 0.356 0.340 0.319 0.288 0.280 0.268 0.256 0.246 0.234 0.225 0.194 0.179 0.171 0.162 0.153 0.144

750

0.150 0.188 0.225 0.263 0.300 0.338 0.375 0.413 0.450 0.488 0.525 0.563 0.600 0.675 0.750 0.900 0.975 1.050 1.125

0.104 0.138 0.173 0.207 0.242 0.276 0.311 0.345 0.380 0.414 0.449 0.483 0.518 0.587 0.656 0.794 0.863 0.932 1.001

0.520 0.497 0.418 0.339 0.328 0.305 0.271 0.264 0.254 0.243 0.232 0.222 0.215 0.181 0.170 0.161 0.153 0.144 0.136

800

0.160 0.200 0.240 0.280 0.320 0.360 0.400 0.440 0.480 0.520 0.560 0.600 0.640 0.720 0.800 0.960 1.040 1.120 1.200

Width (mm)

Table 13 - Design data

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

FQ

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

min

ζ

K

Construction subject to change
No return possible Version: 2017-11-28 | Page 30

Smoke extraction damper ERK-SO

Accessories |

TECHNICAL DOCUMENTATION

ACCESSORIES

available at an extra charge

o Housing and damper blade model with additional SR

internal impregnation (ex works only) for protection
against aggressive media.

o Enlargement of the actuator housing (ex works only)
o Actuator types

EK11 (SEL2.90; 230 V AC)
EK12 (SEL1.90 SLC; 24 V AC/DC)
EK14 (EK12 + SPMa-1SR)
EK20 (BE24; 24 V AC/DC)
EK21 (BE230; 230 V AC)

o Communication devices for actuator EK12 / EK14

e.g. SPMa1SR (part of EK14) or SPLM-4S 0SD Mod

o Profile connection frame type PAR
o Security grille type ASG-E
o Flexible connection spigot type FS-E
o Mounting bracket type WE-S
o Ceiling frame type DR-S
o Fire safety dowels M8, M10 and M12 type KMU-L(F)
o Suspension plate incl. dowels, F = 850 N type P-K 6 L
o Suspension plate incl. dowels, F = 1500 N type PQ-K

6 L

o Drill bit for dowels ø 6 mm

(for suspension M8) type SDS-2

o Drill bit set for dowels ø 6 mm

(for suspension M10-M12) type SDS-DUO

o Setting tool of size 8 to 12 type SMU-H

Construction subject to change
No return possible Version: 2017-11-28 | Page 31

Smoke extraction damper ERK-SO

Technical data - Actuators |

TECHNICAL DOCUMENTATION

TECHNICAL DATA - ACTUATORS

The following actuator types are available EK10 (SEL1.90; 24
V AC/DC - standard actuator) / EK11 (SEL2.90; 230 V AC) /
EK20 (BE24; 24 V AC/DC) / EK21 (BE230; 230 V AC). The actu­ator EK12 (SEL1.90 SLC; 24 V AC/DC) / EK14 (EK12 + SPMa­1SR ) is connected via the so-called 2-wire technology, the
corresponding communication devices (e.g. SPMa-1SR or
SPLM-4S 0SD Mod; please order separately) can be used to
retrieve data, for example signalling of end position, keeping
timeframe (< 60 s) and monitoring of the torque.

Technical data

Actuator type EK10 (SEL 1.90) EK11 (SEL 2.90)

Rated voltage [V] AC/DC 24 AC 230

Power consumption during operation
[W]

Power consumption end position [W] 0.7 3.7 0.7

Dimensioning [VA] 13 13 8

Degree of protection IEC/EN IP54

Protection class IEC/EN II protective insulation

Torque at least [Nm] 40

Running time [s] < 60

Sound power level [dB(A)] approx. 50

Angle of rotation 93°

Switching capacity of auxiliary switch 3 (1.5) A, 230 V SLC is omitted

Maintenance maintenance-free

Weight [kg]  2.6  2.7  2.6

Actuator type EK20 (BE24) EK21 (BE230)

Rated voltage [V] AC/DC 24 AC 230
Power consumption during operation

[W]
Power consumption end position [W] 0.5

Dimensioning [VA] 18 15

Degree of protection IEC/EN IP54

Protection class IEC/EN

Torque at least [Nm] 40

Running time [s] < 60

Sound power level [dB(A)] maximum 62

Angle of rotation 100°

Switching capacity of auxiliary switch 2 x EPU, 6 (3) A, AC 250 V

Maintenance maintenance-free

Weight [kg]  2.7

Table 14 - Technical data of actuators

Safety extra low voltage

7 12 7

12 8

III

The function of the actuator EK12 is only active when an addi­tional required communication device (e.g. EK14 = EK12 +
SPMa-1SR) is connected.

Please note
All electrical connections between actuator and power supply
must be made according to the valid VDE guidelines.

EK12 (SEL 1.90 SLC) /

EK14 (EK12 + SPMa-1SR)

In connection with

SPMa or SPLM

II protective insulation

Construction subject to change
No return possible Version: 2017-11-28 | Page 32

Smoke extraction damper ERK-SO

Technical data - Actuators |

TECHNICAL DOCUMENTATION

Actuator arrangement and cable routing

SECTION A-A

ERK-SO housing

Damper

E90 or E30 cable connection and

cable routing according to DIN

Cover of actuator
housing

Actuator

Please note
The E90 or E30 cable is passed
through the side wall of the actuator
housing (L90) by means of a bore ex­actly fitting the connection cable
(bore = outer diameter of E90 or E30
cable)

Figure 24 - Actuator arrangement and cable routing

Connection diagram for actuator types EK10 (SEL 1.90; 24 V
AC/DC) and EK11 (SEL 2.90; 230 V AC) 2-point or 1-wire con­trol (7-strand)

Picture showing OPEN

Actuator

End position

Connection diagram for actuator types EK20 (BE24; 24 V
AC/DC) and EK21 (BE230; 230 V AC) 2-wire control

Indication of the end positions

S1 + S2 = CLOSED
S4 + S6 = OPEN

Connection diagram for actuator type EK12 (SEL 1.90 SLC; 24
V AC/DC) / EK14 (EK12+SPMa-1SR) 2-wire technology (2­strand)

see safety communication modules power line system SLC,
type SPMa-1SR or SPLM-4S 0SD Mod.

Construction subject to change
No return possible Version: 2017-11-28 | Page 33

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

Add-on parts |

ADD-ON PARTS

Profile connection frame type PAR

The profile connection frame type PAR can be fitted on one
or two sides. Model: galvanised sheet steel.
Please specify separately, when ordering:

o

mounted ex works (recommended), on one side (op­erating side [BS] (PAR1) or wall side [MS] (PAR2)) or
on both sides (PAR3).

o

delivered loose: 1 piece (PAR4)

2 pieces (PAR5).

Figure 25 - Profile connection frame type PAR

Security grille ype ASG-E

The security grille type ASG-E can be fitted on one or two
sides. Model: galvanised sheet steel.
Please specify separately, when ordering:

o

mounted ex works (recommended), on one side (op­erating side [BS] (ASG1) or wall side [MS] (ASG2) or
on both sides (ASG3).

o

delivered loose: 1 piece (ASG4)

2 pieces (ASG5)

Flexible connection spigot type FS-E

The flexible spigot type FS-E has a temperature resistance of
600°C and is supplied loose as an accessory. Expansion of at
least 100 mm when installed must be provided.
For mounting of the FS-E on the smoke extraction damper
type ERK-SO, the profile connection frame PAR is required.

o

PAR mounted ex works (recommended) + FS-E loose,
on one side (operating side [BS] (PFS1) or wall side
[MS] (PFS2)) or on both sides (PFS3).

o

delivered loose: 1 piece each (PFS4)

2 pieces each (PFS5).

2.)

2.)

1.)

The required installation dimension is 155 mm.

2.)

clearance of clamping flange

1.)

Figure 27 - Flexible connection spigot type FS-E

Flange dimensions / Drill pattern

DIN 1017 – 30x6 (galvanised)

Figure 26 - Security grille type ASG-E

Recommendation: Mounting of the ASG-E in connection with
the PAR with W or H > 700 mm.

Construction subject to change
No return possible Version: 2017-11-28 | Page 34

2.) clearance of clamping flange

Figure 28 - FS-E flange dimensions/drill pattern

2.)

2.)

Smoke extraction damper ERK-SO

Legend |

TECHNICAL DOCUMENTATION

LEGEND

Δpt [Pa] = Pressure loss
v

[m/s] = Intake velocity, blower stream velocity,

stirn

velocity, relative to A
V [m³/h] [l/s] = Volumetric flow
LWA [dB (A)] = A-weighted sound power level
LW [dB] = Sound power level / octave
(L
B [mm] = Width
H [mm] = Height
L [mm] = Length

[m²] = Smallest flow cross-section

FQ

min

inside the smoke extraction damper
FQK [m²] = Duct connection cross-section
ζ = Resistance coefficient (duct installation)
fm [Hz] = Octave centre frequency
KFO [dB] = Octave correction value
ρ [kg/m³] = Density
BS = Operating side
MS = Wall side

outflow

= LWA + KFO)

W

stirn

Construction subject to change
No return possible Version: 2017-11-28 | Page 35

Smoke extraction damper ERK-SO

Order code |

TECHNICAL DOCUMENTATION

ORDER CODE

01 02 03 04 05 06 07 08 09

Type model Width Height Length Housing Actuator Accessories Extra bracket/frame

Example

ERK -SO -1500 -750 -800 -0 -EK10 -PSG1 -WES

EXAMPLE
ERK-SO-1500-750-800-0-EK10-PSG1-WES

Smoke extraction damper type ERK | model -SO | width = 1500 mm | height = 750 mm | length = 800 mm | housing without SR
internal impregnation | with actuator EK10 = type SEL 1.90 (24 V AC/DC) | with accessory PSG1 (corresponds to PAR+ASG-E,
mounted ex works on the operating side BS) | with extra bracket WES (number according installation situation and dimension)

ORDER DETAILS

01 - TYPE

ERK

02 – MODEL

07 - ACTUATOR

EK10 = SEL 1.90 (24 V AC/DC; STANDARD ACTUATOR)
EK11 = SEL 2.90 (230 V AC)
EK12 = SEL 1.90 SLC (24 V AC/DC; additional communication de­vice required; please order separately)

-SO

03 - WIDTH

EK14 = EK12 including additional required communication

device SPMa-1SR

EK20 = BE24 (24 V AC/DC)

0200 - 0250 - 0300 - 0350 - 0400 ­0450 - 0500 - 0550 - 0600 - 0650 -
0700 - 0750 - 0800 - 0850 - 0900 -
0950 - 1000 - 1050 - 1100 - 1150 -
1200 - 1250 - 1300 - 1350 - 1400 -
1450 - 1500
in mm - always four digits

04 - HEIGHT

200 - 250 - 300 - 350 - 400 - 450 -
500 - 550 - 600 - 650 - 700 - 750 - 800
in mm - always three digits

05 - LENGTH

530 = 530 (630/700/800) mm (for 200 ≤ H ≤ 400)
630 = 630 (700/800) mm (for 401 ≤ H ≤ 600)
700 = 700 (800) mm (for 601 ≤ H ≤ 700)
800 = 800 mm (for 701 ≤ H ≤ 800)

Remark: To avoid projecting ends of the damper blade, the
lengths L (standard) are assigned to the heights H.
At an extra charge, other lengths (bracket values) are possible
upon request.

06 - HOUSING

EK21 = BE230 (230 V AC)

08 - ACCESSORIES

ZU00 = without accessories

ASG1 = ASG-E - mounted ex works on operating side BS
ASG2 = ASG-E - mounted ex works on wall side MS
ASG3 = ASG-E - mounted ex works on both sides
ASG4 = ASG-E - 1 piece - loose - with fastening screws
ASG5 = ASG-E - 2 pieces - loose - with fastening screws

PSG1 = PAR + ASG-E - mounted ex works on operating side BS
PSG2 = PAR + ASG-E - mounted ex works on wall side MS
PSG3 = PAR + ASG-E - mounted ex works on both sides
PSG4 = PAR + ASG-E - 1 piece each - loose - with fastening screws
PSG5 = PAR + ASG-E - 2 pieces each - loose - with fastening screws

PFS1 = PAR mounted ex works on operating side BS + FS-E loose
PFS2 = PAR mounted ex works on wall side MS + FS-E loose
PFS3 = PAR on both sides - mounted ex works + FS-E (2 pieces) loose
PFS4 = PAR + FS - 1 piece each - loose - with fastening screws
PFS5 = PAR + FS-E - 2 pieces each - loose - with fastening screws

PAR1 = PAR mounted ex works on operating side BS
PAR2 = PAR mounted ex works on wall side
PAR3 = PAR - mounted ex works on both sides
PAR4 = PAR - 1 piece - loose - with fastening screws
PAR5 = PAR - 2 piece - loose - with fastening screws

0 = without SR internal impregnation
1 = enlargement of the actuator housing
2 = with SR internal impregnation
3 = enlargement of the actuator housing and with SR internal
impregnation

09 – EXTRA BRACKET/FRAME

ZU0 = without extra bracket/frame
WES = mounting bracket WE-S required for installation

on solid walls and in solid ceilings (delivery in loose form
loose; number according to installation situation and di­mension)

DRS = ceiling frame DR-S - required for vertical installation on

solid ceilings (delivery in loose form)

Construction subject to change
No return possible Version: 2017-11-28 | Page 36

Smoke extraction damper ERK-SO

Specification texts |

TECHNICAL DOCUMENTATION

SPECIFICATION TEXTS

The smoke extraction damper ERK-SO conforms to EN 12101-8,
EN 13501-4, EN 1366-2 and EN 1366-10. The ERK-SO has been
tested according to EN 1366-2 and EN 1366-10 in accordance
with the Declaration of Performance No. DoP-ERK-SO-2016-07-

01. It is in possession of the Performance Reliability Certificate

according to EU-BauPVO 0761 - CPR - 0506. Its classification ac­cording to EN 13501-4 is EI 90 (v
multi, depending on the mounting situation.

Smoke extraction dampers are intended for ventilating smoke
in smoke extraction systems and for providing supply air within
the smoke extraction installation.

Housing and damper blade are made of abrasion-resistant, min­eral silicate structural panels.
Damper blade axle made of stainless steel is mounted in
maintenance-free bronze bushes.
The smoke extraction dampers are driven by a reversible OPEN
/ CLOSE actuator with 24 V AC/DC or 230 V AC supply voltage. It
is located in a thermally insulated actuator housing to ensure
correct opening and closing of the smoke extraction damper
under fire conditions.
With circumferential stop bar seals.
Can be used with damper blade axle in horizontal or vertical po­sition.
Any accessories that may be required for the respective mount­ing situation are listed in separate positions of the bill of quanti­ties.

Installation

o in solid walls (when installed next to each other with-

out gap; when installed on top of each other 200 mm)

o on solid walls (in connection with fastening brackets

WE-S and on-site suspensions)

o in solid walls (in connection with fastening brackets

WE-S and on-site suspensions)

o on solid walls (in connection with ceiling frame DR-S)
o in and on horizontal smoke extraction ducts (in con-

nection with on-site suspensions) and on horizontal
smoke extraction ducts (in connection with on-site fas­tening frames and suspensions)

Product: SCHAKO type ERK-SO
Declaration of Performance No. DoP-ERK-SO-2016-07-01
Dimensions:

Width (B): .................... mm

Height (H): ..................... mm

Length (L): …………………. mm

Unless stated otherwise, the actuator EK10 (24 V AC/DC) will be
delivered. Moreover, the standard length will be assigned to
the height H.

, how i↔o) S 1000 C

edw

10000

MA

Alternative models or accessories (at an extra charge)

("Select as desired")

• Housing and damper blade with additional SR internal impreg-

nation (ex works) for protection against aggressive media.

• Enlargement of the actuator housing (ex works)

• Actuators with integrated limit switches for indication of the

damper end positions

o EK11 (SEL 2.90; actuator 230 V AC)
o EK20 (BE 24; actuator 24 V AC / DC)
o EK21 (BE 230; actuator 230 V AC)

• Actuator with SLC technology for activating and monitoring

smoke extraction dampers. The smoke extraction damper is
connected with one two-wire line by means of the SLC tech­nology, detecting and reporting short-circuit or line break of
the SLC lines by constant monitoring.

o EK12 (SEL 1.90 SLC; actuator 24 V AC/DC; without

additional required communication device)
Suitable communication devices, for example SPMa1SR (part
of EK14) or SPLM-4S 0SD Mod. allow retrieving data, such as
indication of end position, keeping timeframe (<60 s) or
torque monitoring. The function of the actuator EK12 is only
active when an additional required communication device is
connected.

o EK14 (EK12; actuator 24 V AC/DC;

including communication device SPMa-1SR)

Security grille type ASG-E, made of galvanised sheet steel,
mesh size ≤ 20 mm; the damper blade must move freely when
damper blade is open, consider elongation of the housing, if re­quired. Recommendation: Mounting of the ASG-E in connection
with the PAR with W or H > 700 mm.

o mounted ex works (recommended), on one side (operating

side [BS] (ASG1) or wall side [MS] (ASG2) or on both sides
(ASG3).

o delivered loose: 1 piece (ASG4)

2 pieces (ASG5)

Product: SCHAKO type ASG-E
Dimensions:

Width (W): ................. mm

Height (H): ..................... mm

Flexible spigot type FS-E, in accordance with EN 12101-7,
tested according to EN 1366-9; with flange strengthener and
screw bolt.
Expansion of at least 100 mm when installed
The smoke extraction damper must not be subject to mechani­cal stress under any circumstances. Temperature-resistant up
to 600°C. For connection to smoke extraction duct made of
sheet steel. Profile connection frame PAR is required for
mounting.

o PAR mounted ex works (recommended) + FS-E loose,

on one side (operating side [BS] (PFS1) or wall side [MS]
(PFS2)) or on both sides (PFS3).

o delivered loose: 1 piece each (PFS4)

2 pieces each (PFS5)

Product: SCHAKO type FS-E
Dimensions:

Width (W): .................... mm

Height (H): ..................... mm

Construction subject to change
No return possible Version: 2017-11-28 | Page 37

Smoke extraction damper ERK-SO

CE marking |

TECHNICAL DOCUMENTATION

Profile connection frame type PAR, made of galvanised sheet
steel, for connecting flexible spigot type FS-E or security grille
ASG-E.

o mounted ex works (recommended), on one side (operat-

ing side [BS] (PAR1) or wall side [MS] (PAR2)) or on both
sides (PAR3).

o delivered loose: 1 piece (PAR4)

2 pieces (PAR5)

Product: SCHAKO type PAR

Dimensions:

Width (W): .................... mm

Height (H): ..................... mm

Mounting bracket type WE-S, made of galvanised sheet steel,
dimensions 100 x 100 x 160 mm. Required for installation on
solid walls and in solid ceilings. The exact arrangement and
number of mounting brackets WE-S must be selected according
to the ERK-SO dimensions.
Product: SCHAKO Mounting bracket type WE-S

Dimensions (W/H according to the damper dimension)

Width (B): .................... mm

Height (H): .................... mm

The mounting brackets WE-S (loose) are delivered only if they
have been explicitly ordered and according to specifications for
the mounting situation.

Ceiling frame type DR-S, made of silicate structural panels, di­mensions 100x40 mm. Required for vertical installation on solid
ceilings. Up to dimensions W and H = 500 mm, additional
mounting brackets made of steel (2 pieces) are required for
ERK-SO. The ceiling frame DR-S is pressed circumferentially
against ERK-SO and solid ceiling and screwed to the ceiling. If it
is necessary due to the size, the mounting brackets made of
steel must be additionally screwed to the ERK-SO housing and
ceiling with DR-S.
The connection between ERK-SO and solid ceiling must be ad­justed beforehand using water glass glue (SBK 2000) or estab­lished.
Product: SCHAKO Ceiling frame type DR-S

Dimensions (W/H according to the damper dimension)

Width (B): .................... mm

Height (H): .................... mm

The ceiling frame DR-S (loose) is delivered only if it has been ex­plicitly ordered and according to specifications for the mount­ing situation.

CE MARKING

16

0761

SCHAKO Klima-Luft

Ferdinand Schad KG

Werk SO / Weidenäcker 9

D-88605 Meßkirch

DoP-ERK-SO-2016-07-01

Smoke extraction damper

Multi compartment

Nominal conditions of
activation/response
sensitivity:

Opening/closing during the
the test at the right time
and within the allowed time period

Response delay/
closing time:
Operational safety:

Fire resistance:

- Fire integrity - E

- Heat insulation - I

- Smoke tightness - S

- Mechanical
dimensional stability (under E)

- Maintaining the
cross-section (under E)

Durability of:

- the response delay

- the operational safety

Figure 29 - CE marking

2016

EN 12101-8:2011

Type/version

ERK-SO

MA -

passed

MA -

passed

10,000 switch

cycles ­passed

edw

, i↔o) S

10000

passed
passed

,

EI 90 (v

h

ow

1000 C

MA multi

Construction subject to change
No return possible Version: 2017-11-28 | Page 38

Smoke extraction damper ERK-SO

Service |

TECHNICAL DOCUMENTATION

SERVICE

CHECKING THE FUNCTION, CLEANING, REPAIR

Installation information

The assembly must be made in a way that the inner viewing,
cleaning and maintenance of the smoke damper is possible. To
this end, suitable inspection openings must be provided in the
connected smoke extraction ducts, if required. The connection
to smoke extraction ducts made of wall boards is done accord­ing to inspected duct-specific constructions. The connection to
inspected sheet steel ducts or flexible connection pieces is
done via the profiled mounting frame type PAR.

Regulations for use and maintenance

- The operator of the smoke extraction installation must en­sure that smoke extraction dampers are always kept in a
ready-to-operate state and are maintained.

- Smoke extraction dampers must undergo maintenance at a
six-month interval. If two consecutive inspections do not
show any malfunctions, the maintenance interval of the
smoke extraction dampers can be reduced to once a year.

- An inspection report must be produced, and the documents
must be kept by the operator of the smoke extraction instal­lation.

o The smoke extraction dampers must be installed in ac-

cordance with the technical documentation, installa­tion, mounting and operating instructions.

o The work must be carried out by specialised compa-

nies only.

o Observe general accident prevention regulations.
o The smoke extraction dampers must be installed such

that they are accessible.

o For internal inspection and cleaning of the smoke ex-

traction dampers, install inspection openings in the
continuation connection lines.

o The cover of the temperature-resistant actuator hous-

ing can be dismounted for electrical wiring and must
be properly remounted (screwed) once the wiring is
completed; the actuator itself is maintenance-free.

o The electrical line installation must be at least E30, ac-

cording to DIN 4102-12.

o All electrical connections between actuator and power

supply must be made according to the valid VDE guide­lines.

o Observe the general guidelines for service according to

DIN 31051 and EN 13306.

o For and after commissioning, the function of the entire

smoke extraction system (interaction of all compo­nents) must be regularly checked and documented in
writing.

o The owner or operator must check whether the mini-

mum requirement for his operation is met.

o The function can be checked from the central unit.
o Repair work can be carried out only after consultation

with the manufacturer.

1 - Inspection for commissioning on site

o Check the smoke extraction damper for damage.
o The smoke extraction damper must be installed in ac-

cordance with the technical documentation, installa­tion, mounting and operating instructions.

o Dismount the cover of the temperature-resistant actu-

ator housing.

o The electrical wiring is done by a skilled electrician. Ca-

ble is inserted via a bore of exact fit = ø E90 or ø E30
cable through the side wall of the temperature-re­sistant actuator housing.

o Damper is in closed position, damper blade "CLOSED".
o Connection to electric circuit
o *Motors EK10 (SEL 1.90; 24 V AC/DC) / EK11 (SEL 2.90; 230

V AC): 2-point activation of the smoke extraction damper.

o *Motors EK12 (SEL 1.90 SLC; 24 V AC/DC) / EK14 (EK12

+ SPMa-1SR): activation via 2-wire connection (SLC sys­tem) only in connection with communication device
e.g. SPLM-4S 0SD Mod / SPMa-1SR (component of
EK14).

o From the switch cabinet, give pulse for open position

(smoke extraction) or closed position (fire).

o Damper blade moves to open/closed position; the

movement is controlled by motor.

Limit switches integrated in the actuator indicate the

o

open/closed positions.

o Open / close running time < 60 sec.
o *Torque monitoring: SLC system at least 40 Nm.
o Screw the cover of the temperature-resistant actuator

housing again.

2 - Service for commissioning on site

o Remove / clean dirt / soiling detected during inspec-

tion.

3 - Inspection after commissioning – every 6 months / once a
year

o See Inspection for commissioning.
o Functional test of the smoke extraction damper on

site.

o Functional test by external monitoring.

4 - Service after commissioning depending on system equip­ment and operating conditions

o Internal inspection
o Remove / clean system-specific dirt / soiling which af-

fects safety function.

Measures to be implemented for service must be docu­mented in writing and provide proof.

5 - Repair

o Repair work must be carried out after consultation

with the manufacturer.

Construction subject to change
No return possible Version: 2017-11-28 | Page 39

Sample of functional test protocol |

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

SAMPLE OF FUNCTIONAL TEST PROTOCOL

SAMPLE
Functional test protocol for smoke extraction dampers

Cons. No. ____________________

Smoke extraction dam­per No.:
Declaration of perfor­mance no.:

Series:
Actuator:

The following functional steps have
been carried out according to the
documents installation, mounting
and operating instructions

before
commissioning

SCHAKO
Ferdinand Schad KG
Steigstrasse 25-27
D-78600 Kolbingen
Phone: +49- (0)7463 / 980-0
Fax: +49- (0)7463 / 980-200
E-mail: [e-mail]
Web: www.schako.de

next
functional
check in:
_____________

next
functional test
in:
_____________

next
functional test
in:
_____________

next
functional test
in:
_____________

External check:
System: _____________________
Item: _______________________
Internal check:
System: _____________________
Item: _______________________
Additional check:
System: _____________________
Item: _______________________
without defects

Date / tester

with defects (see back)
Date / tester

without defects
Date / tester



Construction subject to change
No return possible Version: 2017-11-28 | Page 40

Sample of functional test protocol |

Smoke extraction damper ERK-SO

TECHNICAL DOCUMENTATION

SCHAKO
Ferdinand Schad KG
Steigstrasse 25-27
D-78600 Kolbingen
Phone: +49- (0)7463 / 980-0
Fax: +49- (0)7463 / 980-200
E-mail: [e-mail]
Web: www.schako.de

SAMPLE

Functional test protocol for smoke extraction dampers
Cons. No. ____________________

Defects found during the test on: ________________________________________

Sluggishness due to soiling.

Any remaining mortar must be removed.

Defects found during the test on: ________________________________________

Defects found during the test on: ________________________________________

Defects found during the test on: ________________________________________

Construction subject to change
No return possible Version: 2017-11-28 | Page 41

Smoke extraction damper ERK-SO

Foreign branch offices |

TECHNICAL DOCUMENTATION

FOREIGN BRANCH OFFICES

Belgium Denmark England France

SCHAKO S.A.R.L. Venti AS SCHAKO Ltd. SCHAKO s.a.r.l.
165, rue des Pommiers Banevænget 3 Index House 16 Boulevard de la Croix Rousse
L-2343 Luxembourg 8362 Hørning St Georges Lane, Ascot F-69001 Lyon
Phone: +352 / 403 157 1 Phone: +45 / 86 92 22 66 SL5 7EU Berkshire Phone: +33 / 4 / 78 34 97 34
Fax: +352 / 403 157 66 Fax: +45 / 86 92 22 26 Phone: +44 / 13 44 63 63 89 Fax: +33 / 4 / 78 34 97 31
[e-mail] [e-mail] Fax: +44 / 13 44 87 46 58 [e-mail]
www.schako.be www.venti.dk [e-mail] www.schako.fr
www.schako.co.uk

Greece Israel Italy Croatia

EUROPERSIS Insupco Industrial Supply Ltd. SCHAKO Italia S.r.l. Intel Trade
Odisea Androutsou 2 40 Hayarkon St. Via XXV Aprile, 17 Dr. Ante Mandica 10
GR-56224 Evosmos/Tessaloniki Yavne 811 00 20097 S.Donato Milanese-MI HR-51410 Opatija
Phone: +30 / 310 / 68 57 79 Phone: +972 / 8 / 94 20 080 Phone: +39 / 02 / 51 64 02 01 Phone: +385 / 51 741 100
Fax: +30 / 310 / 75 76 13 Fax: +972 / 8 / 94 20 311 Fax: +39 / 02 / 51 62 09 46 Fax: +385 / 51 701 470
[e-mail] [e-mail] [e-mail] [e-mail]
www.europersis.gr www.insupco.com www.schako.it www.intel-trade.hr

Luxembourg Netherlands Austria Poland

SCHAKO S.A.R.L. SCHAKO S.A.R.L. SCHAKO Vertriebs GmbH SCHAKO Polska Sp. z o.o
165, rue des Pommiers 165, rue des Pommiers Mariahilfer Straße 103/1/TOP 12 ul. Pulawska 38
L-2343 Luxembourg L-2343 Luxembourg A-1060 Wien PL-05-500 Piaseczno
Phone: +352 / 403 157 1 Phone: +352 / 403 157 1 Phone: +43 / 1 / 890 24 62 Phone: +48 / 22 / 7263570
Fax: +352 / 403 157 66 Fax: +352 / 403 157 66 Fax: +43 / 1 / 890 24 62 50 Fax: +48 / 22 / 7263571
[e-mail] [e-mail] [e-mail] [e-mail]
www.schako.lu www.schako-nederland.nl www.schako.at www.schako.pl

Romania Sweden Switzerland Serbia & Montenegro

SCHAKO Klima Luft SRL EXOTHERM AB SCHAKO Suisse SA TERMOMEHANIKA d.o.o.
Str. Elena Caragiani nr.21 Box 60036 Rue Jean-Prouvé 28 Koste Glavinica 2
014212 Bucuresti, 21610 Limhamn 1762 Givisiez RS-11000 BEOGRAD
Phone: +40 / 0 / 21 / 232 13 75 Phone: +46 / 40 / 631 61 16 Phone: +41 / 26 / 460 88 00 Phone: +381 / 11 / 369 99 93
Fax: +40 / 0 / 21 / 232 13 75 Fax: +46 / 40 / 15 60 95 Fax: +41 / 26 / 460 88 05 Fax: +381 / 11 / 369 09 93
[e-mail] [e-mail] [e-mail] [e-mail]
www.schako.ro www.exotherm.se www.schako.ch www.termomehanika.rs

Slovakia Spain Czech Republic Turkey

SCHAKO SK s.r.o. SCHAKO IBERIA S.L. SCHAKO s.r.o. EMO-SCHAKO Klima
Modrová 187 Departamento de Ventas Pred Skalkami II. 184/5 Havalandirma
91635 Modrová Pol. Ind. Río Gállego, CZ-10600 Praha 10-Zabehlice San. ve Tic. Ltd. Sti.
Phone: +421 / 337 / 774 1843 Calle B, nave 3 Phone: +42 / 02 / 727 680 43 Pursaklar Sanayi Sitesi,
Fax: +421 / 337 / 774 1843

[e-mail] Phone: +34 / 976 / 531 999 [e-mail] 06145 Altindag - Ankara
www.schako.sk Fax: +34 / 976 / 690 709 www.schako.cz Phone: +90 / 312 527 16 05
[e-mail] Fax: +90 / 312 527 16 08
www.schako.es [e-mail]
www.emo-schako.com.tr

Hungary

SCHAKO Kft.
Tó Park 6
H-2045 Törökbálint
Phone: +36 / 23 / 445670
Fax: +36 / 23 / 445679
[e-mail]
www.schako.hu

50840 San Mateo de Gállego /
Zaragoza

Fax: +42 / 02 / 727 693 94 Karacaören Mah.1638.Cad.

No:98

Construction subject to change
No return possible Version: 2017-11-28 | Page 42

Smoke extraction damper ERK-SO

Lists |

TECHNICAL DOCUMENTATION

LISTS

LIST OF FIGURES

Figure 1 - Dimensions ERK-SO .................................................................................................................................................................4

Figure 2 - Actuator housing .....................................................................................................................................................................6

Figure 3 - Opening dimensions of the solid wall ......................................................................................................................................8

Figure 4 - Air flow direction .....................................................................................................................................................................8

Figure 5 - Installation in solid walls ..........................................................................................................................................................9

Figure 6 - Minimum distances of the ERK-SO in solid wall ....................................................................................................................10

Figure 7 - Installation in solid wall without clearance ...........................................................................................................................11

Figure 8 - Installation on solid walls ......................................................................................................................................................14

Figure 9 - Fastening WE-S on ERK-SO and solid wall..............................................................................................................................15

Figure 10 - Opening dimensions of the solid ceiling ..............................................................................................................................17

Figure 11 - Installation in solid ceilings ..................................................................................................................................................18

Figure 12 - Arrangement of WE-S when installed in solid ceilings .........................................................................................................19

Figure 13 - Vertical installation on solid ceiling .....................................................................................................................................20

Figure 14 - Connection to horizontal smoke extraction duct ................................................................................................................21

Figure 15 - Connection in horizontal smoke extraction duct .................................................................................................................21

Figure 16 - Examples of connection to smoke extraction duct ..............................................................................................................21

Figure 17 - Connection on horizontal smoke extraction duct ................................................................................................................22

Figure 18 - Connection to smoke extraction duct made of sheet metal ...............................................................................................23

Figure 19 - Suspension fastening M8 to M12 ........................................................................................................................................24

Figure 20 - Suspension fastenings M16 and M20 ..................................................................................................................................24

Figure 21 - Covered suspending brackets ≤ M12 ...................................................................................................................................26

Figure 22 - Dimensions of the suspension covering ..............................................................................................................................26

Figure 23 - Covered suspending brackets M14 to M20 .........................................................................................................................27

Figure 24: Minimum distances to walls and ceilings and ERK-SO to one another .................................................................................28

Figure 25 - Actuator arrangement and cable routing ............................................................................................................................33

Figure 26 - Profile connection frame type PAR ......................................................................................................................................34

Figure 27 - Security grille type ASG-E ...................................................................................................................................................34

Figure 28 - Flexible connection spigot type FS-E ...................................................................................................................................34

Figure 29 - FS-E flange dimensions/drill pattern ...................................................................................................................................34

Figure 30 - CE marking ...........................................................................................................................................................................38

LIST OF TABLES

Table 1 - Available sizes ...........................................................................................................................................................................5

Table 2 - Dimensions of the actuator housing .........................................................................................................................................6

Table 3 - Usability ....................................................................................................................................................................................7

Table 4 - Accessory packages for vertical damper blade axle position ..................................................................................................12

Table 5 - Accessory packages for horizontal damper blade axle position .............................................................................................13

Table 6 - Number of mounting brackets WE-S for installation on solid wall .........................................................................................16

Table 7 - Arrangement of WE-S and wall fastening for installation on solid wall ..................................................................................16

Table 8 - Suspension (threaded rods) for U-steel for installation on solid wall .....................................................................................16

Table 9 - Number of mounting brackets WE-S for installation in solid ceiling .......................................................................................19

Table 10 - Suspensions ..........................................................................................................................................................................25

Table 11 - Weight table .........................................................................................................................................................................25

Table 12 - Suspension coverings ............................................................................................................................................................26

Table 13 - Design data ...........................................................................................................................................................................30

Table 14 - Technical data of actuators ...................................................................................................................................................32

LIST OF DIAGRAMS

Diagram 1 - Design diagram ..................................................................................................................................................................29

Construction subject to change
No return possible Version: 2017-11-28 | Page 43
