Page 1
Ferdinand Schad KG
Steigstraße 25-27
D-78600 Kolbingen
Telephone +49 (0) 74 63 - 980 - 0
Fax +49 (0) 74 63 - 980 - 200
[email protected]
www.schako.de
Additional operating instructions
according to ATEX 2014/34/EU

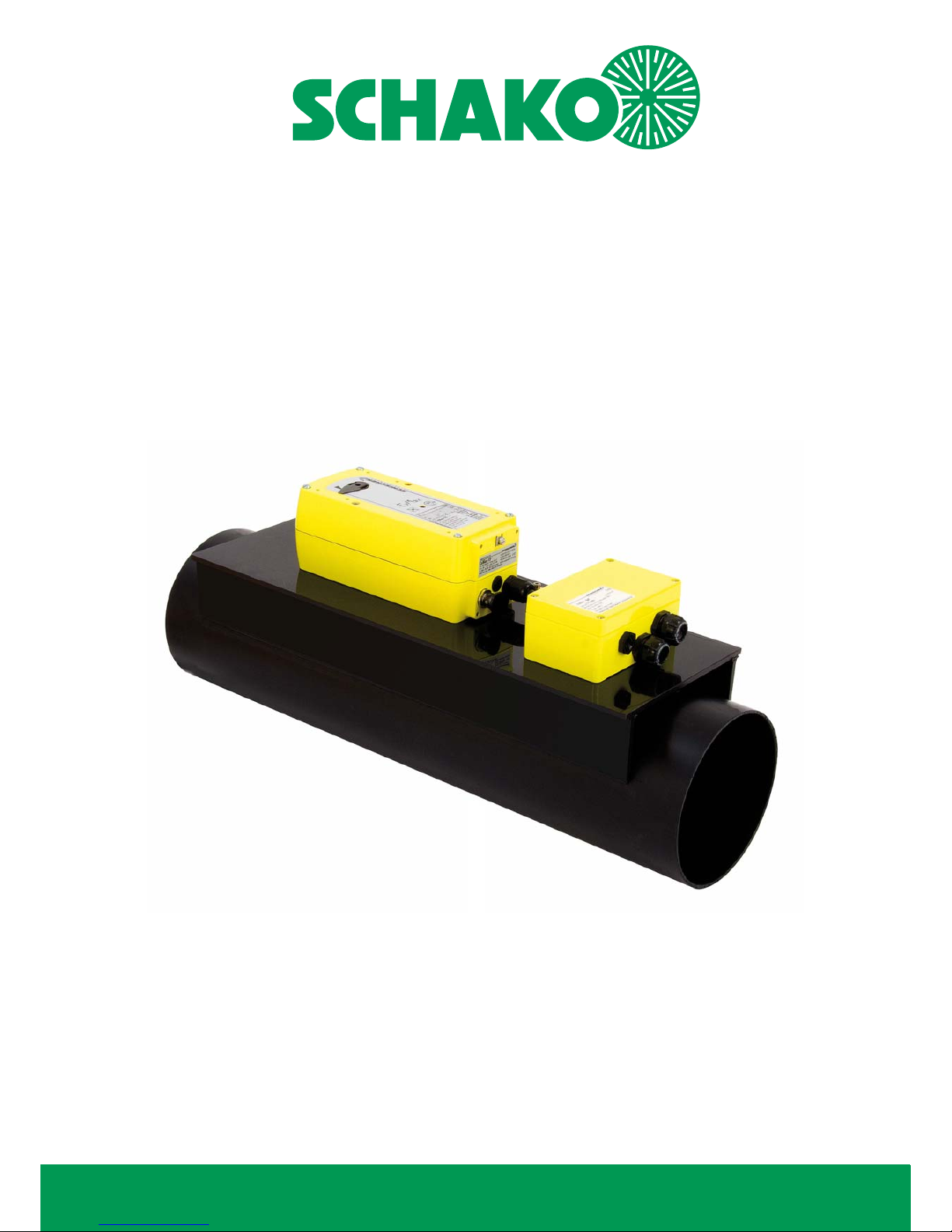

Damper
DKA-L-PPs-EL-Ex
Page 2
Contents
Construction subject to change. No return possible!
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 2 19.12.2018Version:
General conditions ...............................................................................................................................3
General description and instructions .......................................................................................................................................... 3
Personnel qualification and training ...........................................................................................................................................3
Safety-conscious work ...............................................................................................................................................................3
Designated use ..........................................................................................................................................................................3
Delivery and storage ..................................................................................................................................................................3
Mounting information ................................................................................................................................................................3
Maintenance ...............................................................................................................................................................................3
Hazard caused by non-observance of the safety instructions ....................................................................................................3
Description ........................................................................................................................................4
Construction .............................................................................................................................................................................. 4
Model .........................................................................................................................................................................................4
Accessories ................................................................................................................................................................................4
Models and dimensions ......................................................................................................................... 4
Dimensions ................................................................................................................................................................................4
Dimensions of accessories ........................................................................................................................................................5
Information regarding maintenance and inspection ...................................................................................................................5
Information regarding maintenance and inspection ...................................................................................................................5
Use and electrical connection of actuators in areas subject to explosion hazards ......................................................................6
Actuators ................................................................................................................................................................................... 6
Certificate of Conformity ........................................................................................................................ 7
Enclosure: Certificate of conformity ...........................................................................................................................................8
Page 3
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 3
Construction subject to change. No return possible!
19.12.2018Version:
General conditions
General description and instructions
These additional operating instructions must be observed prior
to mounting and commissioning the device.
These additional operating instructions contain basic information regarding its use in areas subject to explosion hazards to be
observed during assembly, operation and maintenance.
Prior to mounting and commissioning and during maintenance
work, the present additional operating instructions must be read
by the installer and the responsible skilled personnel/system
operator!
Personnel qualification and training
The personnel for assembly, inspection and maintenance must
have the relevant qualification for this work.
The area of responsibility, competence and monitoring of the
personnel must be exactly regulated by the system operator. If
the personnel does not have the required knowledge, it must be
trained and instructed. Moreover, the system operator must ensure that the contents of the additional operating instructions
are understood completely by the personnel.
Safety-conscious work
The safety instructions given in these additional operating instructions, the existing national and international regulations on
explosion protection, accident prevention and the system operator's internal work, operating and safety regulations must be
observed.
Designated use
The product has the following test number and ATEX marking:
The devices have been designed for use in areas subject to explosion hazards according to ATEX of device group II, device
category 2 for Zones 1 and 21, as well as device category 3 for
Zones 2 and 22.
These devices are ONLY suitable for use in approved Ex zones.
The operating safety of the devices is only guaranteed when
used in accordance with their designated use.
Delivery and storage
Upon receipt, the devices must be checked for completeness
and transport damage. If delivered incompletely or damaged,
the forwarding company and the SCHAKO KG have to be informed immediately.
The device must not be exposed directly to weather, solar radiation and moisture.
Mounting information
Mounting, electrical connection work and commissioning must
be carried out by skilled personnel only and in accordance with
the recognised technical rules and the safety and accident prevention regulations.
Maintenance
Only a device subjected to proper maintenance and kept in perfect condition can guarantee safe and reliable operation.
When defective parts are replaced with spare parts, only SCHAKO original spare parts may be used. The SCHAKO KG cannot
be held liable for any damage caused by using spare parts that
are not original and will not give any warranty.
Hazard caused by non-observance of the safety instructions
Non-observance of the safety instructions can result both in
putting persons and the environment and operating units at risk.
Likewise, non-observance of the safety instructions will result in
the loss of any claims for damages.
II 2 G IIC T6
II 2 D T80°C
EPS 11 ATEX 2 314 X
Page 4
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 4
Construction subject to change. No return possible!
19.12.2018Version:
Description
The round, adjustable throttle damper DKA-L-PPs-EL-Ex
made of plastic PPs-EL is suitable for installation in round supply and return air ducts for use with air contaminated with aggressive media. It is used for regulating volumetric flows in
ventilation and air-conditioning installations.
The damper DKA-L-PPs-EL-Ex can be used for airtight locking
of volumetric flows.
The damper DKA-L-PPs-EL-Ex can be used at temperatures between 0 °C and +55 °C.
Maximum duct pressure 500 Pa.
For maintenance, service, retrofitting, etc., inspection openings
in sufficient number and size must be provided on-site.
Construction
model
Accessories
Models and dimensions

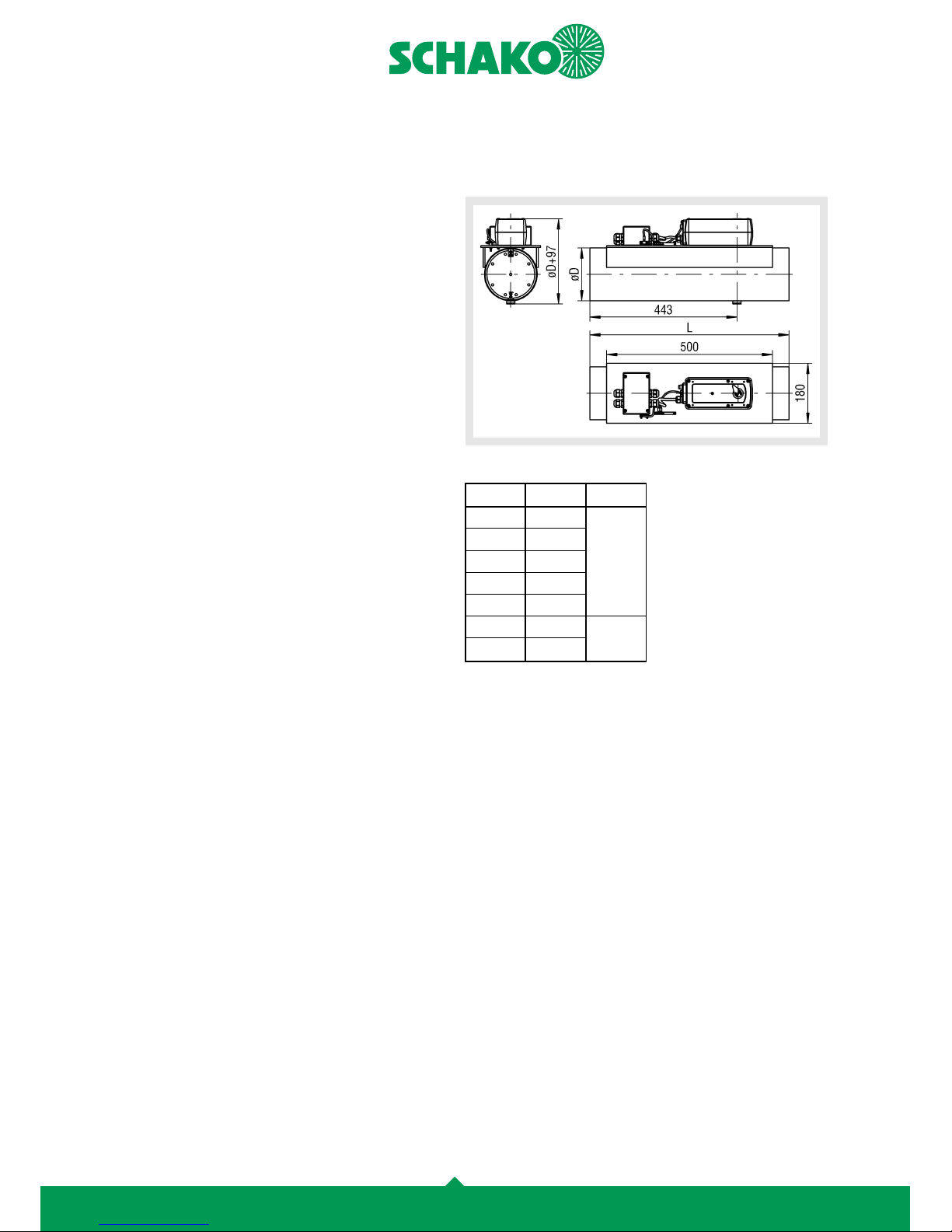

Dimensions
DKA-L-PPs-EL-Ex
Available sizes DKA-L-PPs-EL-Ex
Housing
- Plastic PPs-EL
Damper axle
- Plastic PP
Damper actuation
- Plastic PP
Damper blade
- Plastic PPs-EL
Damper leaf seal
-
Silicone-free made of PUR, sealing airtight to DIN EN 1751,
Class 3
Console
- Aluminium, with floor bar
Floor bar
- Plastic PPs-EL
DKA-L-PPs-EL-Ex - with plastic damper leaf and silicon-free
damper leaf seal
Angled flange (-WF) (at an extra charge)
- on both sides, made of plastic PPs-EL
NW øD L
110 110
600
125 125
160 160
200 200
250 250
315 315
650
400 400
Page 5
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 5
Construction subject to change. No return possible!
19.12.2018Version:

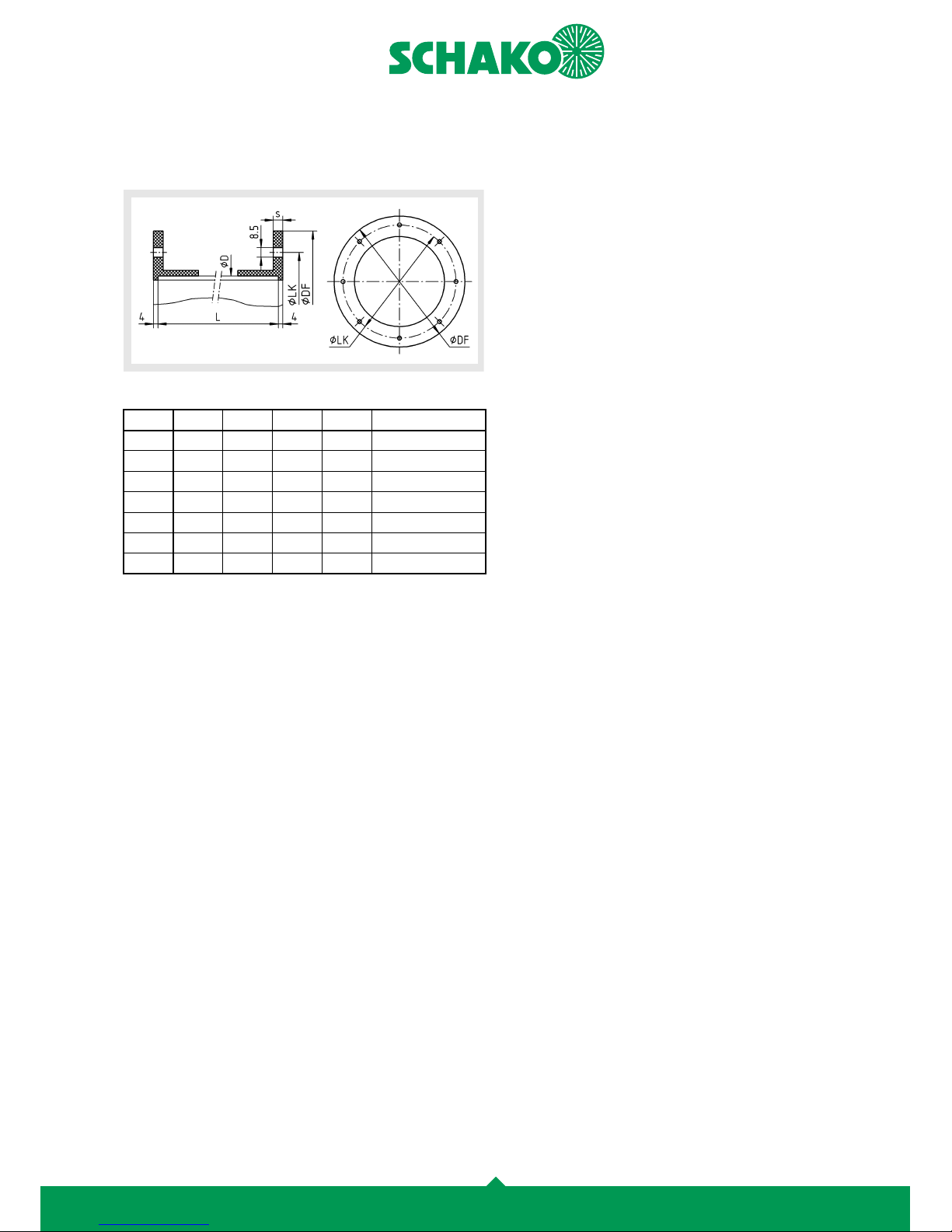

Dimensions of accessories
(at an extra charge):
angle flange (-WF, on both sides)
Available sizes angled flange (-WF)
Information regarding assembly and commissioning
Prior to being installed in the ventilation system, the device
must be checked for damage. Damaged fire dampers must not
be installed.
The device may only be used in accordance with its designated
use in air ventilation systems for supply air and return air.
The device must be mounted only using approved fastening material.
No additional parts must be fastened to the device.
The device must be connected to the ventilation duct network on
both sides in electrically conducting manner.
In order to avoid the risk of static charges, the device must be
connected to the on-site equipotential bonding on the grounding connection provided for this purpose.
Make sure that the ventilation systems are not subjected to any
anomalous operating conditions, such as vibrations, pressure
surges or high proportions of solids in the medium.
For electrical connection diagrams, refer to the respective Schako additional information.
Electrical wiring and commissioning work must be performed
by skilled personnel only.
Information regarding maintenance and inspection
Proper maintenance increases operational safety and the service life of the device. This is why the devices should be subjected
to regular inspection.
If inspection dates are prescribed by law, they must be complied
with.
The operating personnel must be informed, prior to starting
maintenance and inspection work.
The personal safety measures must be looked up in the safety
data sheet. Hazard caused by contact or inhaling hazardous substances must be excluded by taking appropriate safety measures.
Prior to maintenance or inspection, all system components upand downstream of the device must be switched off and secured
against being switched on again.
NW øD øDF øLK s Number of holes
110 110 170 150 8 8
125 125 195 165 8 8
160 160 230 200 8 8
200 200 270 240 8 8
250 250 320 290 8 12
315 315 395 350 10 12
400 400 480 445 10 16
Page 6
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 6
Construction subject to change. No return possible!
19.12.2018Version:
The following inspection criteria must be observed
:
Use and electrical connection of actuators in areas
subject to explosion hazards
Only ATEX-approved electrical equipment according to ATEX Directive 2014/34/EU for device group II as well as device category 2 for zones 1 and 21 and device category 3 for zone 2 and 22,
such as actuators, terminal boxes and thermocouples as specified by SCHAKO may be used for devices from SCHAKO KG.
For the technical data and connection diagrams, please refer to
the technical documentation.
The connection lines must be installed for permanent use and in
such a way that they are sufficiently protected from mechanical
and thermal damage.
Devices with explosion-protected drives and terminal boxes
have to be attached over the external potential connecting terminal to the potential equalisation provided by the customer with
at least 4 mm² cooper solid-core.
The electrical connection lines of the actuators must be connected in a terminal box according to ATEX Directive 2014/34/
EU for device group II as well as device category 2 for zones 1
and 21 and device category 3 for zones 2 and 22 if the electrical
connection is made in the area subject to explosion hazards.
The dimensioning of the conductor cross-sections must be observed.
The actuators are maintenance-free with respect to their function, but the relevant maintenance regulations according to
ATEX directives or factory regulations must be observed.
Actuators
The description of the fields of application and the technical data
for the actuator SCHISCHEK ExMax-…-S / -Y / -F / -SF / -YF can
be found in the SCHISCHEK documentation at
www.schischek.de
- Visual inspection of the device
- Check the fastening of the device
- Check the electrical connections
- Check the grounding connection for tight fit and good contact
- Functional check
- For additional inspections, please refer to the technical documentation or additional maintenance instructions
without spring return
- ExMax 5.10 (3-point activation)
- ExMax 5.10 - S (3-point activation, with one limit switch)
- ExMax 5.10 - Y (3-point activation and continuous control)
with spring return
- ExMax 5.10 - F (3-point activation)
- ExMax 5.10 - SF (3-point activation, with one limit switch)
- ExMax 5.10 - YF (3-point activation and continuous control)
Page 7
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 7
Construction subject to change. No return possible!
19.12.2018Version:

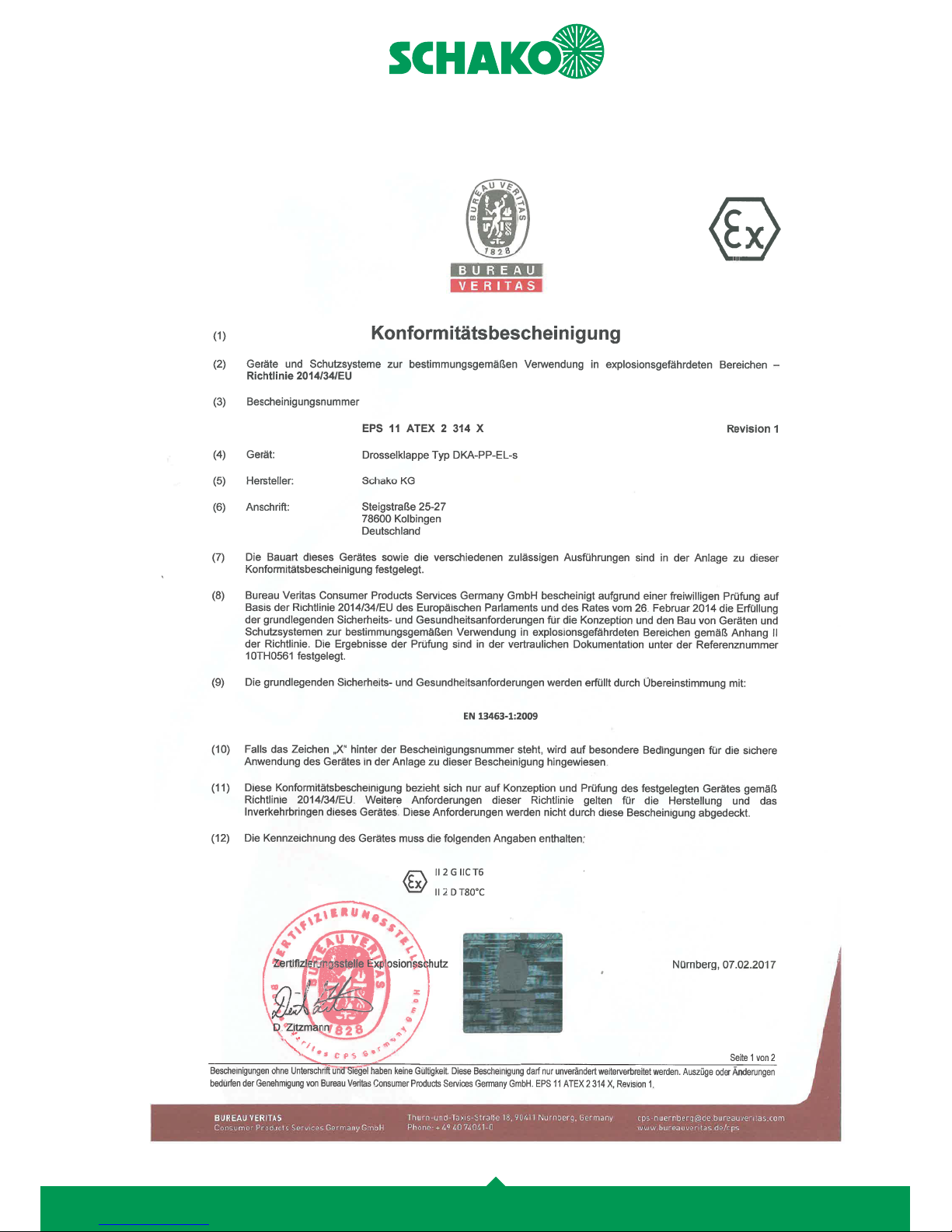

Certificate of conformity
Page 8
Additional operating instruction according to ATEX 2014/34/EU damper DKA-L-PPs-EL-Ex
Z08/56 - 8
Construction subject to change. No return possible!
19.12.2018Version:

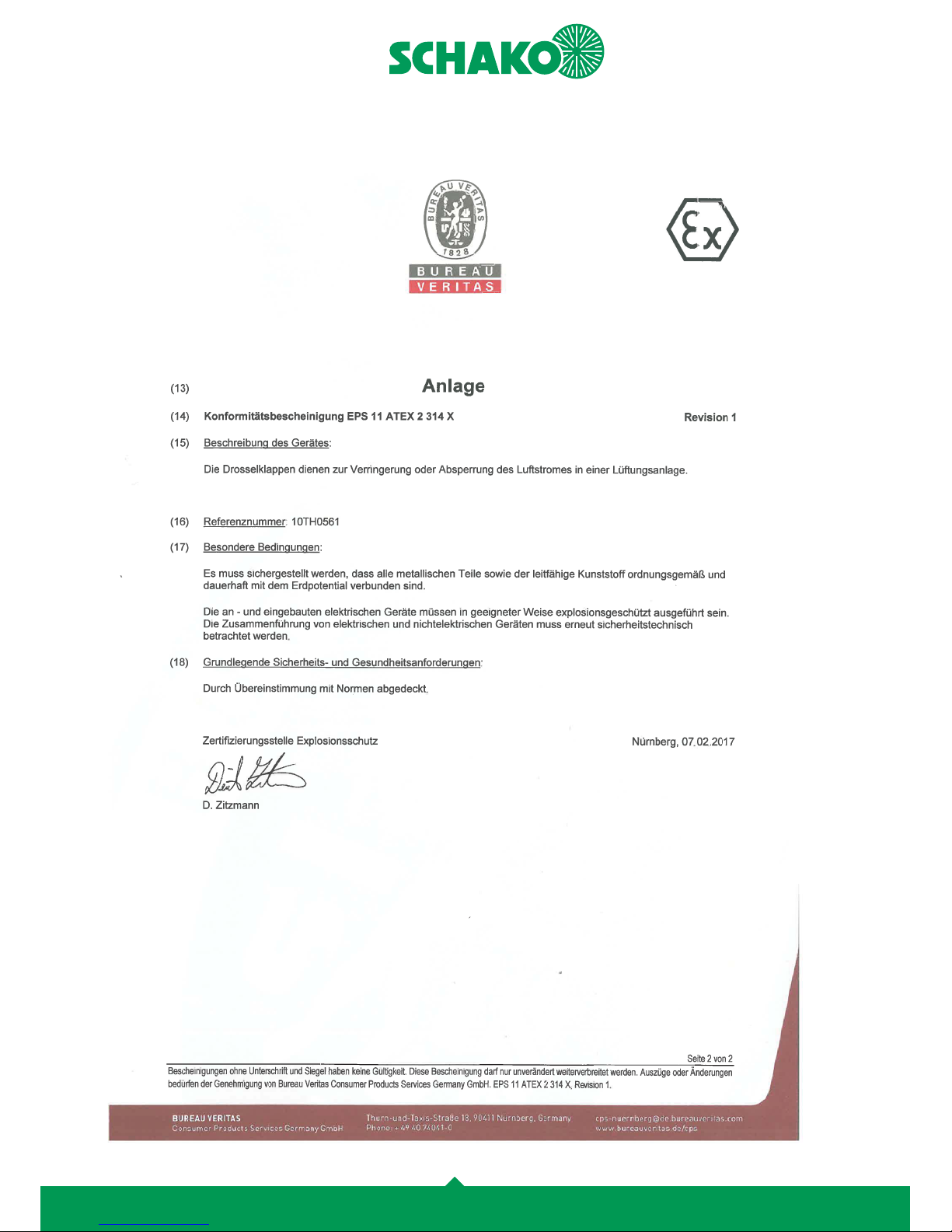

Enclosure: Certificate of conformity
