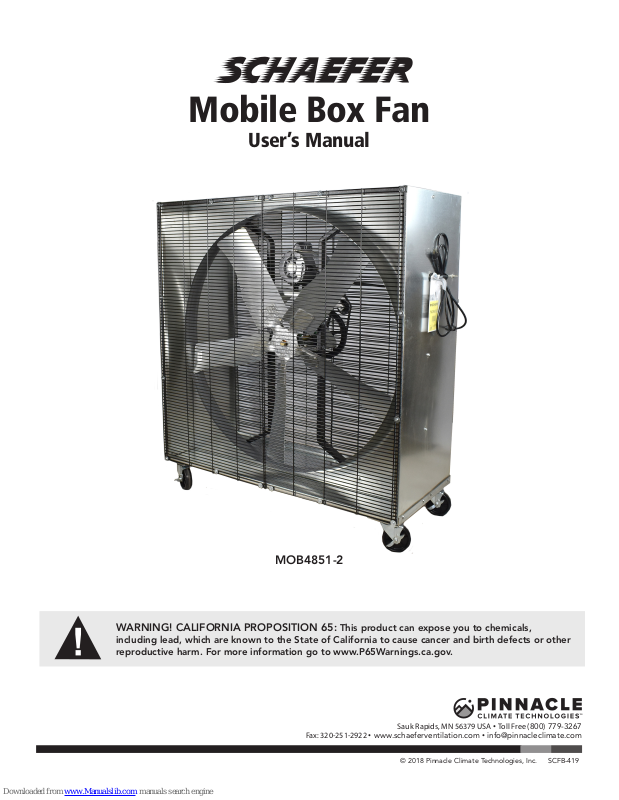

Mobile Box Fan
User’s Manual
WARNING! CALIFORNIA PROPOSITION 65: This product can expose you to chemicals,
including lead, which are known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
MOB4851-2
Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267
Fax: 320-251-2922 • www.schaeferventilation.com • info@pinnacleclimate.com
© 2018 Pinnacle Climate Technologies, Inc. SCFB-419
TABLE OF CONTENTS
About this Manual .......................................................................2
Safety Recommendations .................................................................2
Safety Information .......................................................................3
Setup and Operation ....................................................................3
Maintenance ...........................................................................4
Troubleshooting ........................................................................4
Parts Identification ......................................................................5
Parts List ..............................................................................5
Warranty ..............................................................................6
ABOUT THIS MANUAL
THANK YOU!
Thank you for purchasing this quality product. We believe you will find our Mobile Box Fan to be an effective source for
cooling. The intent of this manual is to serve as a reference for simple maintenance and questions regarding your product.
Important! Before operating the Mobile Box Fan, carefully read and follow these instructions.
Important! Pay particular attention to all SAFETY information.
All information, illustrations and specifications in this manual are based on the latest product information available at the
time of printing. We reserve the right to make changes at any time without notice.
SAFETY RECOMMENDATIONS
• This is an electric device with moving components. There is the possibility of fire, electric shock, or injury
to persons. Ensure all the safety recommendations are adhered to in order to minimize this risk.
• Comply with all local and national electrical codes.
• Disconnect all power and unplug the unit before you inspect, clean or perform maintenance on any
components.
• Do not allow electrical cord connections to fall or lay in water.
• A GFCI (Ground Fault Circuit Interrupter) is recommended for use with this product.
• If an extension cord must be used, be sure it is properly rated for this product.
• Do not operate without guards in place.
2
Mobile Box Fan User’s Manual ©2018 Pinnacle Climate Technologies
SAFETY INFORMATION
Follow Safety Instructions
Carefully read all safety messages in this manual and the safety decals on your equipment. Follow all recommended
precautions and safe operating practices.
Keep safety decals in good condition. Replace missing or damaged safety decals.
Decal Description
This diagram shows the proper location of the safety decals as shipped from the factory. Make sure the decals are easy to
see at all times.
AIR FLOW
- back of fan, with guards removed -
SETUP AND OPERATION
Unpack your Mobile Box Fan
• The unit is shipped fully assembled and strapped to a pallet. Inspect the unit and note any suspected
damage when accepting delivery.
• Remove the straps and lift the unit from the pallet.
Caution: This unit is very heavy. When removing this unit from the pallet manually, several people should assist
to avoid injury.
Inspect your Mobile Box Fan
• Visually inspect the unit for any damage that may have occurred during shipping.
• Contact your shipper immediately if any damage is found.
The unit is ready for operation
• Shut down the unit when it is no longer needed.
• Unplug the unit from the electrical outlet.
3
Mobile Box Fan User’s Manual ©2018 Pinnacle Climate Technologies
MAINTENANCE
Note: The fan unit you have purchased is built with heavy duty components, designed to give you many years of performance. Like anything else that is mechanical, your fan unit will require a small amount of periodic maintenance to assure
maximum efficiency.
Our fans utilize motors that have totally sealed bearings. Periodically remove dust and grime that has accumulated on the
motor, fan blade, and guard. Pressure washing the unit will void the warranty. Performing this small amount of maintenance will keep your fan unit running as efficiently as when it was brand new.
Bi-annually
7000 hours
Grease zerks
Clean motor, fan blade and guards.
• Disconnect power.
• Use an air hose to remove dust.
• Use a damp cloth to remove grime and grease.
• Pressure washing will void the warranty.
Grease the pillow block bearings.
• Use a grease gun and lithium-based / Shell #2 grease.
• Insert 4 grams into each grease zerk every 7000
hours of run time.
• Do not overgrease.
TROUBLESHOOTING
Symptom Possible causes Corrective action
Fan not operating
1. Ensure you have power 1. Plug fan in
2. Ensure wiring is done properly 2. Ensure wiring is correct
3. Blown fuse or tripped breaker 3. Replace fuse or reset breaker
4. Fan blade contacting fan housing 4. Realign fan blade in fan housing
5. Fan control defective 5. Repair or replace control
6. Motor defective 6. Repair or replace motor
Fan operating - insufficient airflow
1. Guard dirty 1. Clean guard
2. Incorrect belt tension 2. Tighten belt
Excessive fan noise
1. Fan blade contacting fan housing 1. Realign fan blade in fan housing
2. Motor bearing defective 2. Repair or replace motor
Excessive vibration
1. Motor loose in mount 1. Tighten fasteners
2. Fan blade damaged 2. Replace fan blade
3. Motor shaft bent 3. Repair or replace motor
4. Fan shaft bent 4. Replace fan shaft
5. Pillow block bearings defective 5. Replace pillow block bearings
4
Mobile Box Fan User’s Manual ©2018 Pinnacle Climate Technologies
1. PILLOW BLOCK
BEARINGS
2. FAN SHAFT
3. BELT
4. MOTOR/SHAFT
MOUNTING PAN
10. GUARD
11. BRACKET
12. WHEEL
PARTS IDENTIFICATION
5. UPRIGHT
6. VENTURI
7. PULLEYS
8. BLADE
9. MOTOR
13. HANDLE
14. TOGGLE SWITCH
15. POWER CORD
STRAP
16. POWER CORD
MOB4851-2 48” Mobile Box Fan, 5-wing, 1 HP, 2-speed
ITEM NUMBER DESCRIPTION
1 PBBA205-16 Pillow Block Bearing
2 FS1X15.5 Fan Shaft, 1”x151/2”
3 AX-47 V-Belt, Cogged
4 MSMP-P Motor/Shaft Mounting Pan
5 48UPRIGHT Motor Mount Upright for 48”
6 48VENTURI 48” Orifice
7 AK-104C Fan Shaft Pulley, 1” Bore
7 AK-26 Motor Pulley, 5/8” Bore
8 GFB-485P 48” Galvanized Fan Blade, 5-wing
9 CS596 Motor, 1 HP, 115V, 2-speed
10 48FGO-P 48” Guard
11 BFWB Box Fan Wheel Bracket
12 WC-CASTERLGLK Large Locking Caster, 5”x11/4”
12 WC-CASTER5 Large Caster, Non-locking, 5”
13 0HANDLE Handle
14 TOGGLESWITCH Toggle Switch
15 OCT8VELCRO Velcro Strap
16 WC-POWERCORD 9’ Power Cord
PARTS LIST
5
Mobile Box Fan User’s Manual ©2018 Pinnacle Climate Technologies
WARRANTY
Pinnacle Climate Technologies Limited Warranty Policy
Pinnacle Climate Technologies (PCT) provides the following limited warranty from the date of invoice to
the initial purchaser of our products or to its customer with a dated proof of purchase:
Two-year coverage (unless otherwise indicated below) applies to all products, components and assemblies provided by PCT
that prove to be defective in material or workmanship. Any such defective product will be repaired or replaced at PCT’s
option, with the defective product or component returned upon approval to PCT, F.O.B. Sauk Rapids, Minnesota.
This warranty does not cover: failure, damage or malfunction as a result of: Improper installation or installation not in
accordance with installation instructions. Operating conditions that vary from PCT’s operating instructions. Misuse, abuse,
negligence, alteration, or accident. Transporting the product. Improper operation or lack of appropriate or regular maintenance of the product. Loss of time, inconvenience, loss of use of the product or other consequential or incidental damages.
Parts that need replacement due to normal wear and tear. Superficial or cosmetic rust or corrosion. Any product whose
name plate has been removed.
A full warranty statement may be printed or downloaded from www.schaeferventilation.com
All information, illustrations and specifications provided here are based on the latest product information
available at the time of printing. Product specifications subject to change.
.
