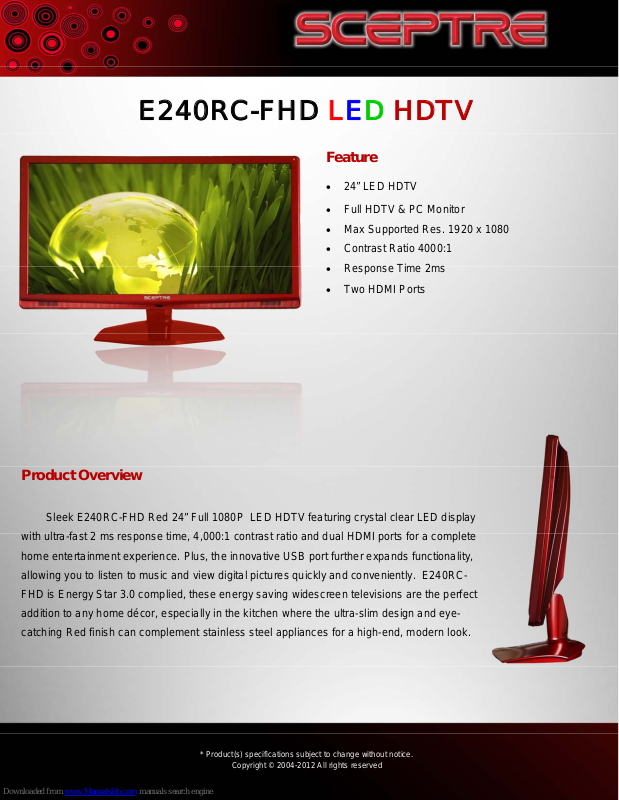

E240RC-FHD LED HDTV
Feature
• 24” LED HDTV
• Full HDTV & PC Monitor
• Max Supported Res. 1920 x 1080
• Contrast Ratio 4000:1
• Response Time 2ms
• Two HDMI Ports
Product Overview
Sleek E240RC-FHD Red 24” Full 1080P LED HDTV featuring crystal clear LED display
with ultra-fast 2 ms response time, 4,000:1 contrast ratio and dual HDMI ports for a complete
home entertainment experience. Plus, the innovative USB port further expands functionality,
allowing you to listen to music and view digital pictures quickly and conveniently. E240RCFHD is Energy Star 3.0 complied, these energy saving widescreen televisions are the perfect
addition to any home décor, especially in the kitchen where the ultra-slim design and eyecatching Red finish can complement stainless steel appliances for a high-end, modern look.
* Product(s) specifications subject to change without notice.
Copyright © 2004-2012 All rights reserved
Page 2
E240RC-FHD LED HDTV
LED PANEL
Screen Size 24”
Resolution 1920 x 1080
Contrast Ratio 4,000:1 (Dyanmic)
Brightness (cd/m2) 300 cd/m2
Response Time 2 ms
Viewing Angle H:178
° , V:178°
INPUT / OUTPUT PORTS
D-Sub (VGA) 1
DVI 1
Component 1
HDMI 2
Composite 1
Audio In 1
Cable / Antenna Input 1
VIDEO
Lamp Life >50,000 Hours
USB Input 1
Coaxial /SPDIF Audio Output
Aspect Ratio 16:9
HDMI Support 1080P
Colors 16.7 million
DIMENSIONS & WEIGHT
TV Without Stand (WxHxD)
TV With Stand (WxHxD)
AUDIO
Net Weight 13.12lbs
Gross Weight 15 lbs
Audio Output Power 10W per channel
NTSC, ATSC, & QAM Tuner
22.51”Wx13.94”Hx2.7”D
22.51”W x 17.32”H x 7.86”D
COMPATIBILITY SIGNALS
HDMI Input Support 1080P, 1080i, 720P, 480P video
signal HDCP video up to 1080P
VGA Input Support PC Input Max Resolution : 1920 x
1080@ 60hz
Native Resolution : 1920 x 1080
REGULATION
cTUV us, FCC Class B Yes
* Product(s) specifications subject to change without notice.
Copyright © 2004-2012 All rights reserved
Power Source
Power Source 12Vdc == 3.0A
Power Consumption < 23W (Typical) / 1W
(Standby)
