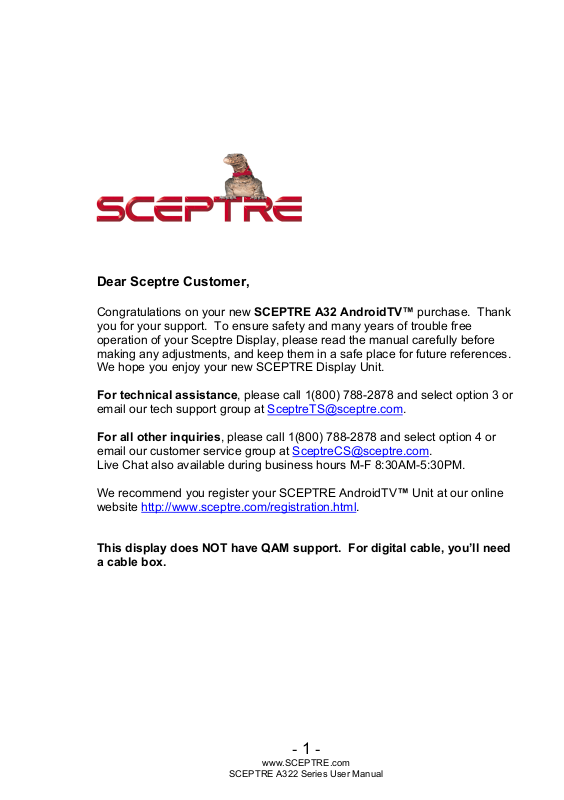

Congratulations on your new SCEPTRE A32 AndroidTV™ purchase. Thank
you for your support. To ensure safety and many years of trouble free
operation of your Sceptre Display, please read the manual carefully before
making any adjustments, and keep them in a safe place for future references.
We hope you enjoy your new SCEPTRE Display Unit.
For technical assistance, please call 1(800) 788-2878 and select option 3 or
email our tech support group at SceptreTS@sceptre.com
For all other inquiries, please call 1(800) 788-2878 and select option 4 or
email our customer service group at SceptreCS@sceptre.com
Live Chat also available during business hours M-F 8:30AM-5:30PM.
We recommend you register your SCEPTRE AndroidTV™ Unit at our online
website http://www.sceptre.com/registration.html
This display does NOT have QAM support. For digital cable, you’ll need
a cable box.
.
.
.
- 1 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
IMPORTANT INFORMATION
- 2 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause
personal injuries and property damage if improperly handled. This product
has been engineered and manufactured with the highest priority on safety.
However, improper use can result in electric shock and / or fire. In order to
prevent potential danger, please observe the following instructions when
installing, operating and cleaning the product. To ensure your safety and
prolong the service life of your Liquid Crystal Television, please read the
following precautions carefully before using the product.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
the plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- 3 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
SAFETY INSTRUCTIONS
This product is designed and manufactured to operate within defined design limits, and
misuse may result in electric shock or fire. To prevent the product from being damaged,
the following rules should be observed for the installation, use and maintenance of the
product. Read the following safety instructions before operating the display. Keep these
instructions in a safe place for future reference.
•To avoid the risk of electric shock or
component damage, switch off the
power before connecting other
components to the DISPLAY.
•Unplug the power cord before
cleaning the DISPLAY. Please use a
microfiber cleaning cloth for cleaning
the bezel of the DISPLAY only. Do not
use a liquid or a spray cleaner for
cleaning the product. Do not use
abrasive cleaners.
•Always use the accessories
recommended by the manufacturer to
insure compatibility.
•When moving the DISPLAY from an
area of low temperature to an area of
high temperature, condensation may
form on the housing. Do not turn on
the DISPLAY immediately after this to
avoid causing fire, electric shock or
component damage.
•Do not place the DISPLAY on an
unstable cart, stand, or table. If the
DISPLAY falls, it can injure a person
and cause serious damage to the
appliance. Use only a cart or stand
recommended by the manufacturer or
sold with the DISPLAY.
•Any heat source should maintain a
distance of at least 5 feet away from
the DISPLAY, i.e. radiator, heater,
oven, amplifier etc. Do not install the
product too close to anything that
produces smoke or moisture.
Operating the product close to smoke
or moisture may cause fire or electric
shock.
•Slots and openings in the back and
bottom of the cabinet are provided for
ventilation. To ensure reliable
operation of the DISPLAY and to
protect it from overheating, be sure
these openings are not blocked or
covered. Do not place the DISPLAY in
a bookcase or cabinet unless proper
ventilation is provided.
•Never push any object into the
ventilation slots of the DISPLAY. Do
not place any objects on the top of the
Product. It could short circuit parts
causing a fire or electric shock. Never
spill liquids on the DISPLAY.
•Do not use the DISPLAY in a portrait
format (by rotating 90 degrees) under
high temperature environment (25°C
or higher), since this would retard heat
dissipation and would eventually
damage the DISPLAY.
•The DISPLAY should be operated
only from the type of power source
indicated on the label. If you are not
sure of the type of power supplied to
your home, consult your dealer or
local power company.
•The power cable must be replaced
when using different voltage from that
specified in the User Manual. For
more information, contact your dealer.
•The DISPLAY is equipped with a
three-pronged grounded plug, a plug
with a third (grounding) pin. This plug
will fit only into a grounded power
outlet as a safety feature. If your outlet
does not accommodate the three-wire
plug, have an electrician install the
correct outlet, or use an adapter to
ground the appliance safely. Do not
defeat the safety purpose of the
grounded plug.
- 4 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
•Do not overload power strips and
extension cords. Overloading can
result in fire or electric shock.
•The wall socket should be installed
near the equipment and should be
easily accessible.
•Only the marked power source can be
used for the product. Any power
source other than the specified one
may cause fire or electric shock.
•Do not touch the power cord during
thunderstorms. To avoid electric shock,
avoid handling the power cord during
electrical storms.
•Unplug the unit during a lightning
storm or when it will not be used for a
long period of time. This will protect
the DISPLAY from damage due to
power surges.
•Do not attempt to repair or service the
product yourself. Opening or removing
the back cover may expose you to
high voltages, the risk of electric shock,
and other hazards. If repair is required,
please contact your dealer and refer
all servicing to qualified service
personnel.
•Keep the product away from moisture.
Do not expose this appliance to rain or
moisture. If water penetrates into the
product, unplug the power cord and
contact your dealer. Continuous use in
this case may result in fire or electric
shock.
•Do not use the product if any
abnormality occurs. If any smoke or
odor becomes apparent, unplug the
power cord and contact your dealer
immediately. Do not try to repair the
product yourself.
•Avoid using dropped or damaged
appliances. If the product is dropped
and the housing is damaged, the
internal components may function
abnormally. Unplug the power cord
immediately and contact your dealer
for repair. Continued use of the
product may cause fire or electric
shock.
•Do not install the product in an area
with heavy dust or high humidity.
Operating the product in environments
with heavy dust or high humidity may
cause fire or electric shock.
•Hold the power connector when
removing the power cable. Pulling the
power cable itself may damage the
wires inside the cable and cause fire
or electric shocks. When the product
will not be used for an extended
period of time, unplug the power
connector.
•To avoid risk of electric shock, do not
touch the connector with wet hands.

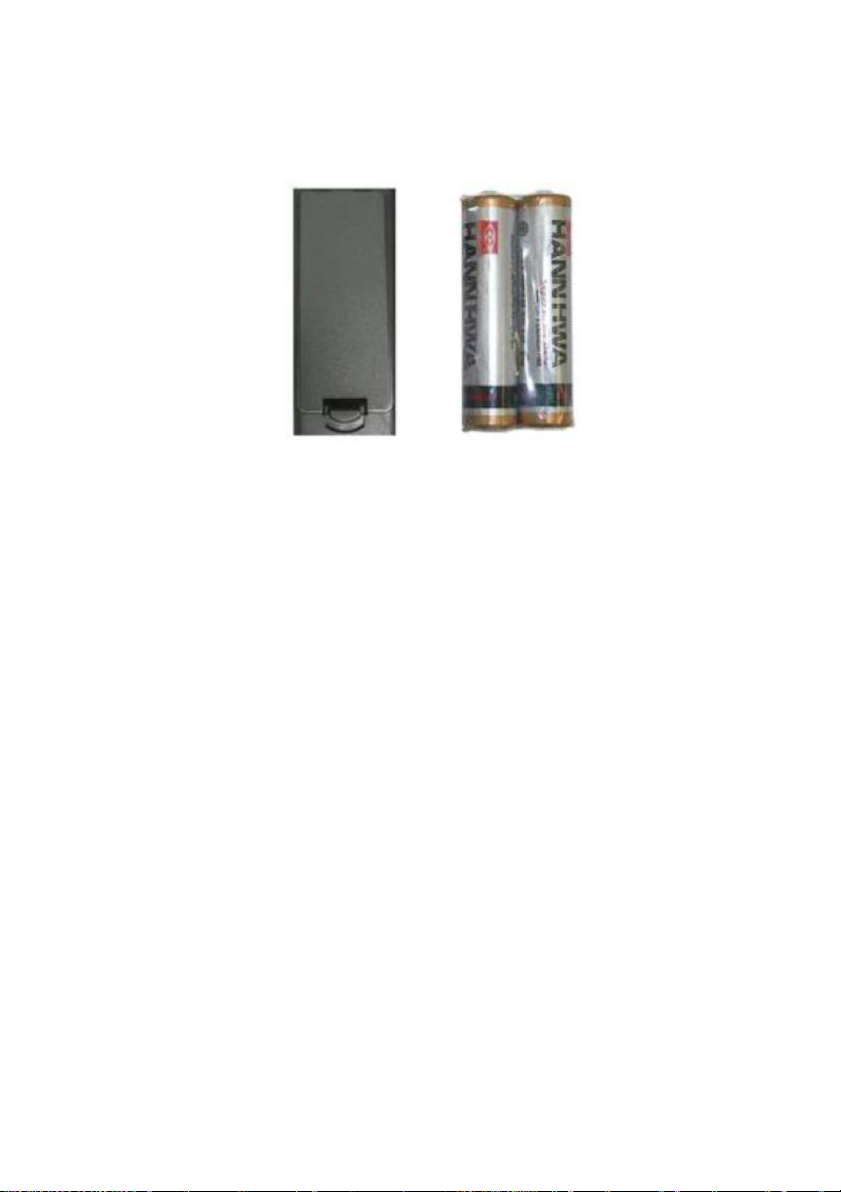

•Insert batteries in accordance with
instructions while using the remote
control. Incorrect polarities may cause
damage and leakage of the batteries,
operator injury and contamination the
remote control.
•If any of the following occurs please
contact the dealer:
oThe power connector fails
or frays.
oLiquid sprays or any object
drops into the DISPLAY.
oThe Display is exposed to
rain or other moisture.
oThe Display is dropped or
damaged in any way.
oThe performance of the
Display changes
substantially.
•Operating environment: Temperature:
5°C ~ 35°C, Humidity: 10% to 90%
non-condensing, Altitude: 0~10,000 ft.
- 5 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
IMPORTANT INFORMATION
Television Antenna Connection Protection**
External Television Antenna Grounding
If an outside antenna or cable system is to be connected to the display, make sure that
the antenna or cable system is electrically grounded to provide some protection against
voltage surges and static charges. Article 810 of the National Electrical Code,
ANSI/NFPSA 70, provides information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Lightning Protection
For added protection of the display during a lightning storm or when it is left unattended
or unused for long periods of time, unplug the display from the wall outlet and
disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could fall
into such power lines or circuits.
**TV tuner optional
- 6 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Opening the Package
The SCEPTRE DISPLAY is packaged in a carton. Any standard accessories are
packed separately in another carton. Due to the size and weight of the product, it is
suggested that it must be handled by a minimum of 2 or more persons. Since the glass
can be easily scratched or broken, please handle the product gently. Never place the
unit on a surface with the glass facing downwards unless it is on protective padding.
When opening the carton, check that the product is in good condition and that all
standard accessories and items are included. Save the original box and all packing
materials for future shipping needs.
Package Contents
SCEPTRE Display x 1
Display Base x 1
Screws x 4
TV Feet x 2
Screw driver x 1
Power Cord x 1
Warranty Card x 1

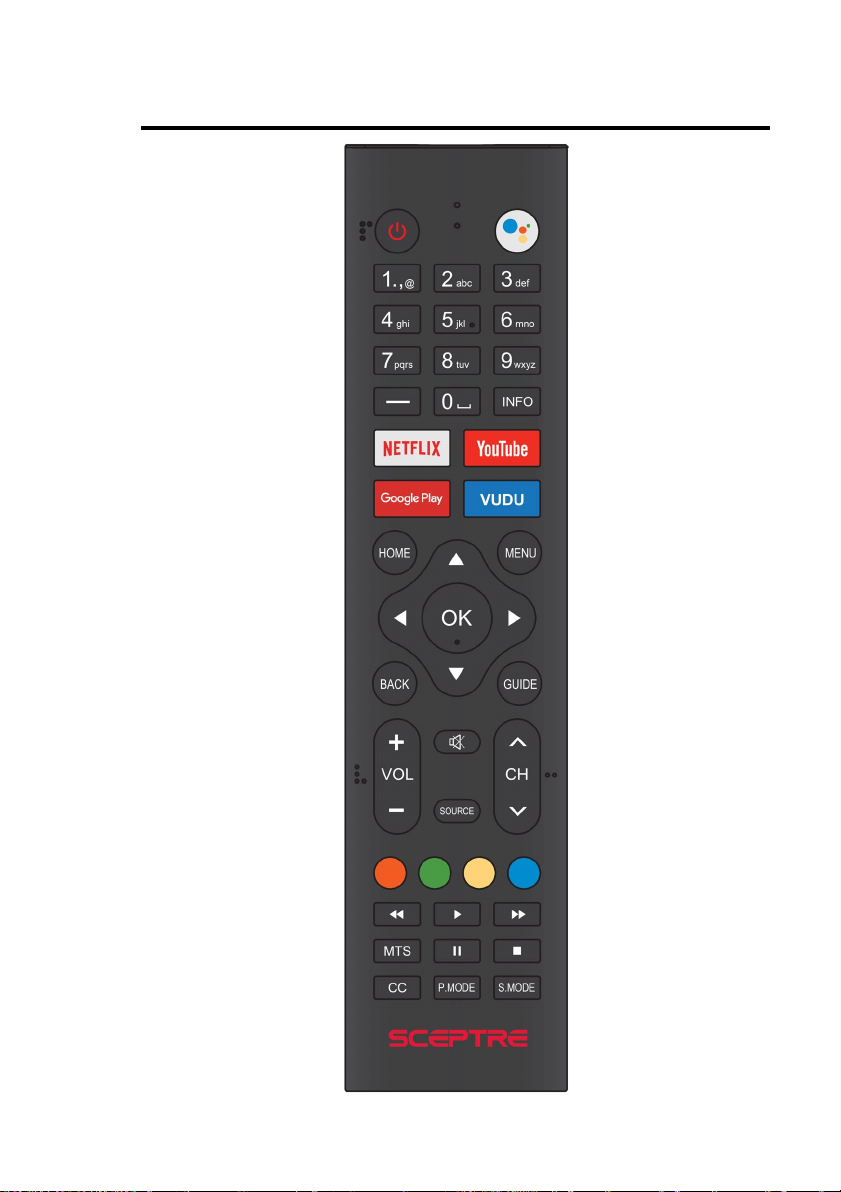

Display Remote Control (AAA Batteries included) x 1
User Guide x 1 (Complete manual available online at sceptre.com)
Installation
Please read the user manual carefully before performing the installation. Please use the
power cord designated for the product. When an extension cord is required, use one
with the correct power rating. The cord must be grounded and the grounding feature
must not be defeated. The product should be installed on a flat surface to avoid tipping.
Space should be maintained between the back of the product and the wall for proper
ventilation. Avoid installing the product in the kitchen, bathroom or other places with
high humidity dust or smoke, so as not to shorten the service life of the electronic
components. Please ensure the product is installed with the screen in landscape
orientation. Any 90° clockwise or counterclockwise installation may induce poor
ventilation and successive component damage.
- 7 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Attaching or Removing the Stand
1. To install the 2 TV feet, attach them to the bottom of the TV and screw in the 4
screws indicated in the picture. R and L represent the left or right foot while
looking at the TV from the back. To remove them, simply unscrew the 4 screws
and the feet will come off.
2. To finalize your installation of the Display, please read the following:
a. If you are placing the Display on a stand, we would recommend you to
use a Display safety strap (not included) in order to minimize the
possibility of the Display toppling over.
b. If you are mounting the Display on the wall
i. Make sure the wall is structurally safe for the weight of the
Display
ii. Make sure the wall mount kit is compatible with the Display
iii. Read and follow all instructions provided by the wall mounting
kit.
iv. Securely install all screws and connections.
- 8 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Table of Contents
IMPORTANT INFORMATION .......................................................................... 2
Recycling Information ..................................................................................... 37
- 9 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Identifying Front and Rear Panel
Front View
INDICATOR LIGHT – The light is red when power is plugged in but the display is not turned on. The light turns blue when the display is turned on. The display might take 10 – 12 seconds to power
on. This is considered to be normal.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification: 100mm x 100mm using screw size M6. Length of screw should not exceed
8mm. Please Note: The 8mm length of screw refers to how deep the screw can go i nside the
mounting holes. When you’re buying screws, you should add the original 8mm to the thickness of
your mounting plate in order to get the total screw length.
- 10 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Display Control Buttons
1. POWER – Turn on the display by pressing the button once. Press and hold the
button again to turn off the display. While the display is on, pressing the button will
turn on the OSD. If the OSD is active, this button functions as select for the menu.
2. CH(
3. CH(
4. VOL(-) – This button decreases the display’s volume. If the OSD is active,
5. VOL(+) – This button increases the display’s volume. If the OSD is active,
▼) – This button changes the display channel down. If the OSD is active, this
button functions as down for the menu.
▲) – This button changes the display cha nnel up. If the OSD is active, this
button functions as up for the menu.
pressing this button will move the selection left.
pressing this button will move the select right.
- 11 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Rear View Connections
1. RJ45 (INTERNET) – This TV can connect to internet wirelessly.
The RJ45 connection port is used for wired internet using a
standard Ethernet network cable. This port is 10/100 BASE-T.
2. OPTICAL OUT (SPDIF) - This connection port is used for sending
out digital audio signals to digital surround sound receivers. The
black (Optical SPDIF OUT) connector sends out either bit-stream or
PCM digital sound signal to a home theater receiver with digital
optical input.
3. HDMI 1-3 – HDMI connects to devices that use HDMI cable, such as
Blu-ray or HD DVD player, or HD cable / satellite set-top box. These
connection ports receive pure digital audio and high definition signal
through one single cable. These ports also accept HDCP video
devices for videos.
4. AV – This connection port is for DVD players or satellite / cable settop boxes that use composite cables. Connect the yellow head cable
to the yellow port then connect red head to the red port and white
head to the white port for audio. The red / white audio ports are
shared with the source MINI-YPBPR.
5. HEADPHONE – This connection is for headphones to be attached to
the Display.
6. DT (Optional) – This connection is for analog cable without the cable
box or over-the-airwave antennas. The tuner is a hybrid tuner that
tunes to both analog and digital channels. This connection uses
coaxial RF cable. For over-the airwave digital stations please check
http://www.antennaweb.org
For digital cable, you WILL need a cable box.
7. USB 1&2 – USB connects to USB flash drives for playing music and
picture. The USB port is also used for USB accessories that are
compatible with ANDROID TV.
.This tuner DOES NOT support QAM.
- 12 -
www.SCEPTRE.com
SCEPTRE A322 Series User Manual
Loading...
+ 25 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
