HDMI Splitter 1 In / 2 Out
Instruction
Manual
Full 1080p HD IR Extender Rich Colours
HD Audio Supports 3D Video
HDM302 User Manual
xHDM302
HDM302 User Manual
2
myScatterBox.com

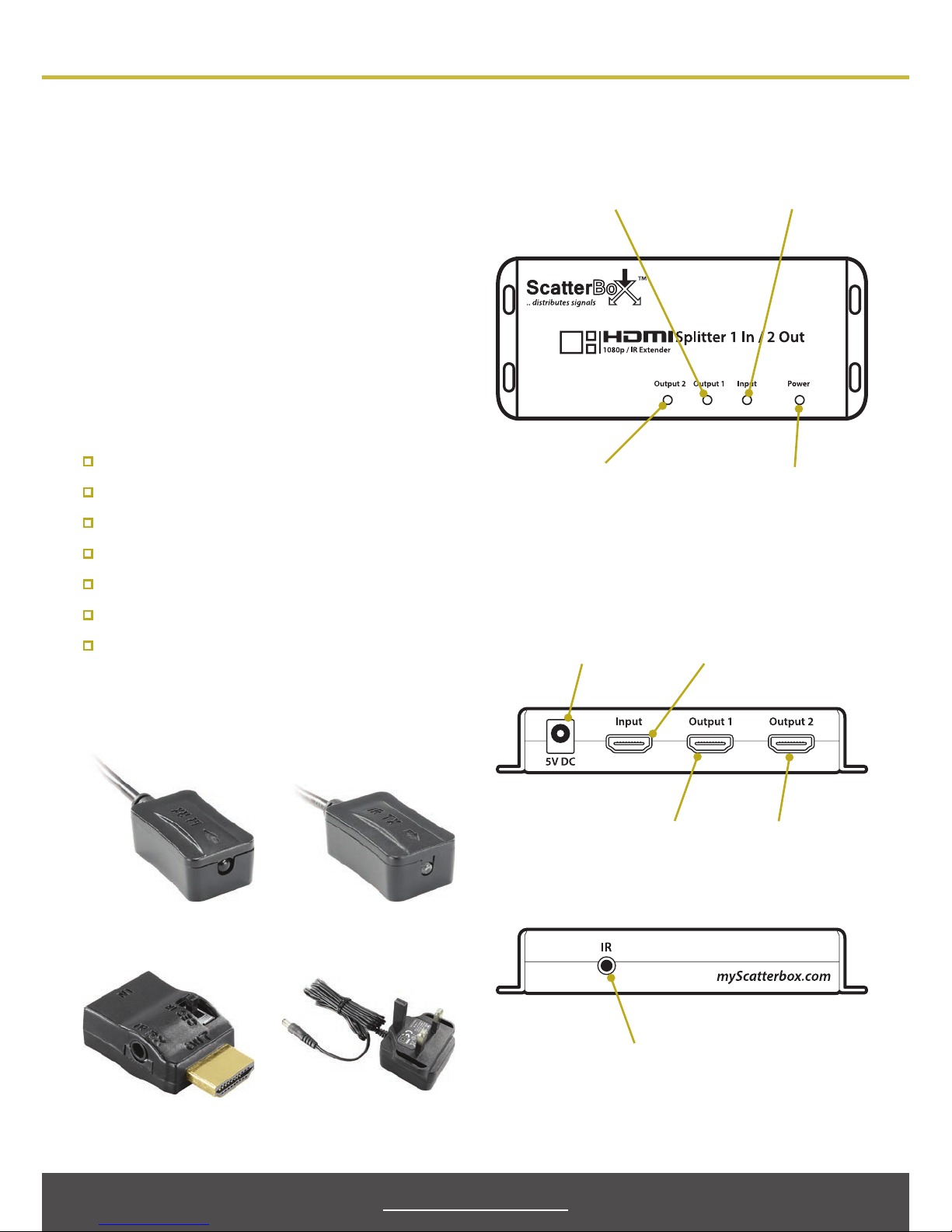

Shows when a 2nd
output is connected
Shows when a 1st
output is connected
2.1mm DC
Power socket
1st HDMI
Output
IR Tx (Transmitter)
Socket
2nd HDMI
Output
HDMI Input from
video source
Shows when HDMI
input is connected
Shows when unit is
receiving power
Introduction
Our ScatterBox branded products
are high quality electronics which
o er simple and reliable solutions for
distributing video signals through your
CCTV or entertainment system.
The HDM302 splits a single HDMI input
into two HDMI outputs and also features a
built in IR extender.
Features
1 HDMI Input / 2 HDMI Outputs
Built In IR Extender
Supports Full 1080p & 3D Video
HD Audio
5V DC PSU Included
Quality Metal Build
Wall-mount Design
Accessories
LED Indicators
Connections
IR Tx (Transmitter)
HDMI Adapter 5V 1A 2.1mm
UK 3-Pin PSU
IR Rx (Receiver)
3
Doc ref: xHDM302
Connection Instructions
DVR / HDMI Video
Source
IR Tx
IR Rx
DVR IR
Remote Control
HDM302
HDMI
Output 1
HDMI
Output 2
HDMI
Adapter
3
5
2 2
4
1
Connect a HDMI lead from the HDMI
output of the DVR or other video
device to the HDMI ‘Input’ of the
HDM302. When connecting the HDMI
input the maximum lead length you
can use is 15m.
1
Position the IR Rx so that it will be in
line of site of the remote control.
4
Connect the IR Tx to the ‘IR’ socket on
the side of the HDM302. Position the IR
Tx so that it has line of sight to the DVR.
5
Finally connect the PSU supplied to
the HDM302, plug into a power outlet
and switch on. The ‘Power’ and ‘Input’
lights should come on as well as the
‘Output’ light for each output which
has a connection.
6
Connect the HDMI outputs of the
HDM302 to your two monitors using
HDMI leads. When connecting the
HDMI outputs the maximum lead
length you can use is 25m.
2
Connect the HDMI adapter in-line
between the HDMI lead and one of the
monitors. Plug the IR Rx into the ‘
IR Rx
’
socket on the adapter. When using the
IR extender ensure the CEC/IR switch
on the HDMI adapter is set to ‘IR’.
3
© Copyright 2015
Specication
Specication Feature
Video Inputs 1
Video Outputs 2
Video Connection HDMI Sockets
Resolution 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Frame Rate 24fps / 50fps / 60fps
Video Colour Format 24 bit / Deep Colour 30 bit / 36 bit
Audio Format DTS-HD / Dolby-true HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
Max Bandwidth 225MHz
Max Baud Rate 6.75Gbps
Input / Output TMDS Signal 0.5 ~ 1.5 Volts p-p (TTL)
Input / Output DCC Signal 5 Volts p-p (TTL)
Max Input Cable Length Up to 15m
Max Output Cable Length Up to 25m
PSU Input 100 ~ 240V AC (50HZ / 60HZ)
PSU Output 5V DC / 1A
Max Working Current 350mA
Power Connection 2.1mm DC Socket
Operating Temperature -15 ~ +55°C
Operating Humidity 5 ~ 90% RH
Dimensions 124 x 52 x 20mm
Weight 190g
User Information
The splitter must be installed in a clean, dry environment where it will not be exposed to
high temperatures, moisture or excessive dust.
Do not touch the splitter or any of its connections with wet hands.
Ensure the power is switched o if the splitter is not in use for a long period of time.
The are no user serviceable parts in the splitter and opening or attempting to repair the
product will void the warranty.
Only use the PSU originally supplied with the product.
